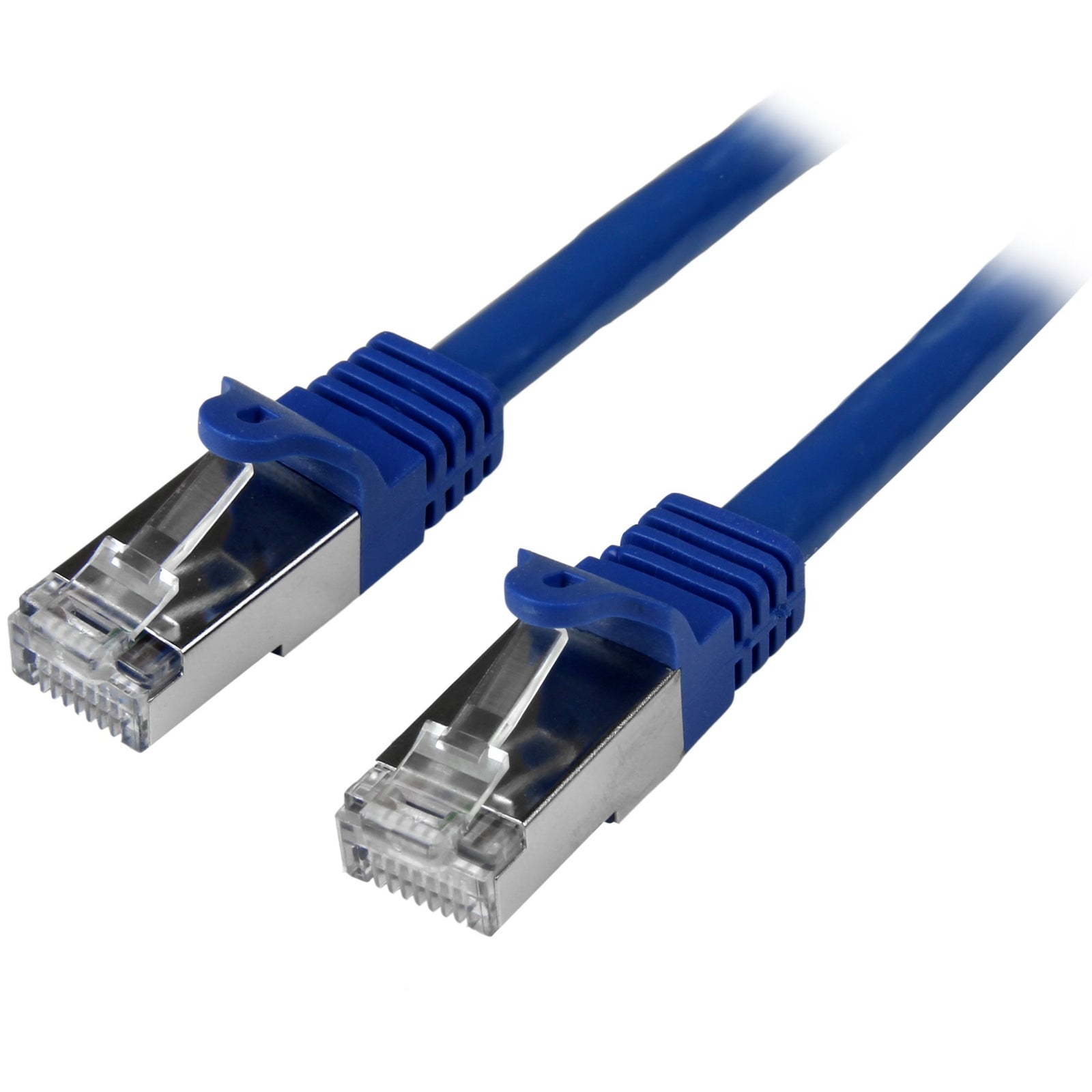

StarTech 5m Blue Cat6 Patch Cable - Shielded (SFTP) - N6SPAT5MBL
This 5-meter Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. The cable is shielded to protect your network against electromagnetic interference (EMI/RFI) and system noise, providing the perfect solution for fast and safe network connections.
Reliable Cat 6 Gigabit connections
Constructed with 100% copper and foil-shielded twisted-pair wiring, this cable delivers high-quality performance. It’s designed to keep the data signals traveling through your network free from interference, so it's perfect in environments that are prone to large amounts of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
Secured network connections

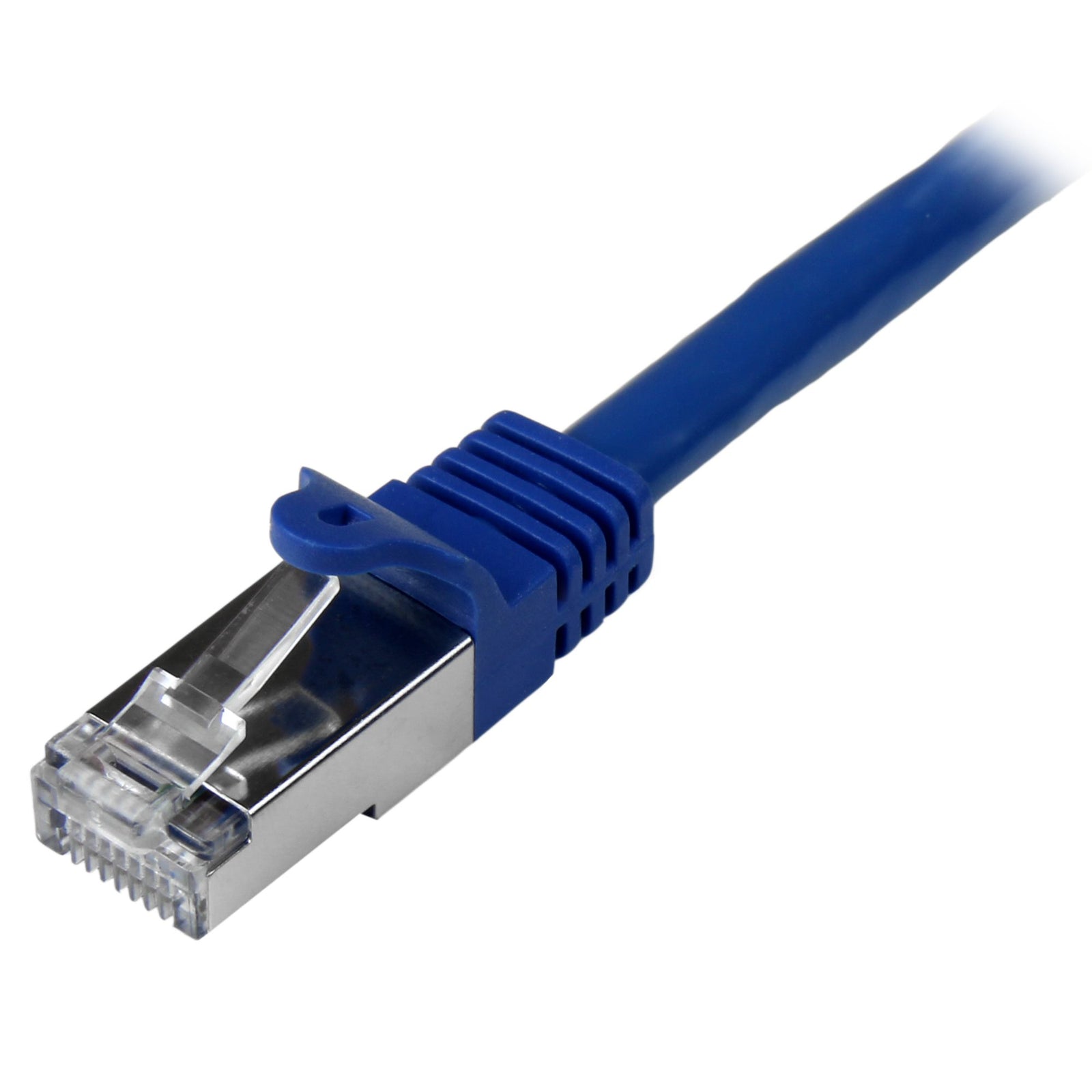

For easier cable runs, the snagless connectors protect the RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
Plus, the moulded boots offer strain relief that stops the RJ45 connector termination points from bending at sharp angles, which reduces the risk of damage to the cable that could decrease network performance.
The N6SPAT5MBL is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Applications
Connect PoE-enabled devices to Gigabit networks
Connect between computers, hubs, switches, print servers and patch panels
Connect a workstation to an RJ45 wall outlet
Deliver data, voice and video over Gigabit networks
-
Warranty Information |
|
Warranty |
Lifetime |
Connector(s) |
|
Connector A |
1 - RJ-45 |
Connector B |
1 - RJ-45 |
Environmental |
|
Operating Temperature |
0 to 50 °C |
Storage Temperature |
-20 to 60 °C |
Humidity |
0-95 % |
Hardware |
|
Number of Conductors |
4 Pair SFTP |
Cable Jacket Material |
PVC - Polyvinyl Chloride |
Fire Rating |
CMG Rated (General Purpose) |
Cable Type |
Shielded Snag-less |
Wiring Standard |
TIA/EIA-568-B.1-2001 T568B |
Packaging Information |
|
Package Height |
28.0 mm [1.1 in] |
Package Length |
22.0 cm [8.7 in] |
Shipping (Package) Weight |
202.0 g [7.1 oz] |
Package Width |
20.0 cm [7.9 in] |
Package Quantity |
1 |
Performance |
|
Cable Rating |
CAT6 - 500 MHz |
Physical Characteristics |
|
Product Height |
0.0 cm [0.0 in] |
Product Width |
0.0 cm [0.0 in] |
Color |
Blue |
Wire Gauge |
26 AWG (0.404 mm) |
Conductor Type |
Stranded Copper |
Cable Length |
5 m [16.4 ft] |
Product Length |
5.0 m [16.4 ft] |
Weight of Product |
192.0 g [6.8 oz] |
What's in the Box |
|
Included in Package |
1 - 5m Blue Cat6 Shielded (SFTP) Patch Cable |
-
Description |
Downloads |
N6SPAT5MBL:Datasheet |
Downloads |
