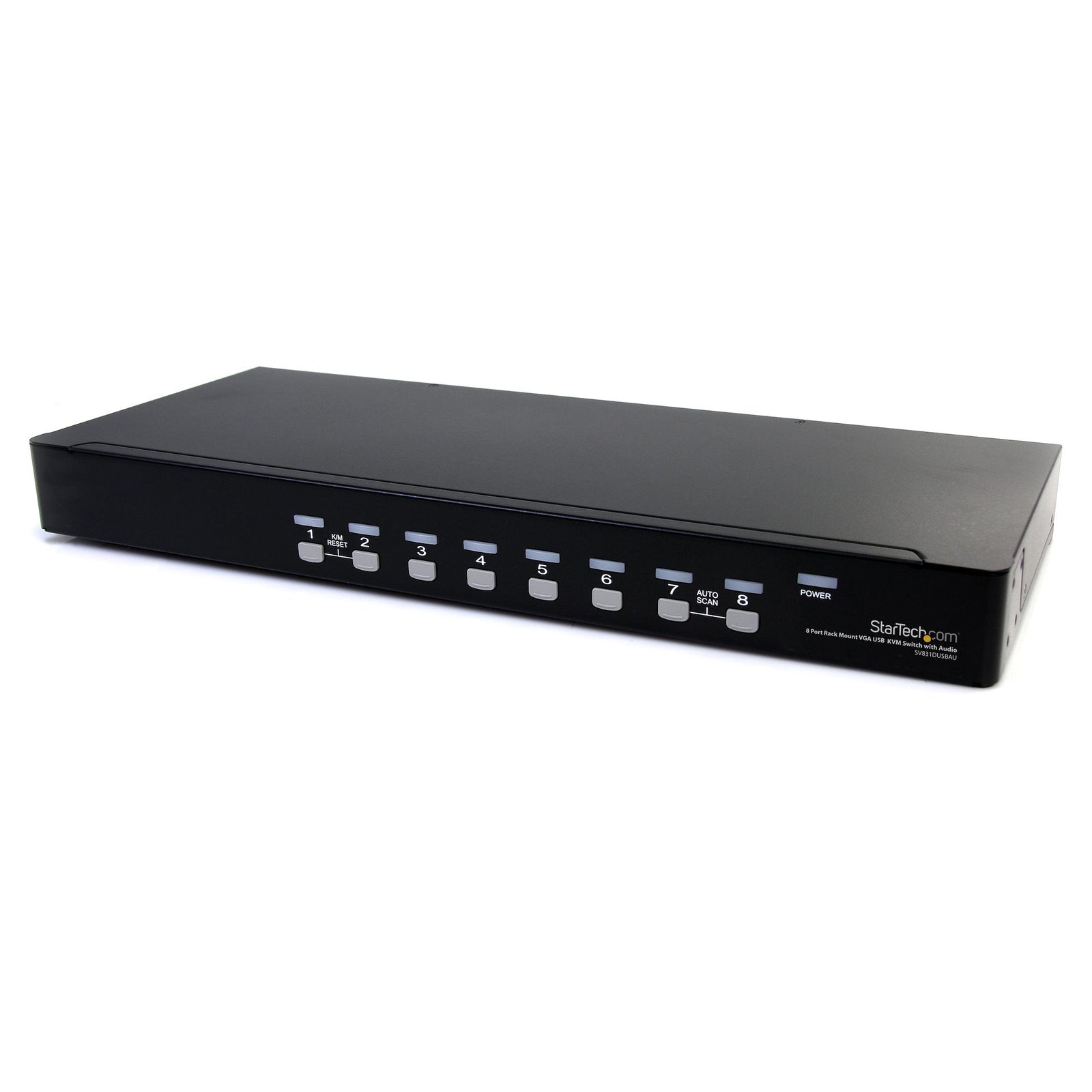

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

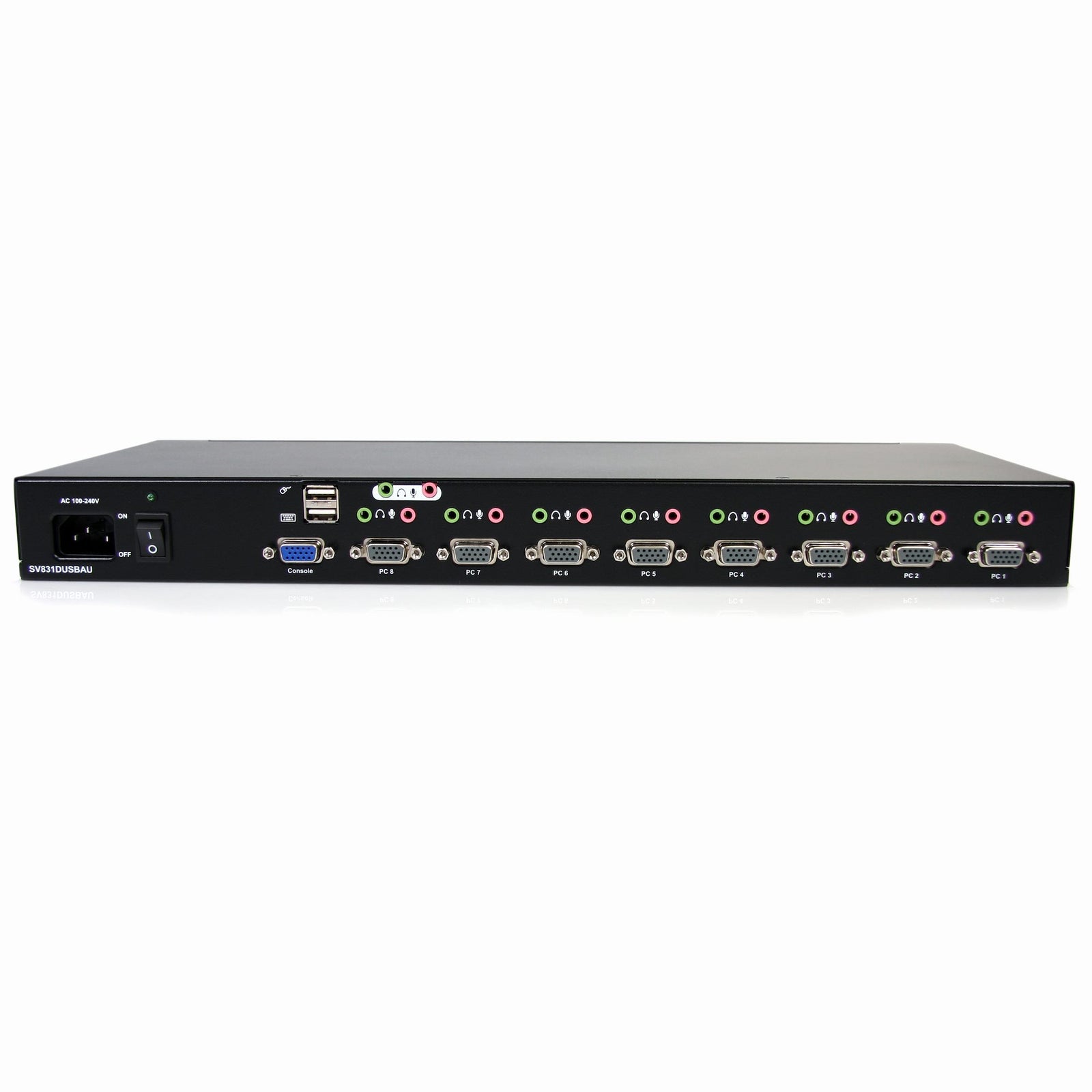

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

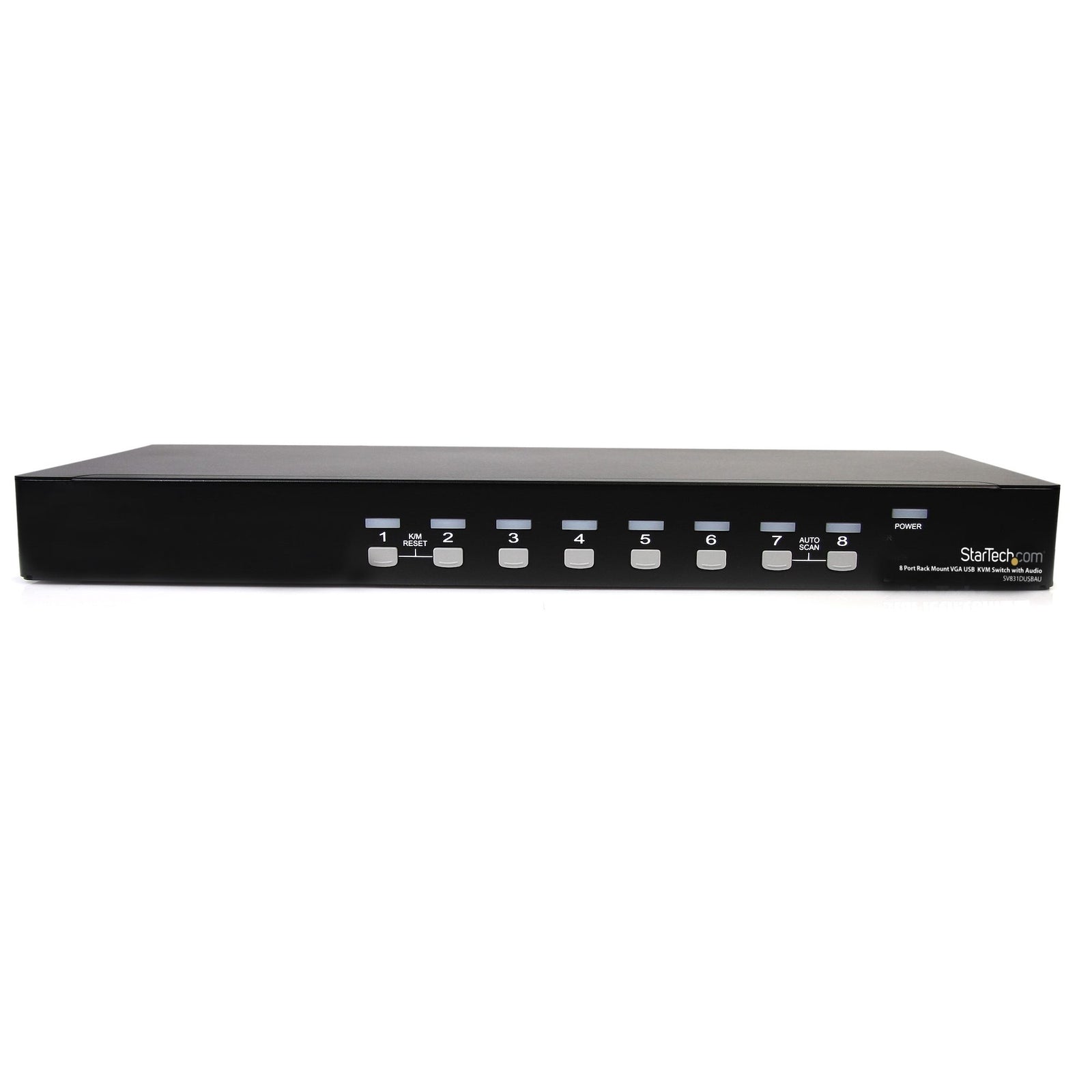

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Applications
Add single console administration to your Co-location/ISP facility saving you time and Money
Create a scalable, streamlined access solution in your Datacenter or Server Farm
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for
multiple monitors, keyboards and mice
Access multiple Security and DVR control systems from one place
Monitor multiple systems simultaneously in Software QA labs
| Category | Detail |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |
| Connector(s) | |
| Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 1 - VGA (15 pin, High Density D-Sub) | |
| Host Connectors | 16 - 3.5 mm Mini-Jack (3 Position) |
| 8 - VGA (15 pin, High Density D-Sub) | |
| Environmental | |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 8 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Yes |
| Cables Included | No |
| U Height | 1U |
| Daisy-Chain | Yes |
| Indicators | |
| LED Indicators | 1 - Green (Power) |
| 8 - Green (Online PC) | |
| 8 - Red (Selected PC) | |
| Packaging Information | |
| Package Quantity | 1 |
| Package Length | 23.4 in [59.4 cm] |
| Package Width | 10.5 in [26.6 cm] |
| Package Height | 4.7 in [12.0 cm] |
| Shipping (Package) Weight | 10.1 lb [4.6 kg] |
| Performance | |
| On-Screen Display | Yes |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Analog Resolutions | 1920 x 1440 @ 60Hz (1920 x 1200 @ 60Hz - Wide Screen) |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Maximum Cascaded Computers | 64 |
| Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
| MTBF | 150,000 hours |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Width | 21.3 in [54 cm] |
| Product Height | 1.8 in [4.5 cm] |
| Product Depth | 7.1 in [180 mm] |
| Weight of Product | 5.7 lb [2.6 kg] |
| Power | |
| Power Consumption (In Watts) | 48W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Includes eight 6ft. green audio cables and eight 6ft. red microphone cables |

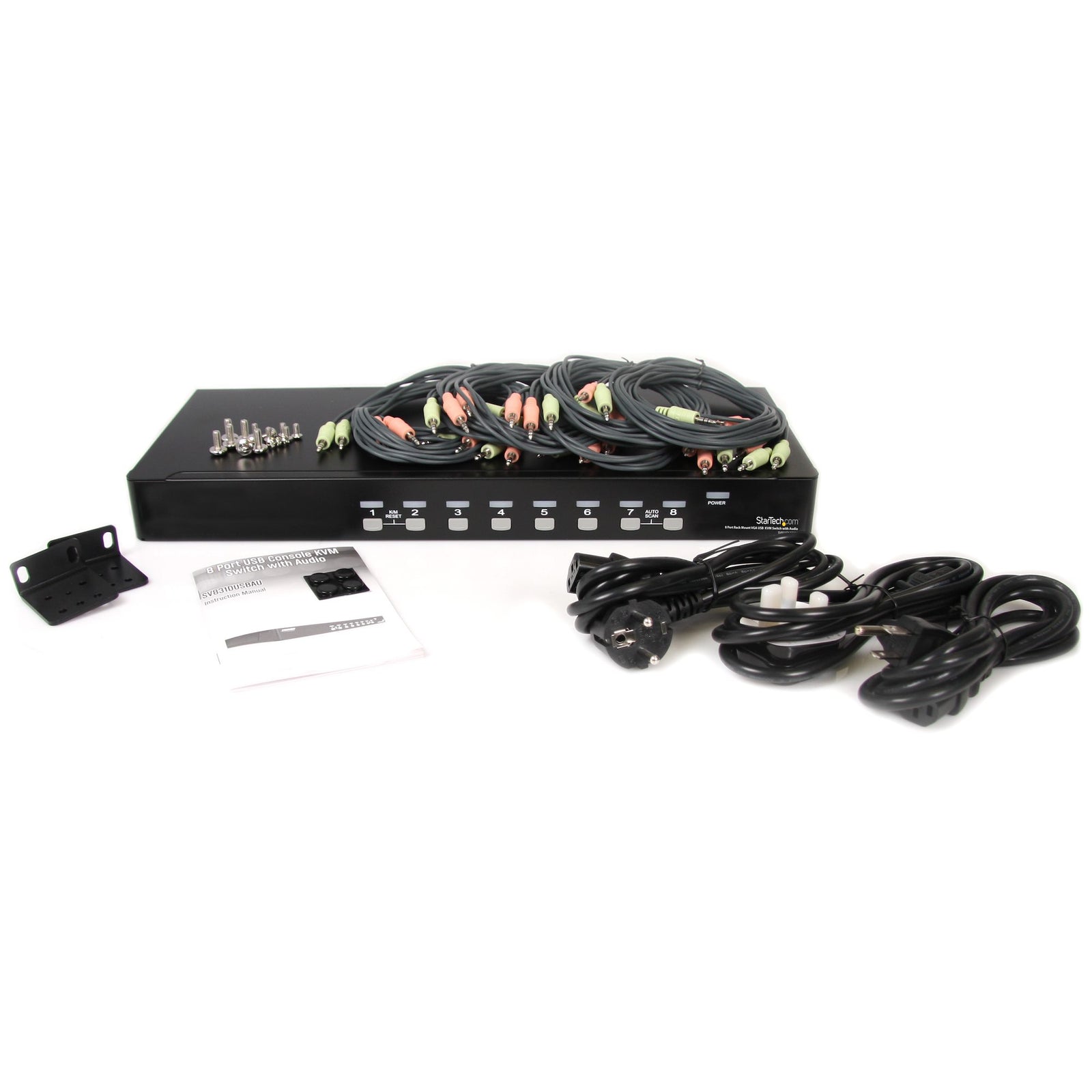

| What's in the Box | |
| Included in Package | 1 - KVM Switch |
| 2 - Mounting Brackets | |
| 8 - 6ft. Green Audio Cables and Red Microphone Cables (16 in Total) | |
| 4 - Foot Pads | |
| 3 - 6 ft. Power Cords (NA, EU, UK) | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
