StarTech HDBOOST HDMI Signal Booster - 115 ft, 1080p
SKU: HDBOOST
£17.81 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech HDBOOST HDMI Signal Booster - 115 ft, 1080p
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
Discreet installation

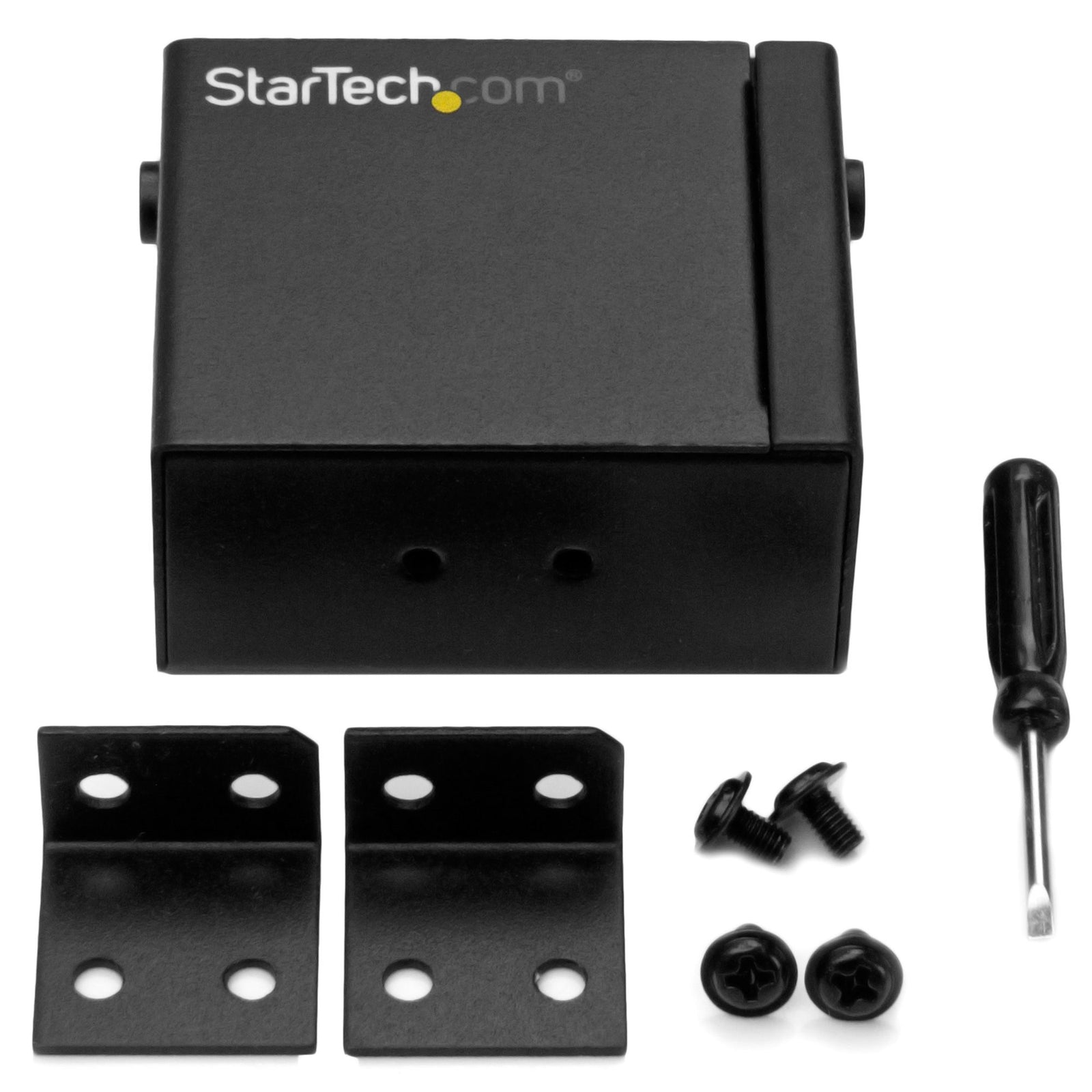

With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.Compatible with varying distances

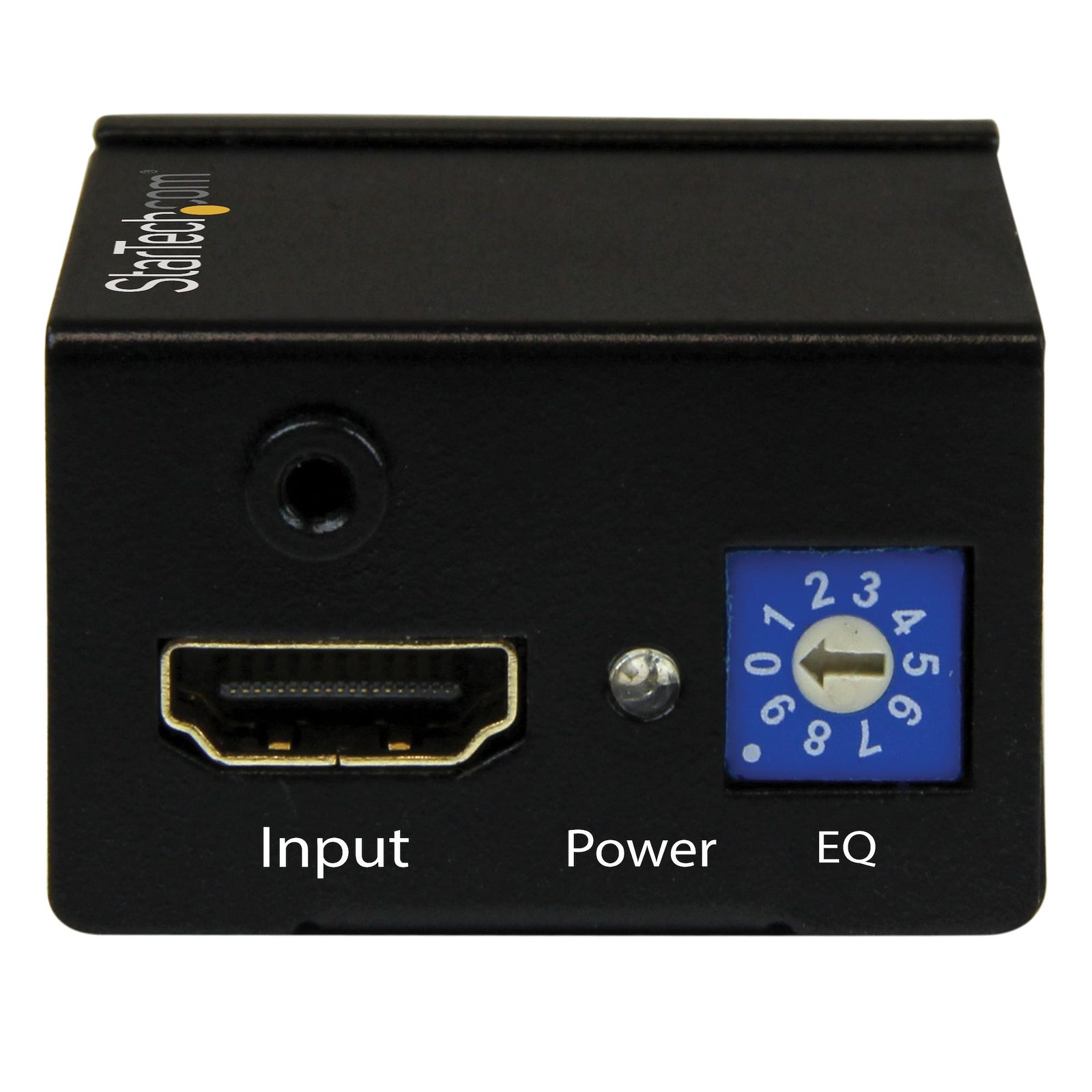

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications
Avoid running network cabling to extend video signals, by using this booster with standard HDMI cabling
Boost the signal strength of your HDMI video signals for classroom, office or boardroom displays -
Category Specification Warranty 2 Years Connectors Connector A: 1 - HDMI (19 pin) Connector B: 1 - HDMI (19 pin) Operating Temperature 0°C to 70°C (32°F to 158°F) Storage Temperature -10°C to 80°C (14°F to 176°F) Humidity 5% to 90% AV Input HDMI AV Output HDMI Cabling HDMI Audio Yes Rack-Mountable Yes Daisy-Chain No LED Indicators 1 - power LED (blue), 1 - video source LED (blue) Package Height 3.2 cm [1.3 in] Package Length 16.8 cm [6.6 in] Shipping Weight 156.0 g [5.5 oz] Package Width 14.4 cm [5.7 in] Package Quantity 1 Maximum Cable Length 35 m [114.8 ft] Max Distance 35m [115ft] Maximum Digital Resolutions 1920 x 1080 at 60Hz Supported Resolutions 1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 × 720 Wide Screen Supported Yes Weight of Product 74 g [2.6 oz] Color Black Material Steel Product Length 54.2 mm [2.1 in] Product Width 4.2 cm [1.7 in] Product Height 2.6 cm [1.0 in] Power Source Not Included (not required for standard applications) Input Voltage 100 - 240 AC Output Voltage 5 DC Output Current 1 A Center Tip Polarity Positive Plug Type N System and Cable Requirements The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display. The maximum supported video source cable length is 82 ft. (25m). The maximum supported display cable length is 33 ft. (10m). Included in Package 1 - HDMI signal booster, 2 - mounting brackets, 4 - mounting screws, 1 - screwdriver -
Description Downloads Datasheet Downloads Manual Downloads
