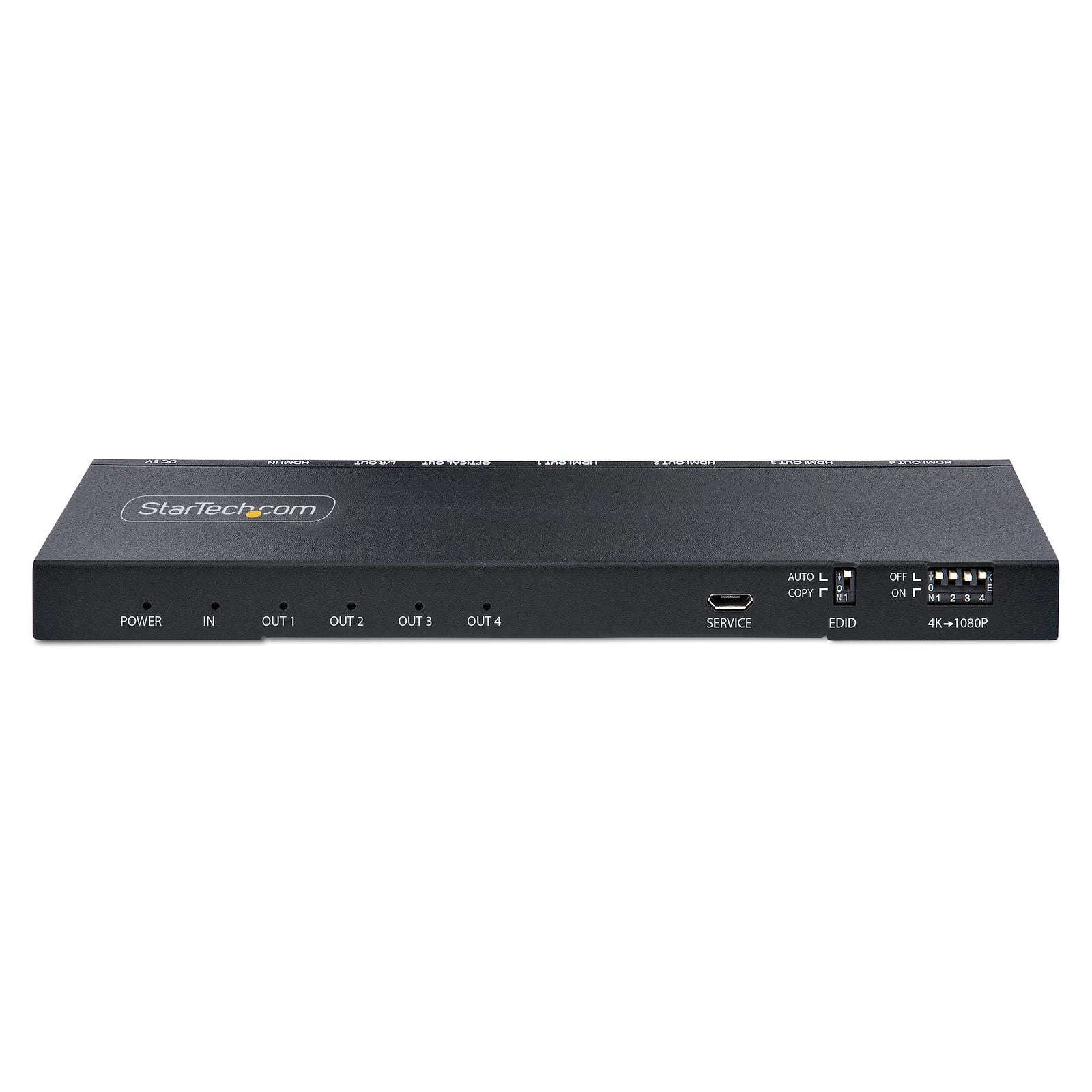

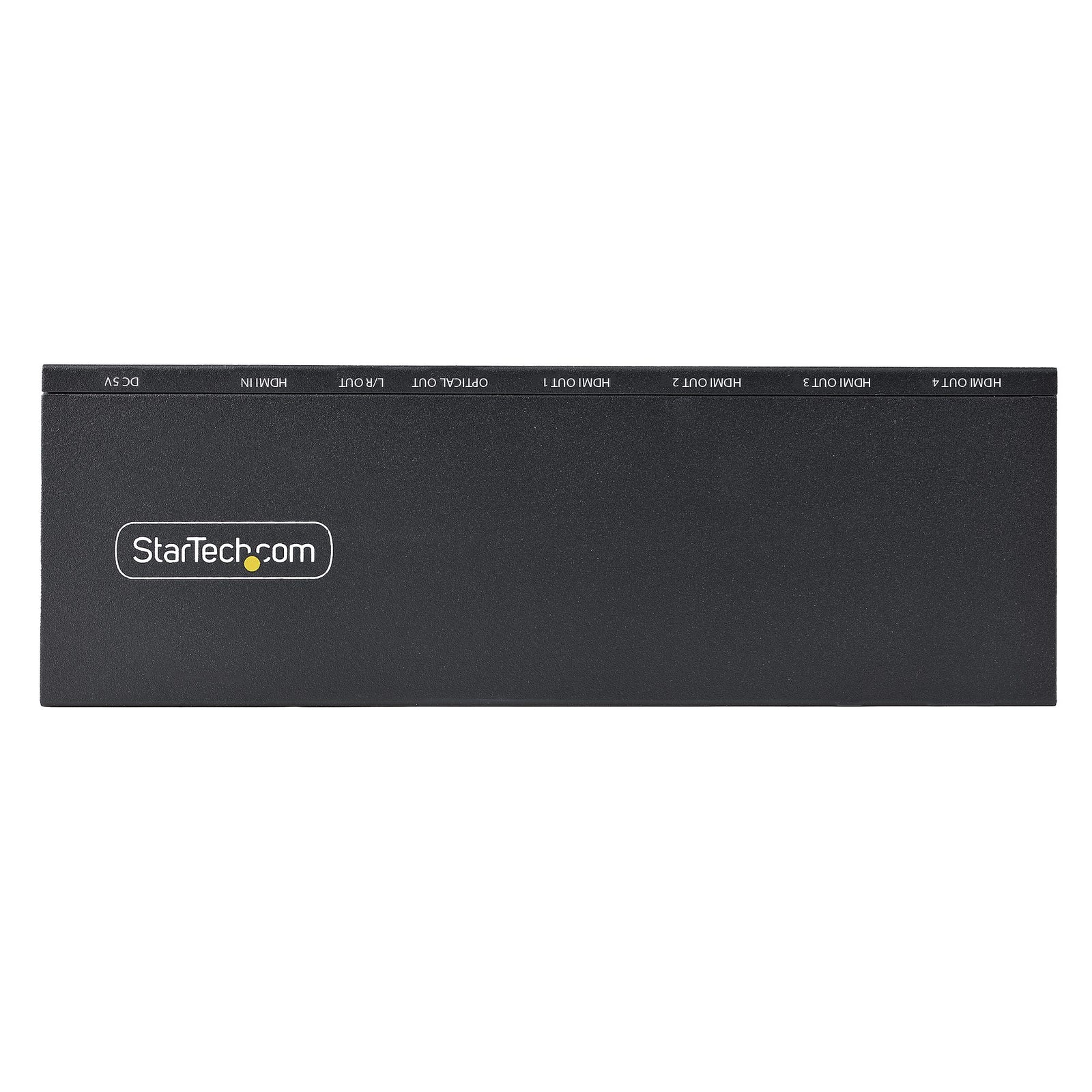

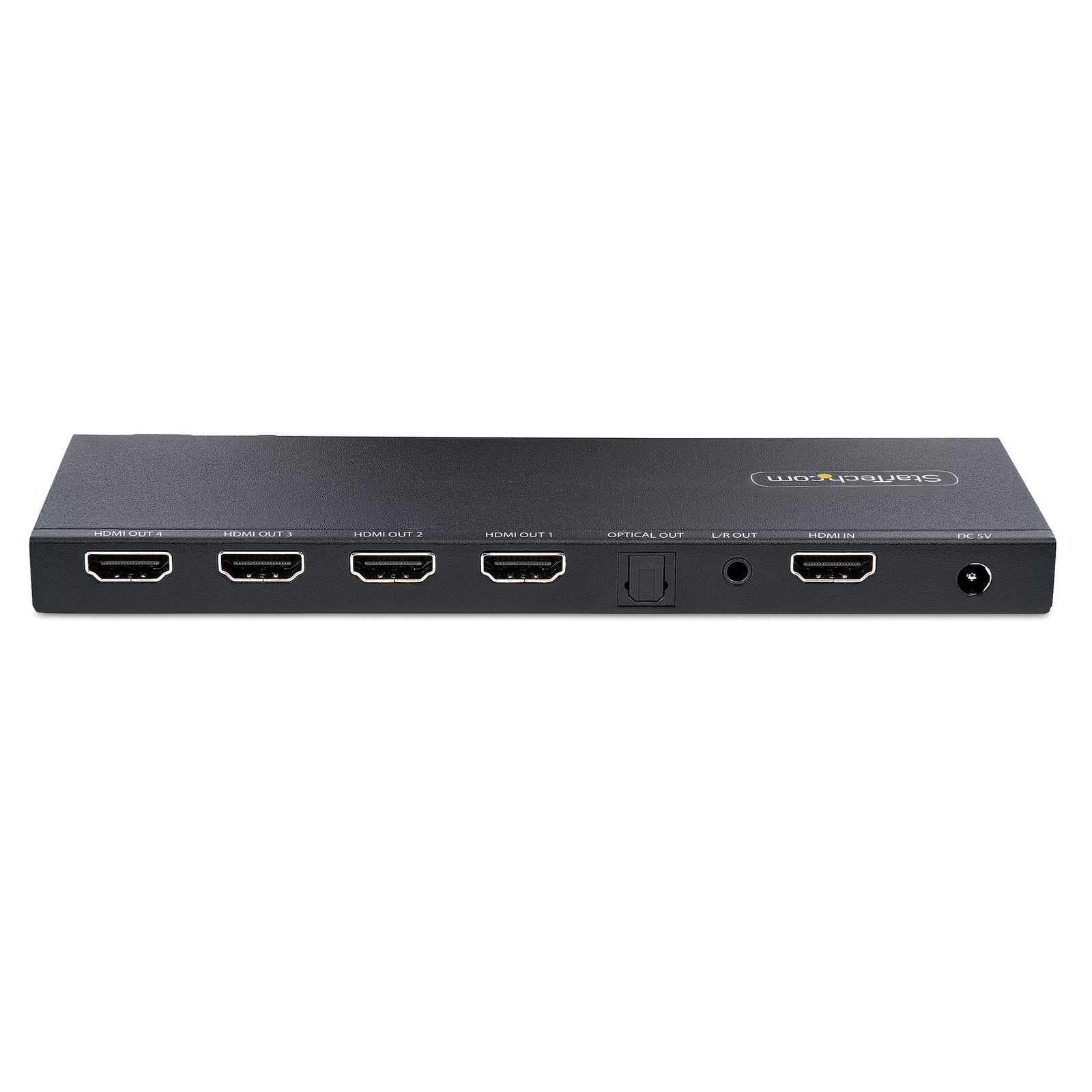

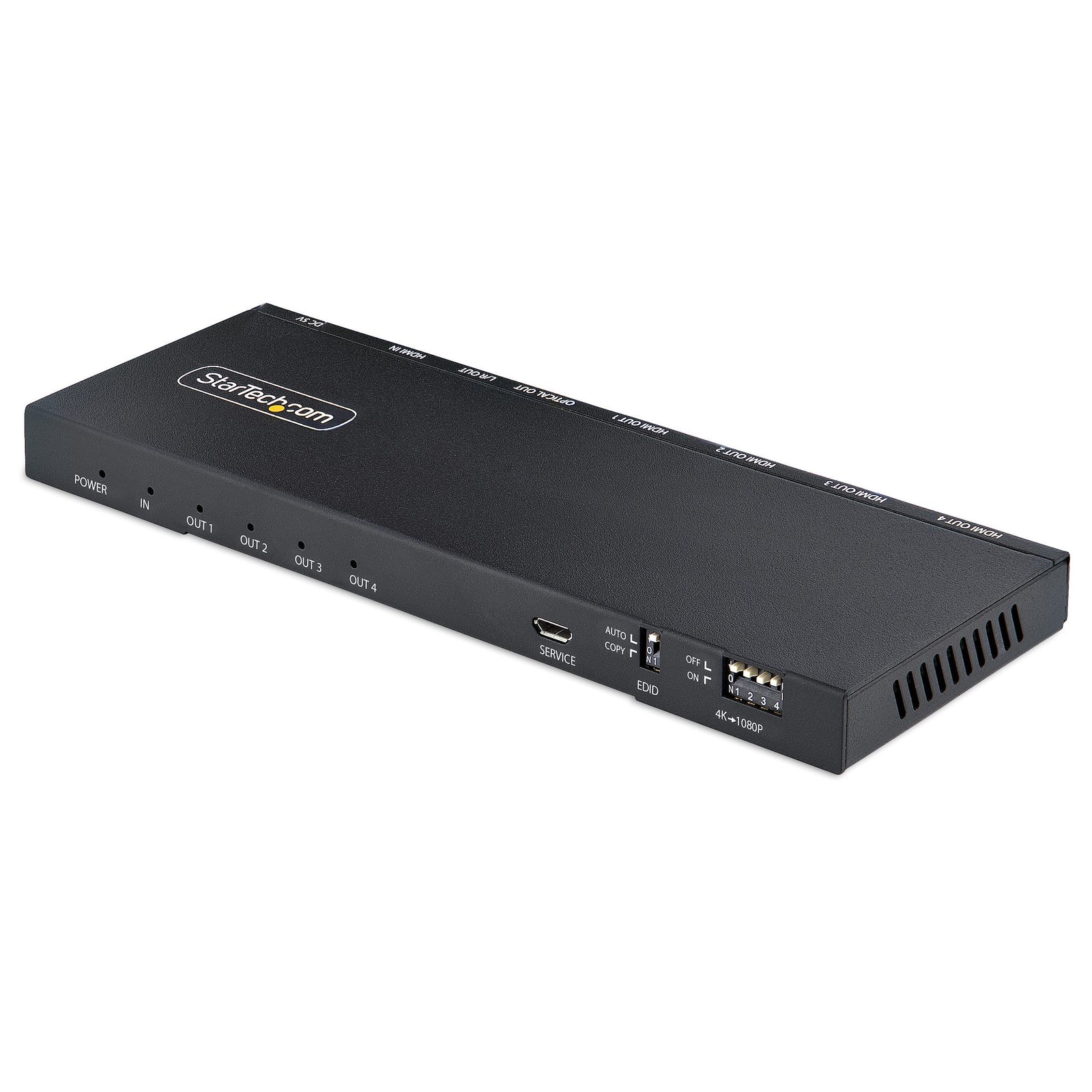

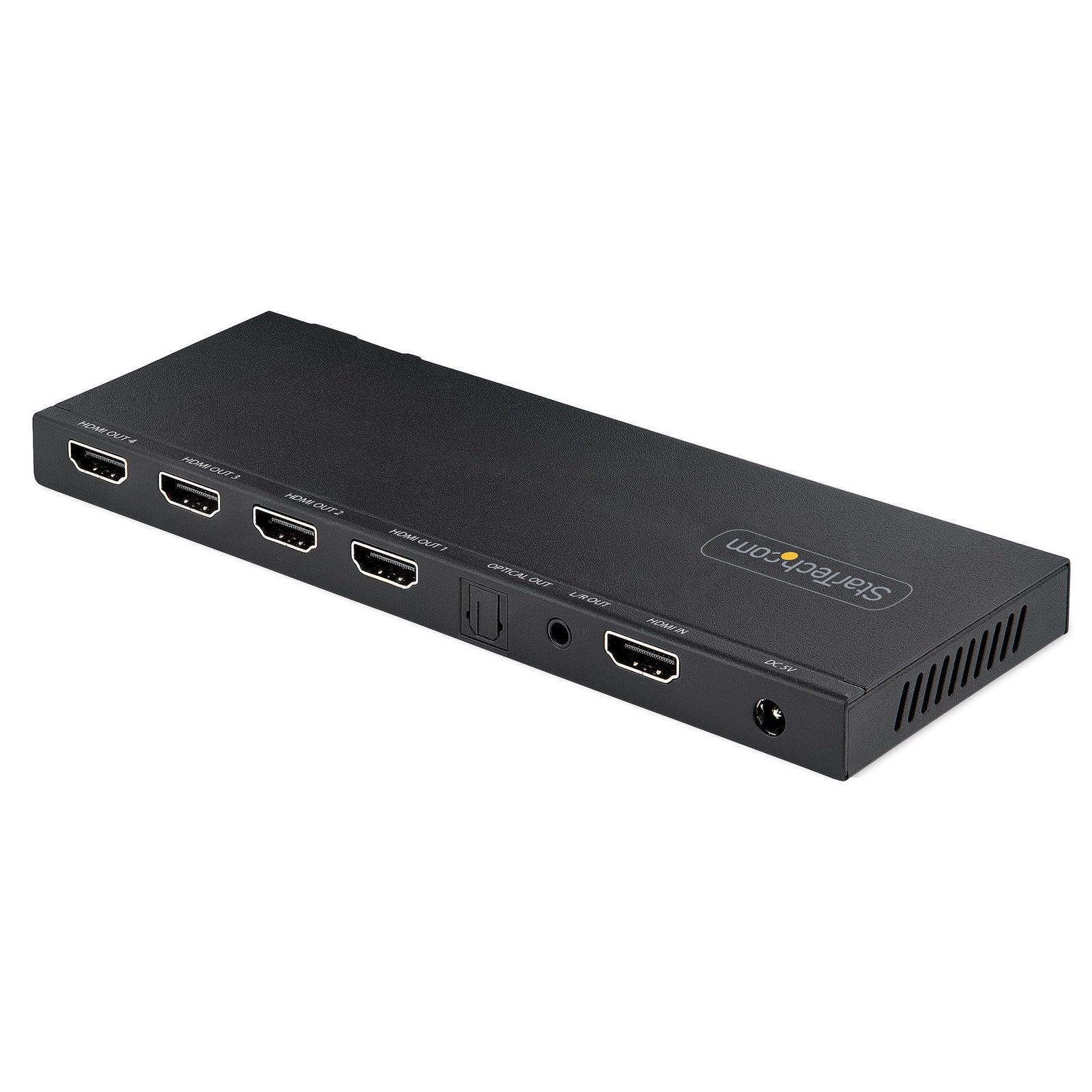

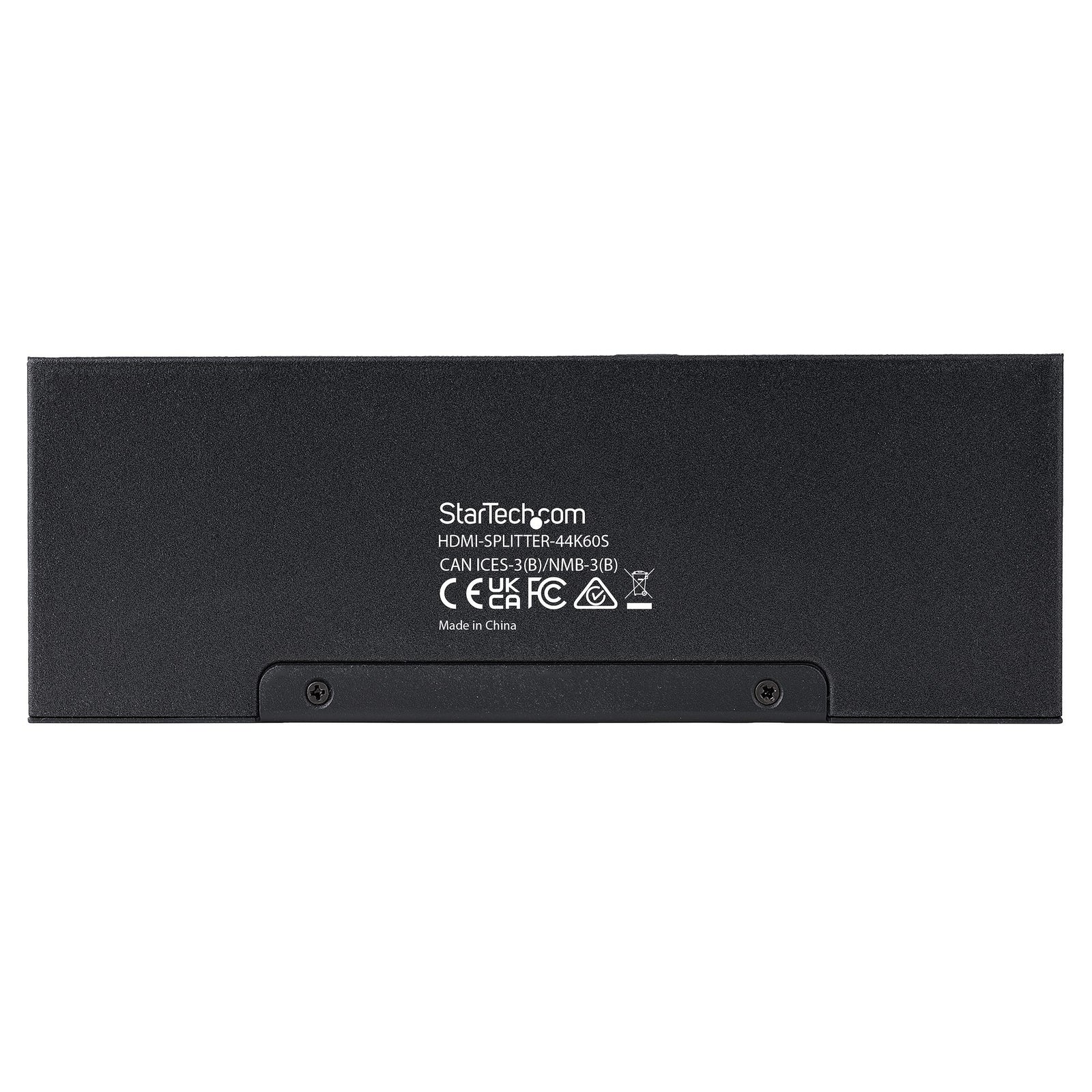

StarTech HDMI-SPLITTER-44K60S 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter
This 4-port HDMI splitter with built-in scaler connects an HDMI video source to four HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), and 7.1 channel audio.
4K 60Hz Resolution
This 4-way HDMI splitter supports up to 4K 60Hz resolution, at 4:4:4 chroma subsampling. The built-in scaler enables enables the concurrent output of 2 resolutions, ideal for environments where there is a variety of displays, monitors, and projectors.
Flexible Audio
This 4K HDMI Splitter features HDMI, 3.5mm, and Optical audio outputs, enabling connections to a variety of speakers and/or amplifiers. Simultaneous audio output is supported across all the audio ports.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The metal enclosure and 8kV air and 4kV contact Electro-static Discharge (ESD) protection is suitable for installation in a variety of environments.
Applications
Display the same information on multiple HDMI displays
Output and split your 4K 60Hz HDMI signal to four different HDMI displays, with different resolutions
Display corporate information, advertising, or other content on multiple displays
| Category | Specification |
|---|---|
| Warranty Information | 2 Years |
| Connector(s) | Connector A: 1 - HDMI |
| Connector B: 4 - HDMI, 1 - Toslink (SPDIF, Optical), 1 - 3.5mm Stereo Female 3 pos | |
| Environmental | Operating Temperature: 0°C - 40°C (32°F - 104°F) |
| Storage Temperature: -20°C - 60°C (-4°F - 140°F) | |
| Humidity: 20 - 90% RH (non-condensing) | |
| Hardware | AV Input: HDMI - 2.0 |
| Ports: 4 | |
| AV Output: HDMI - 2.0 | |
| Audio: Yes | |
| Industry Standards: HDMI 2.0b | |
| Indicators: 1 - Power LED, 1 - Input LED, 4 - Output LEDs | |
| Packaging Information | Package Length: 21.0 cm [8.3 in] |
| Package Width: 15.0 cm [5.9 in] | |
| Package Height: 5.5 cm [2.2 in] | |
| Shipping (Package) Weight: 0.5 kg [1.1 lb] | |
| Package Quantity: 1 | |
| Performance | Video Revision: HDMI 2.0b |
| Maximum Data Transfer Rate: 18 Gbps | |
| Maximum Cable Length: 5 m [16.4 ft] | |
| Maximum Digital Resolutions: 3840x2160 (4K) @ 60Hz, 3840x2160 (4K) @ 30Hz, 1920x1080 (1080p), 1280x720 (720p) | |
| Wide Screen Supported: Yes | |
| Audio Specifications | Analog Stereo: 2 Channel Audio |
| HDMI: 7.1 Channel Audio | |
| Physical Characteristics | Color: Black |
| Product Length: 18.0 cm [7.1 in] | |
| Product Width: 6.0 cm [2.4 in] | |
| Product Height: 1.4 cm [0.6 in] | |
| Weight of Product: 250.0 g [8.8 oz] | |
| Material: Metal | |
| Power | Power Source: AC Adapter Included |
| Input Voltage: 100 - 240 AC | |
| Input Current: 0.35 A | |
| Output Voltage: 5 DC | |
| Output Current: 1 A | |
| Center Tip Polarity: Positive | |
| Plug Type: M | |
| Power Consumption (In Watts): 0.1 W | |
| Software | OS Compatibility: No Drivers or Software Required |
| Special Notes / Requirements | Note: Audio output performance may be limited to 2-channel audio when all audio outputs are in use |

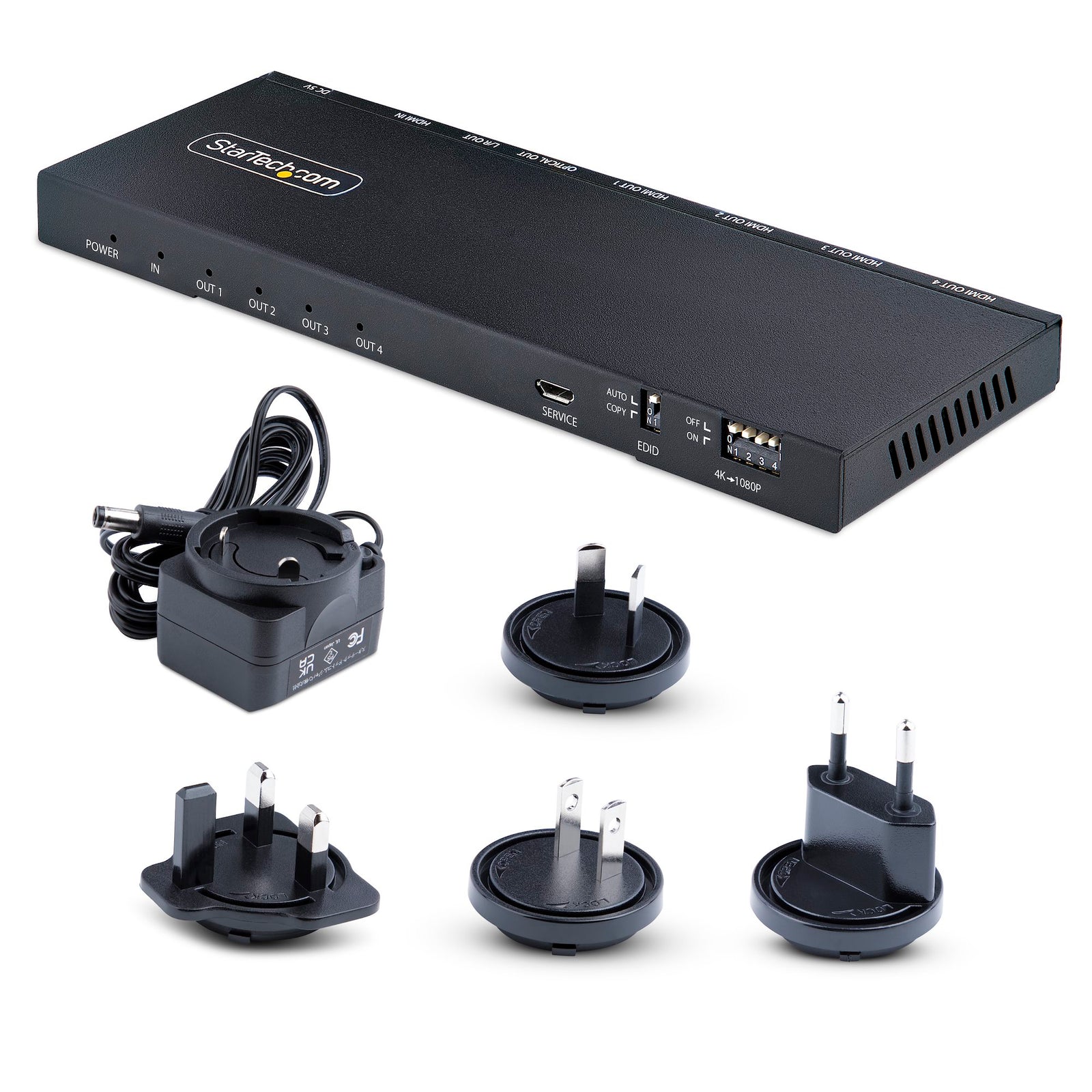

| What's in the Box | Included in Package: |
| 1 - 4-port HDMI Video Splitter | |
| 1 - Power Adapter | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
