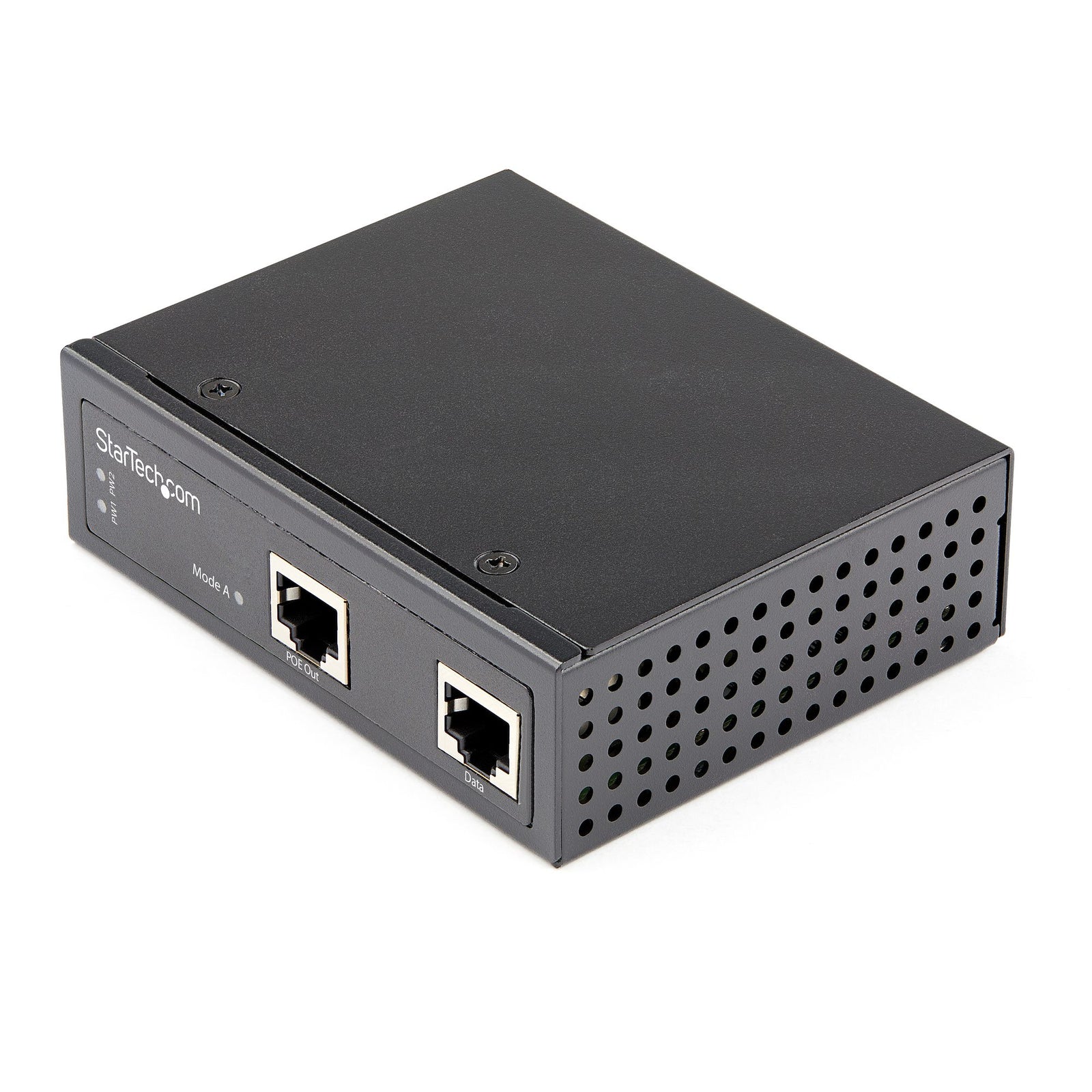

StarTech Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter | POEINJ30W

StarTech Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter | POEINJ30W

SKU: POEINJ30W
Part Number: POEINJ30W
Condition: Brand New
Purchase Orders Accepted
Save £62.91 Save £62.91

£108.32 (Excl. VAT)

- £129.98 (Inc. VAT)
£108.32 - £108.32
- - £129.98
Availability:
Only 5 left at this price!
payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads

  • StarTech Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter | POEINJ30W

    This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

    30 Watt Power Budget

    Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

    • Cameras
    • Sensors
    • Wi-fi access points

    Uses Cat 5e (or higher rated) Ethernet cabling.

    Designed for Harsh Environments

    Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

    • Vibration: EN 60068-2-6
    • Shock: EN 60068-2-27
    • Free-fall: EN 60068-2-32

    600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.


    Dual Power Inputs

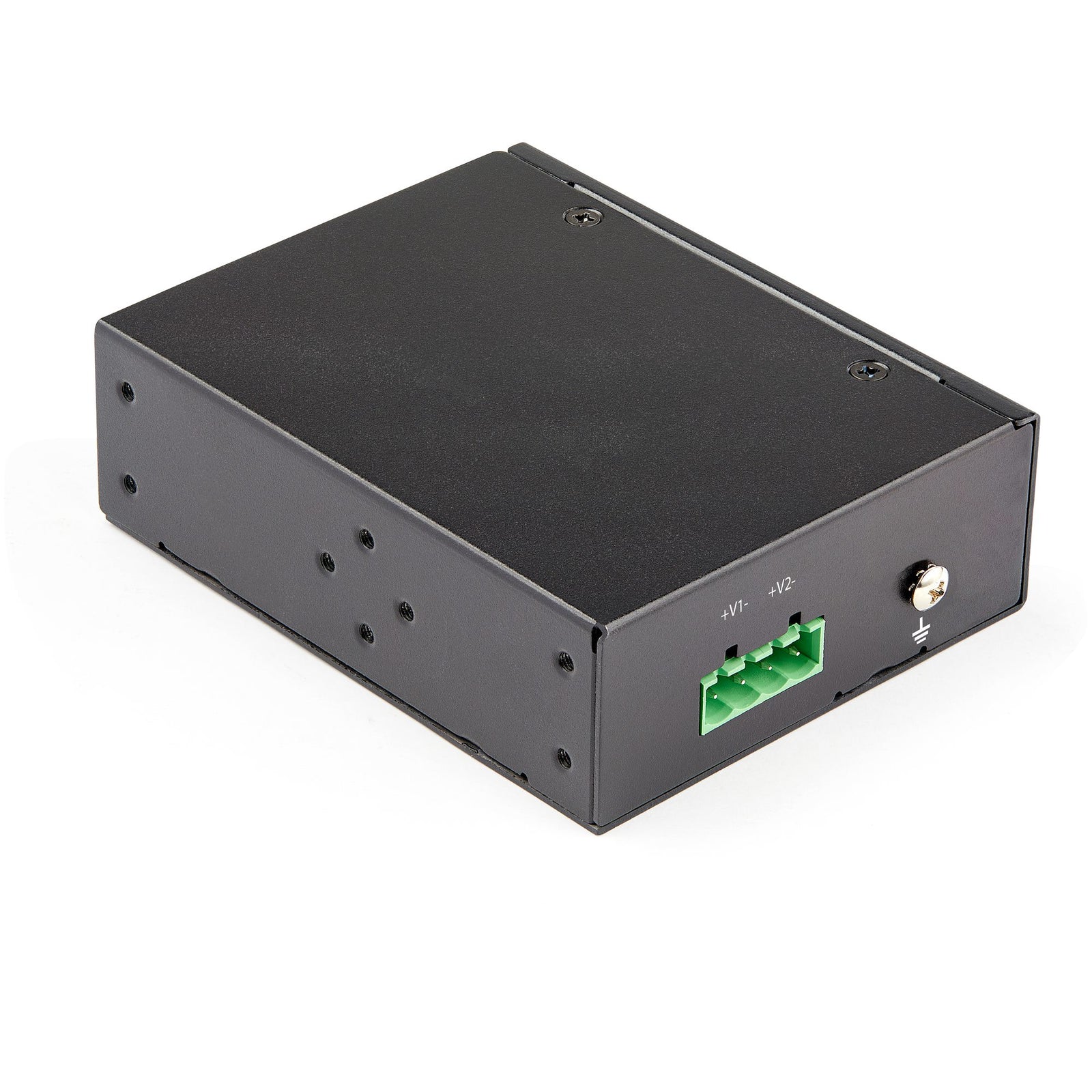

    Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

    The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • Category Details
    Warranty Information Warranty: 2 Years
    Ports 2
    Connector Type(s) 1 - Ethernet Gigabit, 1 - RJ-45 (PoE+)
    Full Duplex Support Yes
    Connector(s) Connector A: 1 - Ethernet 10/100, 1 - RJ-45 (PoE+)
    Environmental Operating Temperature: -40°C to 75°C
    Storage Temperature: -40°C to 85°C
    Humidity: 5 to 95% (non-condensing)
    Hardware PoE: Yes
    Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
    Chipset ID: Microsemi PD69101

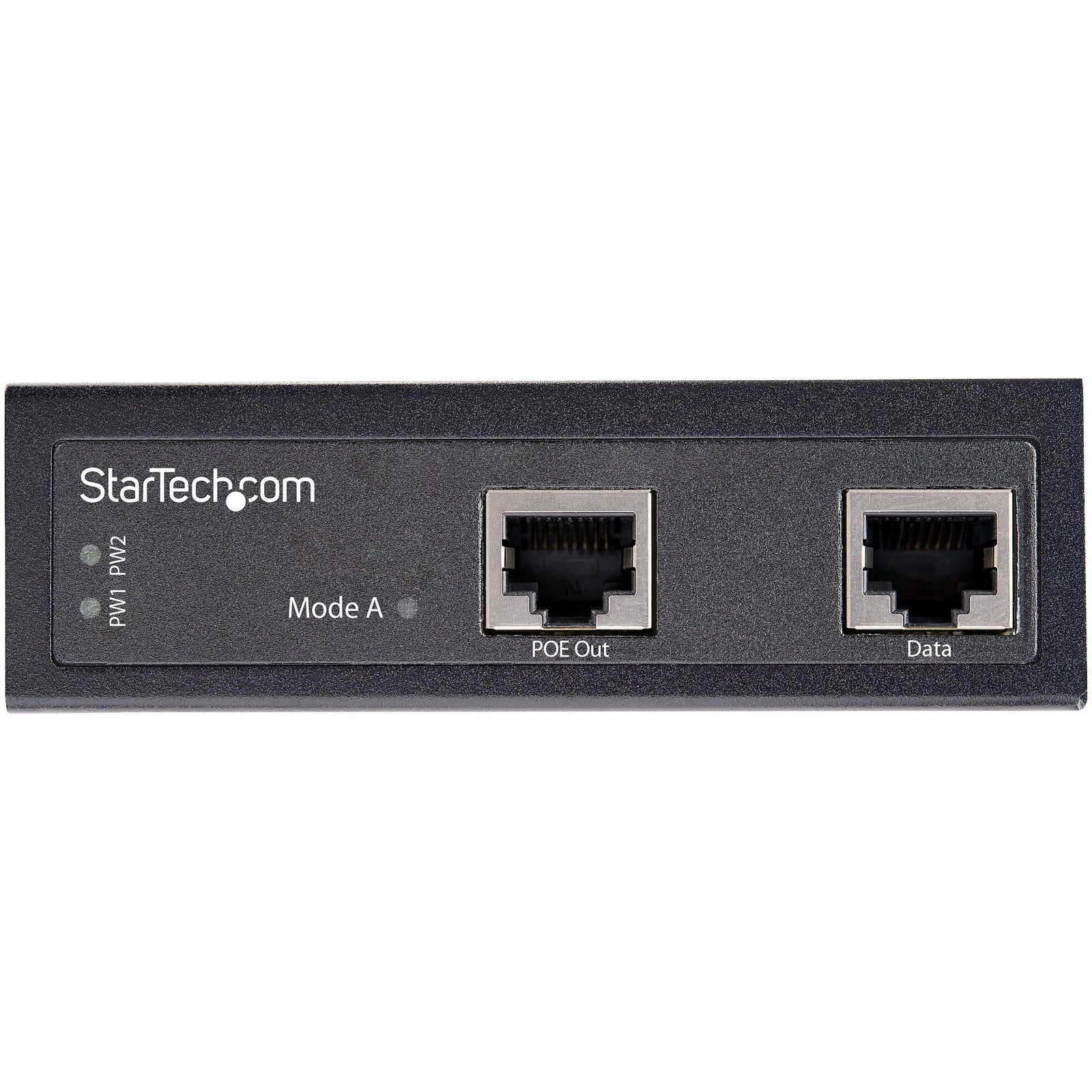

    Indicators LED Indicators: 2 - PW1, PW2, 1 - Mode A
    Packaging Information Package Height: 6.6 cm [2.6 in]
    Package Length: 21.4 cm [8.4 in]
    Package Width: 16.8 cm [6.6 in]
    Shipping Weight: 376.0 g [13.3 oz]
    Package Quantity: 1
    Performance Maximum Cable Length: 100 m [328.0 ft]
    Compatible Networks: 10/100/1000 Mbps
    Auto MDIX: Yes
    Jumbo Frame Support: 9K max.
    General Specifications ESD: IEC 61000-4-2 (Contact: 6KV; Air: 8KV)
    EFT: IEC 61000-4-4 (Power: 2KV; Signal: 2KV)
    Surge: IEC 61000-4-5 (Power: 2KV; Signal: 2KV)
    Vibration: EN 60068-2-6
    Shock: EN 60068-2-27
    Free-Fall: EN 60068-2-32
    Housing: IP-30
    Safety: MET (UL) 60950-1, EN60950-1
    Protection: Reverse polarity, Overload current
    MTBF: 630,899 hours
    Supported Protocols: CSMA/CD, IEEE 802.3, IEEE 802.3at, IEEE 802.3af
    Physical Characteristics Color: Black
    Product Height: 0.0 cm [0.0 in]
    Product Length: 0.0 mm [0.0 in]
    Weight: 143.0 g [5.0 oz]
    Product Width: 0.0 cm [0.0 in]
    Material: Aluminum
    Power Input Voltage: 48 ~ 56V DC
    Plug Type: N
    Power Consumption: Max 37W
    Special Notes / Requirements Patents and Licenses: U.S. Patents and Applications

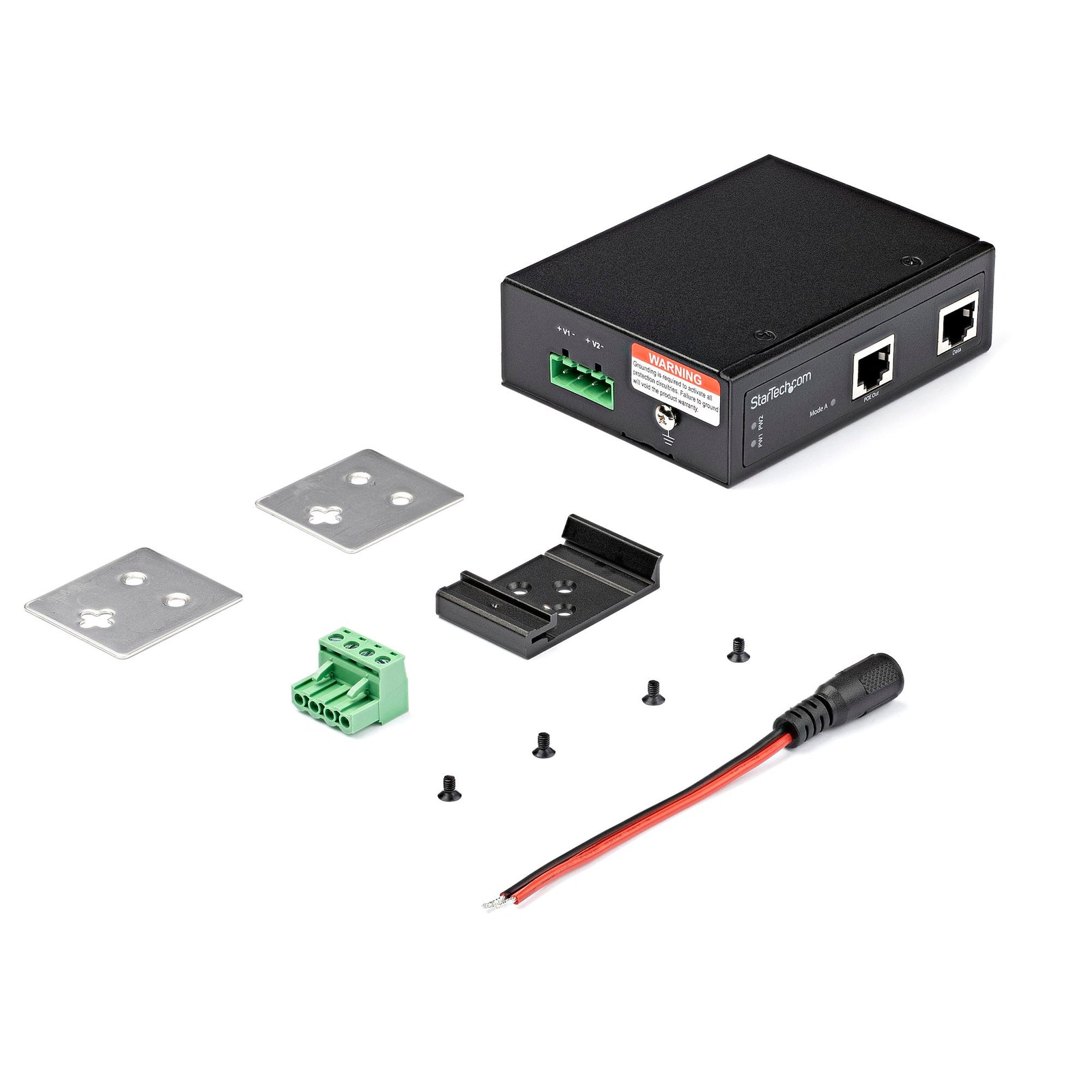

    What's in the Box Included: PoE Injector, Terminal Block, Adapter, Mounting Hardware Kit, Quick-Start Guide
  • Description Downloads
    Datasheet Download
    Manual Download
