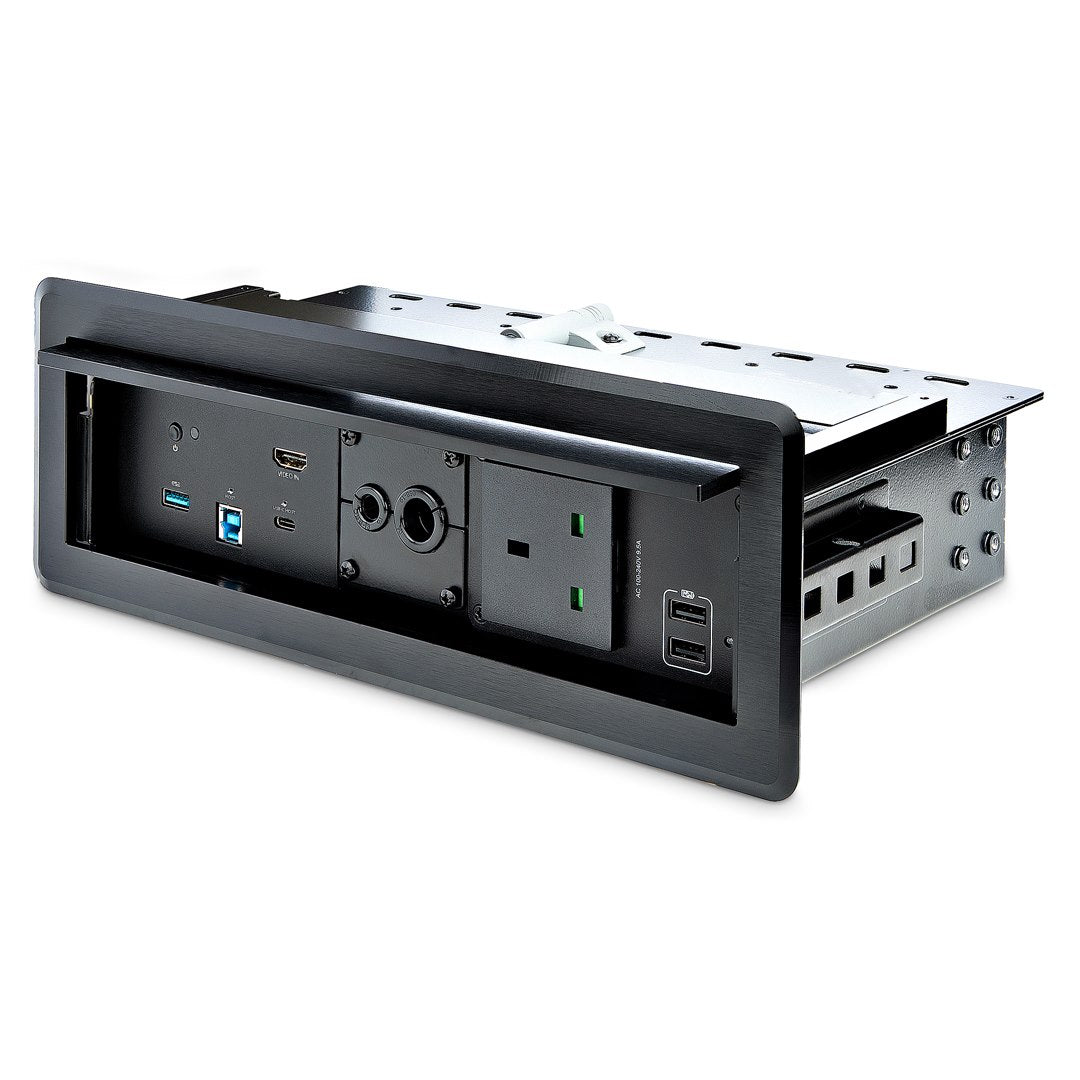

This conference table connectivity box bundle provides power and charging where it's needed and adds docking station capabilities to your boardroom, classroom or huddle space.
Power Your Devices and Stay Charged During Meetings

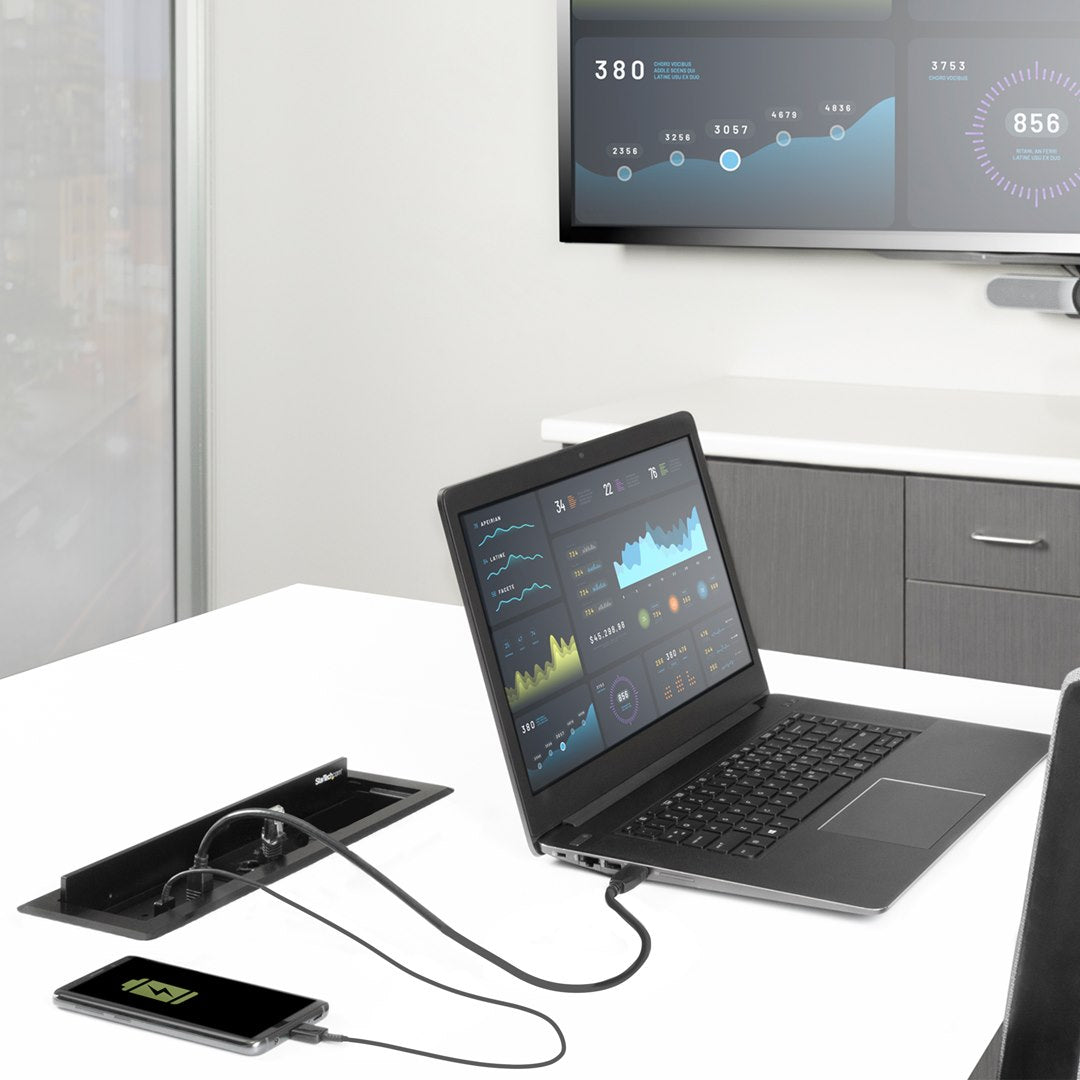

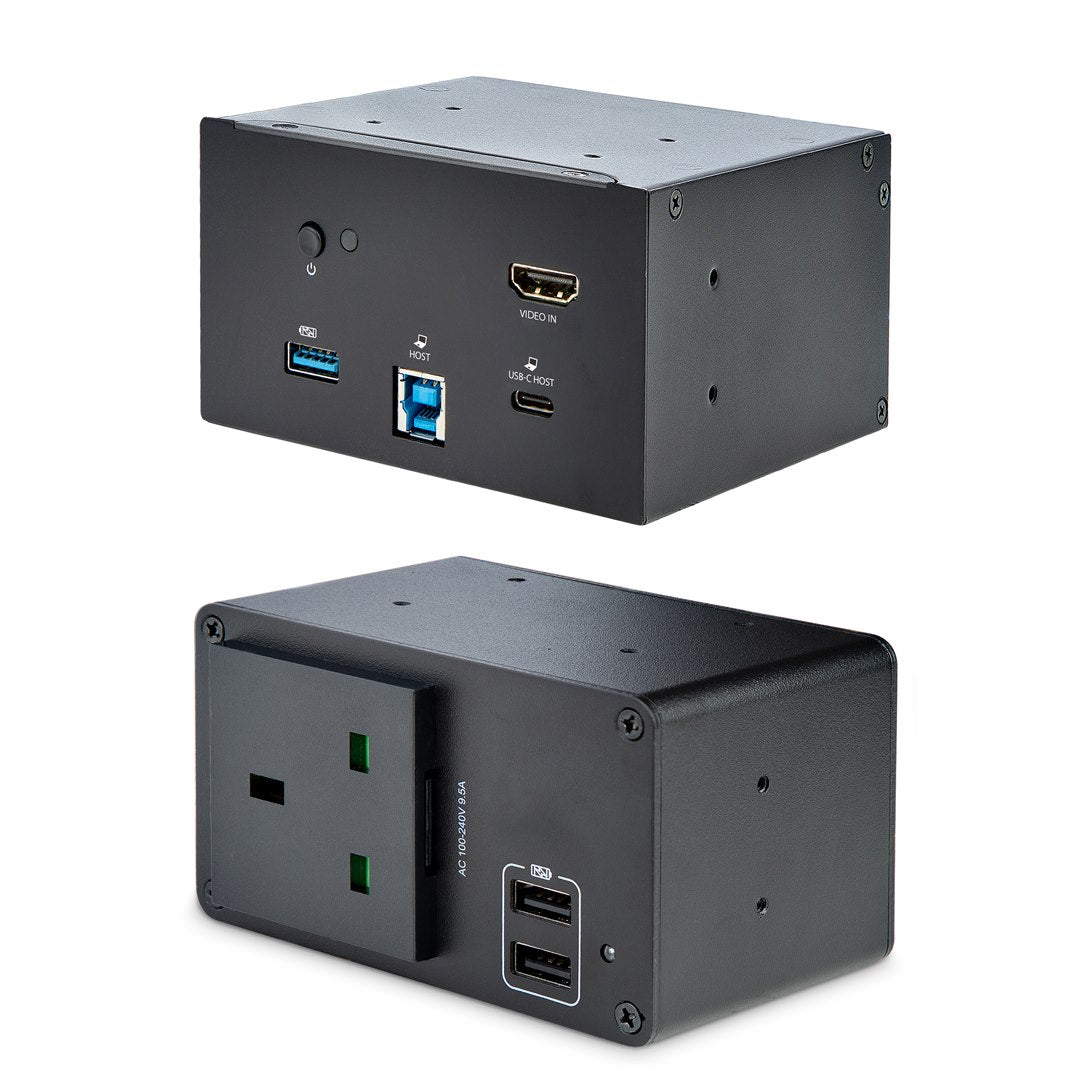

This tabletop power hub lets you power a laptop using the AC power outlet and charge phones and tablets using the 2.4 amp USB ports, directly from your conference table.
Dock Your Laptop
During meetings you may need to set up conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.

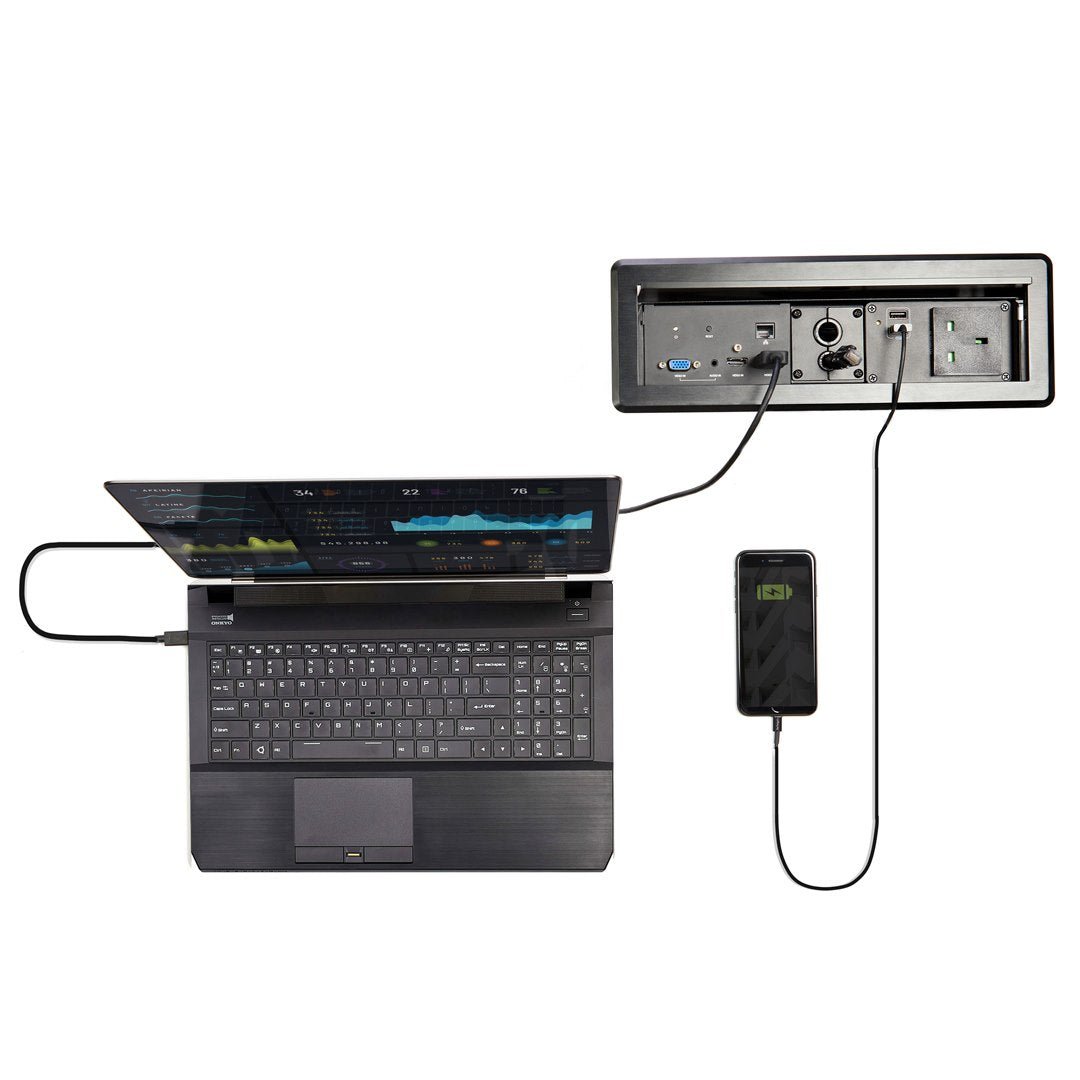

The boardroom USB-C docking station lets you collaborate with others in the room and around the globe. It lets you:
Access your room's display, peripherals, webcam, speakers, mic and network
Charge mobile devices using the USB-A charge port
Power a supported USB-C laptop with USB-C power delivery
For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.
Simple Installation

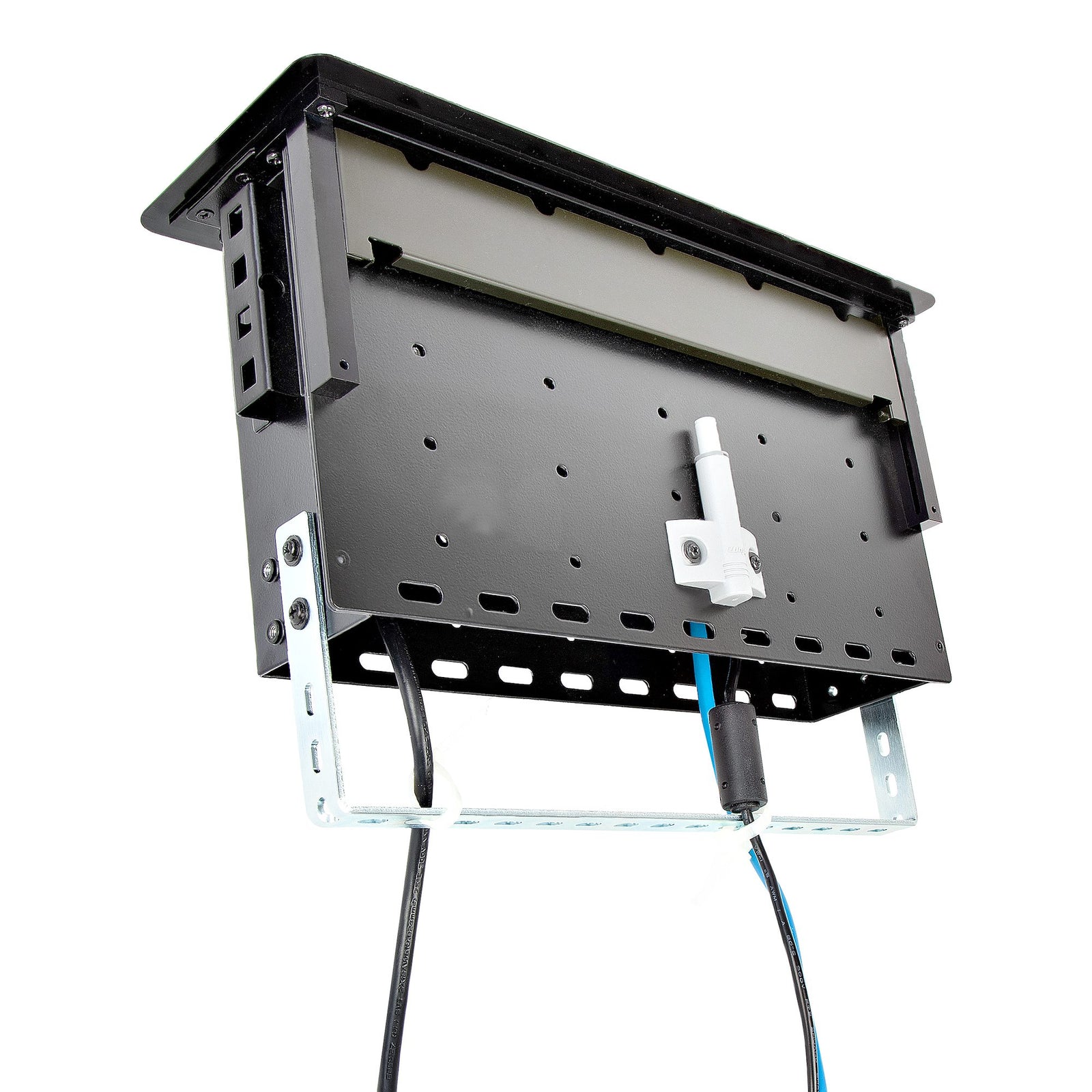

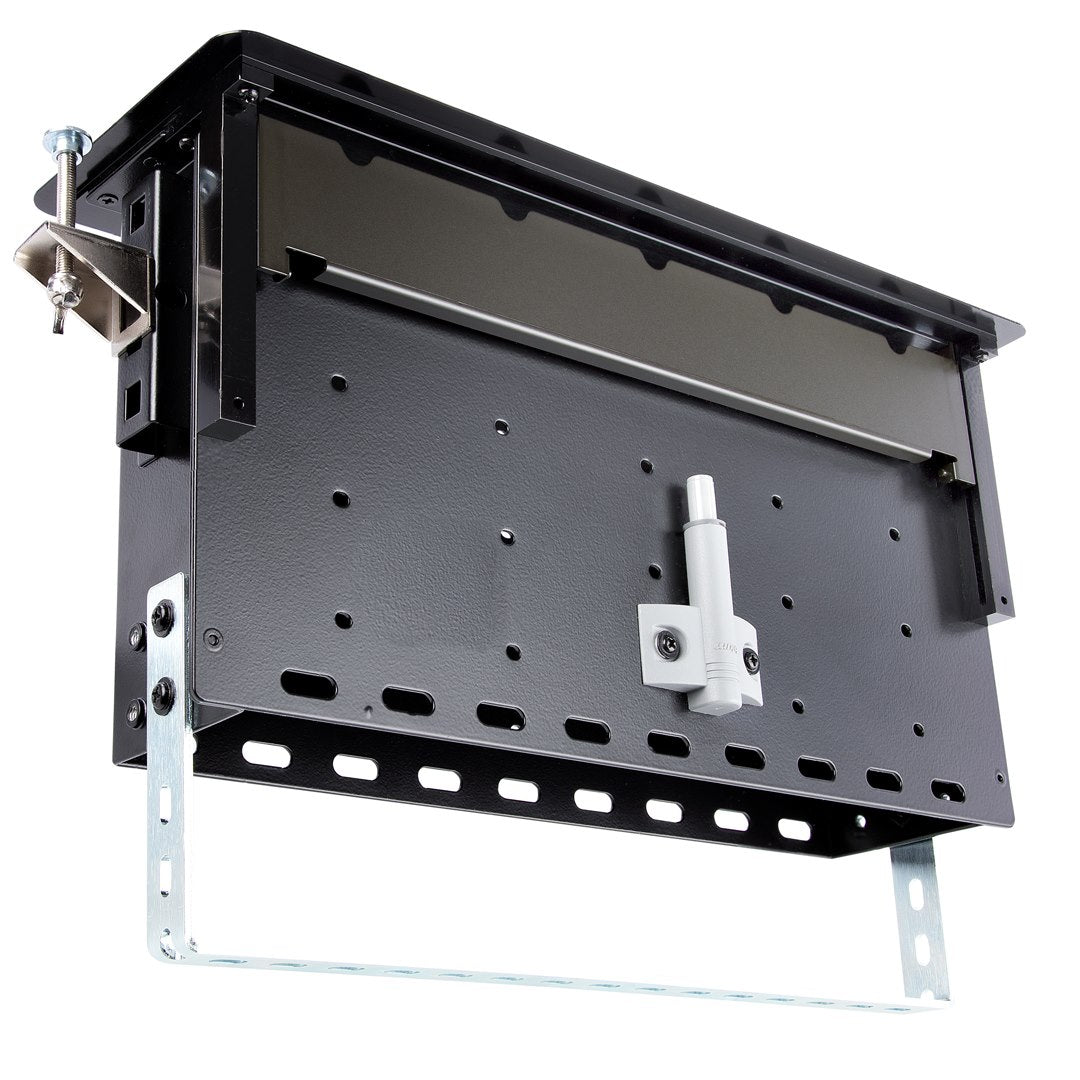

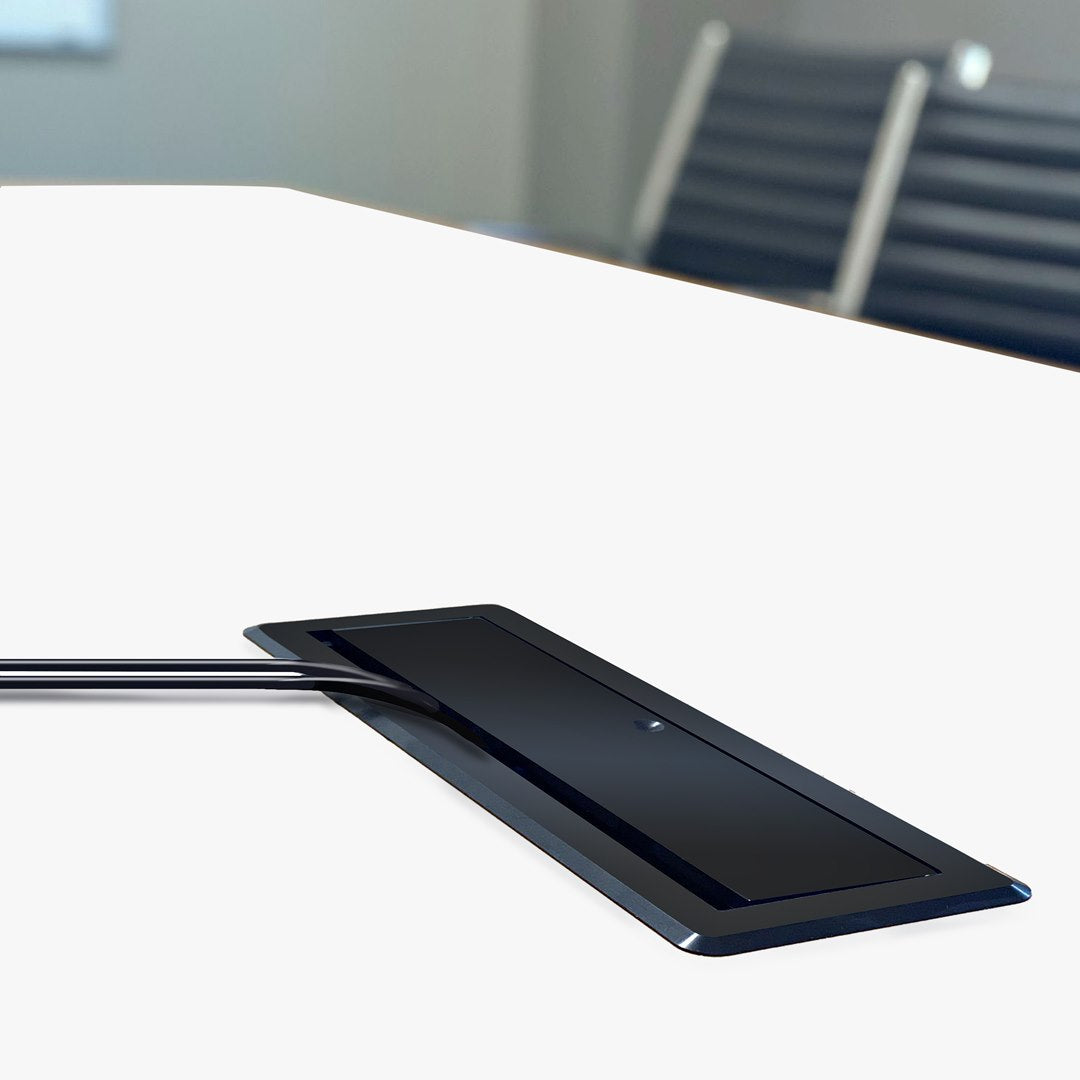

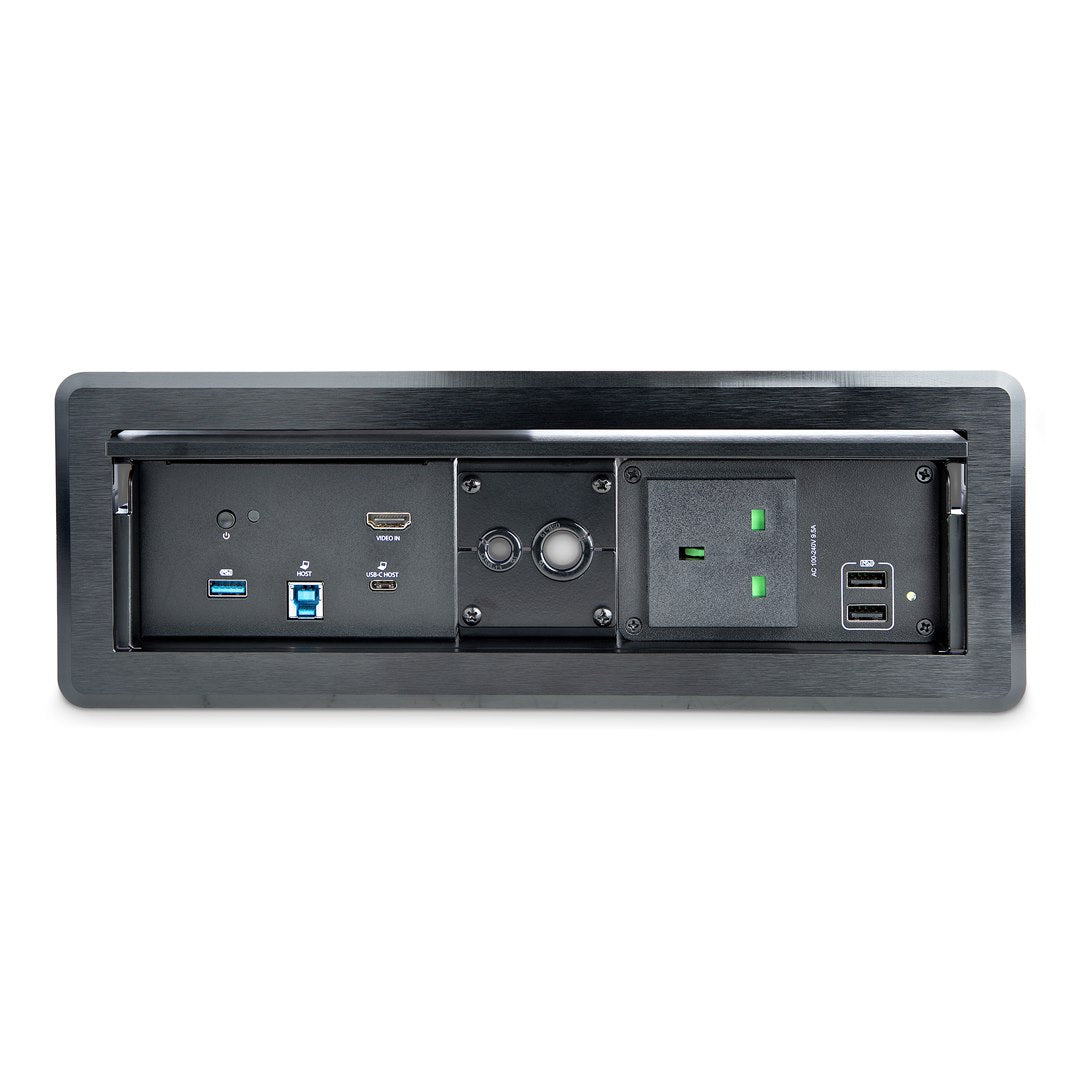

The conference table insert is easy to install and features a lid that closes to conceal connection points. Plus, the cable organizer keeps cables accessible. The connectivity box can meet the needs of small, medium or large size rooms.
Applications
Provide additional power and charging outlets
Simple connectivity between your laptop and your rooms devices
Perfect for conference calls and presentations
Ideal for meeting rooms, classrooms, and huddle spaces
| Category | Specification |
|---|---|
| Warranty | 2 Years |

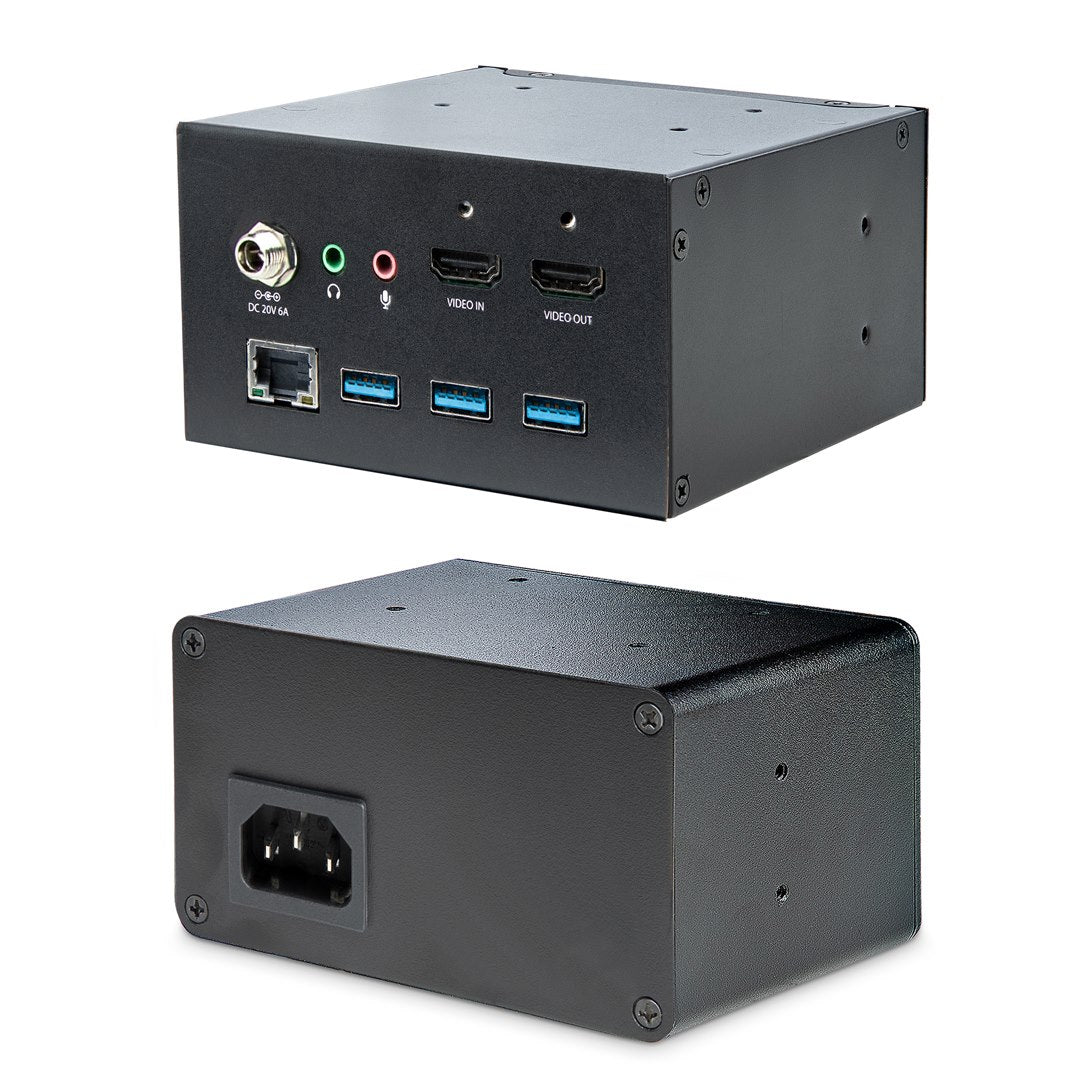

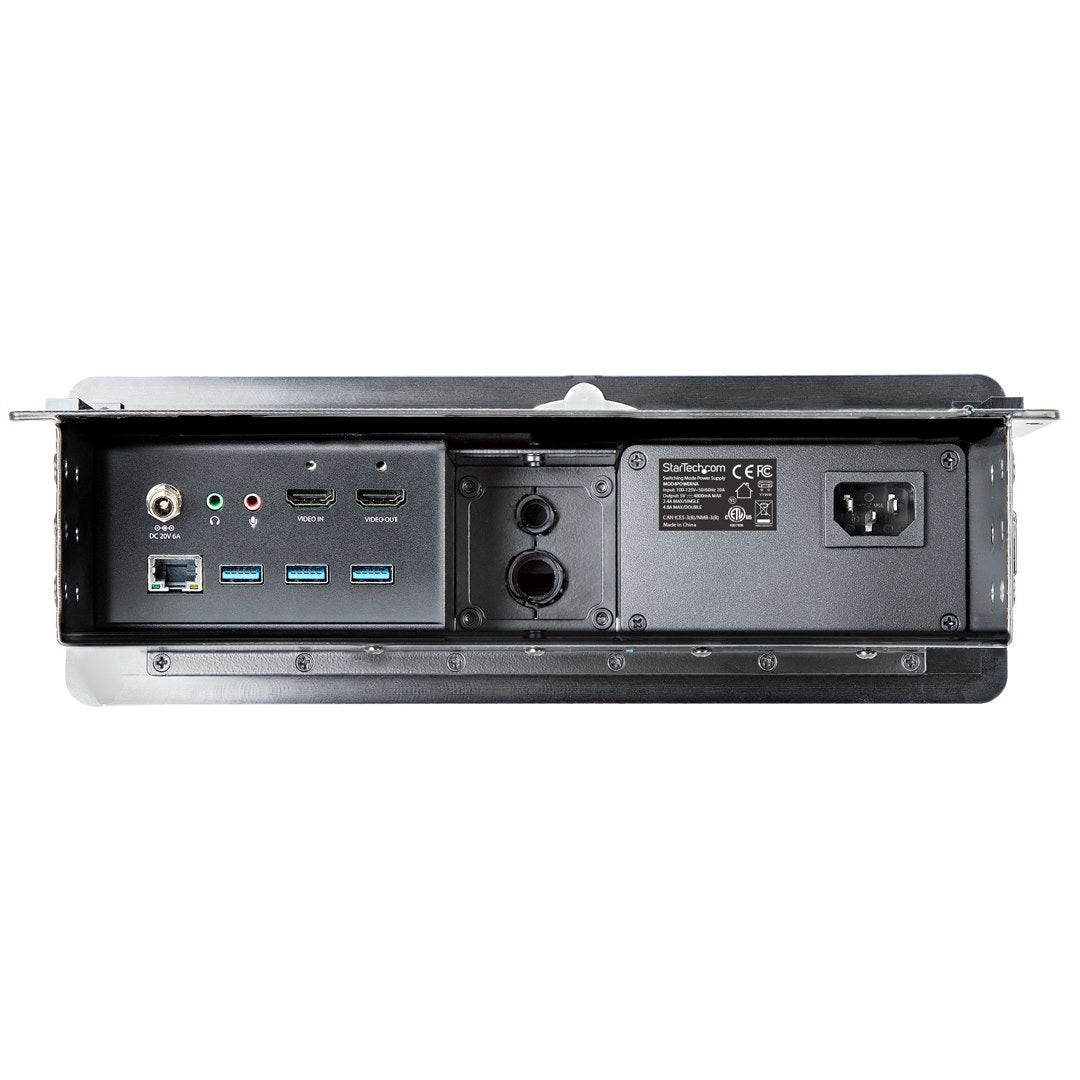

| Connectors | 3 - HDMI (19 pin), 1 - USB 3.2 Type-A (Fast-Charge), 3 - USB Type-A (5 Gbps), 2 - 3.5 mm Mini-Jack, 1 - RJ-45, 1 - USB 3.2 Type-C (5Gbps), 1 - USB 3.2 Type-B (5Gbps), 1 - BS 1363 Power (UK), 1 - IEC 60320 C13 Power |
| Operating Temp. | 0 to 40℃ (32°F to 104°F) |
| Storage Temp. | -20°C to 65°C (-4°F to 149°F) (MOD4DOCKACPD) / -27℃ to 40℃ (-16.6°F to 104°F) (MOD4POWERUK) |
| Humidity | 20~80% RH (MOD4DOCKACPD), 8% to 90% (MOD4POWERUK) |
| 4K Support | Yes |
| Fast-Charge Ports | Yes |
| Displays Supported | 1 |
| Bus Type | USB-C, USB 3.2 Gen 1 (5Gbps) |
| USB Standards | USB Power Delivery Spec Rev. 2.0, USB Battery Charging Spec Rev. 1.2, IEEE 802.3 (Ethernet) |
| Chipset ID | DisplayLink DL-6950, Genesys Logic GL850G, Texas Instruments TPS65982, Parade Technologies PS176, VIA Labs VL813, Realtek RTL8153 |
| Indicators | 2 - Power (1 - MOD4POWERUK, 1 - MOD4DOCKACPD) |
| Max Data Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet Full-Duplex) |
| Max Distance | 3840 x 2160p (4K) @ 30Hz |
| Dimensions | Product Height: 11.0 cm [4.3 in], Product Length: 16.5 cm [6.5 in], Product Width: 31.8 cm [12.5 in] |
| Weight | 2.7 kg [6.0 lb] |
| Color | Black |
| Material | Aluminum, Steel, Plastic |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 10 ARM, 11. 11 ARM; macOS 10.9 - 10.12, 10.14, 10.15, 11.0, 12.0, 13.0, 14.0; Chrome OS™ v55+ |
| Special Notes | Ensure USB-C port supports USB Power Delivery 2.0 and DP alt mode; 4K display required for 4Kx2K resolution |

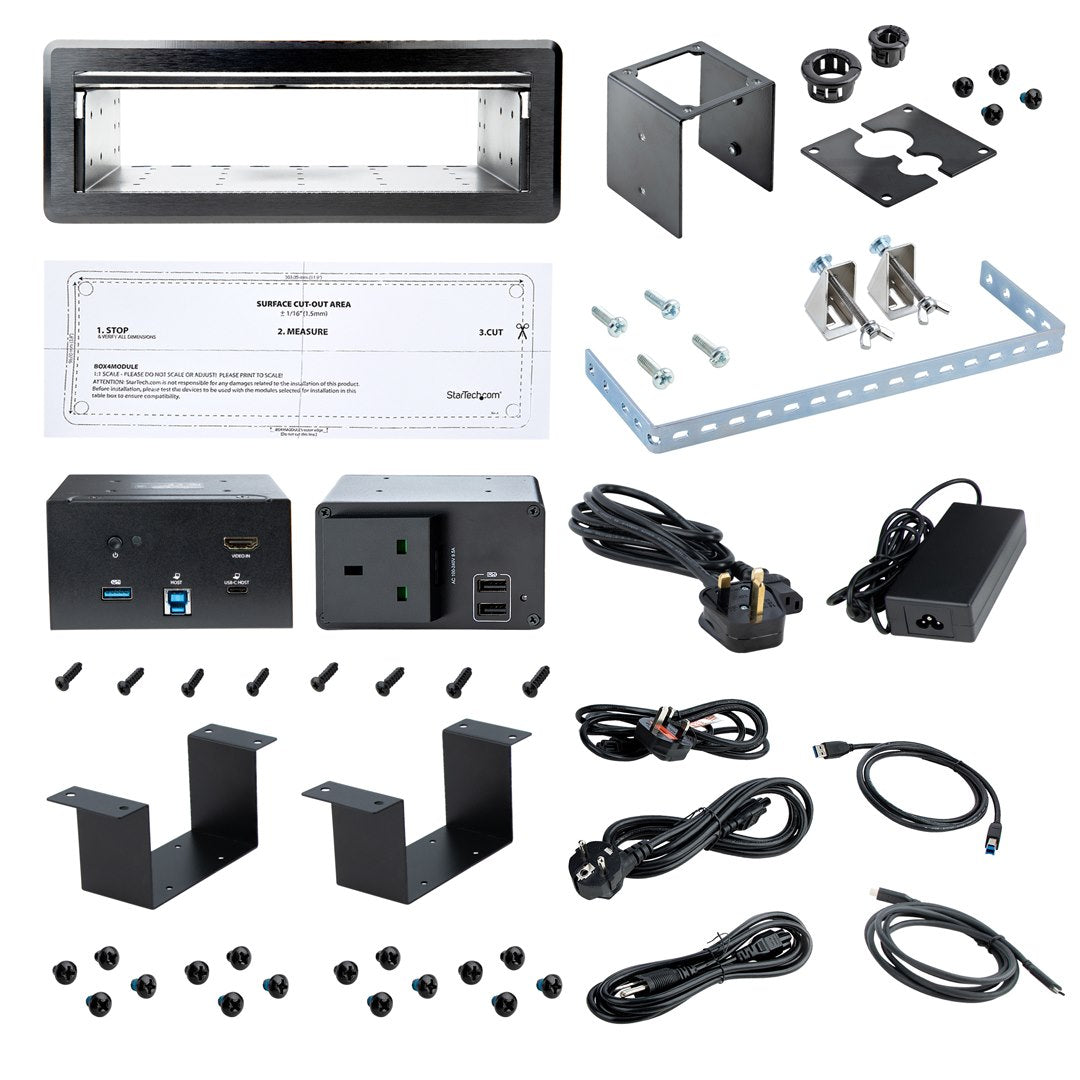

| Included in Box | Docking Station Module, Power Module, Modular Table Box, Universal Power Adapter, Mounting Brackets, Power Cords, USB-A to USB-B Cable, USB-C Cable, Mounting Bracket Screws, Module Screws, Cable Management Bracket and Plates, Quick-Start Guides, User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
