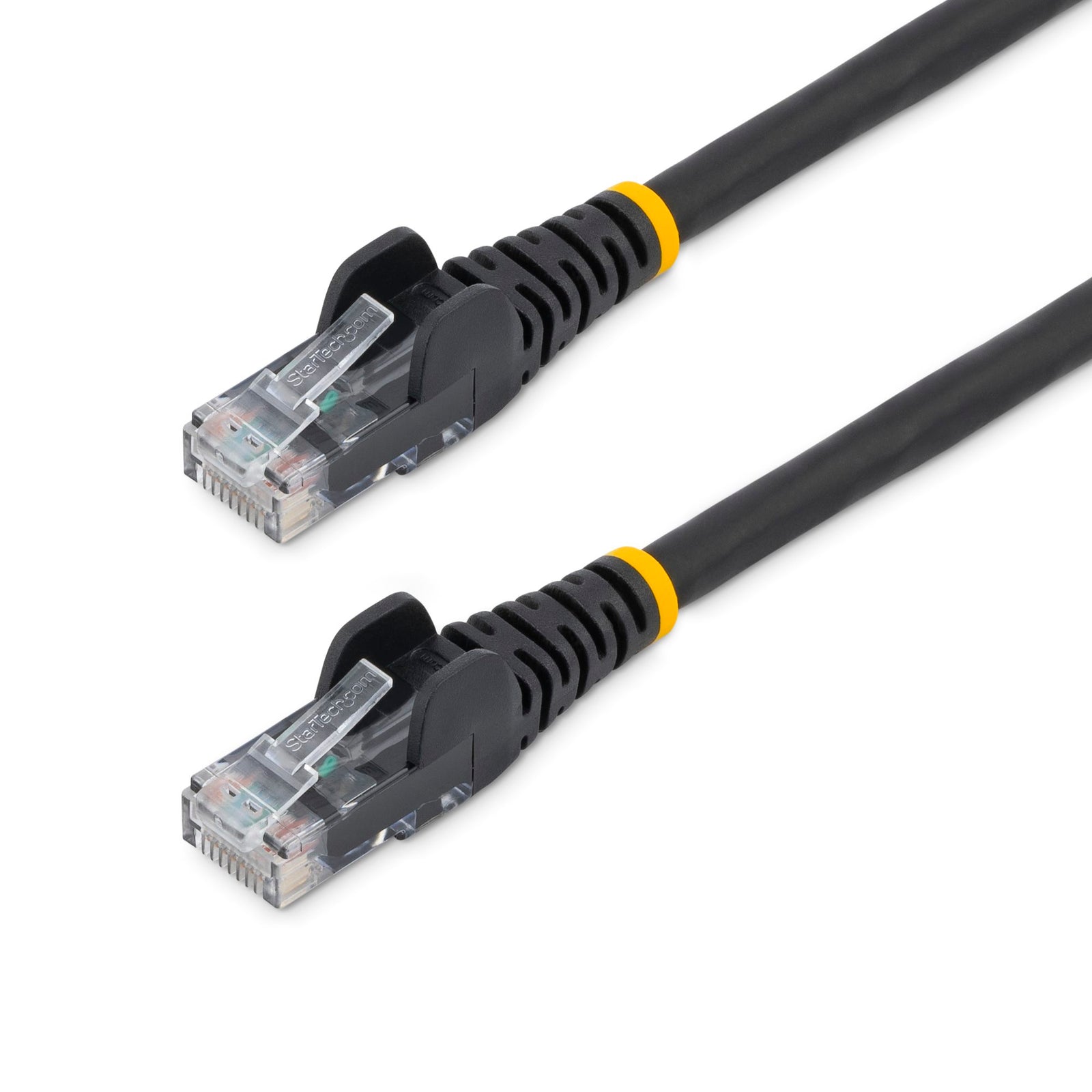

StarTech N6LPATCH3MBK 3m CAT6 Ethernet Cable - LSZH (Low Smoke Zero Halogen)

Low Smoke Zero Halogen (LSZH) Category 6 Snagless Network Patch Cable supports error-free Multi Gigabit connections: 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 160ft/55m). This PVC free high-performance cable offers reliable connectivity to all networking devices, such as Network Interface Cards (NIC), servers, routers, network attached storage (NAS), VoIP phones, PoE devices, etc.

This Eco-friendly LSZH CAT6 cable produces lower levels of toxic corrosive fumes and white smoke in the event of a fire, which offers higher visibility, allowing for a safer and faster evacuation.

StarTech.com offers the widest selection of lengths and colors, to keep your business network and workstations connected and organized.

High Performance CAT6 Ethernet Cable

Reliably Connect Your Ethernet Devices
Error-free Multi Gigabit support - 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 55m), 10GBase-T
650MHz support for increased bandwidth
100% Copper Cable, Ideal for Powering Your Devices Over Ethernet
Made with 100% bare copper wire, StarTech.com cables are fully compliant with, unlike other cables that use copper clad aluminum (CCA) wire.

Tested up to 100W continuous power throughput.
Complies with IEEE 802.3bt Type 4 standard.
Excellent heat dissipation over prolonged use.
Supports high power PoE for Laptops, IP TVs, Security Cameras, VoIP phones, NAS devices, etc.

Quality Construction
50-micron gold platted connectors

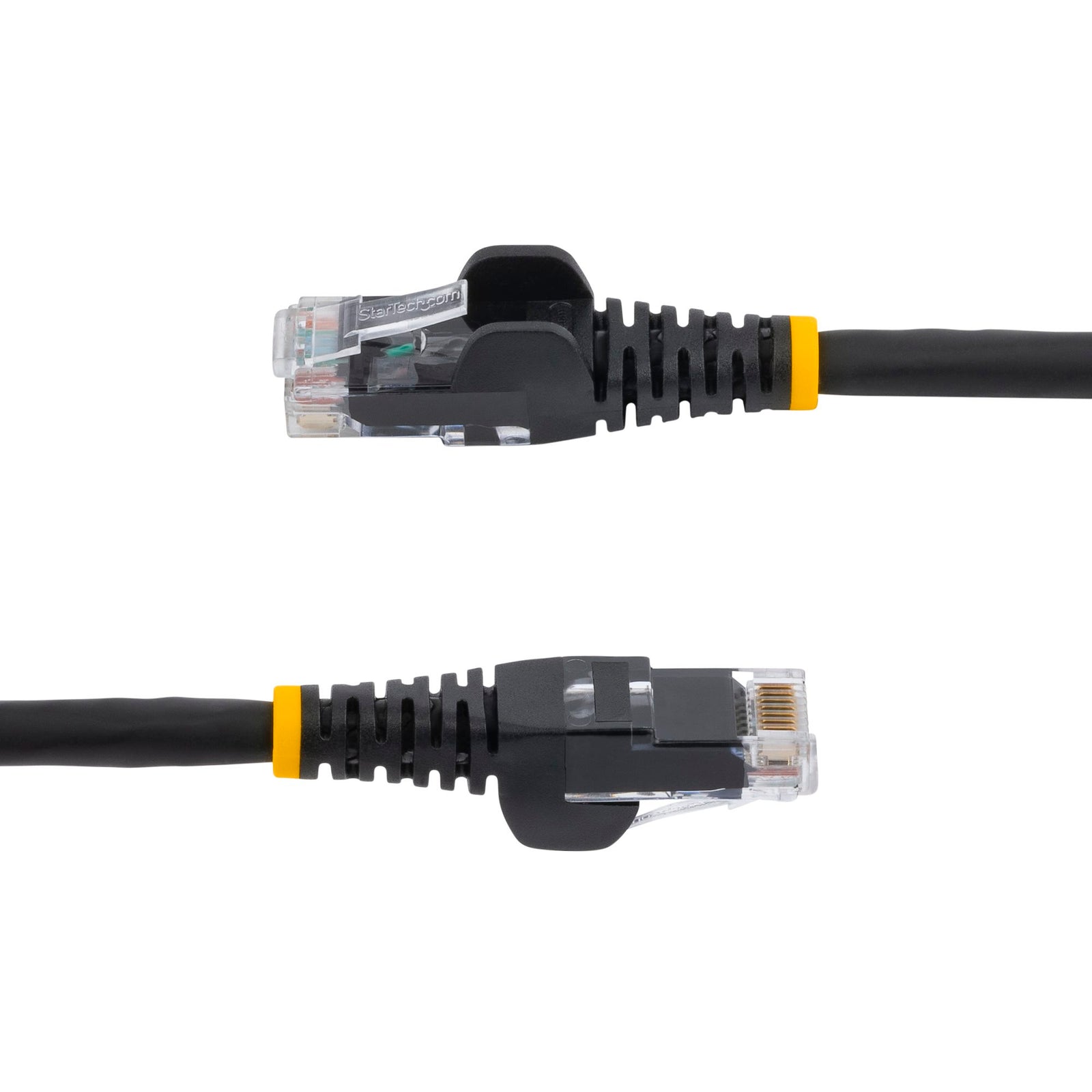

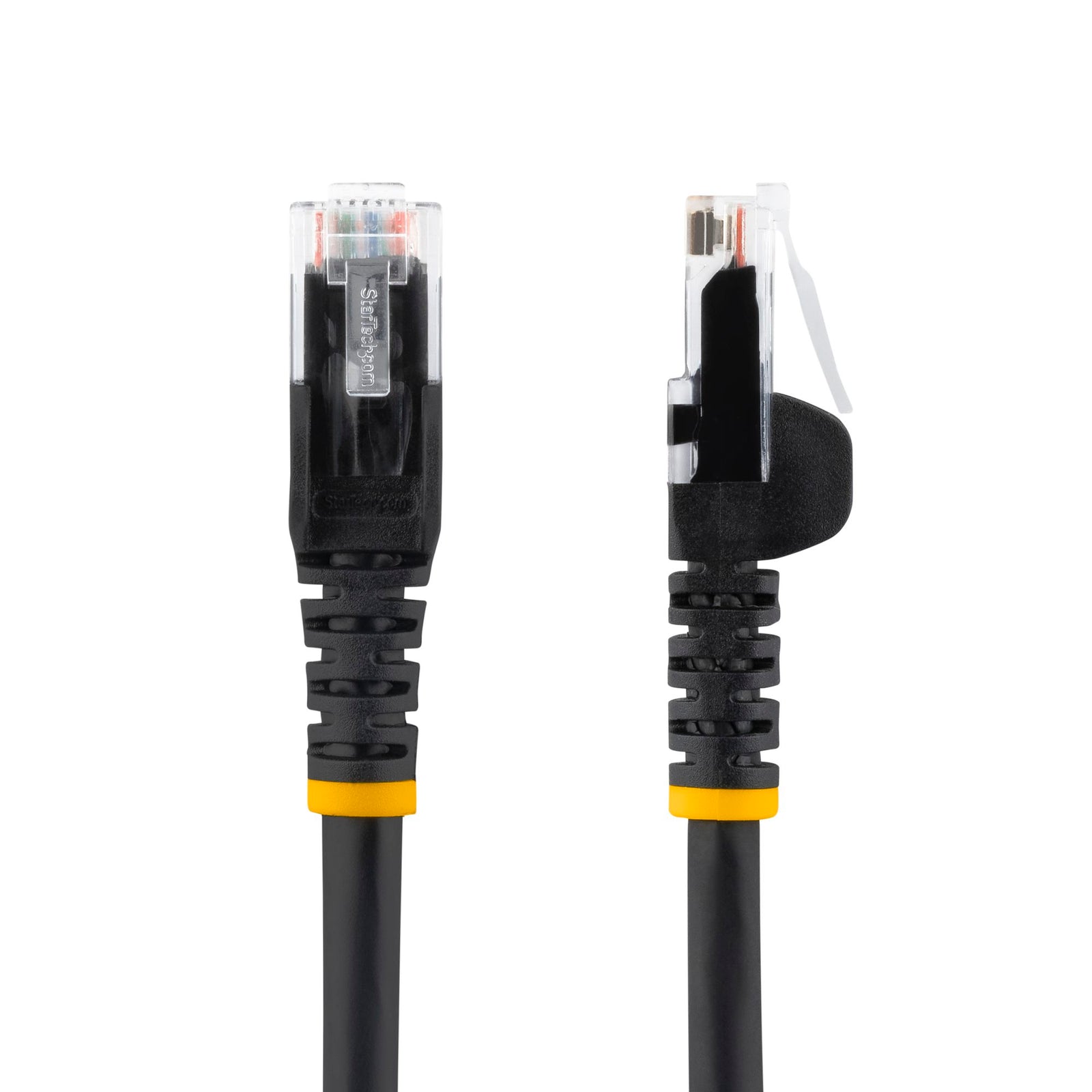

Snagless boot
40 mm (1.57") bend radius for strong molded strain relief and improved flexibility

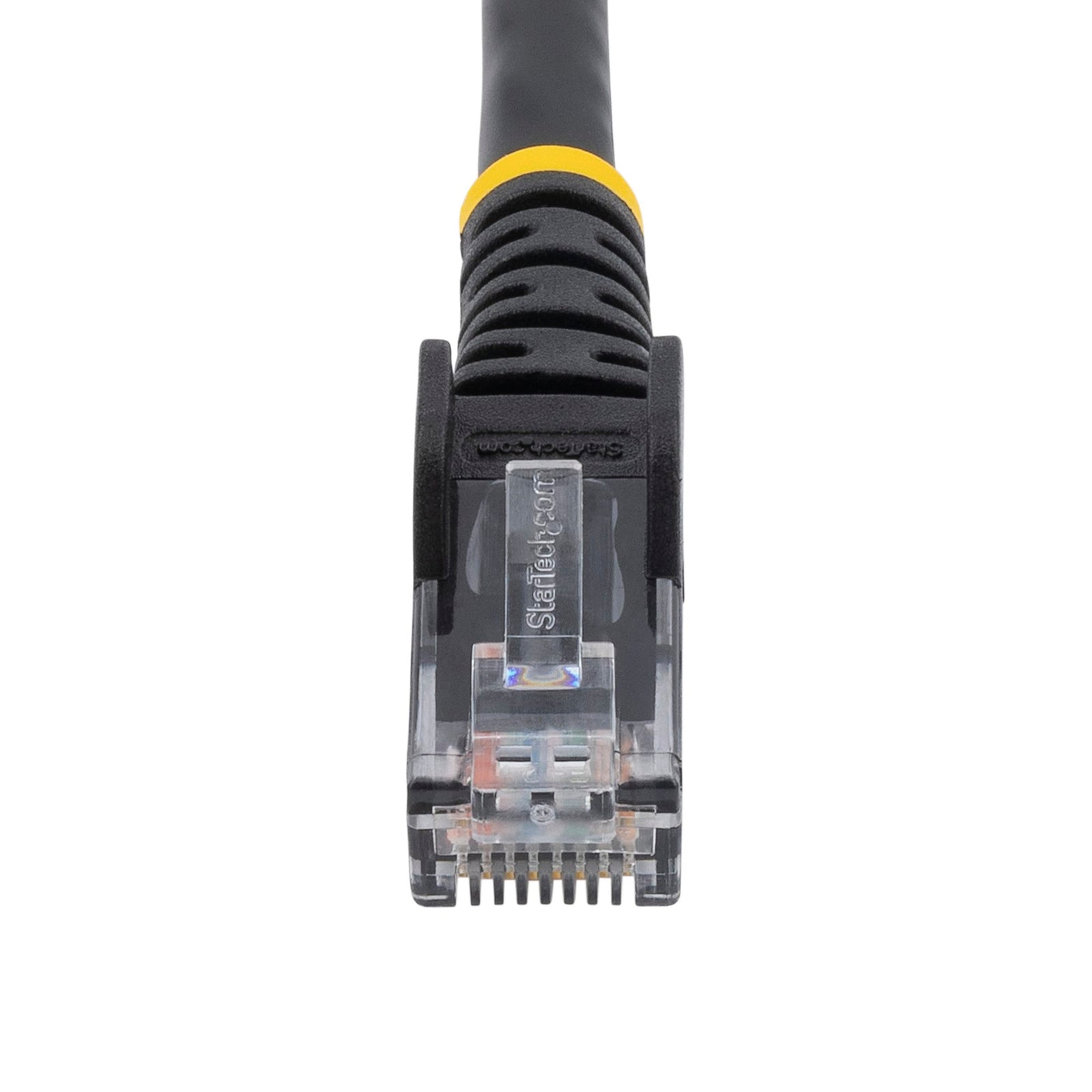

The Snagless design protects the RJ45 clip and ensures the cables are easily pulled through constrained spaces such as conduits or raceways and prevents the cable from getting caught/damaged during installation.

Engineered for Professional Applications

Detailed Spec Drawings Available
StarTech.com makes it easy for you to integrate the CAT6 cable into your network by providing detailed technical specifications and engineering drawings.

Hassle-free Installation with Reliable Performance and Flexibility
6.0 mm (0.23") OD, Flexible PVC-Free jacket with 100 mm (3.93") bend radius
Flexible HD-PE insulation for reduced Intra-pair Crosstalk
Spline separator for reduced Inter-pair Crosstalk and improved heat dissipation for 100W PoE
24AWG (0.25mm2), 100% copper, stranded wire twisted pairs
U/UTP cable construction

Electrical Characteristics
ETL Verified for maximum performance
Cable Impedance: 100 ohms ± 15% at 250 MHz
Max. DC Resistance: 14 ohms per 1000 ft (305 m)
Pair to GND Capacitance: 330 pF per 328 ft (100 m)
Mutual Capacitance: 5.6 nF per 1000 ft (305 m)
Propagation Delay Skew: 45 ns per 328 ft (100 m)

Lab Tested and Third Party Certified for Product Performance and Safety
ETL Verified
3P Verified to ANSI/TIA-568-2.D Category 6
Fluke® Tested CAT6 Patch Cord

Warranty Information
Warranty	Lifetime
Connector(s)
Connector A	1 - RJ-45
Connector B	1 - RJ-45
Environmental
Operating Temperature	0°C to 80°C (32°F to 176°F)
Storage Temperature	0°C to 80°C (32°F to 176°F)
Humidity	0%RH ~ 95%RH
Hardware
Number of Conductors	4 pair U/UTP
Cable Jacket Material	Low Smoke Zero Halogen
Cable Type	Snagless
Wiring Standard	TIA/EIA-568-B.1-2001 T568B
Packaging Information
Package Height	14.0 cm [5.5 in]
Package Length	22.0 cm [8.7 in]
Shipping (Package) Weight	130.0 g [4.6 oz]
Package Width	20.0 cm [7.9 in]
Package Quantity	1
Performance
Maximum Cable Length	3 m [9.8 ft]
Cable Rating	CAT6 - 650 MHz
Physical Characteristics
Product Height	0.8 cm [0.3 in]
Product Length	3.0 m [9.8 ft]
Product Width	1.2 cm [0.5 in]
Weight of Product	120.0 g [4.2 oz]
Cable Length	3 m [9.8 ft]
Color	Black
Wire Gauge	24 AWG
Cable OD	6 mm [0.2 in]
What's in the Box	Included in Package
	1 - CAT6 Cable
