This CAT6 cable meets all Category 6 cable specifications, to deliver a reliable Gigabit network connection.
Protect Your Equipment
This CAT6 patch cable is built using 100% copper wire and are tested to comply with ANSI/TIA 568 C.2 Category 6 requirements. We don’t use copper-clad aluminum (CCA) wire, which is subject to problems like weak power delivery, heat buildup, equipment damage and possibly fire.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
High-Quality Construction
The CAT6 cable is manufactured using high-quality copper conductors and carefully constructed and tested to keep Near-End Crosstalk (NEXT) well within acceptable limits. The patch cable is constructed with 24 AWG copper wire, to ensure peak performance for demanding Ethernet applications such as Power-over-Ethernet and 4K or 1080p video streaming.
Easily Install Your Network Cables

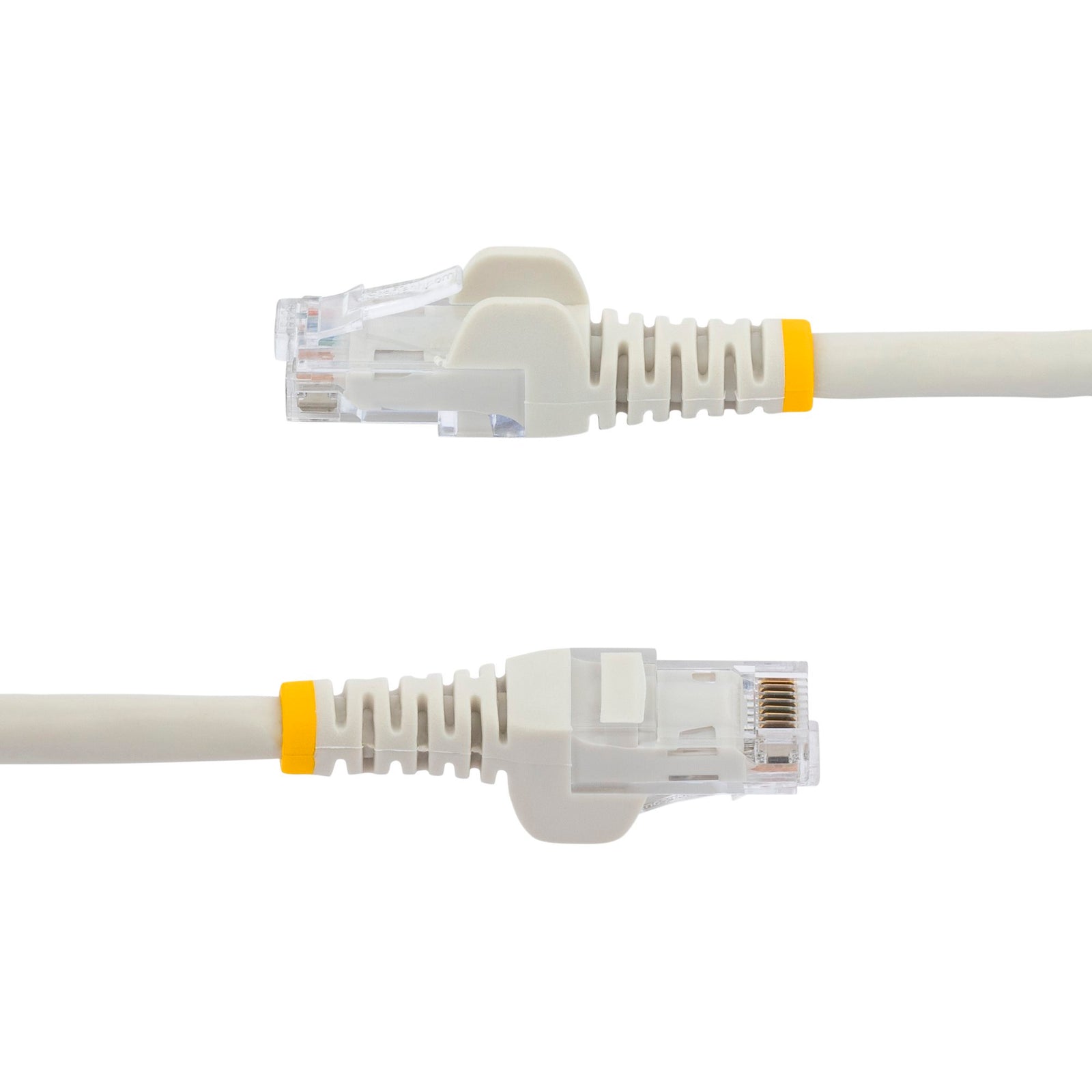

For trouble-free cable runs, this durable cable feature snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The CAT6 Ethernet cable also features molded boots which offer strain relief by stopping the RJ45 connectors from bending at sharp angles. This reduces the risk of cable damage, which could decrease network connectivity and performance.
N6PATC150CMWH is backed by a StarTech.com lifetime warranty for guaranteed reliability.
Applications
Designed for use with Gigabit networks
Patches from hub to distribution panel
Connects workstation to wall outlet
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Connector(s) | |
| Connector A | 1 - RJ-45 |
| Connector B | 1 - RJ-45 |
| Hardware | |
| Number of Conductors | 4 pair UTP |
| Connector Plating | Gold |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | CMG Rated (General Purpose) |
| Cable Type | Snagless |
| Wiring Standard | TIA/EIA-568-B.1-2001 T568B |
| Packaging Information | |
| Package Height | 2 cm [0.8 in] |
| Package Length | 20 cm [7.9 in] |
| Package Width | 36 cm [14.2 in] |
| Package Quantity | 1 |
| Shipping (Package) Weight | 80 g [2.8 oz] |
| Performance | |
| Cable Rating | CAT6 - 650 MHz |
| Physical Characteristics | |
| Product Height | 0.8 cm [0.3 in] |
| Product Length | 150.0 cm [59.1 in] |
| Weight of Product | 70 g [2.5 oz] |
| Product Width | 1.2 cm [0.5 in] |
| Color | White |
| Wire Gauge | 24 AWG |
| Conductor Type | Stranded Copper |
| Cable Length | 1.5 m [4.9 ft] |
| What's in the Box | Included in Package |
| 1 - CAT6 Cable |
| Description | Downloads |
|---|---|
| N6PATC150CMWH:Datasheet | Downloads |
