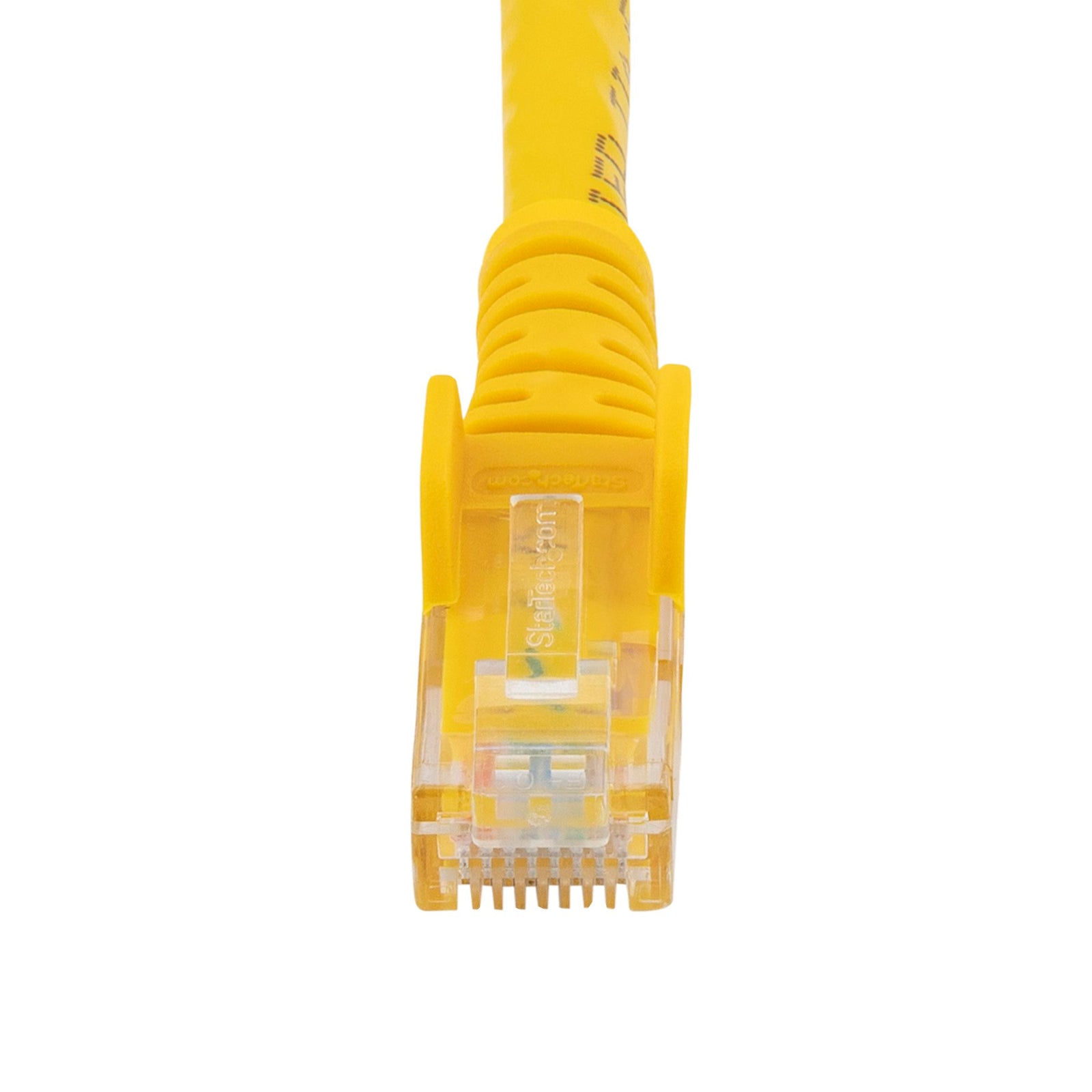

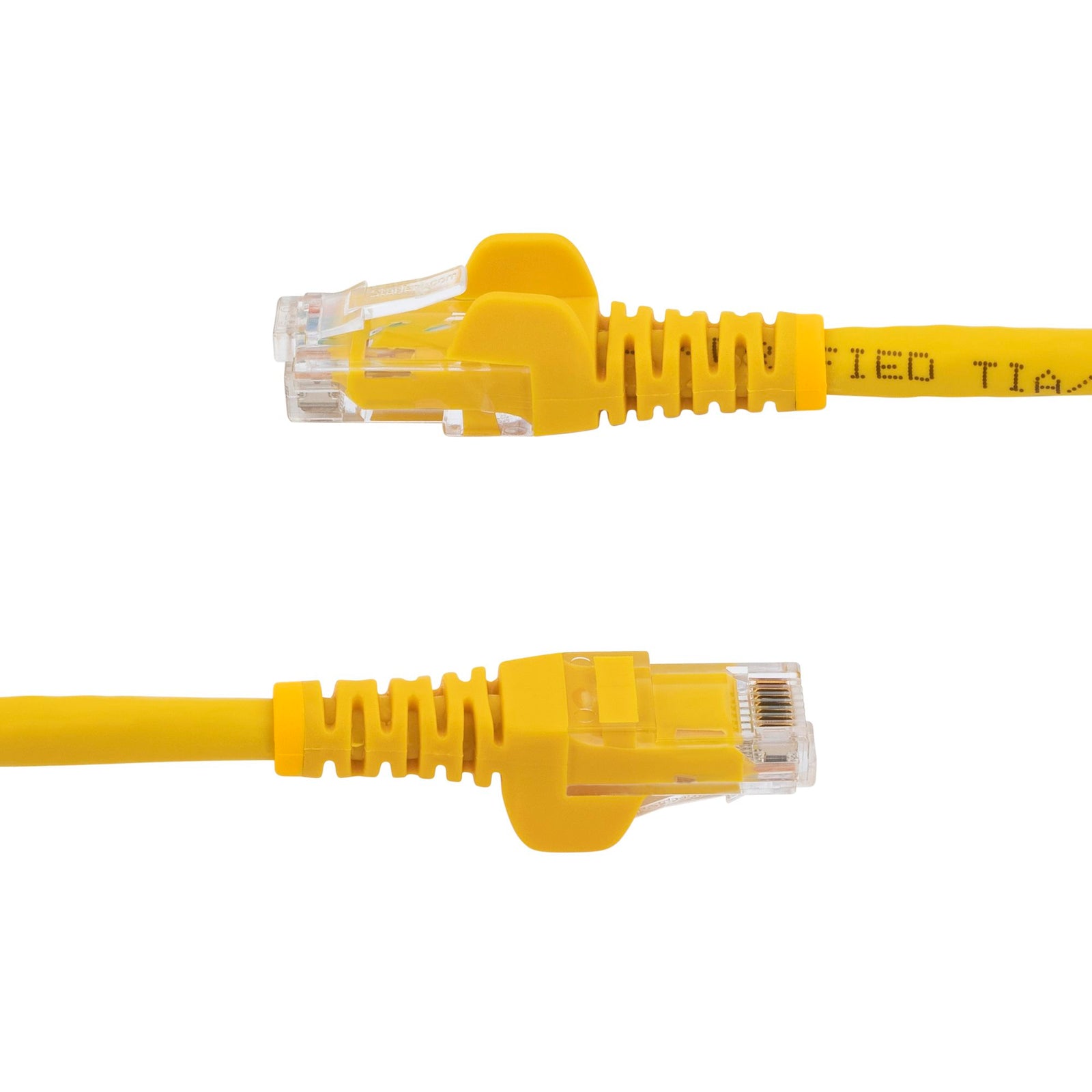

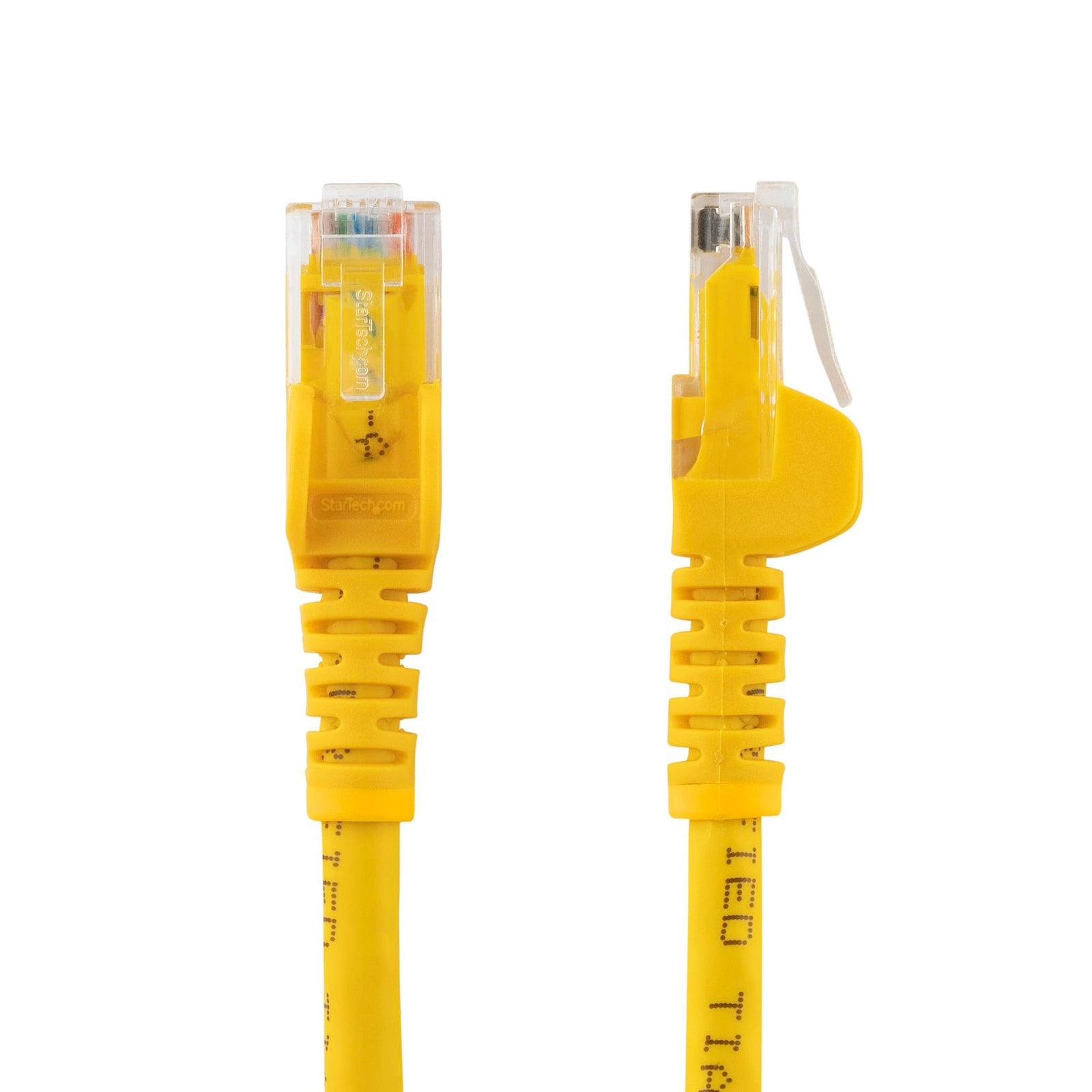

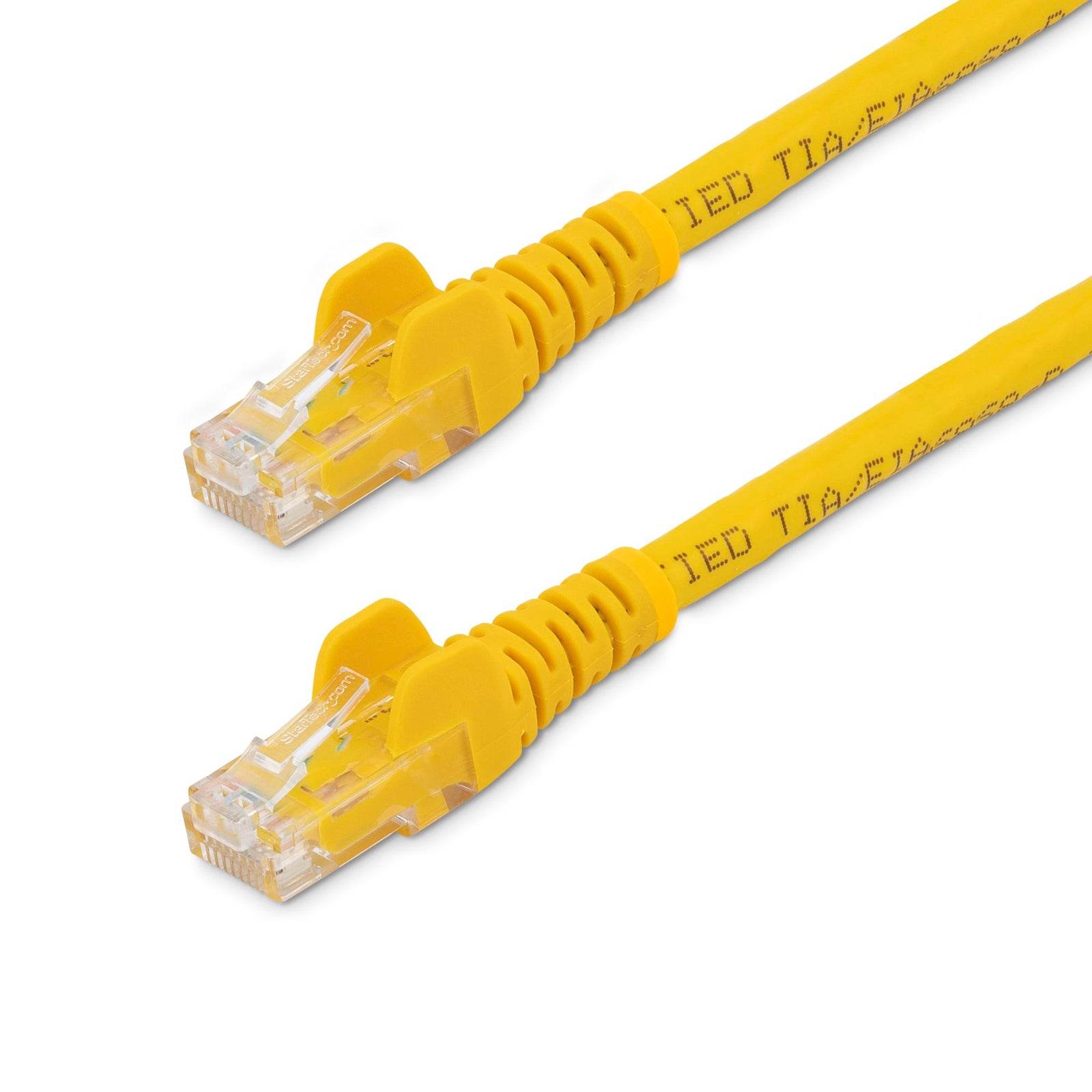

StarTech N6PATC1MYL 1m CAT6 Ethernet Cable - Yellow CAT 6 Gigabit Ethernet Wire

The N6PATC1MYL Cat 6 Patch Cable (1m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable yellow PVC jacket that enables you to color code your network cable runs as needed.

To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.

Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.

100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.

24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

Applications
Designed for use with Gigabit networks
Patches from hub to distribution panel
Connects workstation to wall outlet

Warranty Information
Warranty	Lifetime
Connector(s)
Connector A	1 - RJ-45
Connector B	1 - RJ-45
Hardware
Number of Conductors	4 pair UTP
Connector Plating	Gold
Cable Jacket Material	PVC - Polyvinyl Chloride
Fire Rating	CMG Rated (General Purpose)
Cable Type	Snagless
Wiring Standard	TIA/EIA-568-B.1-2001 T568B
Packaging Information
Package Height	1.3 cm [0.5 in]
Package Length	22.0 cm [8.7 in]
Package Width	20.0 cm [7.9 in]
Package Quantity	1
Shipping (Package) Weight	55.0 g [1.9 oz]
Performance
Cable Rating	CAT6 - 650 MHz
Physical Characteristics
Product Height	1.6 cm [0.6 in]
Product Width	1.3 cm [0.5 in]
Color	Yellow
Wire Gauge	24 AWG
Conductor Type	Stranded Copper
Cable Length	1 m [3.3 ft]
Product Length	1.0 m [3.3 ft]
Weight of Product	45.0 g [1.6 oz]
What's in the Box	Included in Package
	1 - 1m Yellow Snagless Cat6 UTP Patch Cable - ETL Verified

Description Downloads

N6PATC1MYL:Datasheet Downloads

StarTech N6PATC1MYL 1m CAT6 Ethernet Cable - Yellow CAT 6 Gigabit Ethernet Wire
