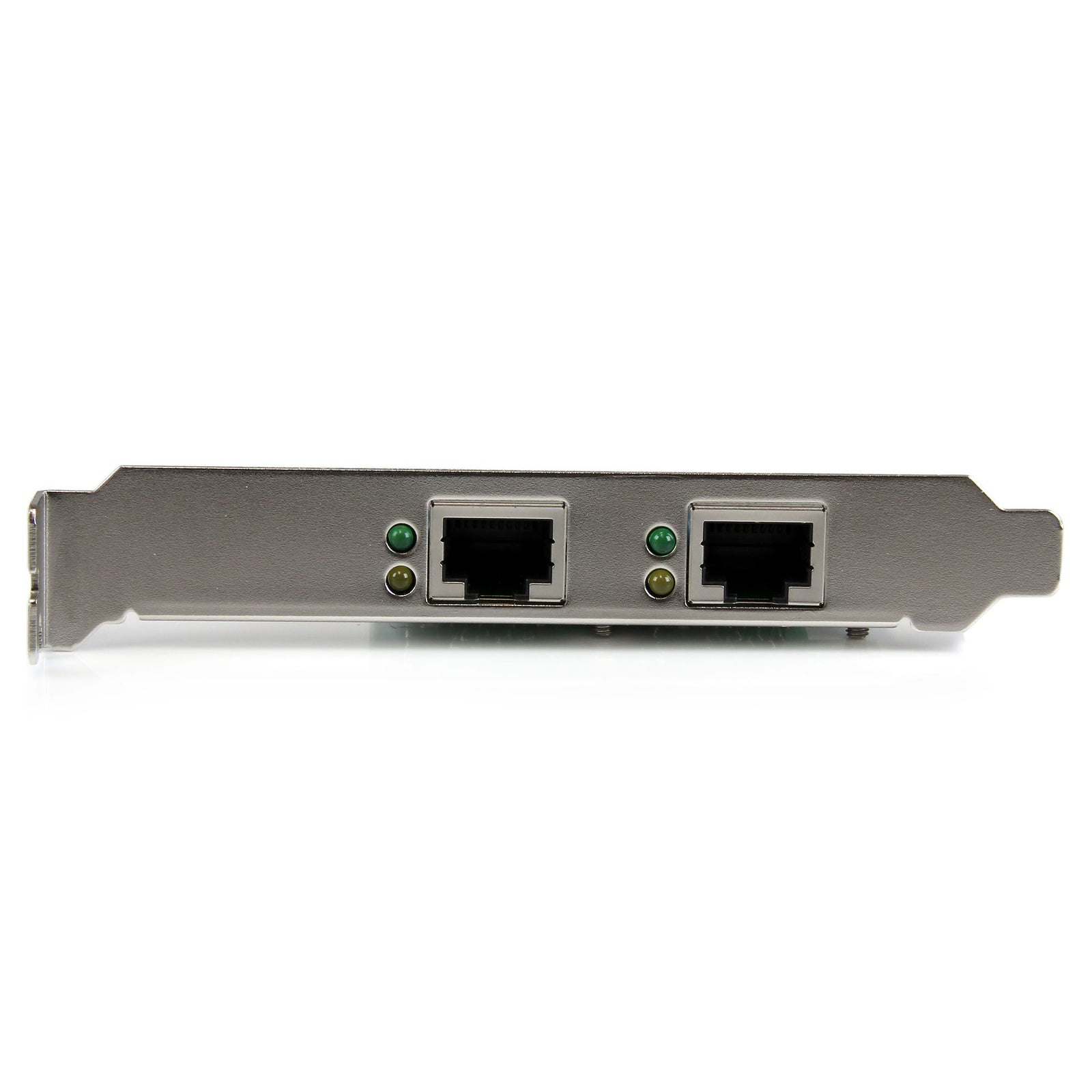

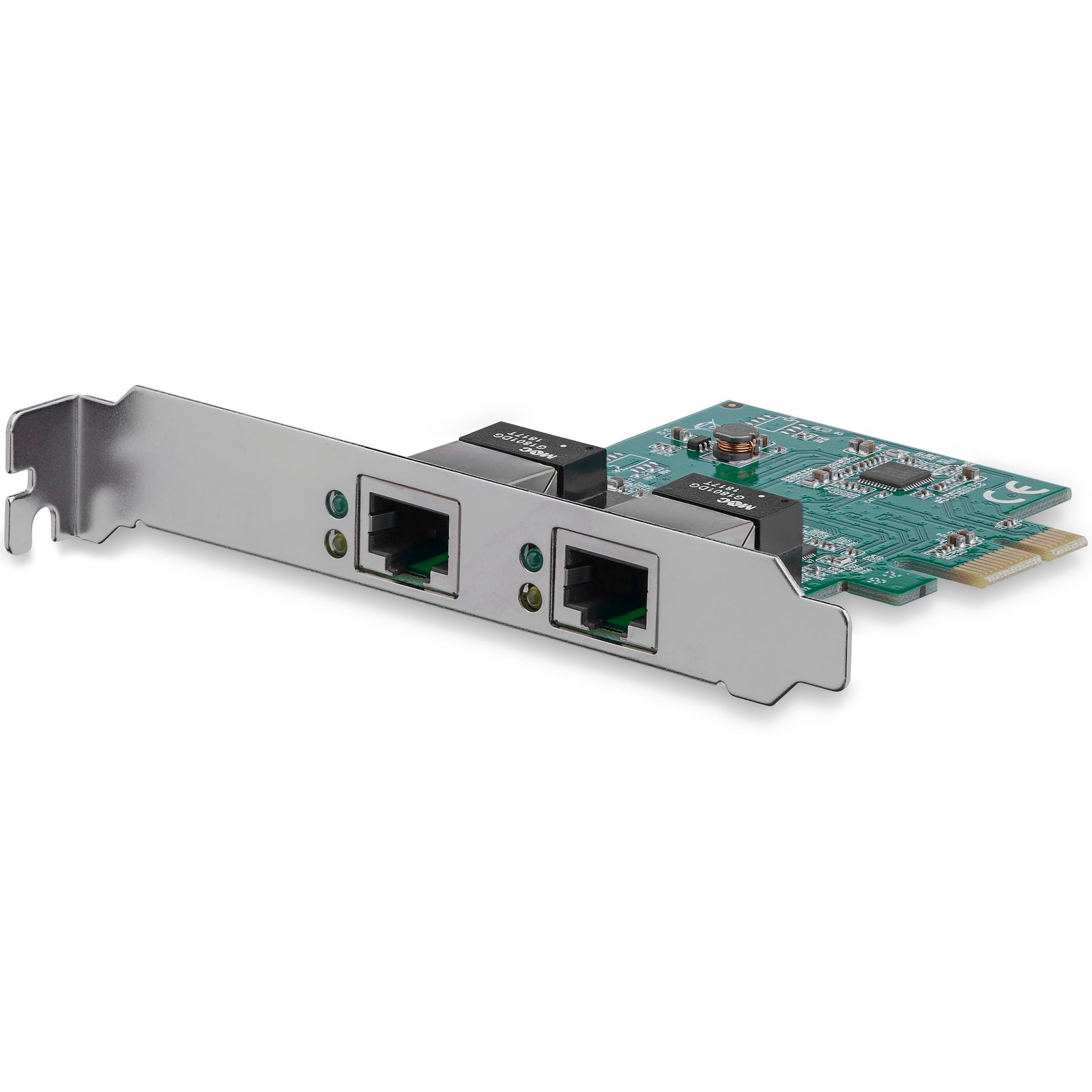

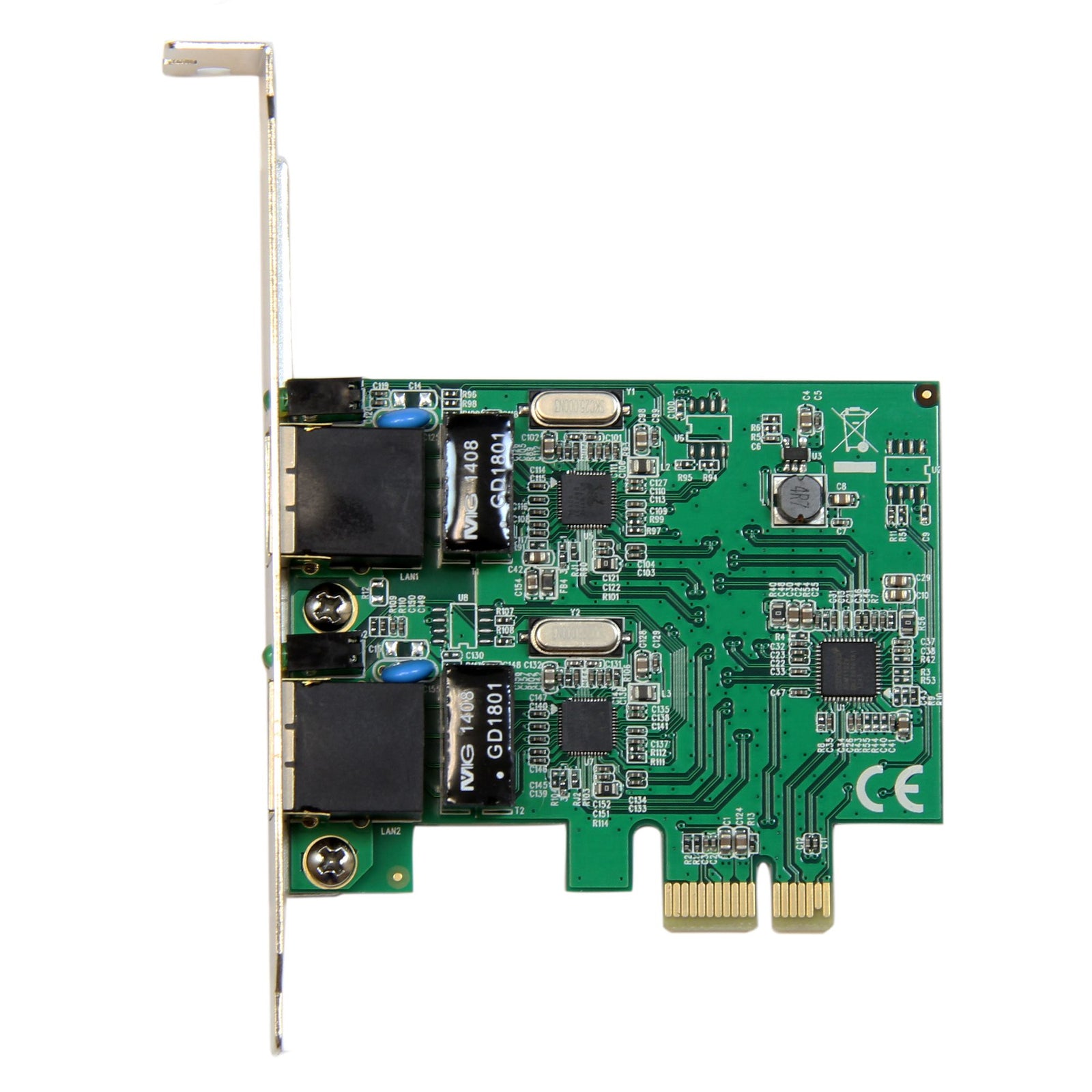

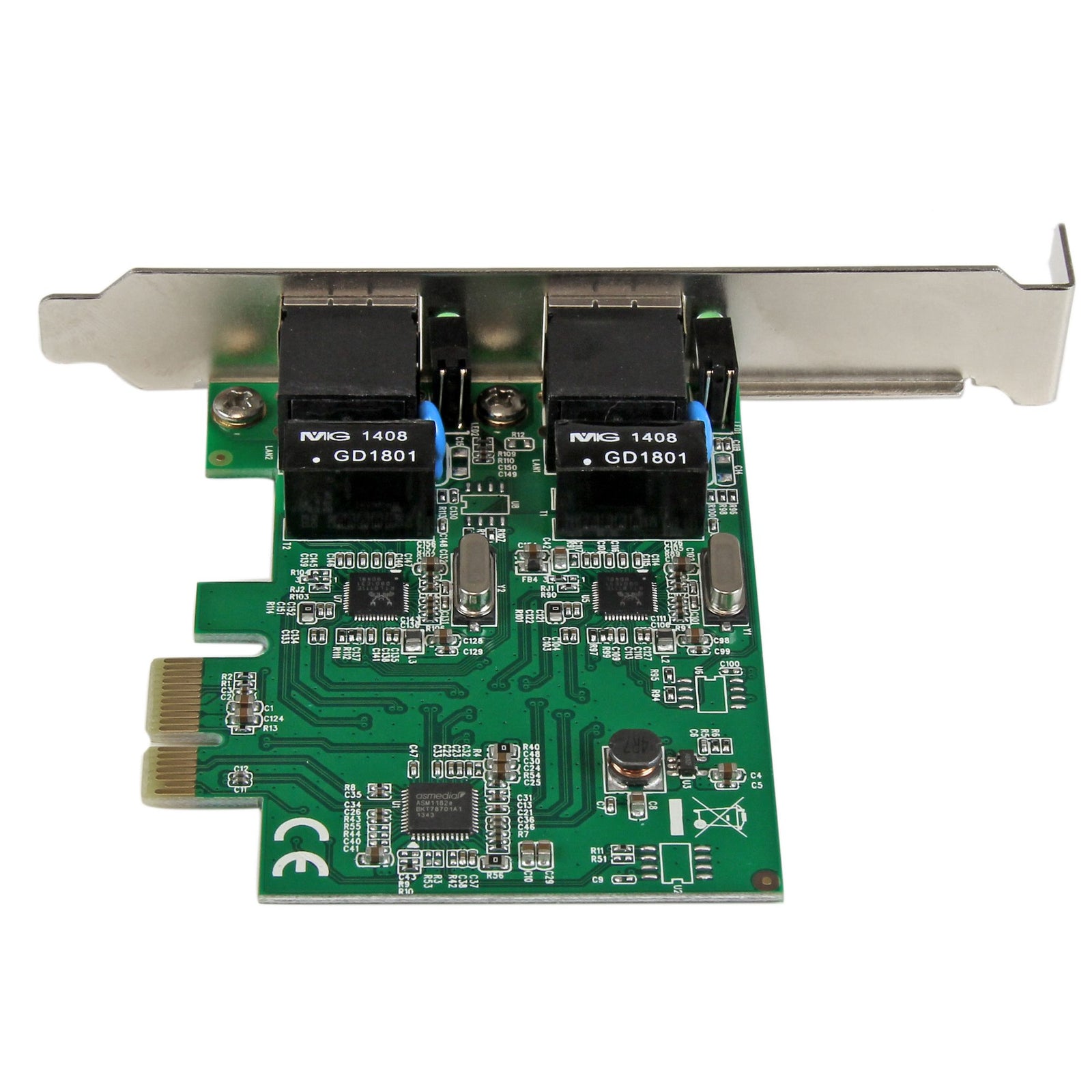

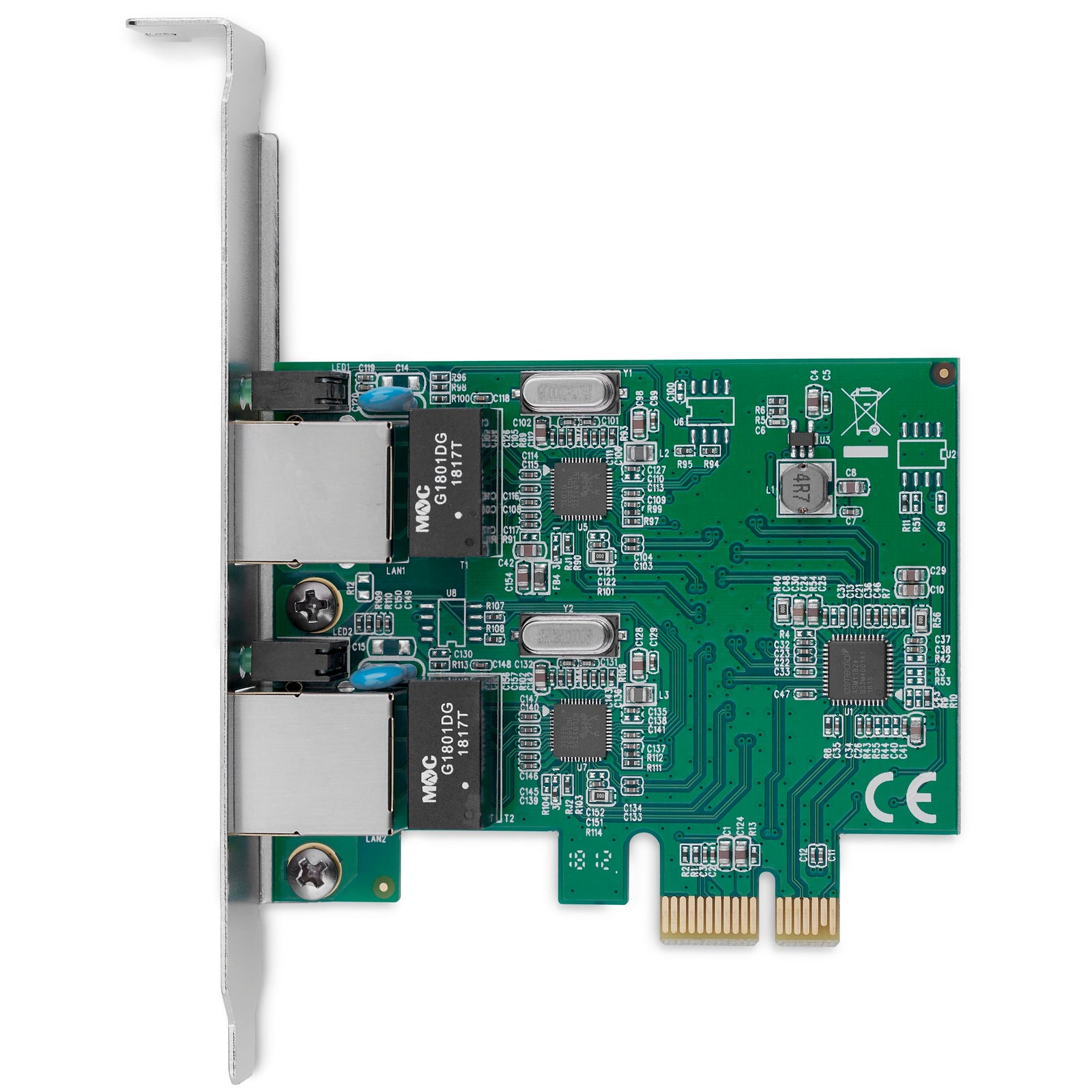

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
The StarTech Advantage
Protect critical networked systems with a redundant and independent Gigabit port
Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
Maximize the networking efficiency of your virtualized server, with dedicated ports
| Compatibility | |
|---|---|
| Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 | Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 |
| Mac OS 10.4 to 10.9 | Linux 2.4.x and up - LTS Versions only |
| Specifications | |
| Warranty Information | Performance |
| Warranty | 2 Years |
| Connector(s) | Maximum Data Transfer Rate |
| Connector Type(s) | 2000 Mbps (full-duplex), 1000 Mbps (half-duplex) |
| 1 - PCI Express x1 | |
| External Ports | Compatible Networks |
| 2 - RJ-45 | 10/100/1000 Mbps |
| Environmental | Physical Characteristics |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | 0°C to 100°C (32°F to 212°F) |
| Humidity | 10~90% RH |
| Hardware | Weight of Product |
| Ports | 1.9 oz [53.0 g] |
| 2 | |
| Interface | Color |
| RJ45 (Gigabit Ethernet) | Green |
| Bus Type | Material |
| PCI Express | Steel |
| Card Type | |
| Standard Profile (LP bracket incl.) | Product Length |
| Port Style | 3.6 in [9.3 cm] |
| Integrated on Card | Product Width |
| Industry Standards | 0.7 in [1.8 cm] |
| IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | Product Height |
| PCI Express Base Specification 2.0 | 4.7 in [12.0 cm] |
| Chipset ID | |
| Realtek - RTL8111 | Power |
| ASMedia - ASM1182E | Input Voltage |
| Indicators | 12V DC |
| LED Indicators | Output Voltage |
| 2 - Yellow - Gigabit Mode | 12V DC |
| 2 - Green - Link/Activity | |
| Packaging Information | Software |
| Package Height | OS Compatibility |
| 1.3 in [3.2 cm] | Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 |
| Package Length | Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 |
| 6.8 in [17.2 cm] | Mac OS 10.4 to 10.9 |
| Shipping (Package) Weight | Linux 2.4.x and up - LTS Versions only |
| 4.8 oz [136.0 g] | Special Notes / Requirements |
| Package Width | System and Cable Requirements |
| 5.6 in [14.2 cm] | Available PCI Express slot |
| Package Quantity | |
| 1 | What's in the Box |
| Included in Package | |
| 1 - PCIe Network Card | |
| 1 - Low Profile Bracket | |
| 1 - Instruction Manual |
| Description | Downloads |
|---|---|
| StarTech Network Card Internal Ethernet 2000 Mbit/s DataSheet | Downloads |
| StarTech Network Card Internal Ethernet 2000 Mbit/s Quick-Start Guide | Downloads |
