StarTech Network Card WLAN 150 Mbit/s - USB150WN1X1W
Extremely compact and lightweight design
1 Transmitter/1 Receiver (1x1:1) antenna configuration
Compliant with IEEE 802.11n standard, with transfer rates up to 150Mbps
Backward compatible with IEEE 802.11b/g standards, for up to 11/54Mbps connections respectively
Supports security features such as WEP (64-128-bit), WPA and WPA2
Broadcast distances up to 100m indoors and 300m outdoors
Wi-Fi Protected Setup (WPS) push button or software configuration
Infrastructure and Ad-Hoc network modes support
The USB150WN1X1W USB Wireless Network Adapter lets you add high-speed Wireless-N connectivity to a desktop or laptop system through USB.
Using a 1T1R (1 Transmitter/1 Receiver) design over the 2.4GHz frequency, the USB WiFi adapter is capable of data transfer rates up to 150Mbps over an 802.11n network. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer - it can even be left connected your laptop when in a carrying bag, without worry of damaging the adapter or the host port.
Backward compatible with 802.11b/g networks (11/54Mbps), this USB wireless adapter is a versatile wireless networking solution, offering support for security options such as WEP, WPA or WPA2, as well as wireless Quality of Service (QoS) support and quick device connection through Wireless Protected Setup (WPS).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Add wireless networking capabilities, without having to open up your computer case
Connect to a wireless network hotspot from your laptop while you're on the go, or in locales where cables aren't possible, such as outdoors
The StarTech.com Advantage
Ensure a fast, reliable connection to wireless routers and access points with 802.11n compatibility
Ultra-compact form factor for portability and unobtrusive installation in almost any scenario
-
| Compatibility |
|
| Windows® XP, Vista, 7, 8, 8.1, 10, 11 |
|
| Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 |
|
| Mac OS® 10.5 to 10.14 |
|
| Linux 2.6.x and up - LTS Versions only |
|
| Specifications |
|
| Warranty Information |
|
| Warranty |
2 Years |
| Connector(s) |
|
| Connector Type(s) |
1 - Wireless N (IEEE 802.11n) |
|
1 - USB 2.0 Type-A (4 pin, 480Mbps) |
| Environmental |
|
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
| Humidity |
10~90% RH |
| Hardware |
|
| Interface |
Wireless Ethernet |
| Bus Type |
USB 2.0 |
| Antenna Configuration |
1x1:1 (TxR:S) |
| Industry Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Chipset ID |
Realtek - RTL8188EUS |
| Packaging Information |
|
| Package Height |
0.9 in [2.2 cm] |
| Package Length |
6.6 in [16.7 cm] |
| Shipping (Package) Weight |
1.4 oz [40.0 g] |
| Package Width |
4.0 in [10.2 cm] |
| Package Quantity |
1 |
| Performance |
|
| Maximum Data Transfer Rate |
150 Mbps |
| Full Duplex Support |
Yes |
| Frequency |
2.4 GHz |
| Security Features |
|
| WEP Data Encryption |
|
| TKIP/AES |
|
| WPA and WPA2-PSK Data Encryption |
|
| MTBF |
44,000 Hours |
| Physical Characteristics |
|
| Weight of Product |
0.1 oz [2 g] |
| Color |
White |
| Material |
Plastic |
| Product Length |
0.7 in [19 mm] |
| Product Width |
0.6 in [1.5 cm] |
| Product Height |
0.3 in [0.8 cm] |
| Power |
|
| Power Source |
USB-Powered |
| Software |
|
| OS Compatibility |
Windows® XP, Vista, 7, 8, 8.1, 10, 11 |
|
Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 |
|
Mac OS® 10.5 to 10.14 |
|
Linux 2.6.x and up - LTS Versions only |
| Special Notes / Requirements |
System and Cable Requirements Available USB port |
| What's in the Box |

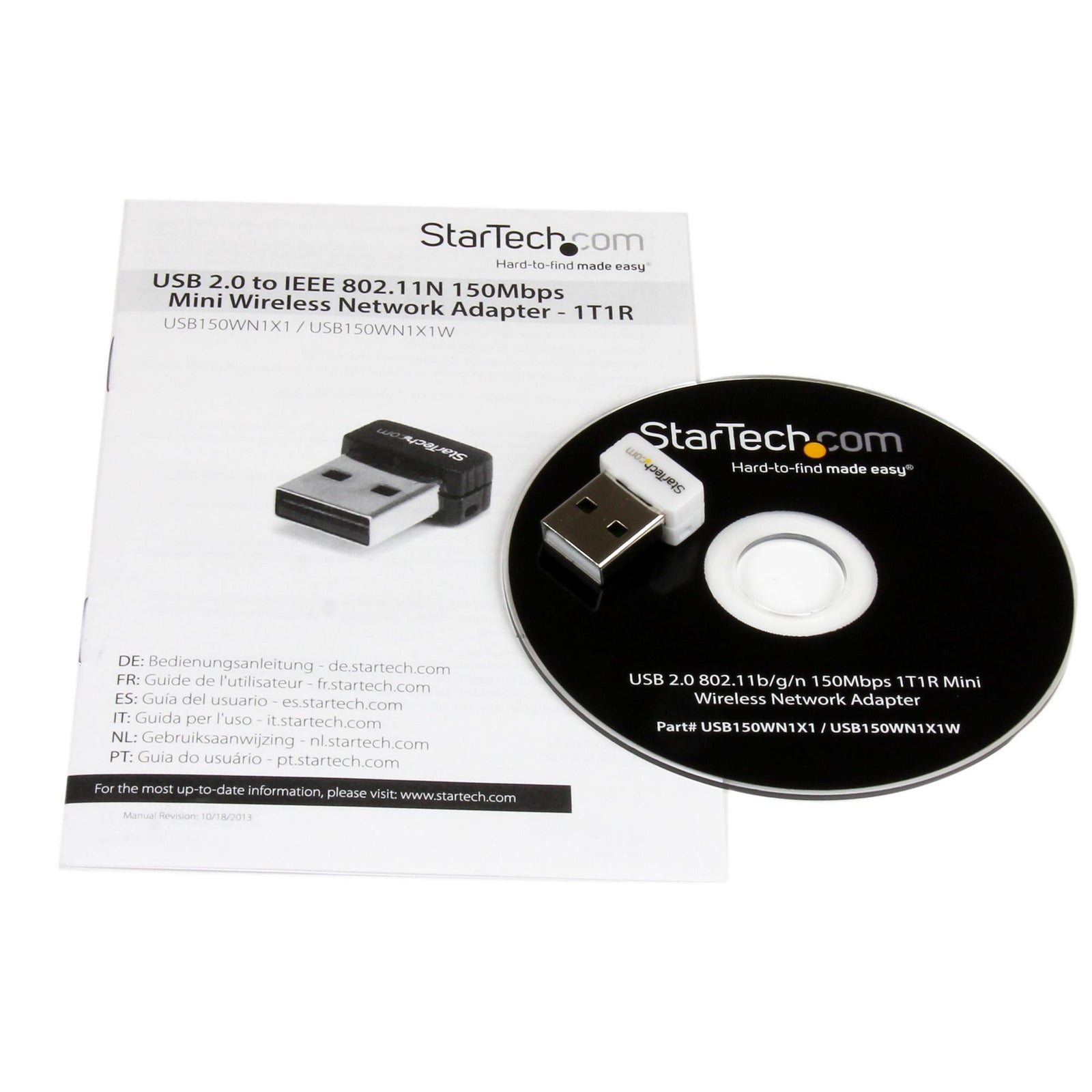

Included in Package 1 - USB Wireless Adapter 1 - Driver CD 1 - Instruction Manual |
-
