StarTech NOTECONS02X KVM Switch Black
SKU: NOTECONS02X
£420.95 (Excl. VAT)
- Description
- Specifications
- Downloads
-

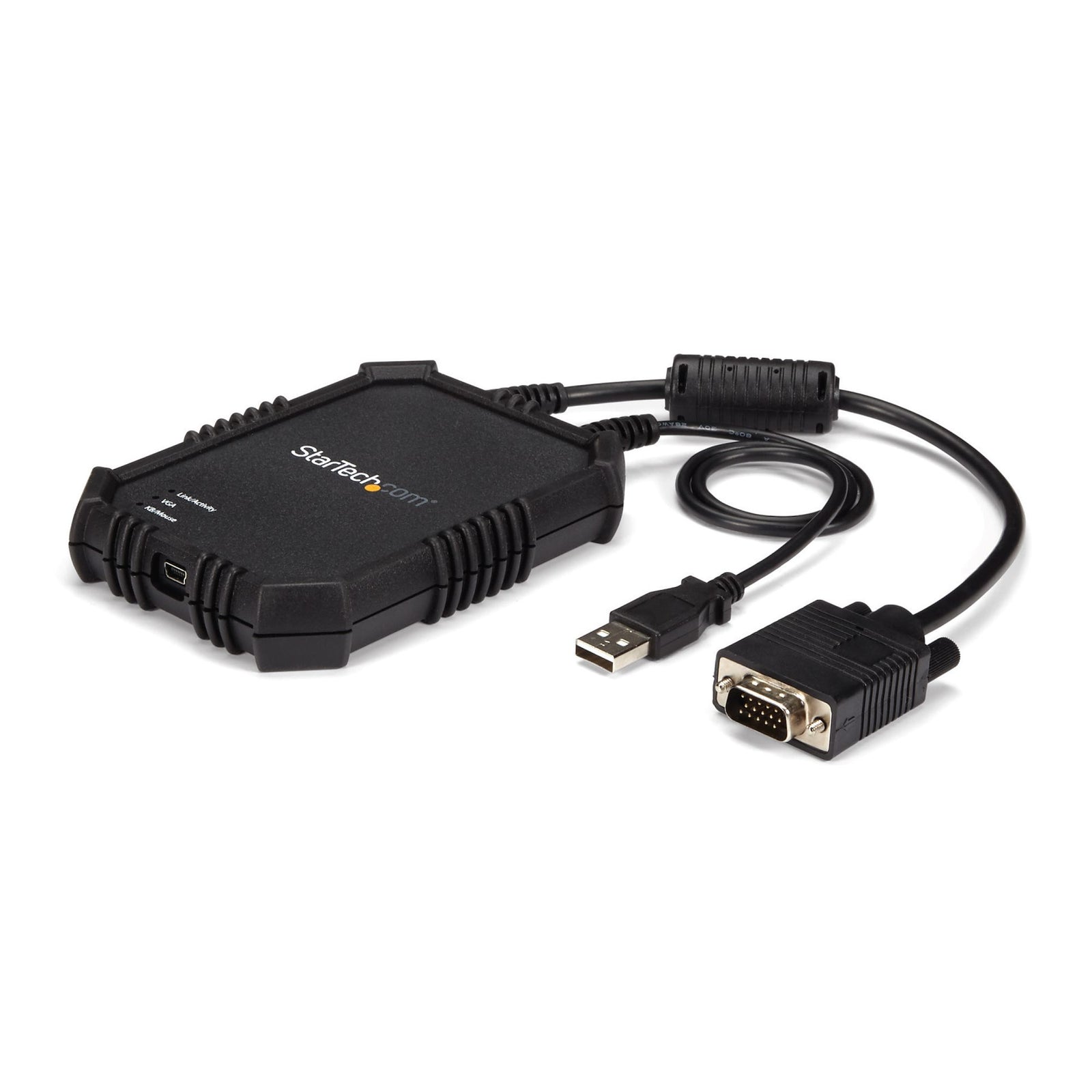

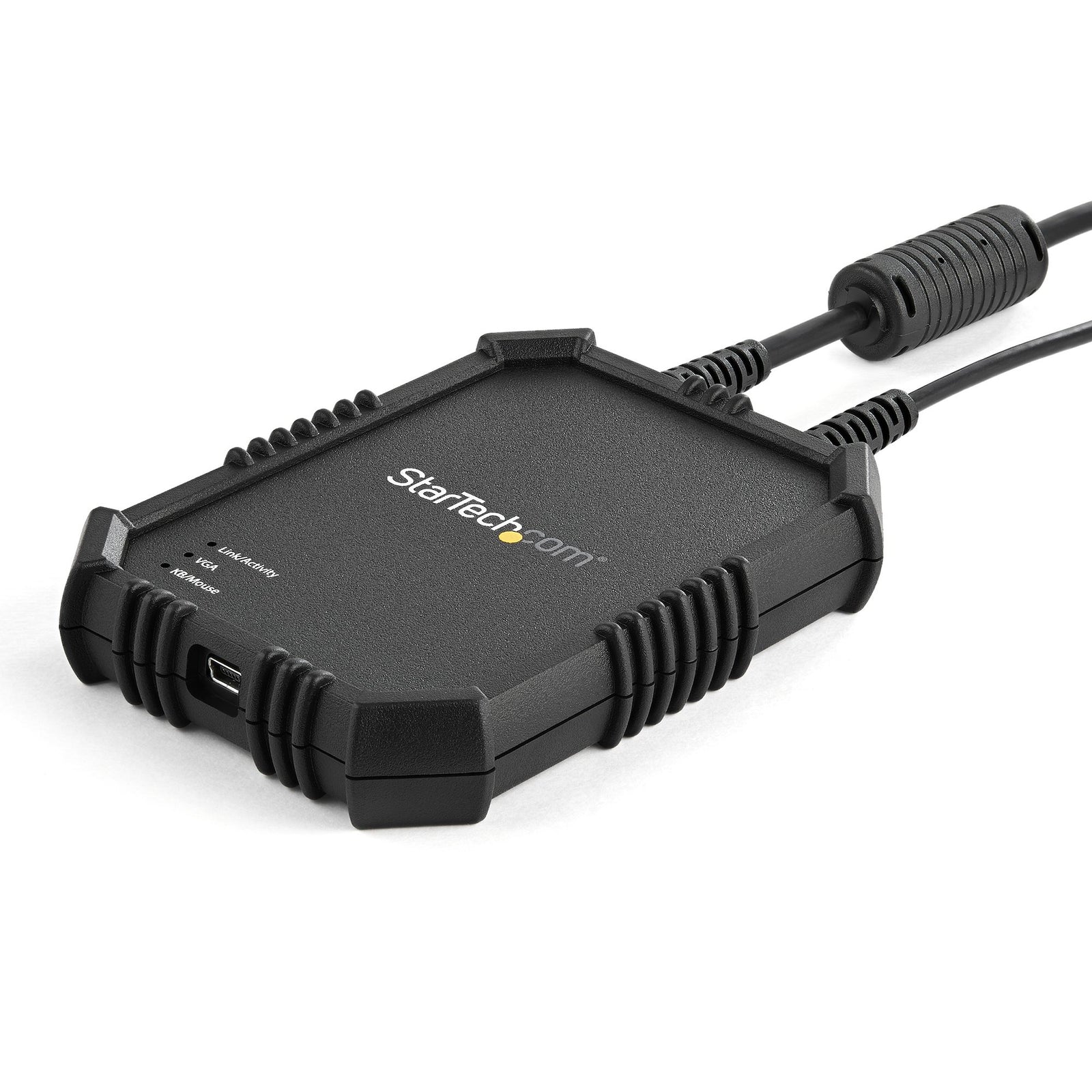

StarTech NOTECONS02X KVM Switch Black
This rugged and portable USB crash cart adapter lets you turn your laptop into a portable console for accessing servers, desktops and laptops, as well as ATMs, kiosks or any computing device that features both VGA and USB ports.
This adapter also supports local file transfer and video capturing built into the software.
Maximum durability
This crash cart adapter has been specifically designed for maximum durability. It features a rugged, rubberized housing that can handle drops by absorbing shock, to make sure that you’re equipped for unexpected challenges.
Hassle-free operation
Troubleshoot your devices quickly and easily. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server.
The crash cart adapter features a flexible software interface that offers robust performance. It enables you to transfer files from your laptop to the server, monitor and capture activity from the connected device as video for records or instructional purposes, and take screenshots and scale the display window to full-screen mode or smaller, without scroll bars.
Compact portability

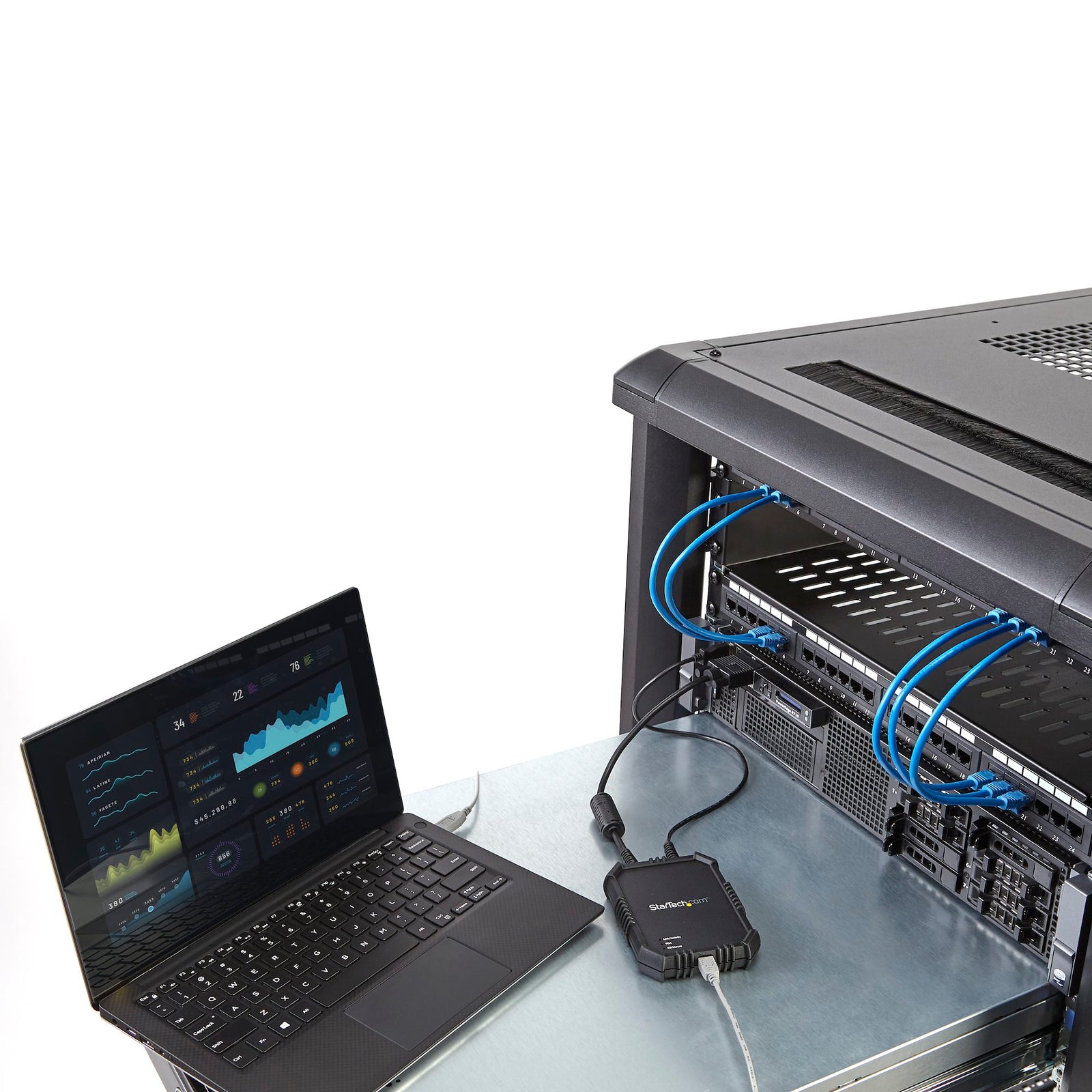

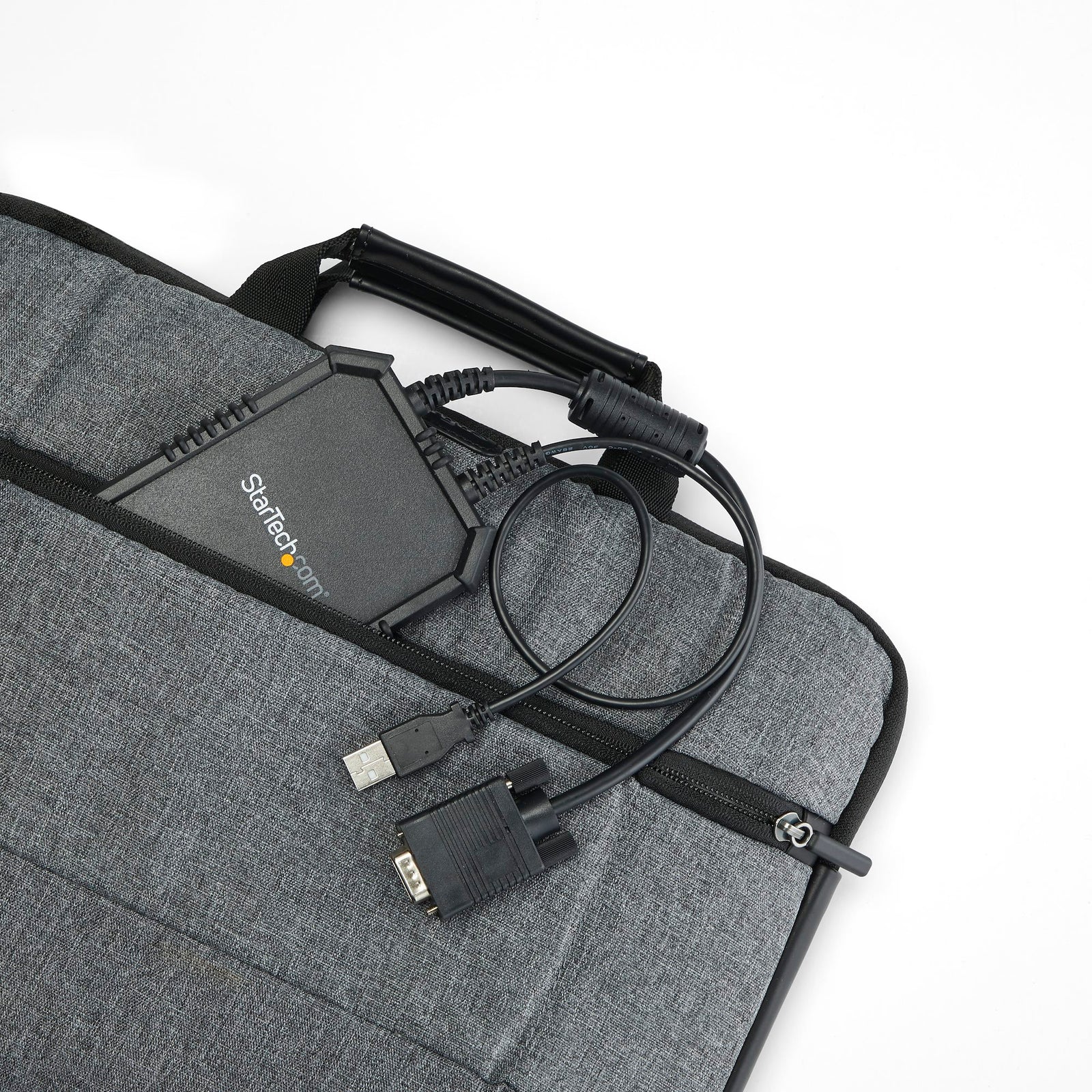

This compact crash cart adapter lets you connect to a headless device using only a laptop, eliminating the need to lug around an awkward, traditional server room crash cart. With optimal portability in mind for your mobile administration or repairs, this pocket-sized adapter features a small footprint and lightweight design that easily fits inside your laptop bag.
The adapter is USB powered so you won't need to carry a power adapter. Plus, the KVM cables are attached to the crash cart adapter so you won't need additional accessories to connect it to your server. The built-in cables have been engineered with strain relief, preventing them from wearing or breaking.
Universal connectivity
With no server-side software installation required, the USB crash cart adapter provides BIOS-level control of any PC or device that has both a VGA port and a USB port.
The NOTECONS02X is backed by a StarTech.com 2-year warranty and free lifetime technical support. -

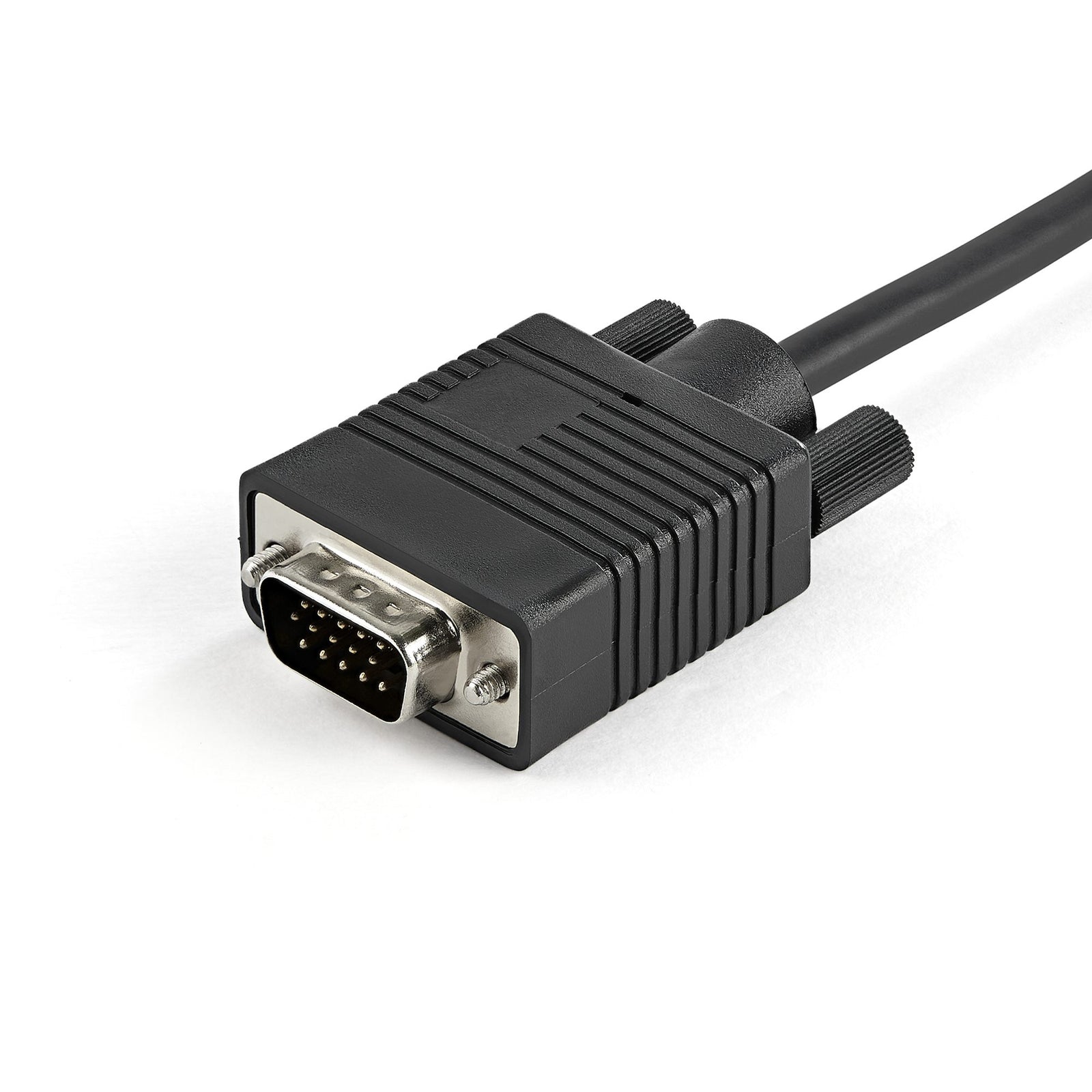

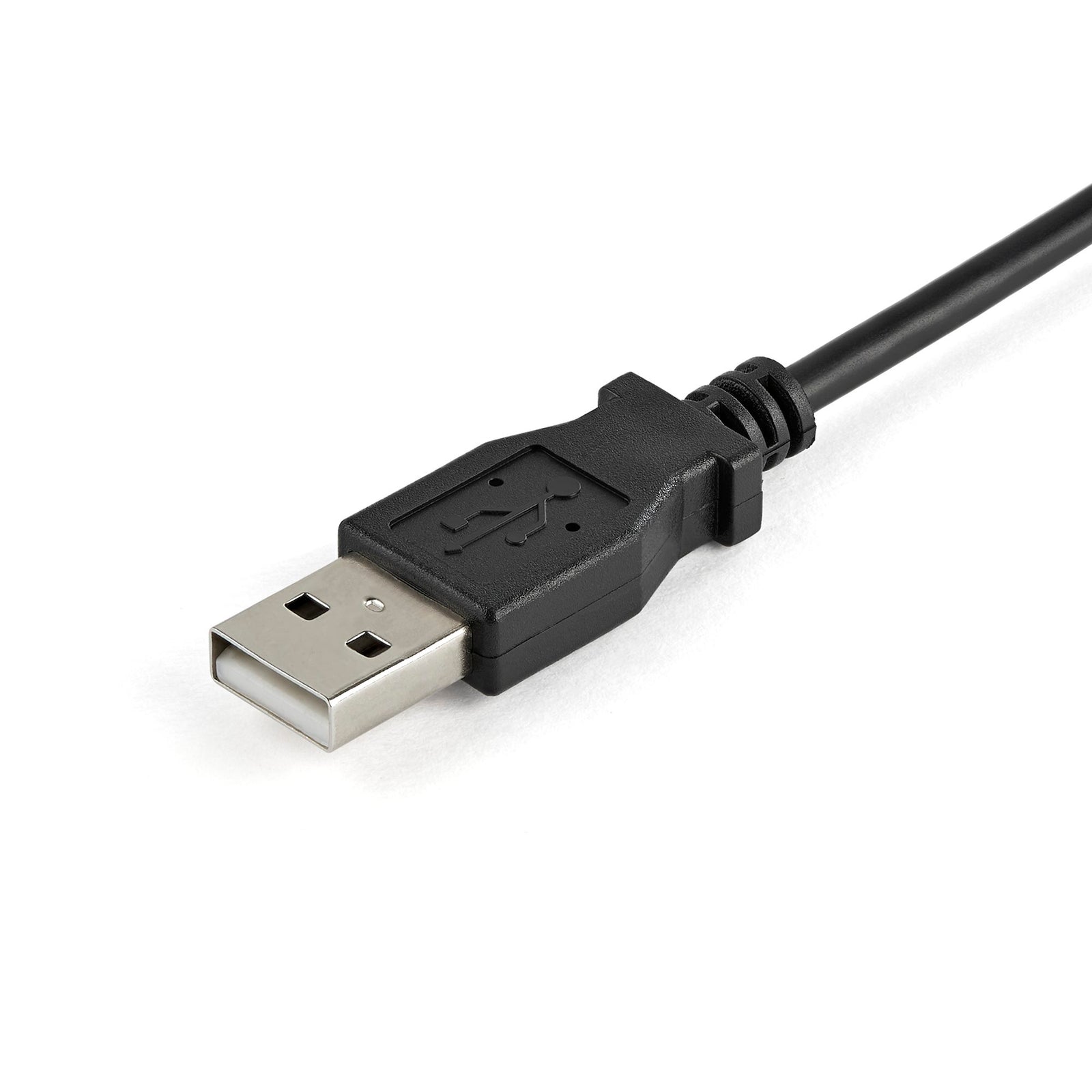

Compatibility Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0 Linux 2.6 to and up - LTS Versions only; glibc 2.18 or newer required Warranty Information Warranty 2 Years Connector(s) Console Interface(s) 1 - USB Mini-B (5 pin) Host Connectors 1 - VGA (15 pin, High Density D-Sub) 1 - USB 2.0 Type-A (4 pin, 480Mbps) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -40°C to 70°C (-40°F to 158°F) Humidity 80% RH Hardware Audio No KVM Ports 1 PC Interface USB PC Video Type VGA Number of Monitors Supported 1 Rack-Mountable No Cables Included Yes Daisy-Chain No Indicators LED Indicators 1 - Host/Server Video (VGA) Link 1 - Host/Server Keyboard/Mouse USB Link 1 - User Console/USB Link Packaging Information Package Height 4.8 cm [1.9 in] Package Length 29.8 cm [11.7 in] Shipping (Package) Weight 0.5 kg [1.0 lb] Package Width 16.4 cm [6.5 in] Package Quantity 1 Performance On-Screen Display No IP Control No Hot-Key Selection No Maximum Analog Resolutions 1920x1200 @ 60Hz Maximum Number of Users 1 Physical Characteristics Color Black Material Plastic Cable Length 416 mm [16.4 in] 1 x 15in (385mm) USB host cable 1 x 11in (290mm) VGA host cable 1 x 6ft (1.8m) USB Console cable Product Length 12.5 cm [4.9 in] Product Width 8.8 cm [3.5 in] Product Height 2.2 cm [0.9 in] Product Depth 115 mm [4.5 in] Weight of Product 244.0 g [8.6 oz] Power Power Source USB-Powered Software OS Compatibility Same as Compatibility section Special Notes / Requirements Note If interfacing with a Linux device, adapter only compatible with standard QWERTY keyboards in U.S English configuration What's in the Box 1 - Rugged crash cart adapter 1 - USB A to Mini-B cable 1 - USB software key 1 - Quick start guide -
Description Downloads StarTech NOTECONS02X KVM Switch Black Quick Start Guide Downloads
