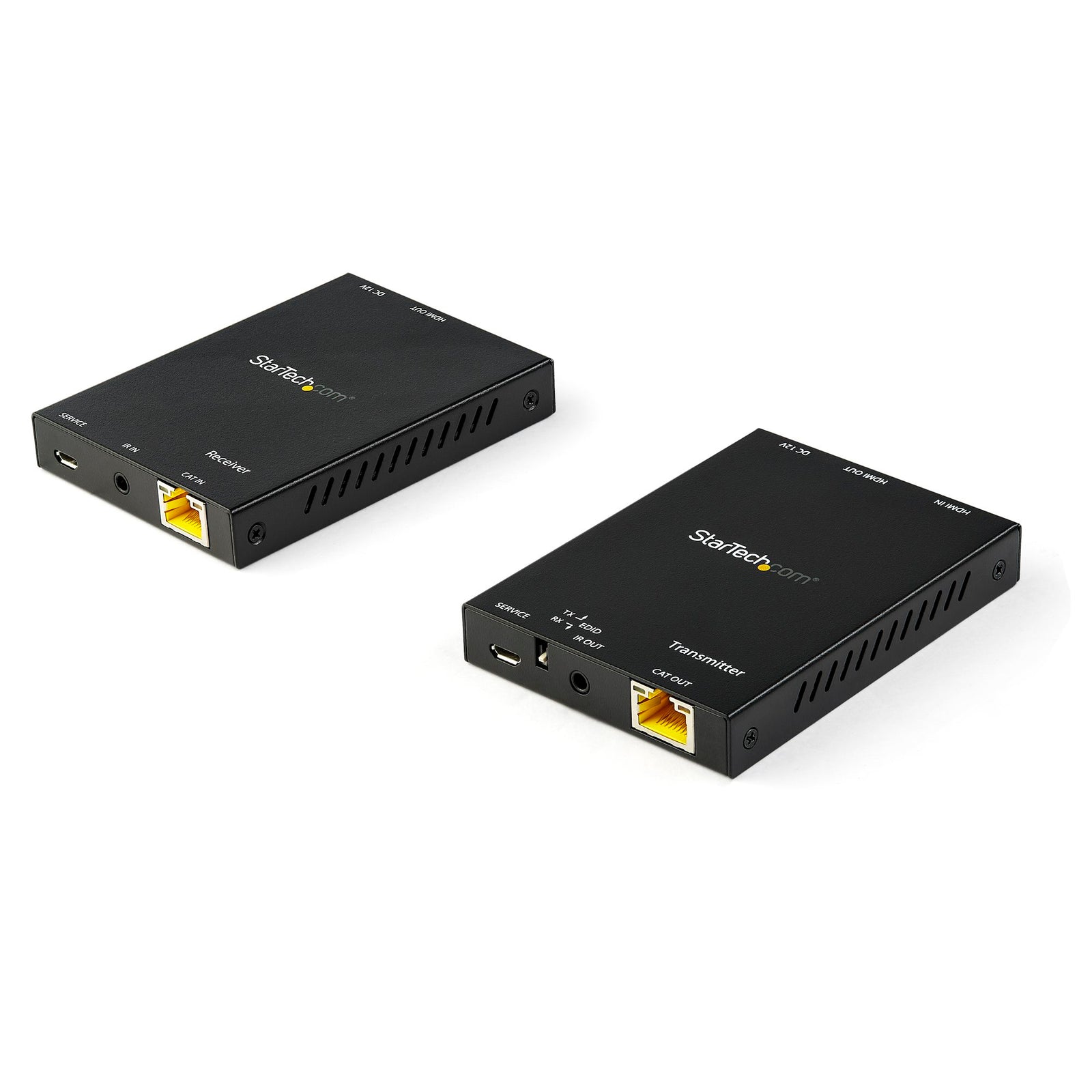

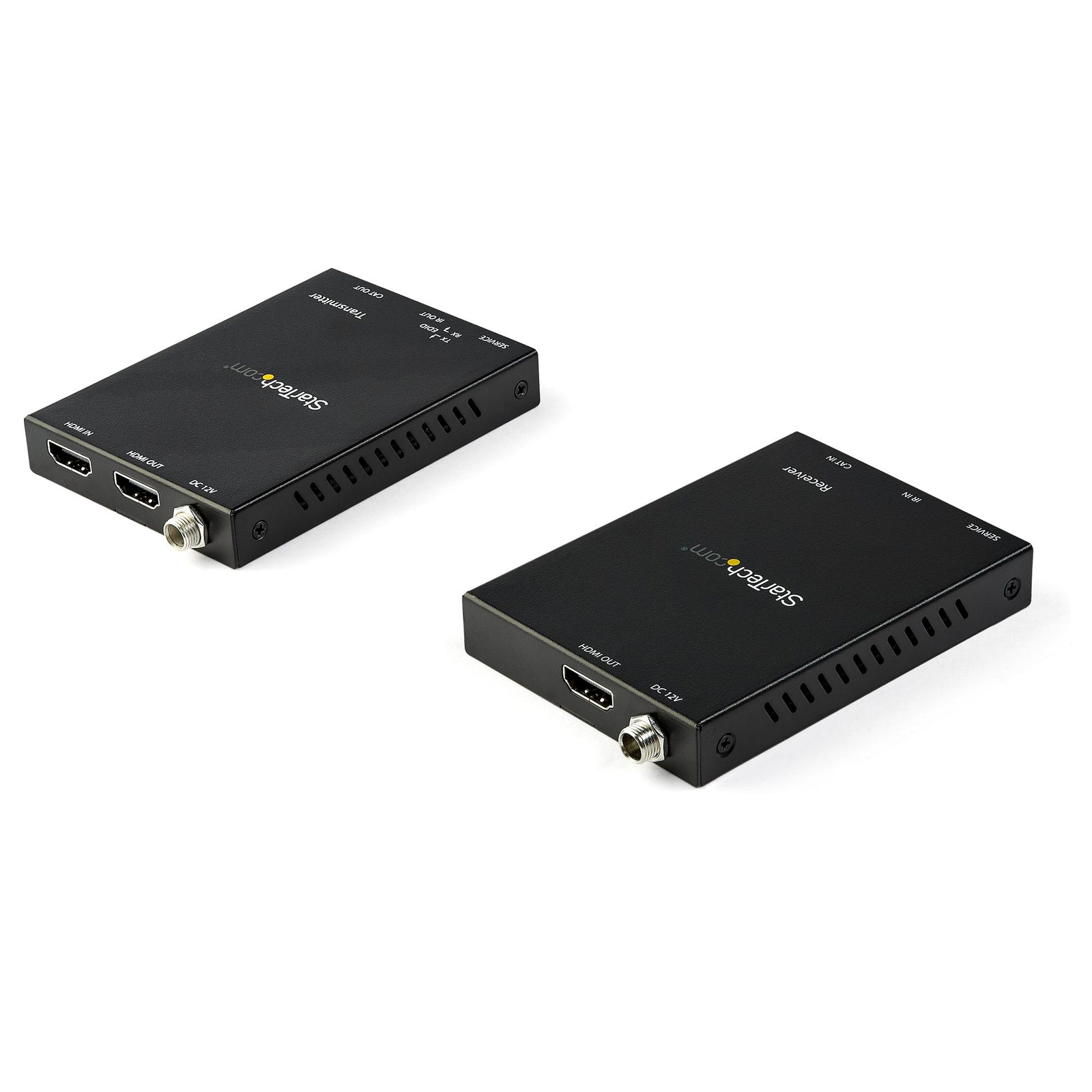

This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.
Astonishing 4K Picture Quality
This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.
Long-Distance Transmission
Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.
Compatible with HDCP 2.2 Devices
Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.
ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.
Applications
Extend your HDMI signal in classrooms and boardrooms
Use existing CAT6 infrastructure to create digital signage
Distribute an HDMI signal to multiple displays at tradeshows
Extend your HDMI signals to locations that lack power outlets
| Category | Specification |
|---|---|
| Warranty | 2 Years |

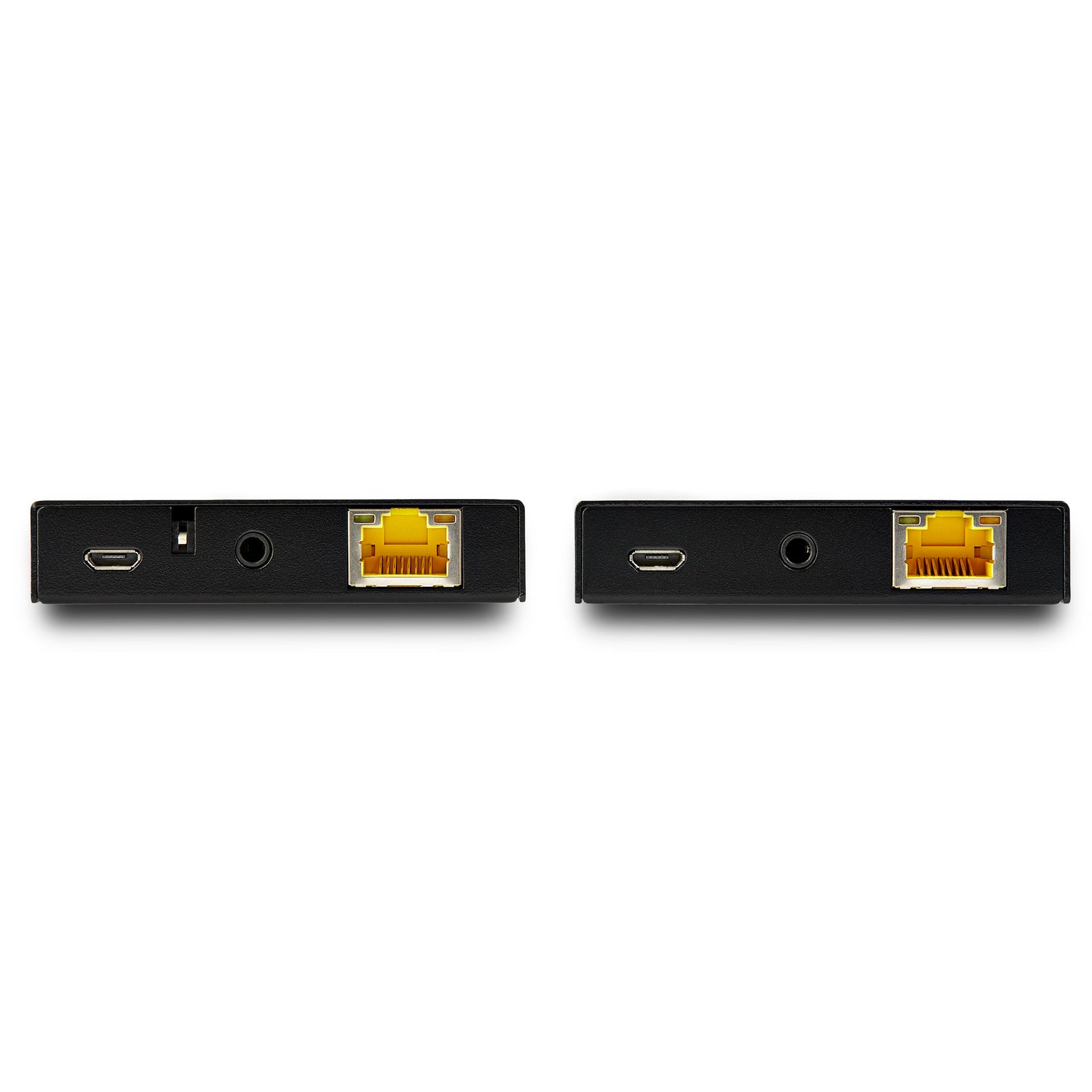

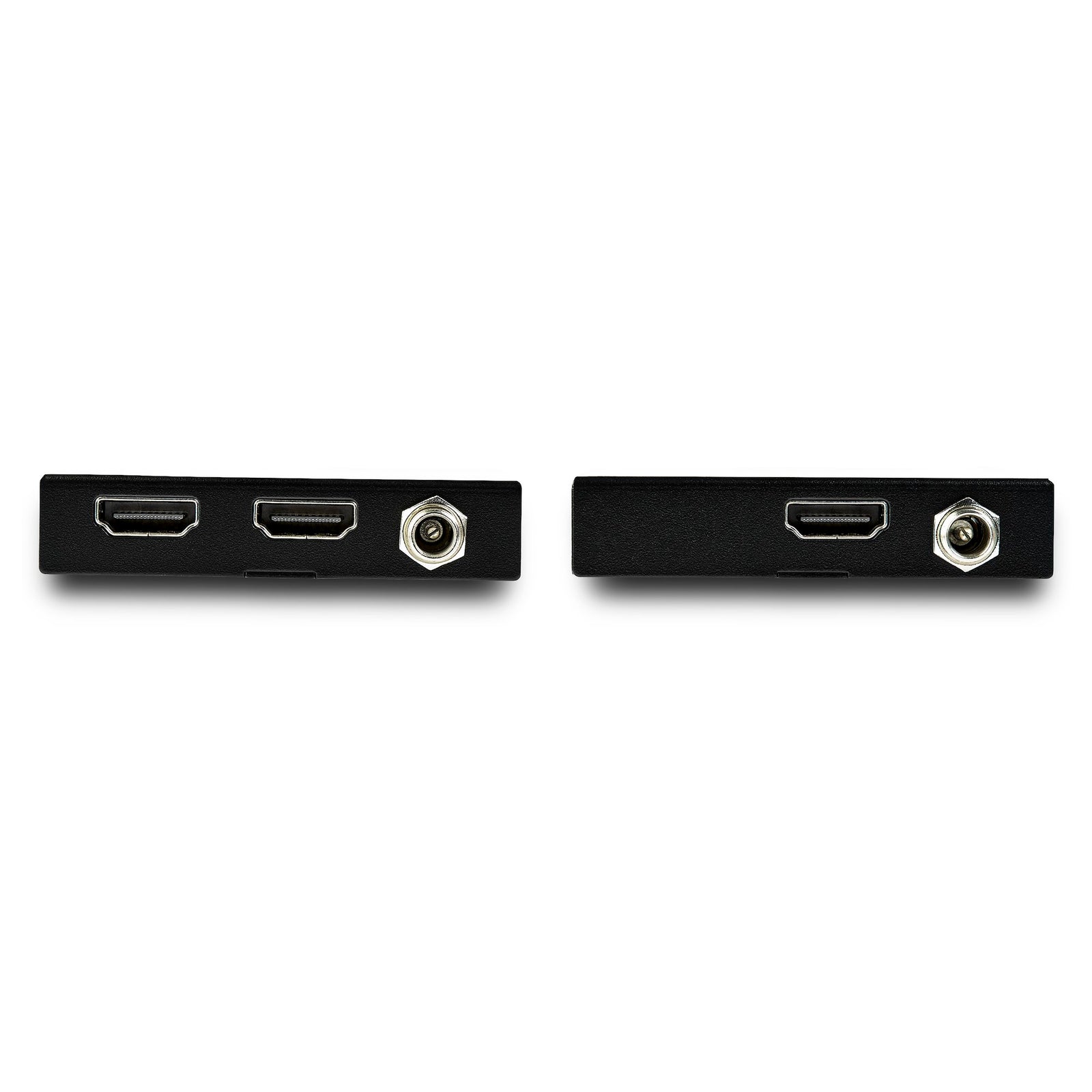

| Connectors | Connector A: 2 - HDMI (19 pin), 1 - RJ-45 Connector B: 1 - RJ-45, 1 - HDMI (19 pin) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (4°F to 140°F) |
| Humidity | 0% - 80 % RH (non-condensing) |
| AV Input | HDMI |
| AV Output | HDMI |
| Cabling | Cat 6 UTP |
| Audio | Yes |
| Package Height | 7.2 cm [2.8 in] |
| Package Length | 22.6 cm [8.9 in] |
| Shipping Weight | 0.8 kg [1.8 lb] |
| Package Width | 13.4 cm [5.3 in] |
| Package Quantity | 1 |
| Maximum Cable Length | 50.3 m [165.0 ft] |
| Max Distance | 50m [164ft] |
| Maximum Digital Resolutions | 3840 x 2160 (4K) @ 60 Hz |
| Supported Resolutions | Transmitter: 480i60, 576i50, 480p60, 576p50, 720p24/25/30/50/60, 1080i50/60, 1080p24/25/30/50/60, 2K24/25/30/50/60, 4K24/25/30, 4K50/60 4:2:0, 4K50/60 4:4:4; Receiver: 480i60, 576i50, 480p60, 576p50, 720p24/25/30/50/60, 1080i50/60, 1080p24/25/30/50/60, 4K24/25/30, 4K50/60 4:2:0, 4K50/60 4:4:4 |
| Wide Screen Supported | Yes |
| Product Height | 1.3 cm [0.5 in] |
| Product Length | 97.0 mm [3.8 in] |
| Weight of Product | 156.0 g [5.5 oz] |
| Product Width | 7.0 cm [2.8 in] |
| Color | Black |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.3A |
| Output Voltage | 12V DC |
| Output Current | 1A |
| Center Tip Polarity | Positive |
| Plug Type | M |

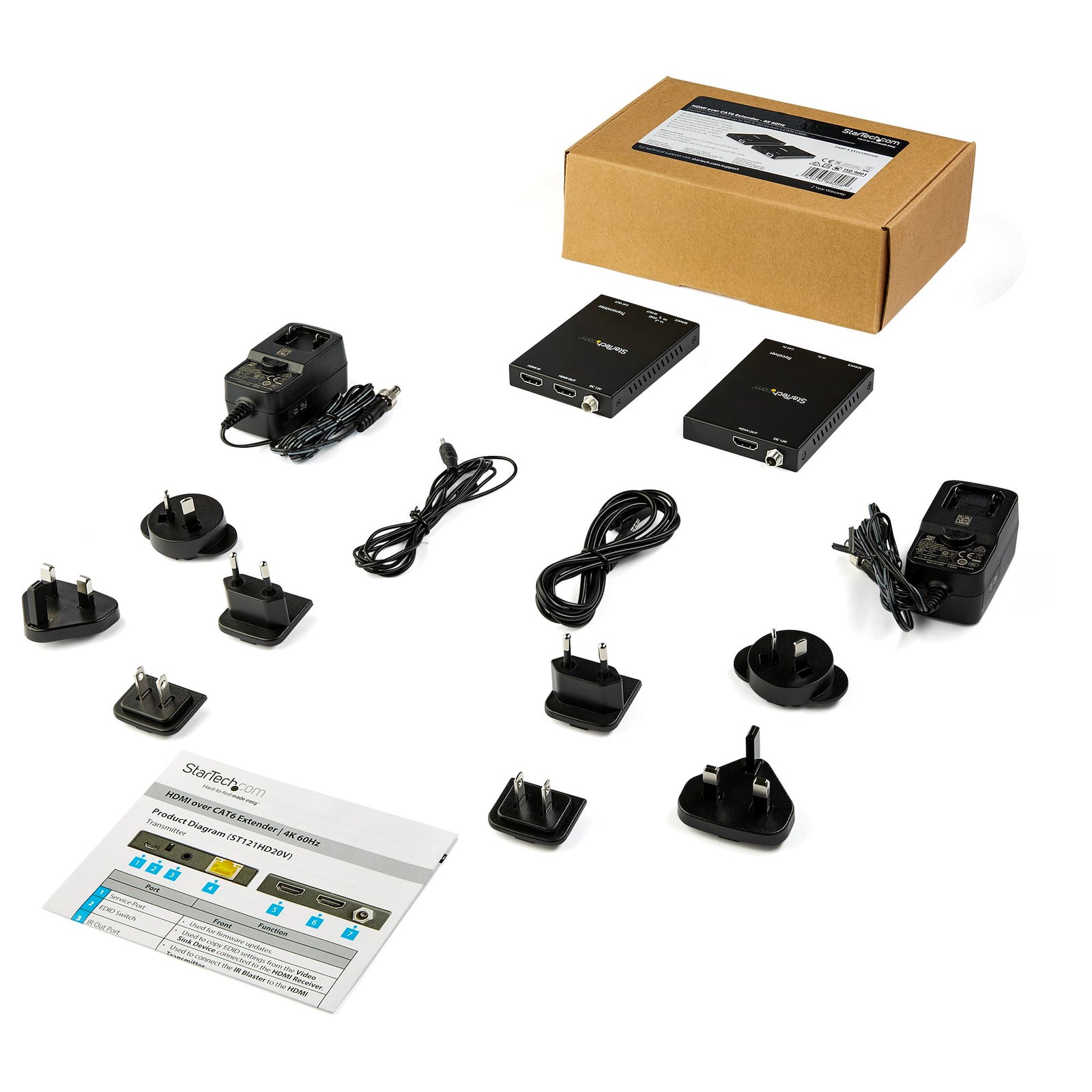

| Included in Package | 1 - HDMI over CAT6 Transmitter 1 - HDMI over CAT6 Receiver 1 - IR Blaster 1 - IR Receiver 2 - Universal Power Adapter (NA/JP, EU, UK, ANZ) 1 - Quick-Start Guide |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Manuals | Downloads |
