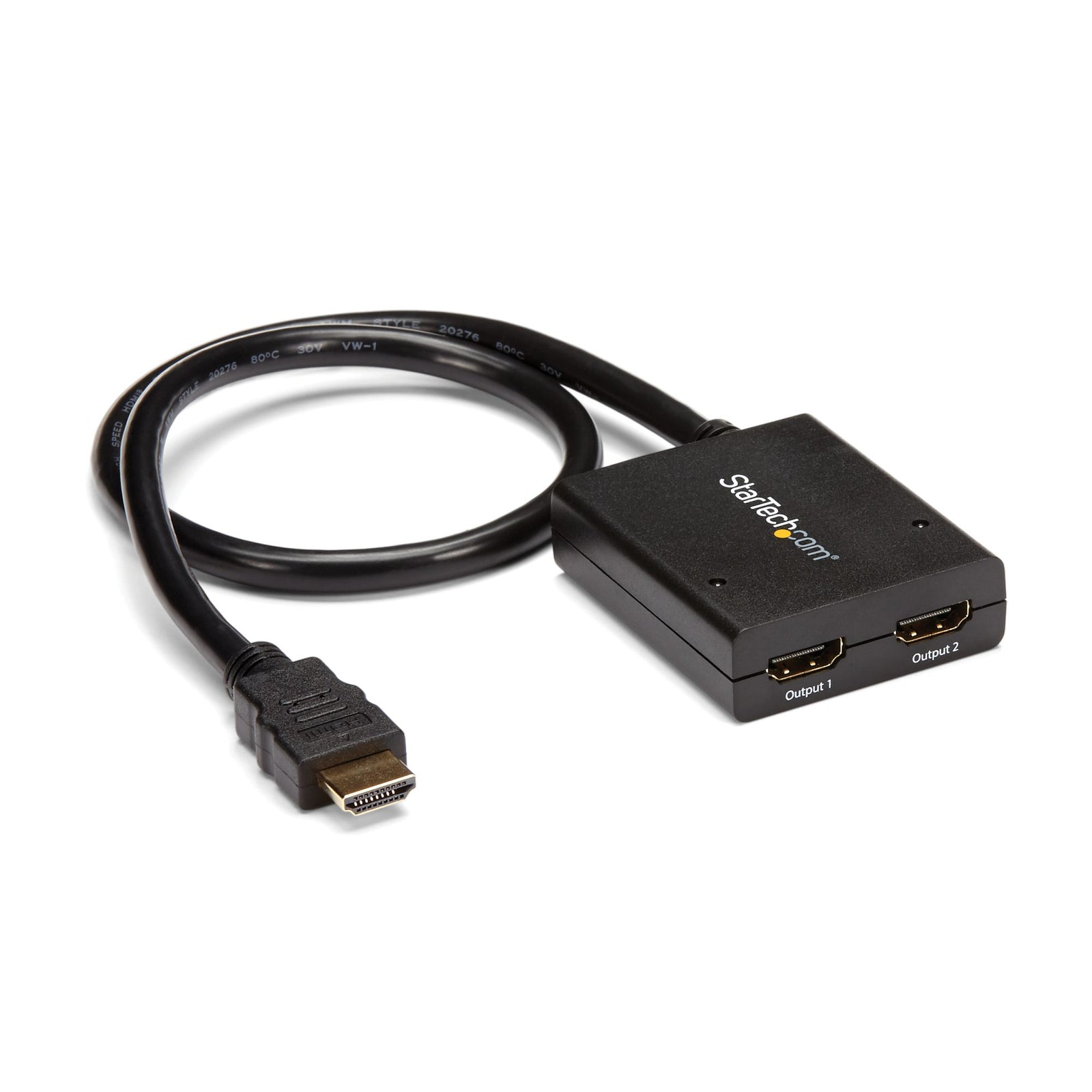

StarTech ST122HD4KU 4K HDMI 2-Port Video Splitter – 1x2 HDMI Splitter – Powered by USB or Power Adapter – 4K 30Hz

The ST122HD4KU 2-port video splitter supports Ultra HD (4K) ensuring astonishing picture quality, four times the resolution of high-definition 1080p, while sharing a 4K HDMI video source between two HDMI displays.

The 4K splitter is backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices such as computers, Blu-ray players and cable TV set-top boxes. Even if you don't require 4K video today, the video splitter ensures you'll be ready to take advantage of tomorrow's display technology while still working with the devices you already have. Plus, this splitter supports 3D, enabling you to use the splitter with your stereoscopic 3D video source on active or passive 3D displays.

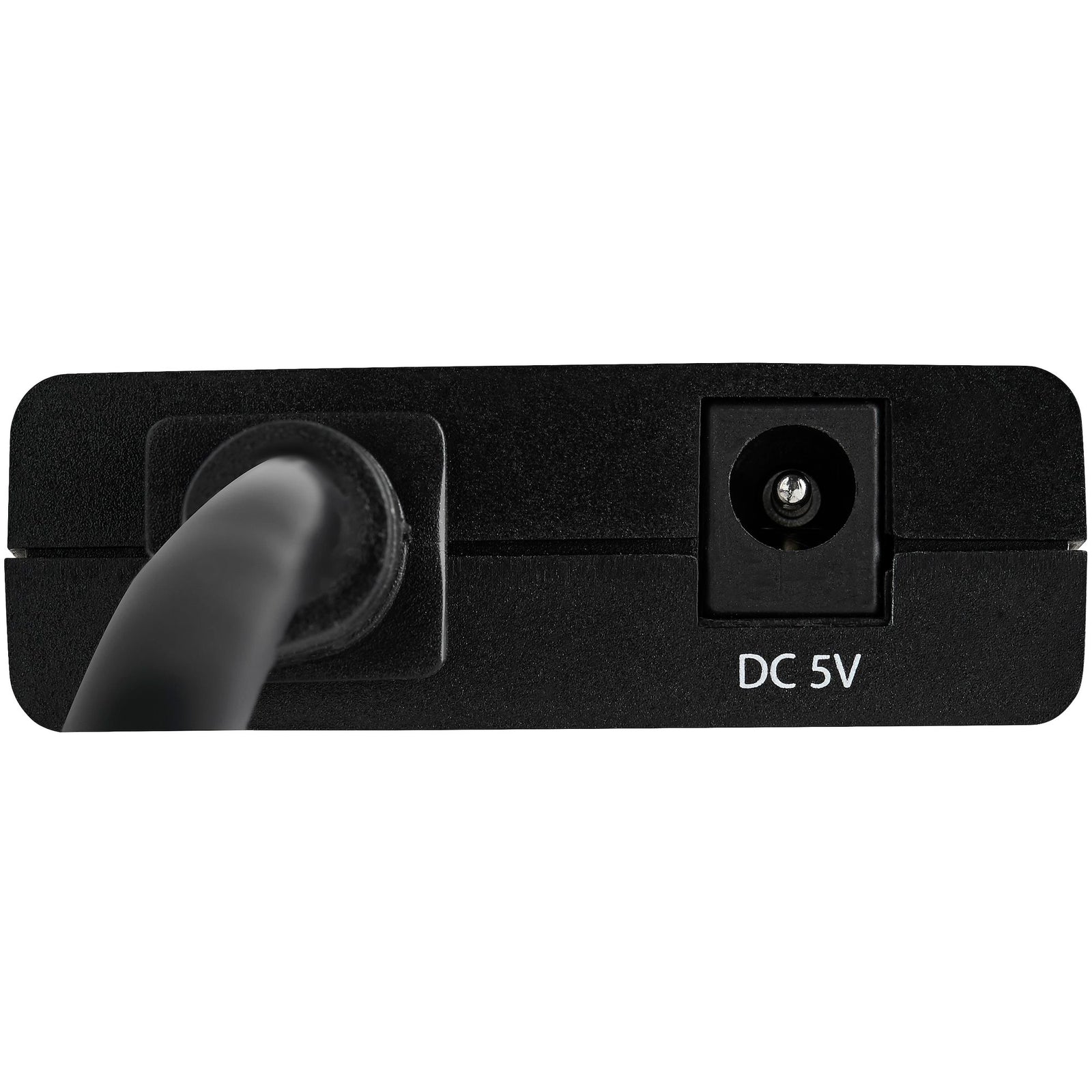

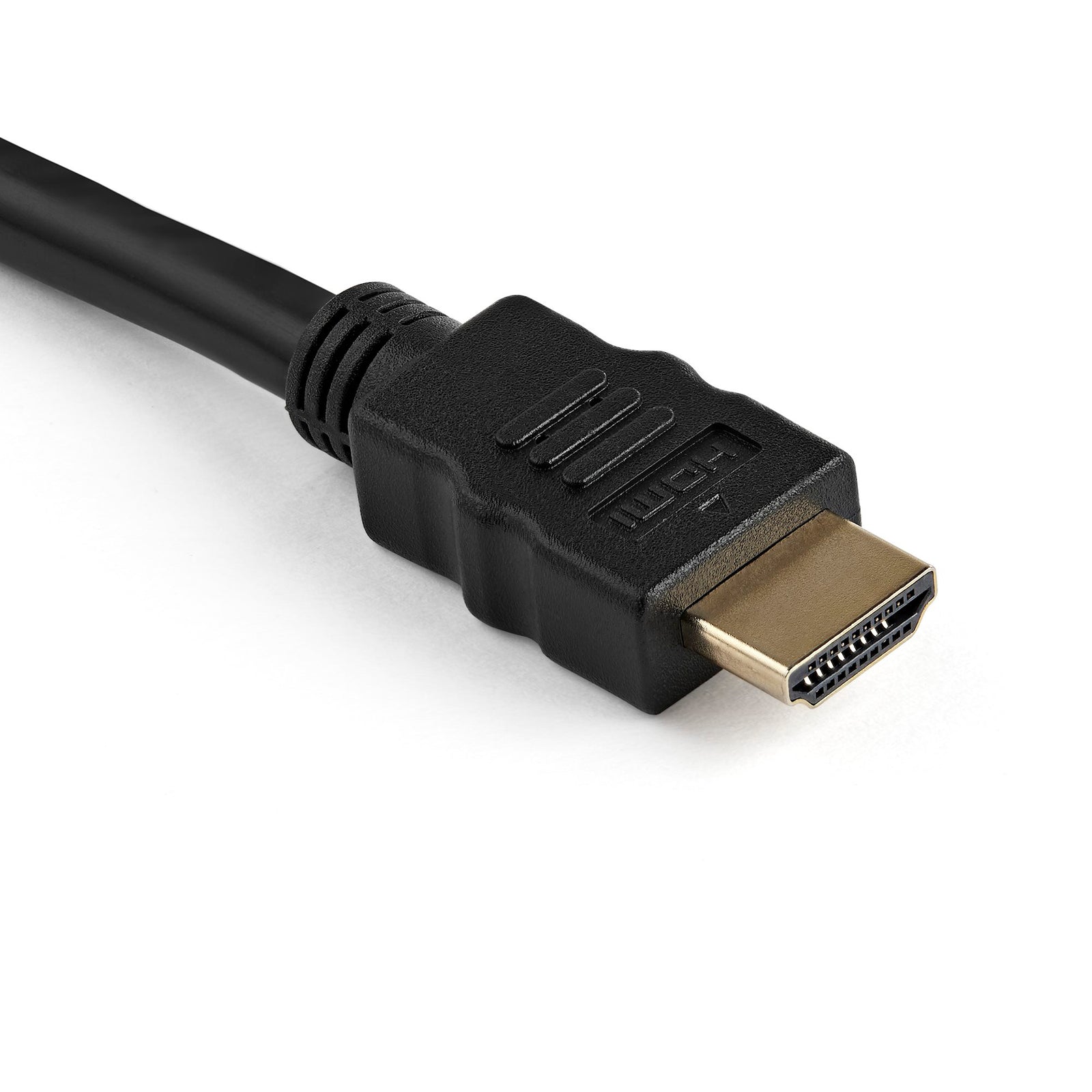

For a hassle-free setup you can power the HDMI splitter with the included USB cable, or power adapter depending on which is most convenient for you. Plus, the splitter features a built-in HDMI source cable, which lets you connect it directly to your HDMI source without the expense of additional cabling.

Applications
Display a 4K HDMI signal on two different HDMI displays
Use to showcase 4K displays, by outputing the same video source on multiple displays
Display corporate information or advertising on multiple displays at a shopping center
Use to display a stock ticker or promotional information at financial institutions
Present the same information on multiple displays in waiting rooms in healthcare facilities

Category	Specification
Warranty	2 Years
Connector(s)	Connector A: 1 - HDMI (19 pin)
	Connector B: 2 - HDMI (19 pin)
Hardware	Ports: 2
	AV Input: HDMI
	AV Output: HDMI
	Audio: Yes
	Industry Standards: HDMI 1.4
Packaging Information	Package Height: 2.1 in [5.4 cm]
	Package Length: 8.6 in [21.8 cm]
	Package Width: 6.0 in [15.2 cm]
	Shipping (Package) Weight: 13.4 oz [380.0 g]
	Package Quantity: 1
Performance	Maximum Digital Resolutions: 4K @ 30 Hz
	Supported Resolutions:
	- 3840x2160 (4K)
	- 2560x1600
	- 1920x1200
	- 1920x1080 (1080p)
	- 1280x720 (720p)
	Wide Screen Supported: Yes
Audio Specifications	MTBF: 84,950 hours
Physical Characteristics	Weight of Product: 2.8 oz [78.0 g]
	Color: Black
	Product Length: 24.4 in [62.0 cm]
	Product Width: 2.0 in [5.0 cm]
	Product Height: 0.7 in [1.8 cm]
Power	Power Source: AC Adapter Included
	Input Voltage: 100 - 240 AC
	Input Current: 0.4 A
	Output Voltage: 5 DC
	Output Current: 2 A
	Plug Type: N
	Power Consumption (In Watts): 10

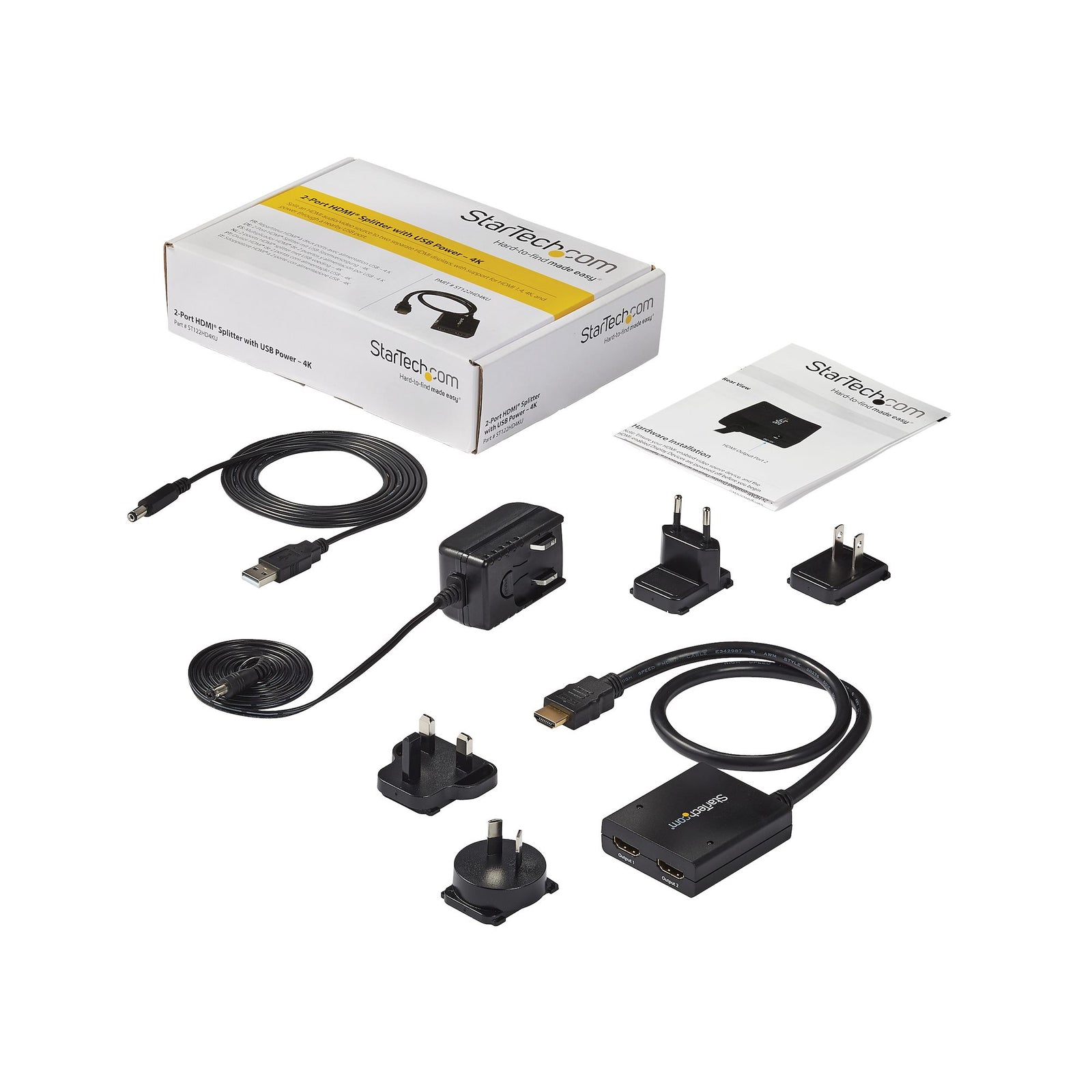

What's in the Box	1 - HDMI splitter
	1 - Universal power adapter (NA/EU/UK/AU)
	1 - USB power cable
	1 - Instruction manual
