StarTech USB-C 5-in-1 Multi-port Adapter - 103B-USBC-MULTIPORT

5-IN-1 MULTIPORT ADAPTER
Portable USB-C travel docking station supports UHD 4K 60Hz HDMI 2.0b (HDR10) video via DP 1.4 Alt Mode for connecting monitor/display, 2-port USB-A hub (2x USB 3.2 Gen 1 5Gbps), 100W USB-C Power Delivery Pass-Through

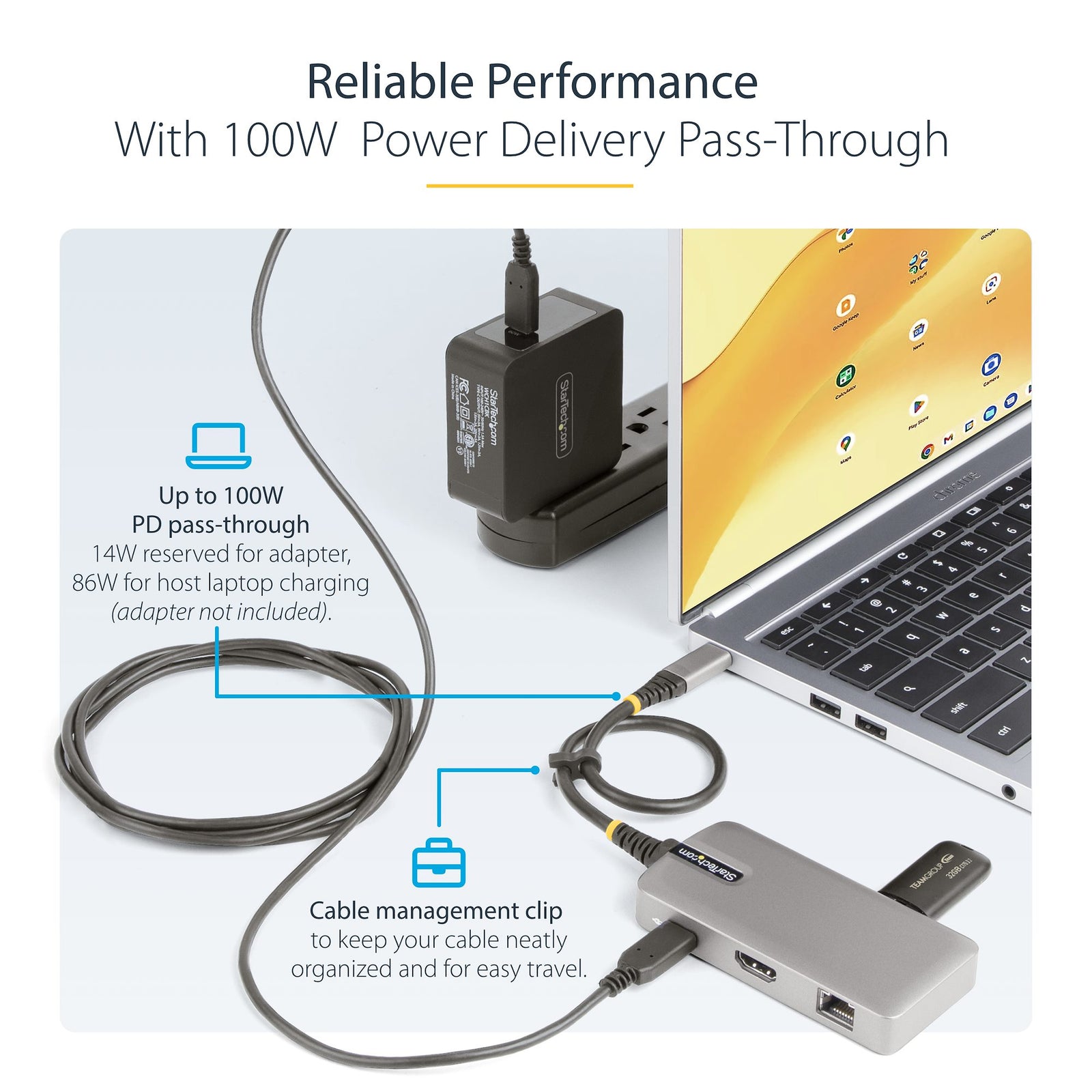

RELIABLE PERFORMANCE
Port Replicator with 100W PD Pass-Through; 14W reserved for adapter (when using one or all ports) & up to 86W available for host laptop charging; Prevents device dropouts, video flickering, and/or power overdraw common in other hubs

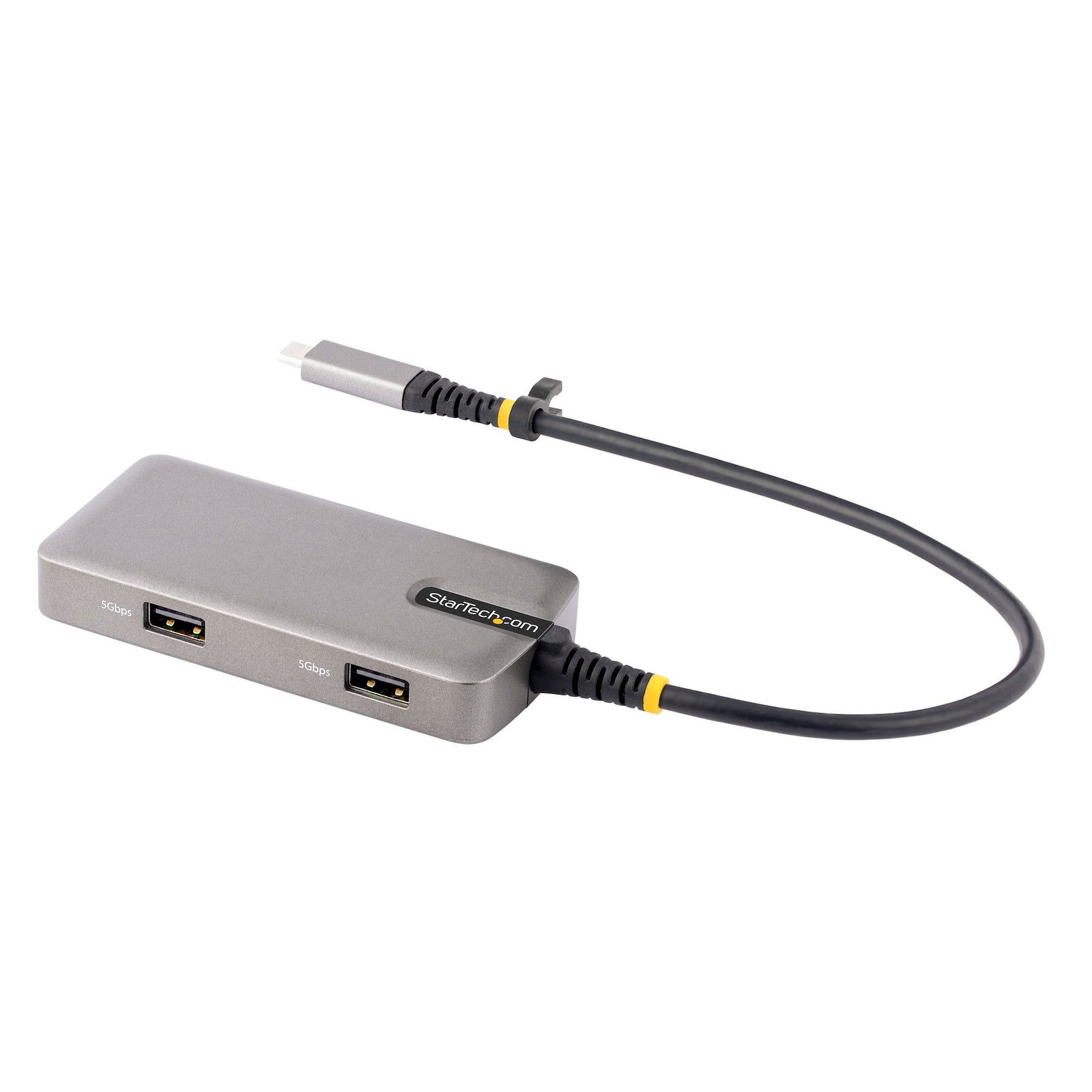

USB PORTS WITH DEDICATED POWER
Two downstream USB-A ports support USB 3.2 Gen 1 (5Gbps) and with a USB-C power adapter connected, each port provides 4.5W (5V/0.9A) of dedicated power, ideal for connecting USB devices that require a consistent power draw

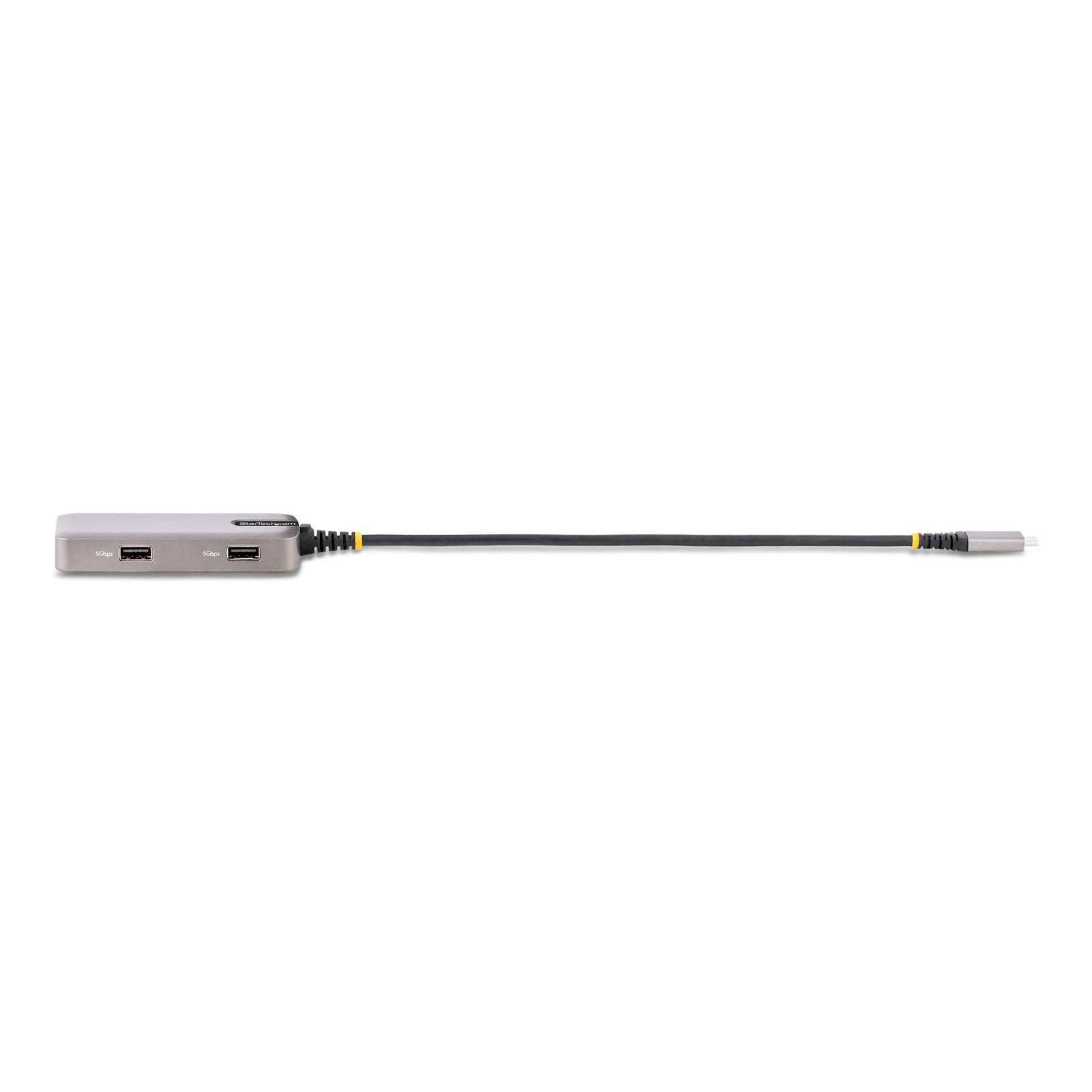

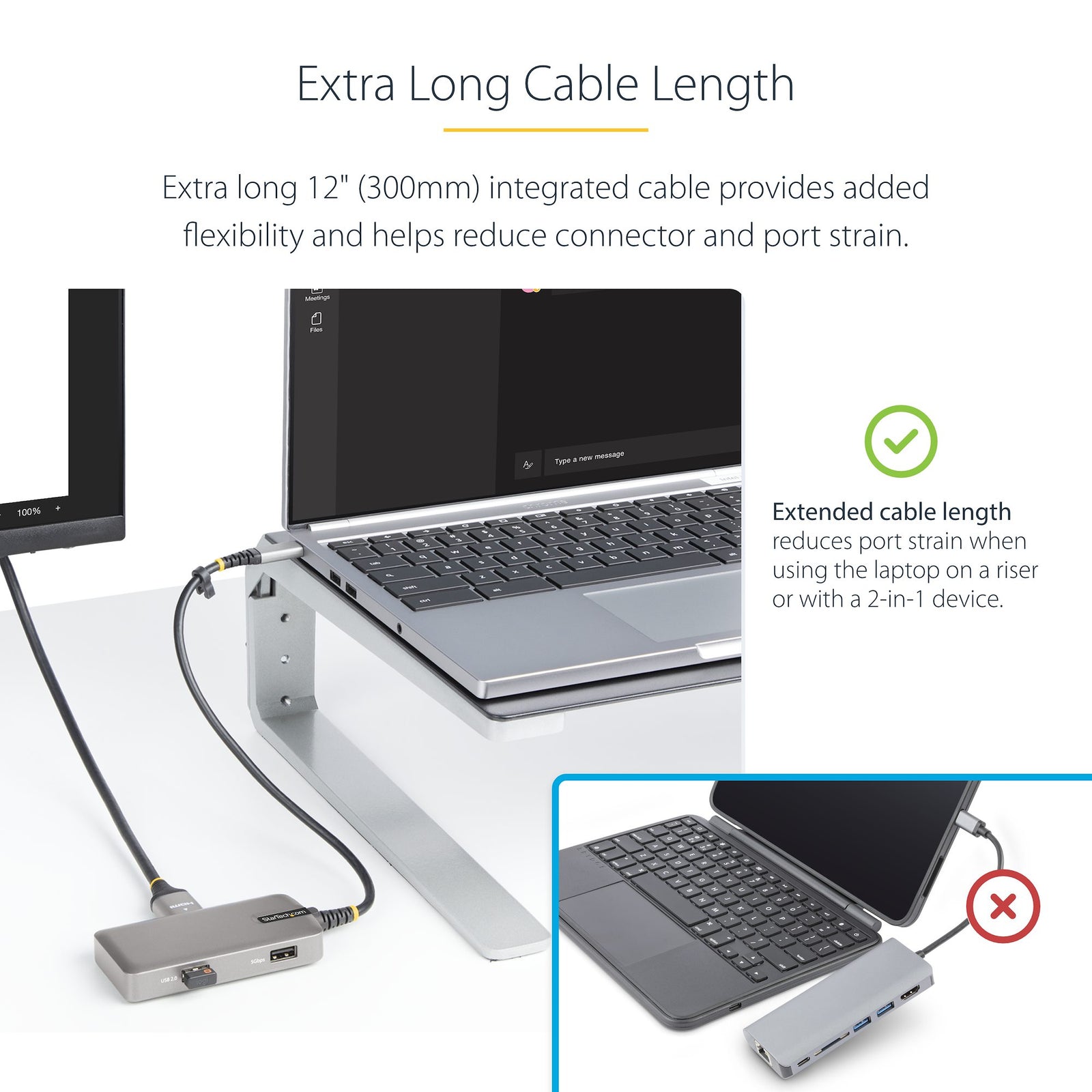

EXTRA-LONG CABLE

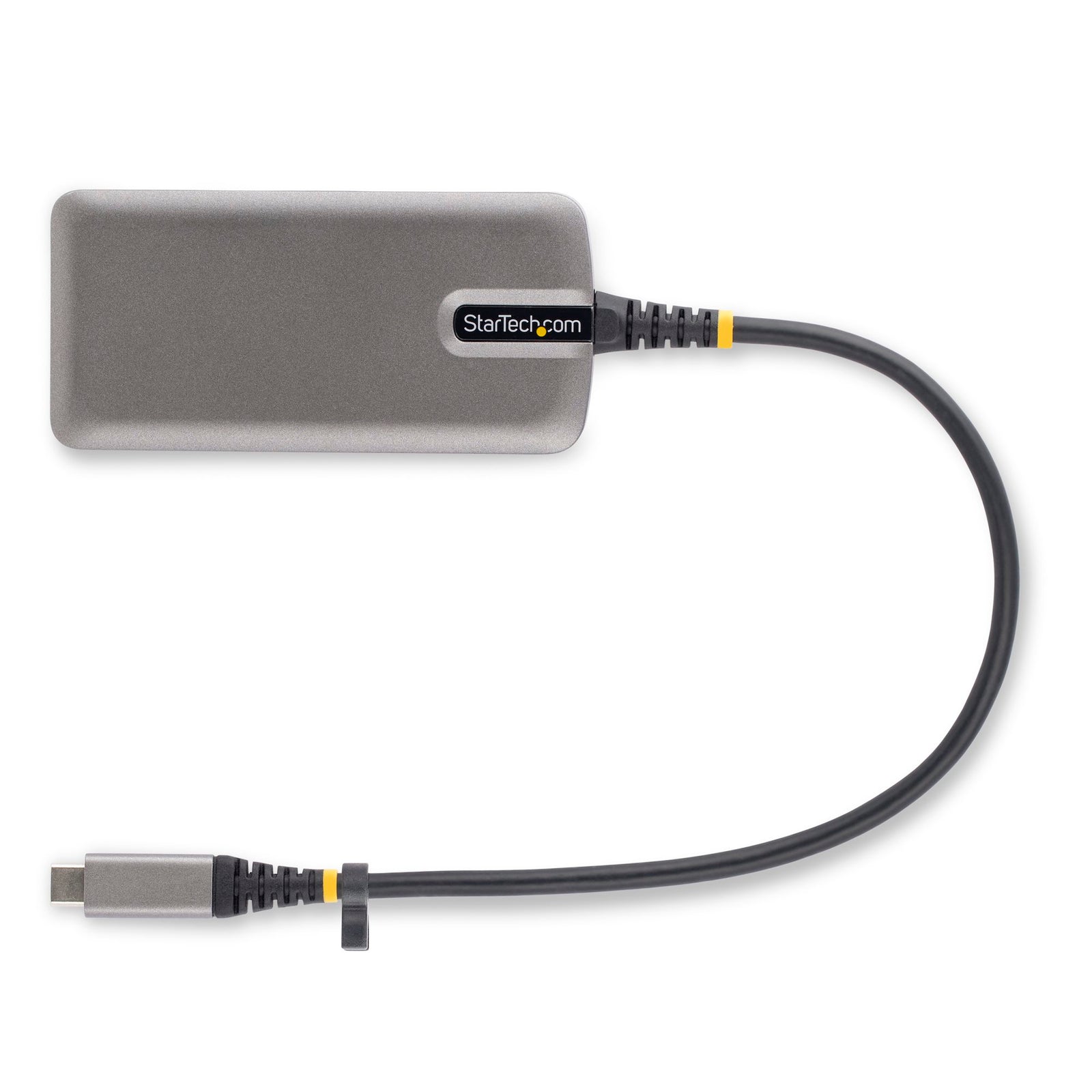

Extended port reach w/attached 12"" host cable, clip for cable management, automatic driver setup, weighted design to keep adapter more stable on work surface, ideal for office or work-from-home workstations & presenting from a boardroom

UNIVERSAL COMPATIBILITY

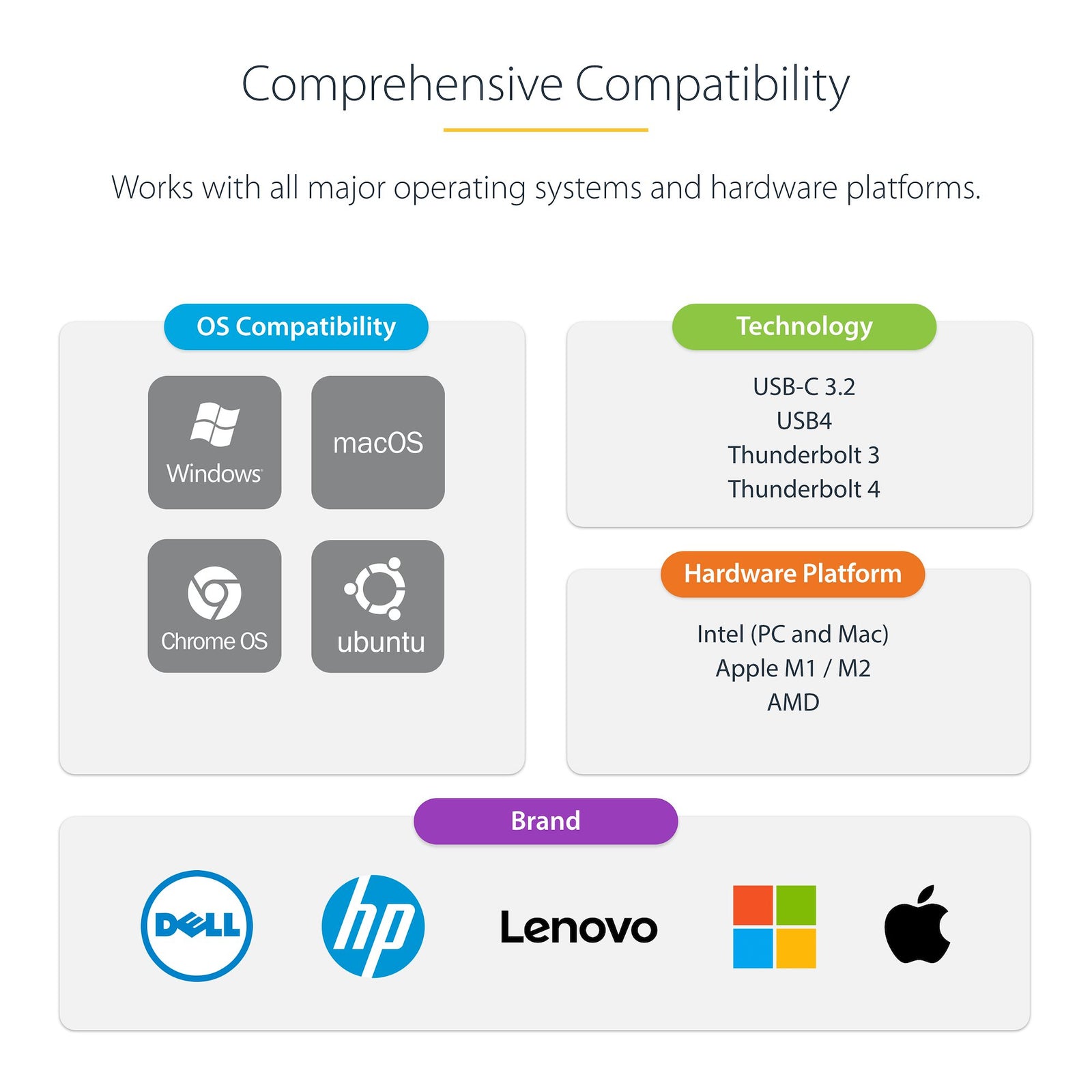

USB-C Hub/Dock supports Windows, macOS; WWCB certified for compatibility with all Chromebooks; Works with USB-C, TB3 & TB4 host computers; Auto firmware updates through ChromeOS for max performance, compatibility & security

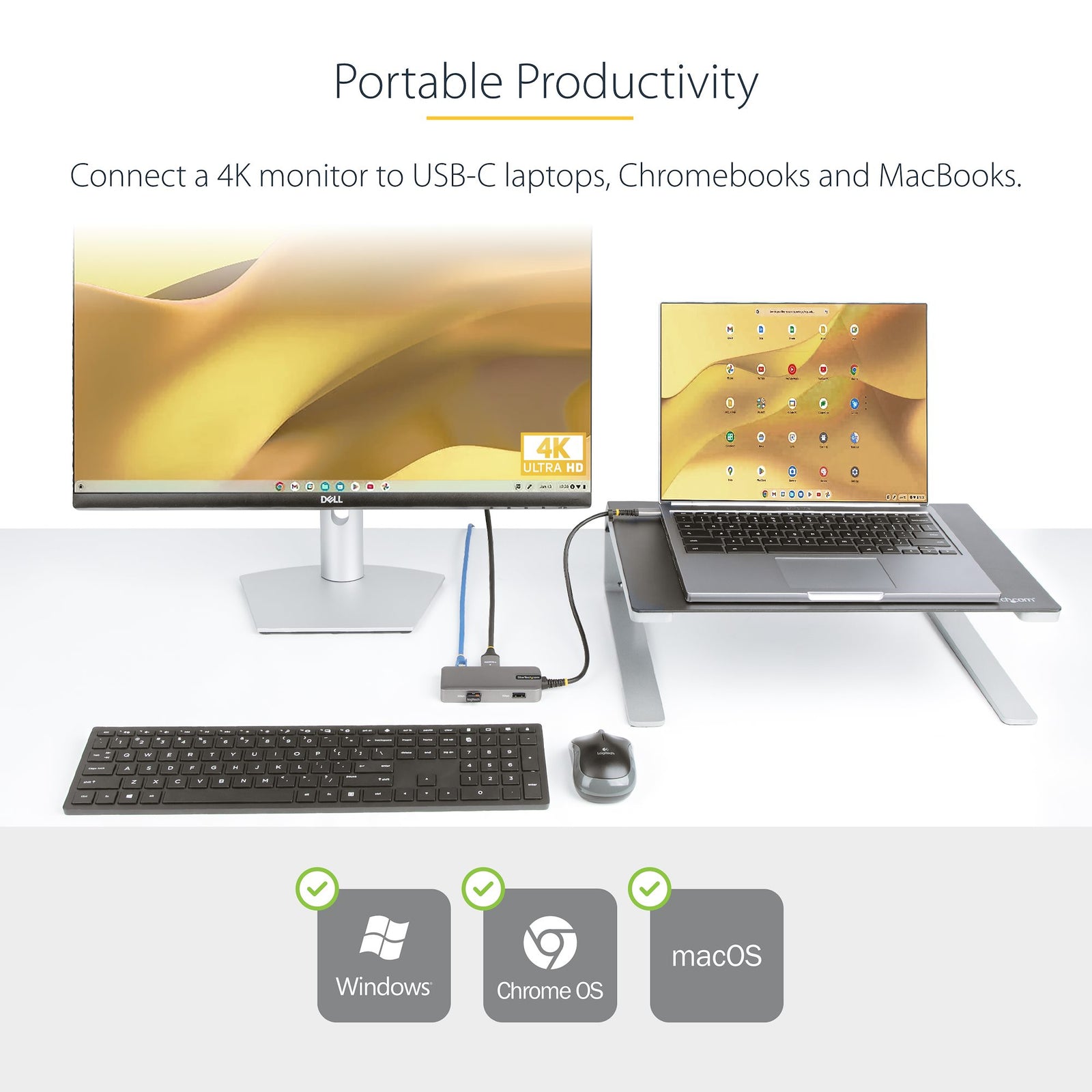

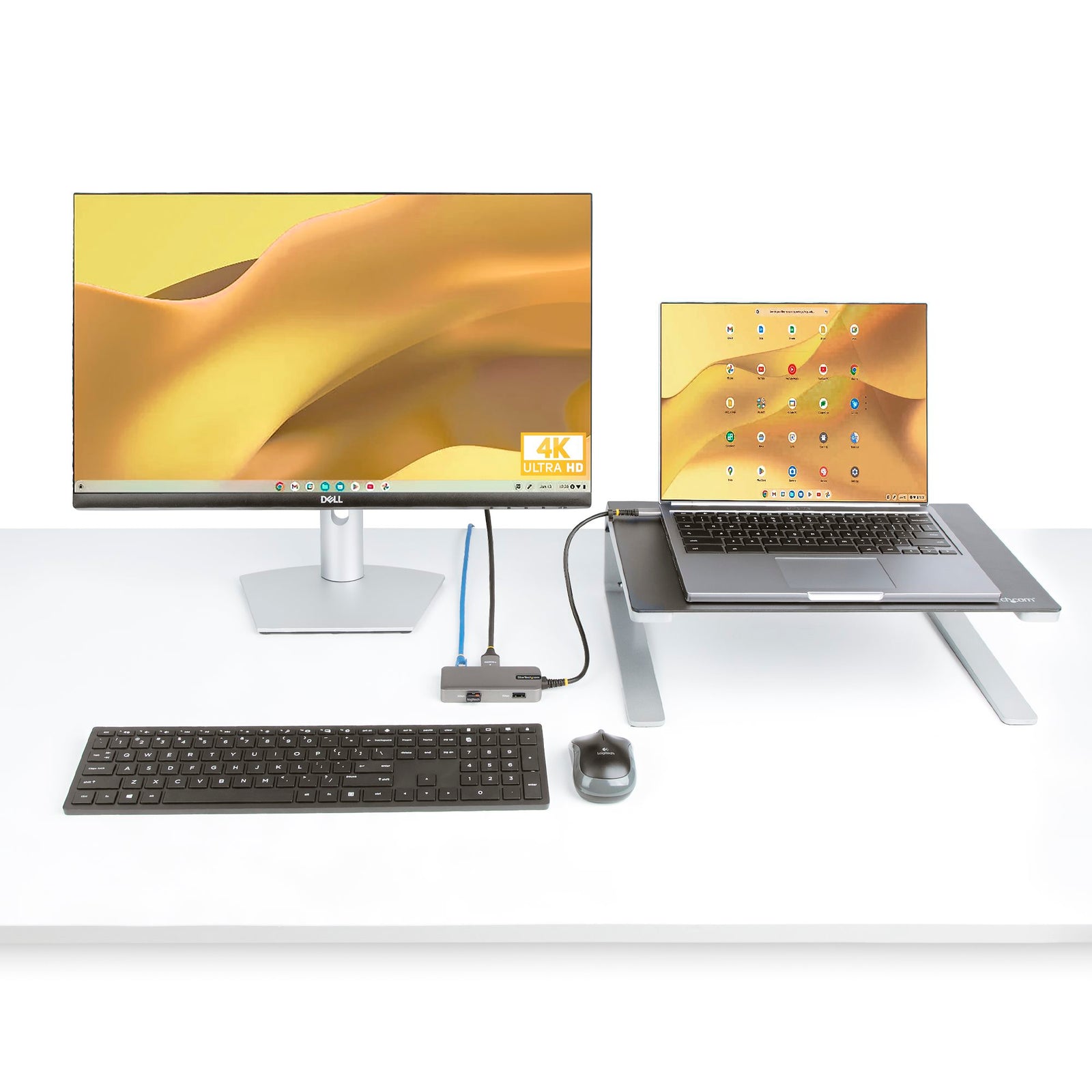

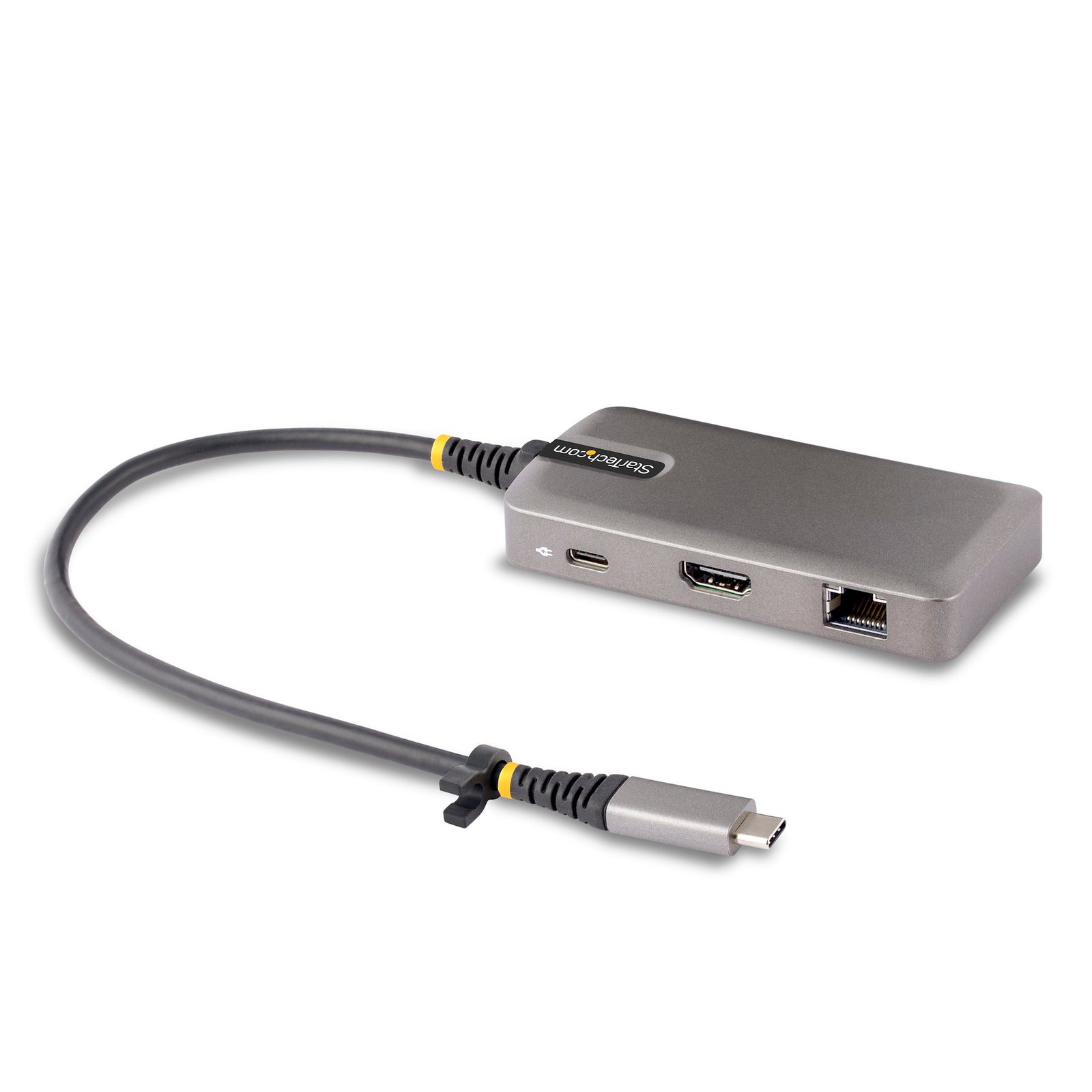

This Works With Chromebook (WWCB) certified USB-C Multiport Adapter supports up to 4K 60Hz HDMI 2.0b (HDR10) via DP Alt Mode. The USB-C dock converts a USB-C laptop or tablet, such as a Chromebook, Dell XPS, or a MacBook, into a workstation. The adapter connects to a host computer's USB-C, USB4, or Thunderbolt™ 3/4 port. It features one HDMI video output, a 2-Port USB 3.2 Gen 1 (5 Gbps) Hub, and Gigabit Ethernet. Connect a laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, located on the Multiport Adapter, to charge the laptop. The Multiport Adapter features an extra-long built-in 12-inch (30 cm) USB-C host cable.

Works With Chromebook (WWCB) certified
This USB-C Multiport Adapter is tested and certified to meet Google's compatibility standards ensuring seamless operation with Chromebook devices. The Multiport Adapter is ideal for setup and deployment in business and education environments. Automatic firmware updates are available through ChromeOS for maximum security, compatibility, and performance.

Connect USB Peripherals

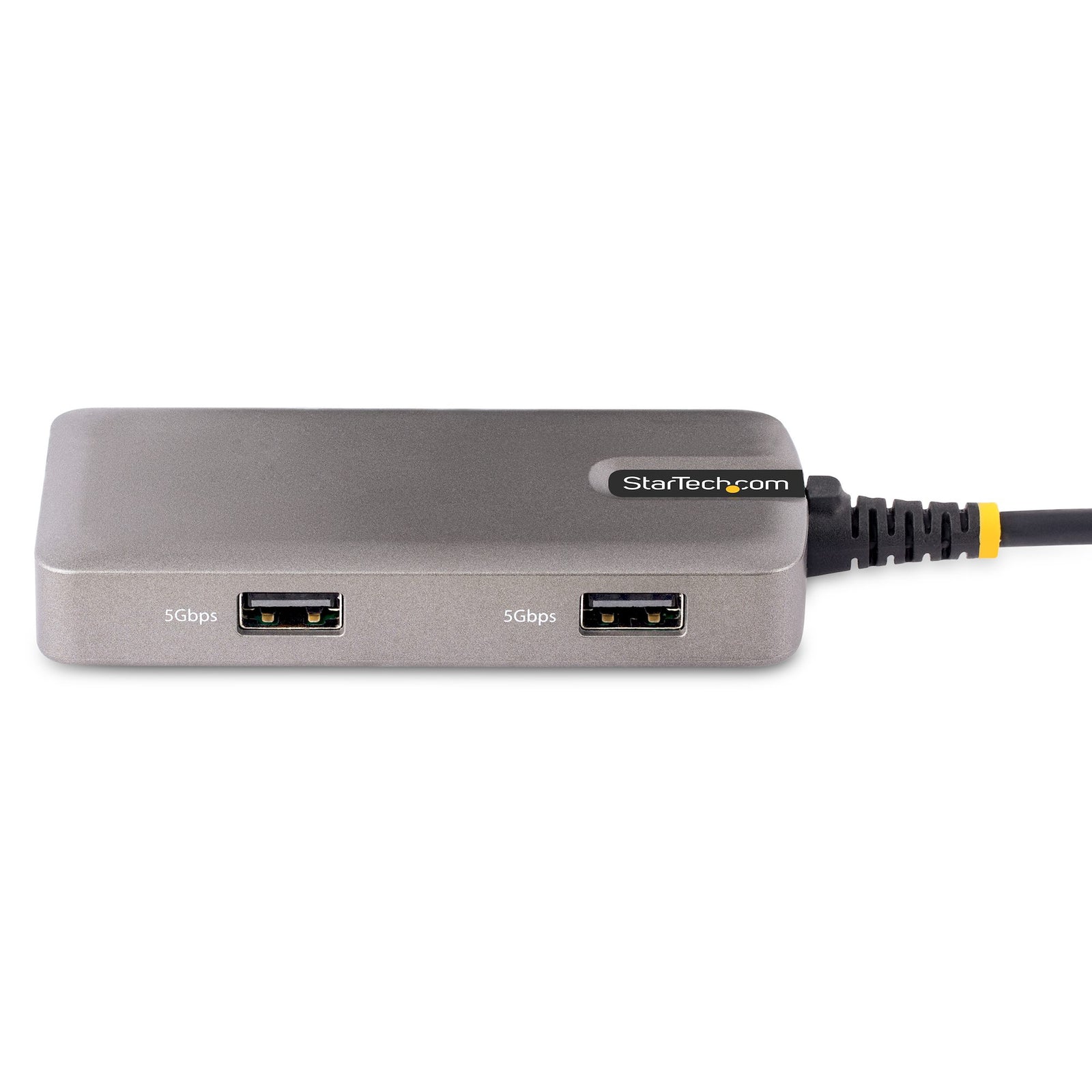

The USB-C to USB 3.2 Gen 1 hub features two 5Gbps USB Type-A ports, for connecting USB peripherals.

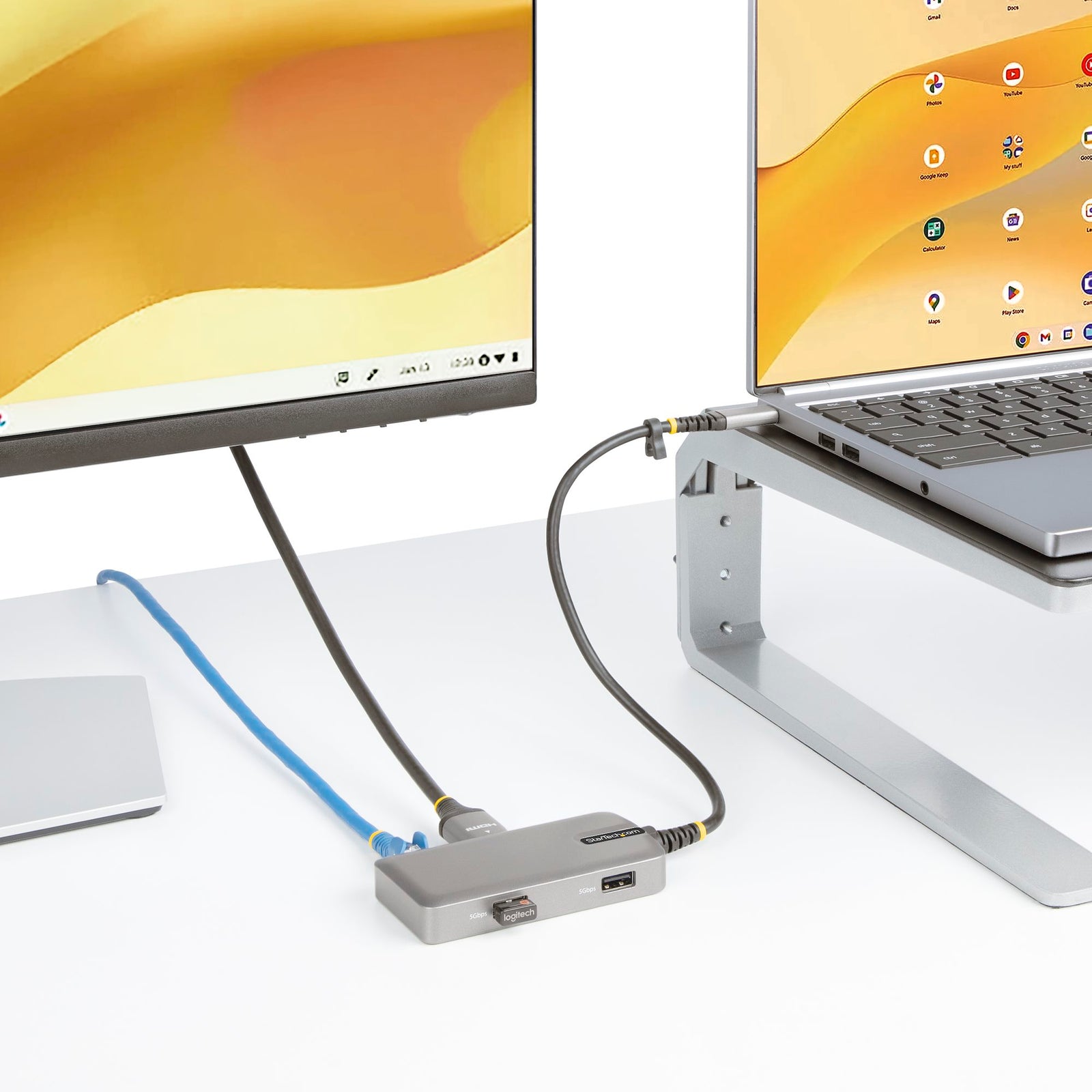

Multiple Use Cases
A versatile dock solution for use at your office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone, or use the dedicated USB-C Power Delivery port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

Charge Your Laptop

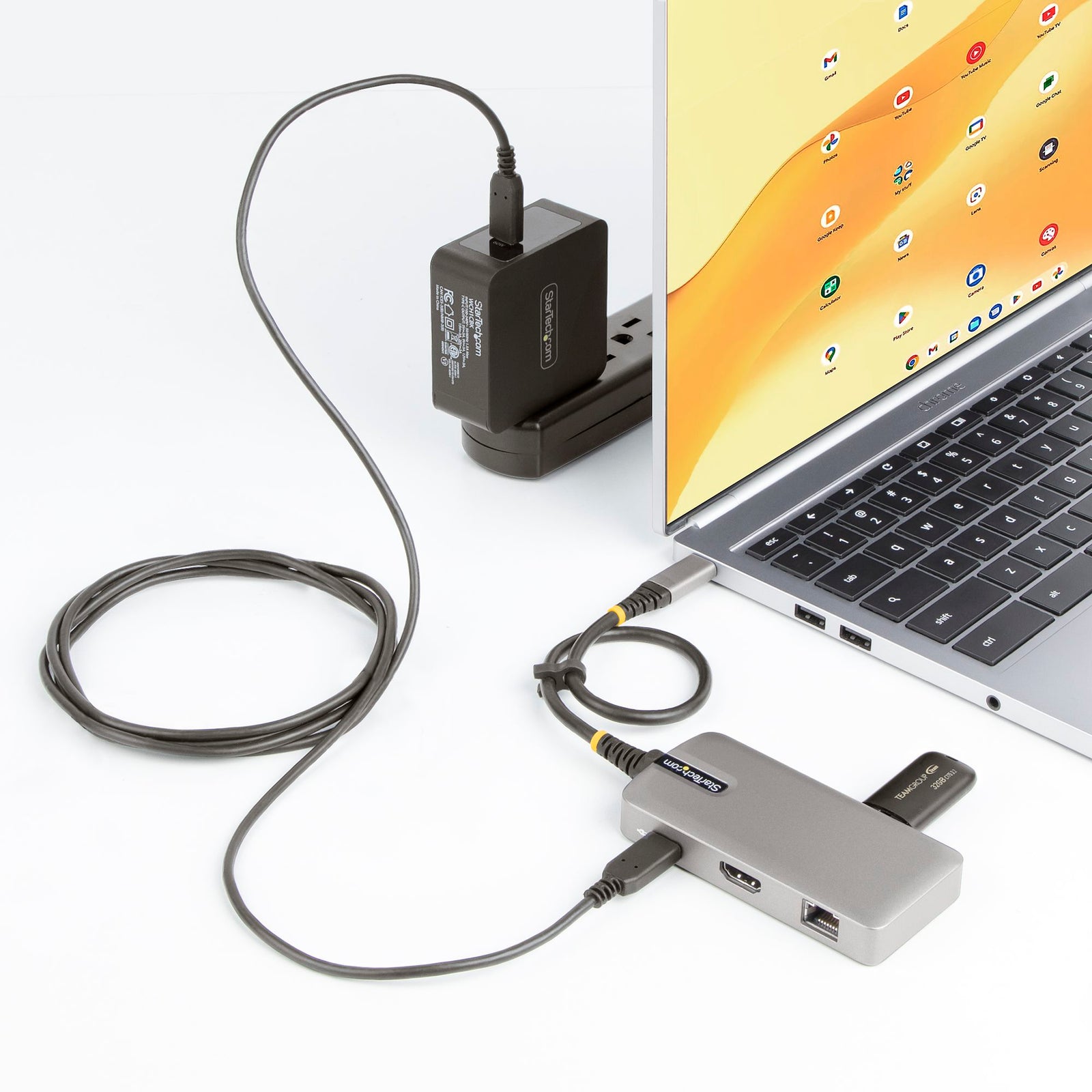

Connect a USB-C power source (not included), such as the power adapter included with a laptop, to the USB-C Power Delivery pass-through port. With support for USB Power Delivery 3.0 pass-through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop. USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

Wired Gigabit Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: Setup and save custom windows layouts.
MAC Address Pass-Through Utility: Improve network security.
USB Event Monitoring Utility: Track and log connected USB devices.
Wi-Fi Auto Switch Utility: Enable quick access to wired LAN.

Category	Specification
Compatibility
Windows®	10, 11
macOS	10.15, 11.0, 12.0, 13.0, 14.0
Android™
Linux®	Ubuntu 18.04, 20.04
ChromeOS™	Certified Works with Chromebook
Specifications
Warranty Information
Warranty	3 Years
Package Quantity	1

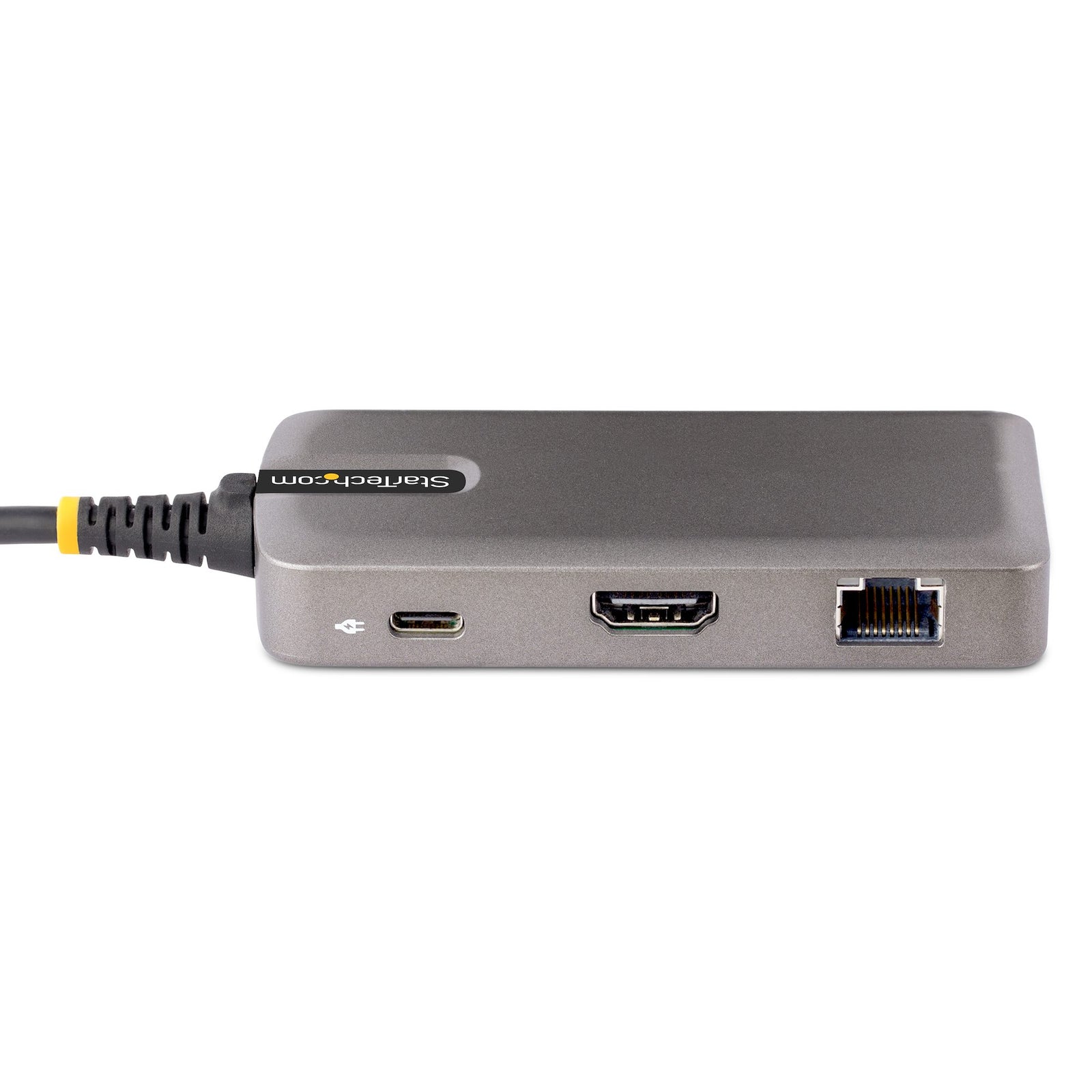

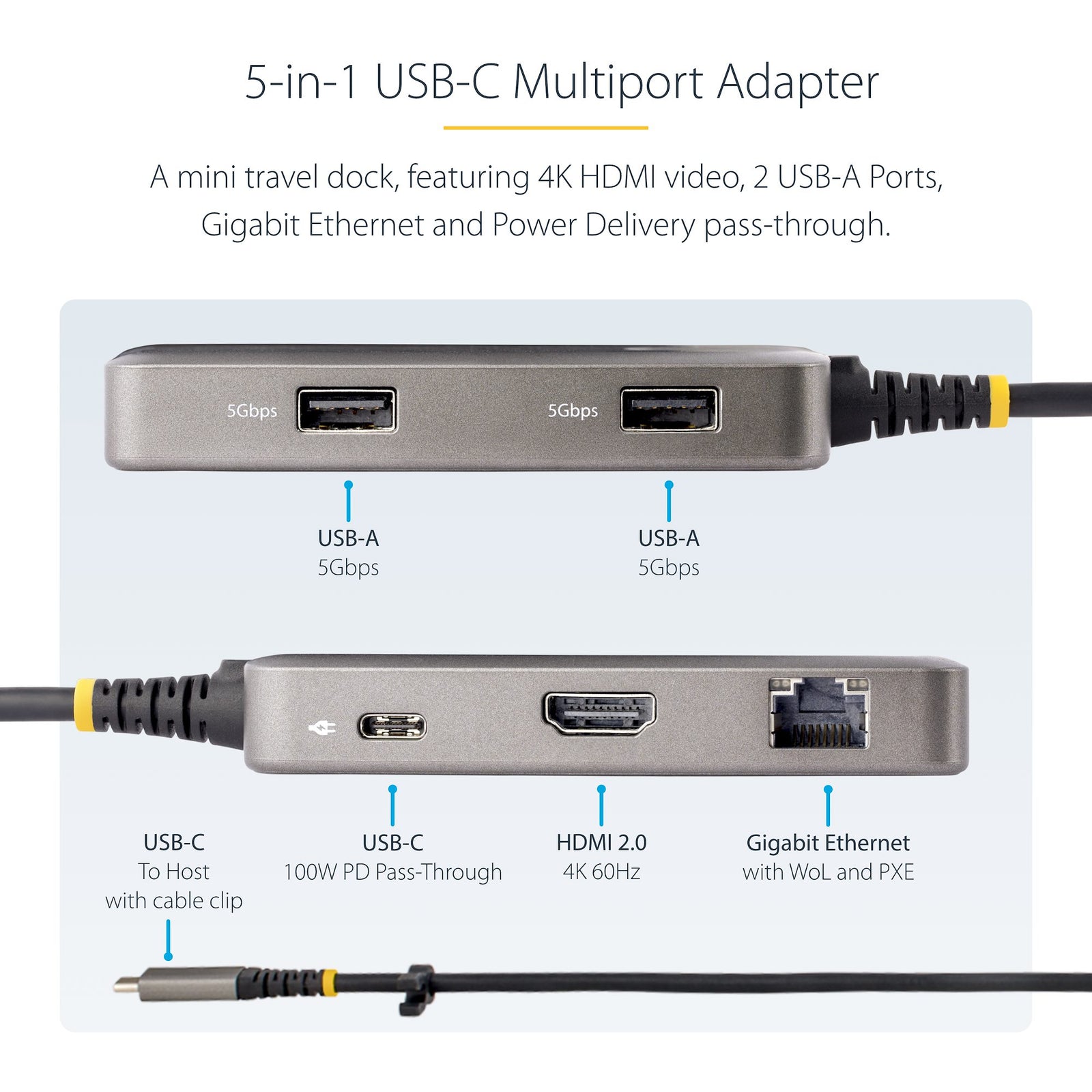

Connector(s)	External Ports
	1 - HDMI (19 pin)
	2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
	1 - RJ-45
	1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors

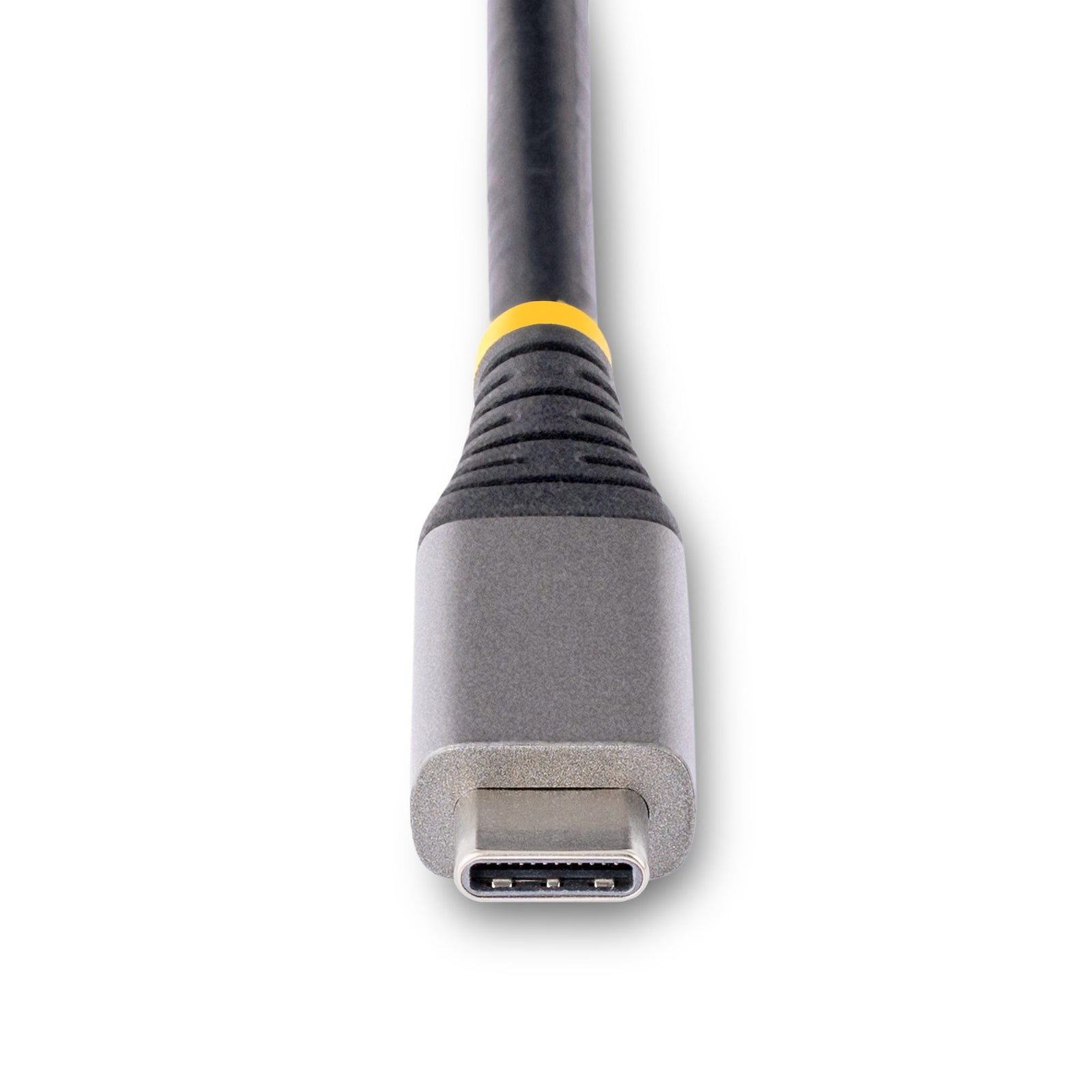

	1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-25°C to 65°C (-13°F to 149°F)
Humidity	0~95% RH (Non-condensing)
Hardware
4K Support	Yes
Fast-Charge Port(s)	No
Displays Supported	1
Interface	USB 3.2 Gen 1 (5Gbps)
Bus Type	USB-C
Packaging Information
Package Length	18.0 cm [7.1 in]
Package Width	11.5 cm [4.5 in]
Package Height	4.0 cm [1.6 in]
Shipping Weight	120.0 g [4.2 oz]
Performance
Wake On Lan	Yes
Maximum Data Transfer Rate	5Gbps
Maximum Digital Resolutions	Up to 4K (4096x2160) 60Hz
Type and Rate	USB 3.2 Gen 1 - 5 Gbit/s
UASP Support	Yes
Compatible Networks	10/100/1000 Mbps
PXE	Yes
Full Duplex Support	Yes
General Specifications
Maximum Laptop Charging	86W
Physical Characteristics
Color	Space Gray
Product Length	10.0 cm [3.9 in]
Product Width	4.8 cm [1.9 in]
Product Height	1.6 cm [0.6 in]
Weight of Product	105.0 g [3.7 oz]
Material	Plastic
Cable Length	30 cm [11.8 in]
Power
Power Source	Bus Powered and Host USB-C Power Adapter
Power Delivery	100W
Power Consumption (In Watts)	14W
Software
OS Compatibility	Windows® 10, 11
	macOS 10.15, 11.0, 12.0, 13.0, 14.0
	Android™
	Linux® Ubuntu 18.04, 20.04
	ChromeOS™ (Certified Works with Chromebook)
Special Notes / Requirements
System and Cable Requirements	A host device with an available USB-C port...
Note	Jumbo Frames are no longer supported in macOS...
	Not all USB-C ports support the full functionality...

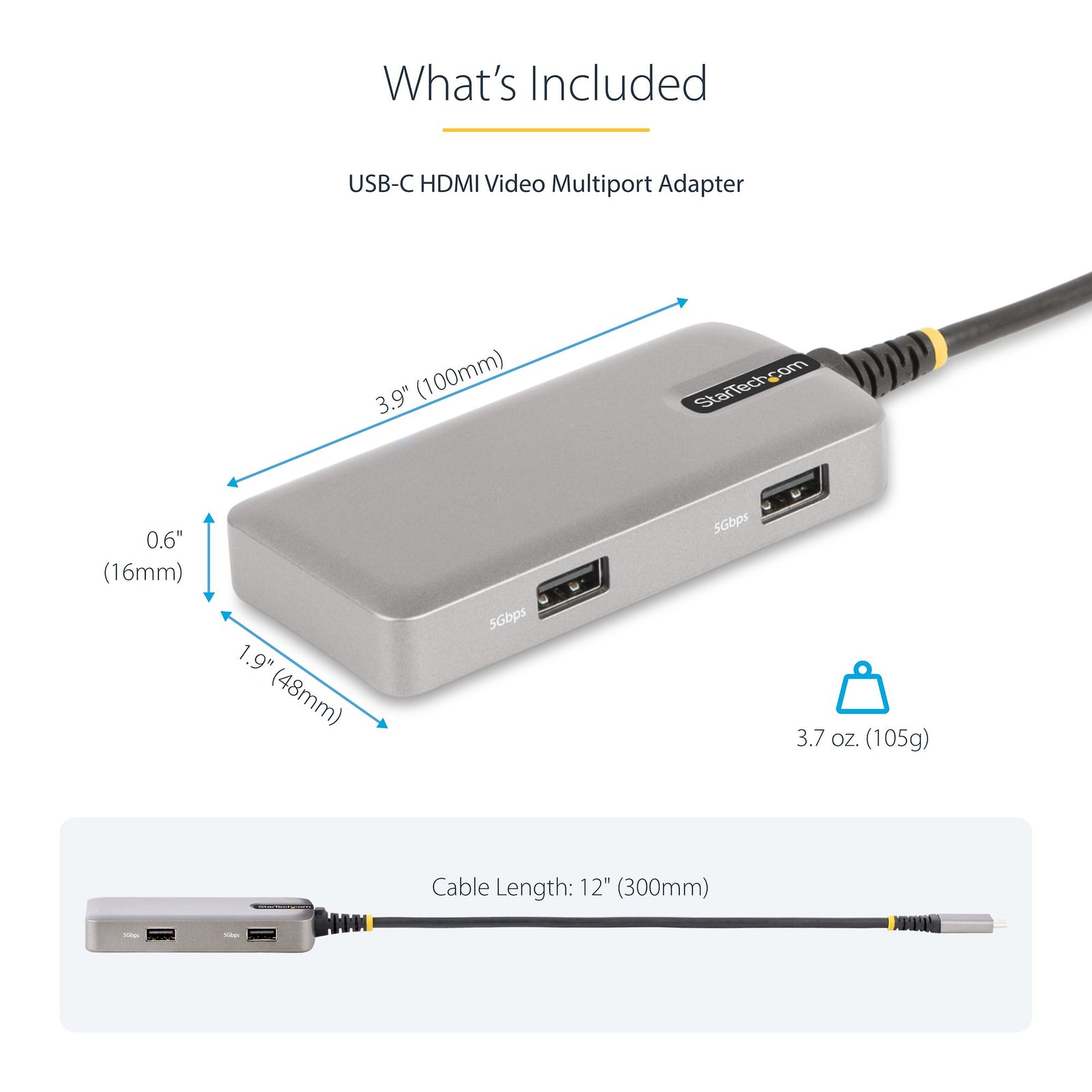

What's in the Box	Included in Package
	1 - USB-C Multiport Adapter
	1 - Quick-Start Guide
