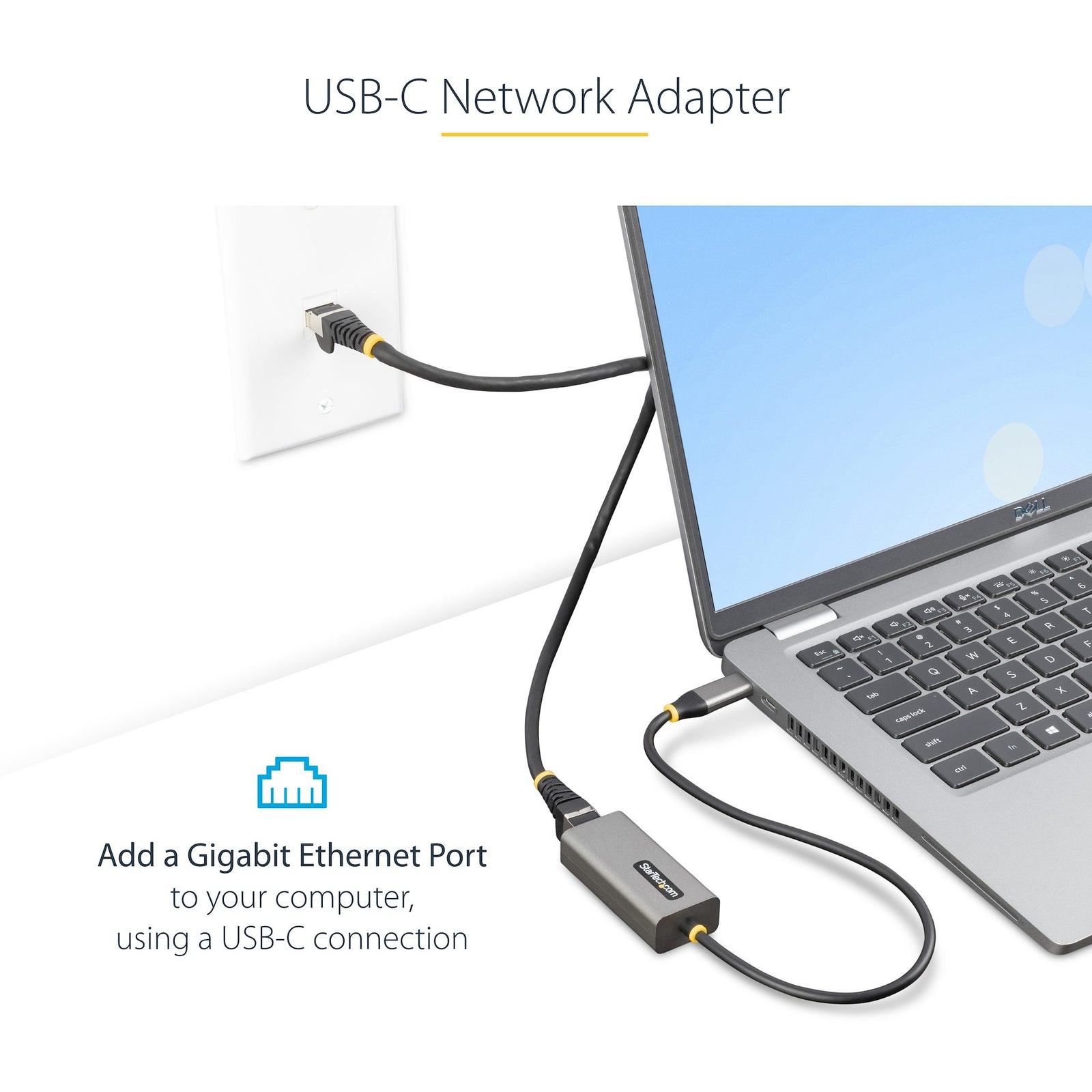

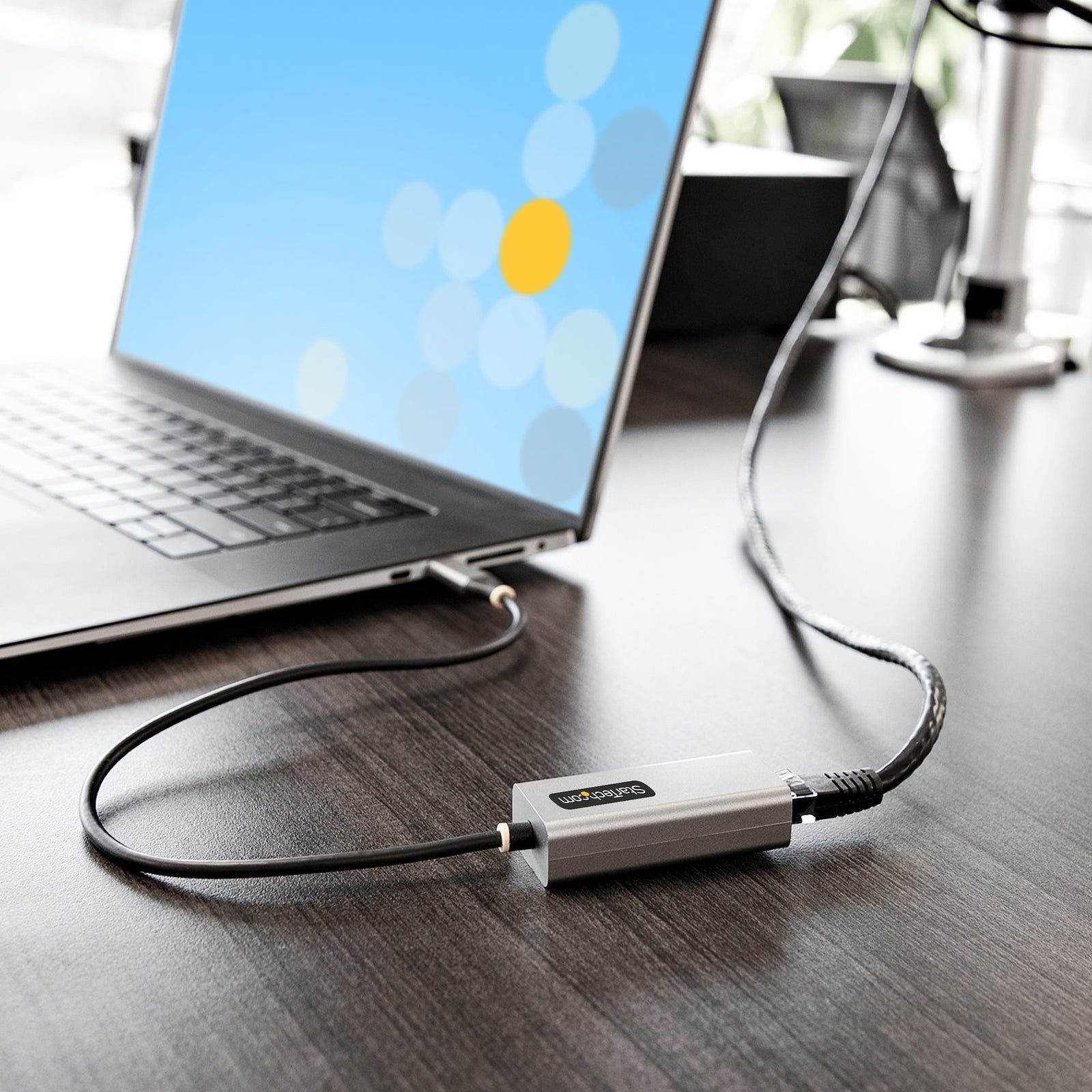

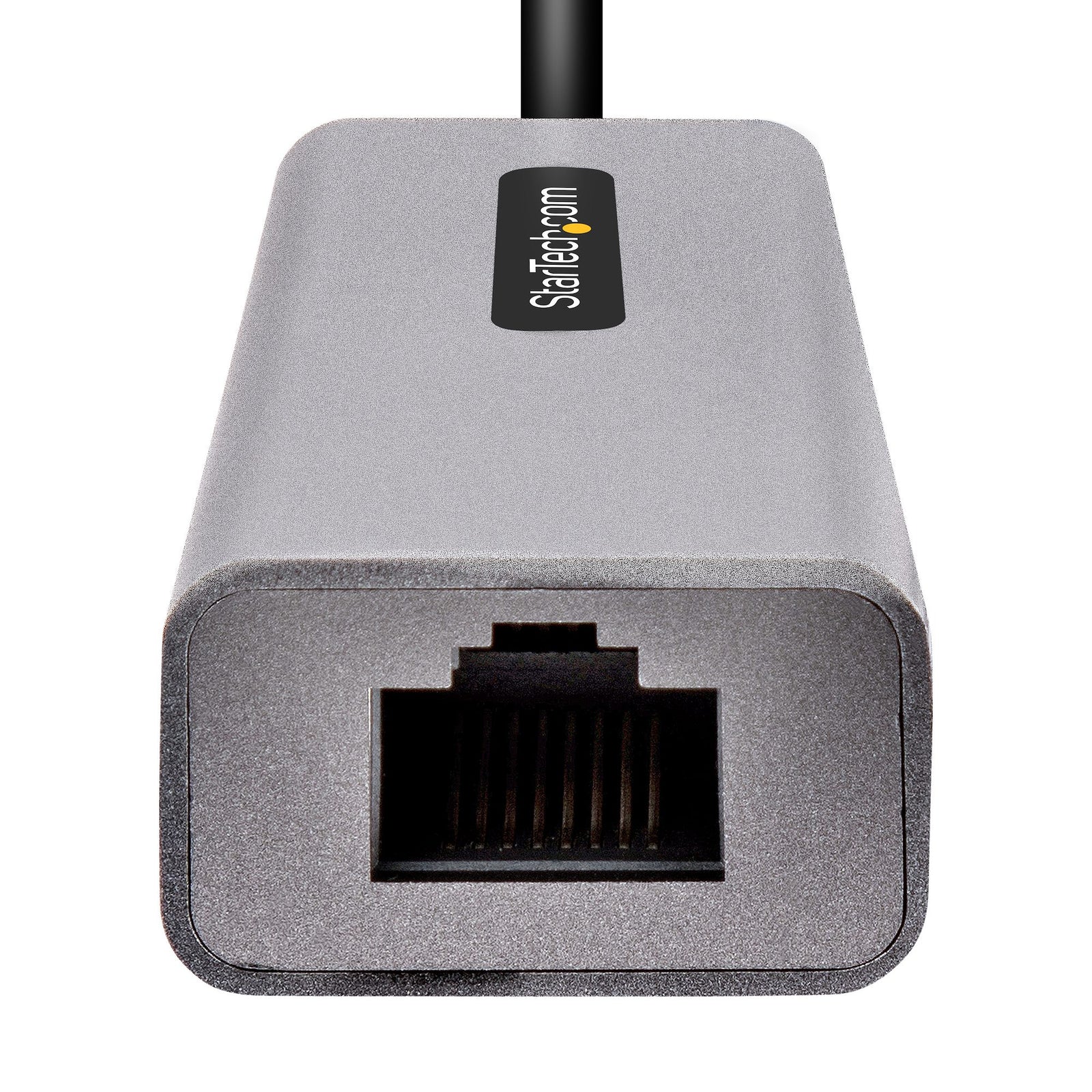

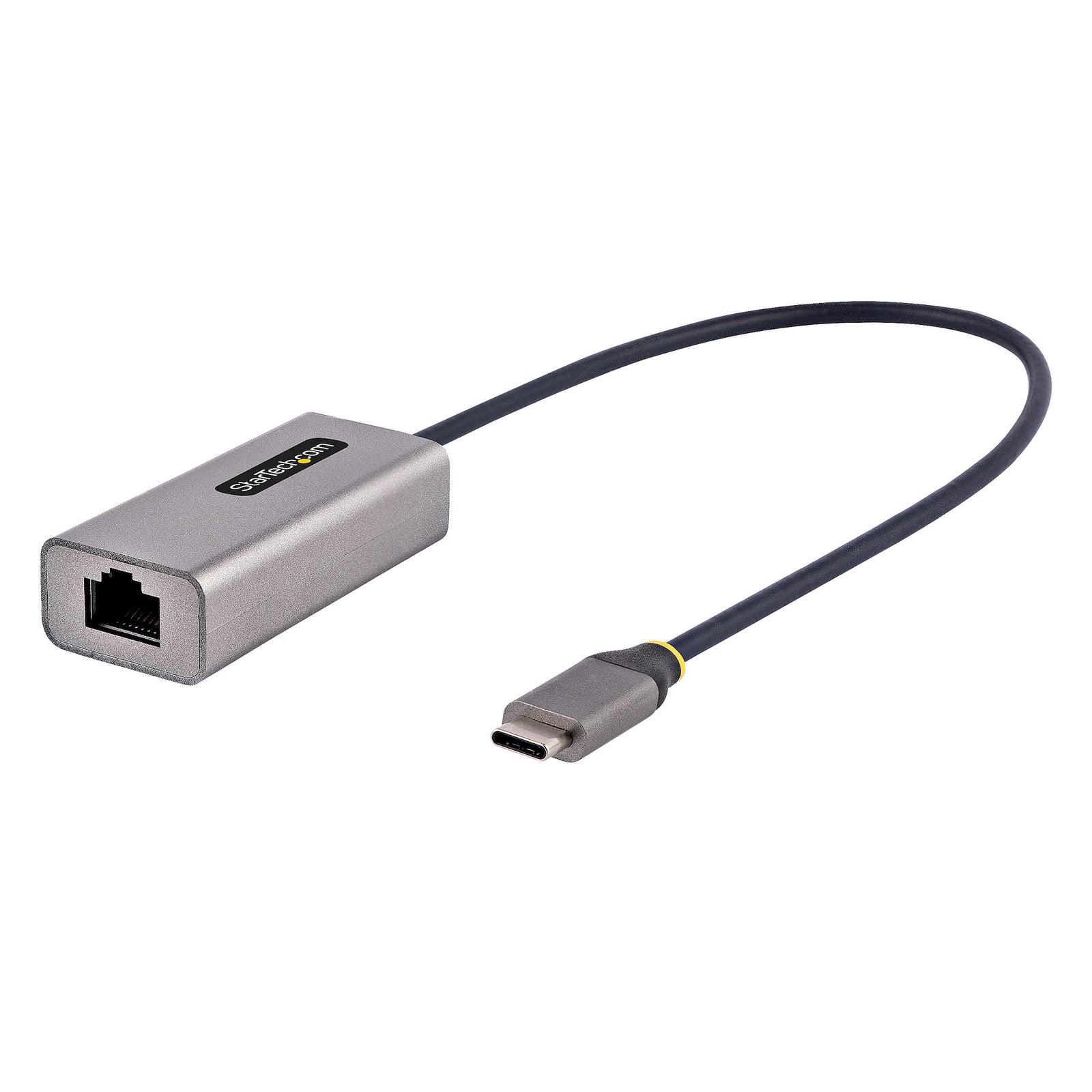

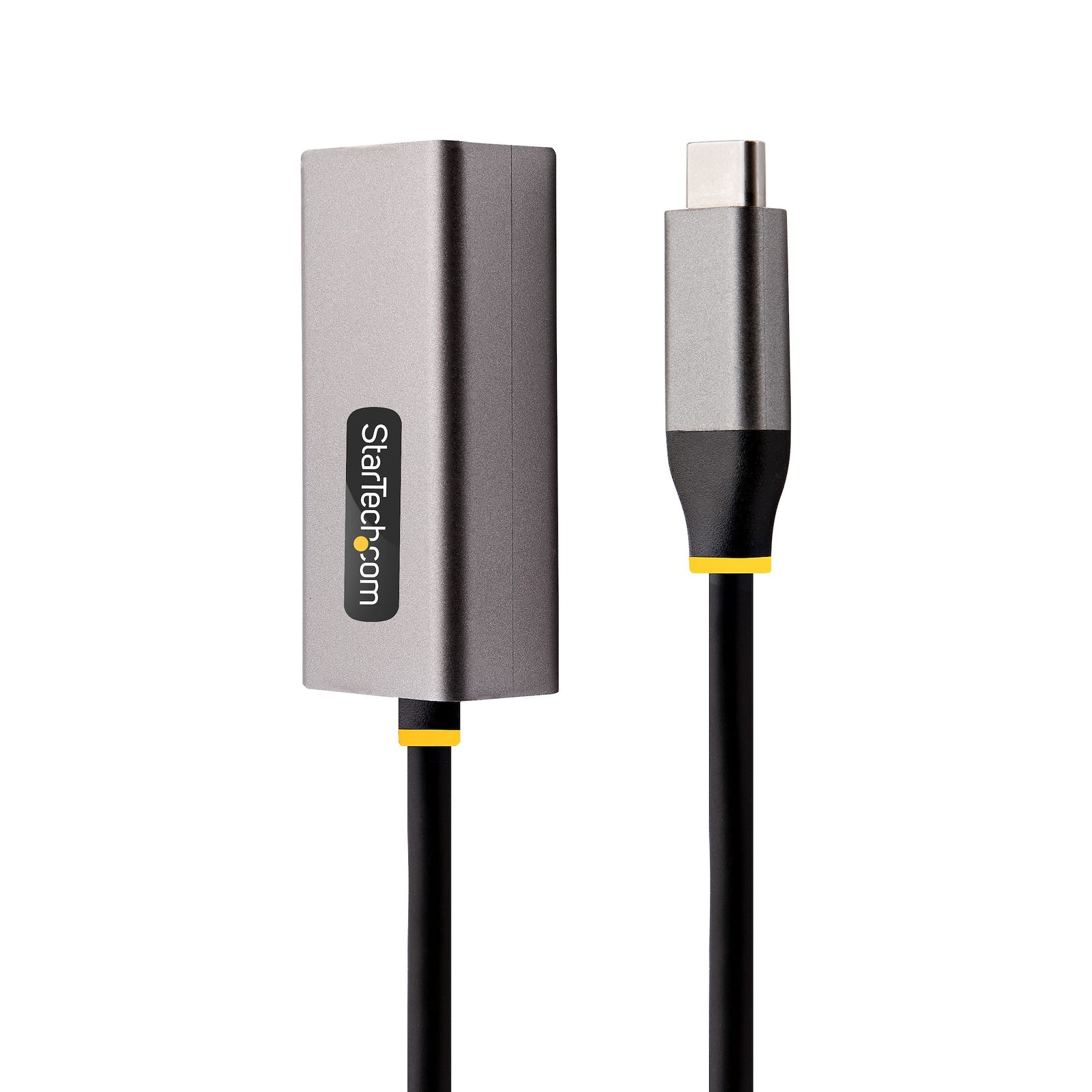

USB-C NETWORK ADAPTER |
USB-C to RJ45 adapter adds an Ethernet port to your computer supporting up to Gigabit speeds with auto-sensing on 10/100/1000 Mbps BASE-T Networks; ideal for reliable wired gigabit network connections, or as an alternative to WiFi |
FULL FEATURED |
USB-C to Ethernet dongle w/ attached 11.8in/30cm cable for longer reach reduces port connector strain - USB bus powered - Uses ASIX AX88179 Chipset for native compatibility w/ laptop, desktop computers, and 2-in-1's |
OS COMPATIBILITY |
USB NIC adapter for laptop offers plug and play connectivity (no driver install required), works with Windows versions 7/8/10/11/Server, macOS 10.14/10.15/11.0/12.0, Linux distributions with kernel 4.11 to 5.9.16 LTS, and Chrome OS |
VERSATILE DESIGN |

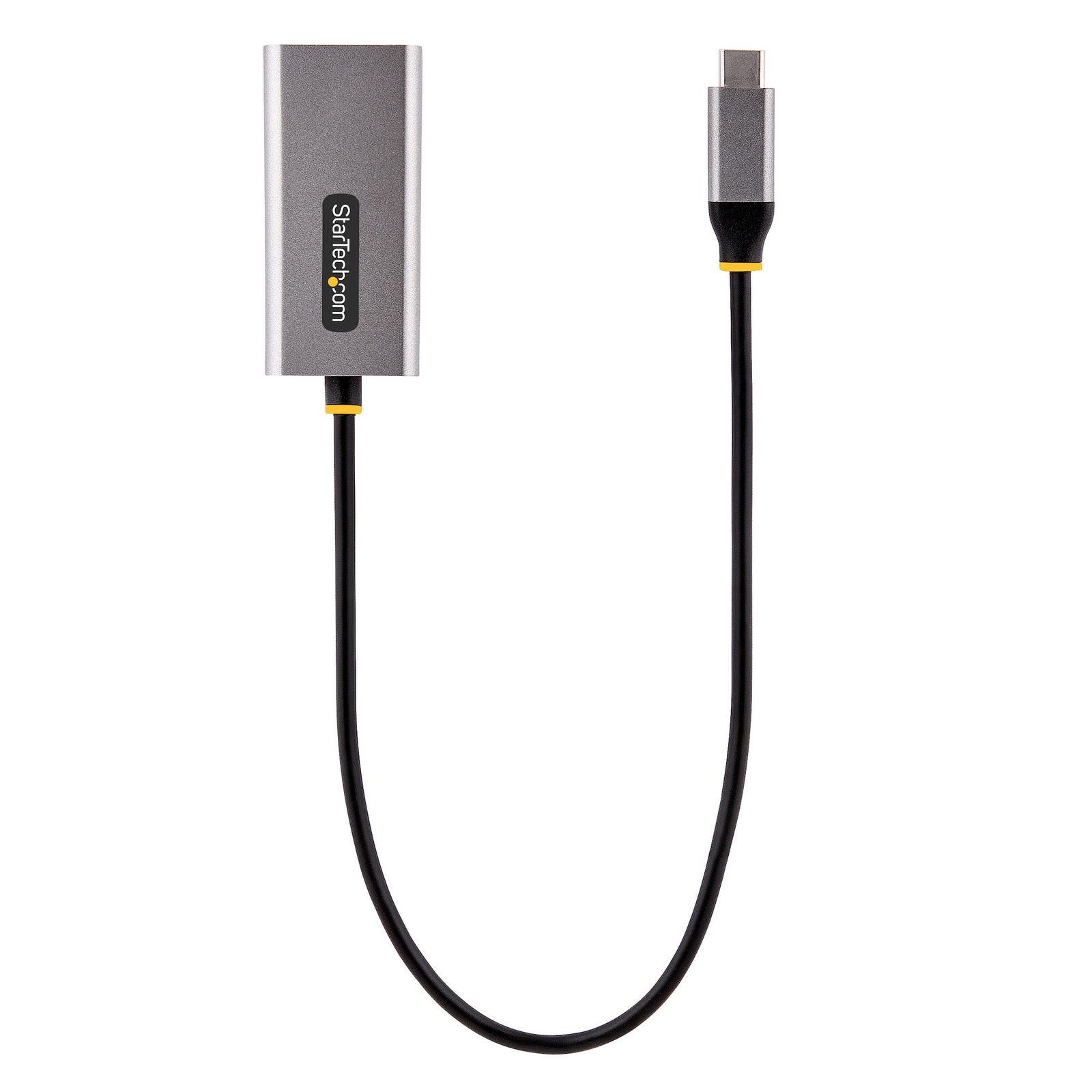

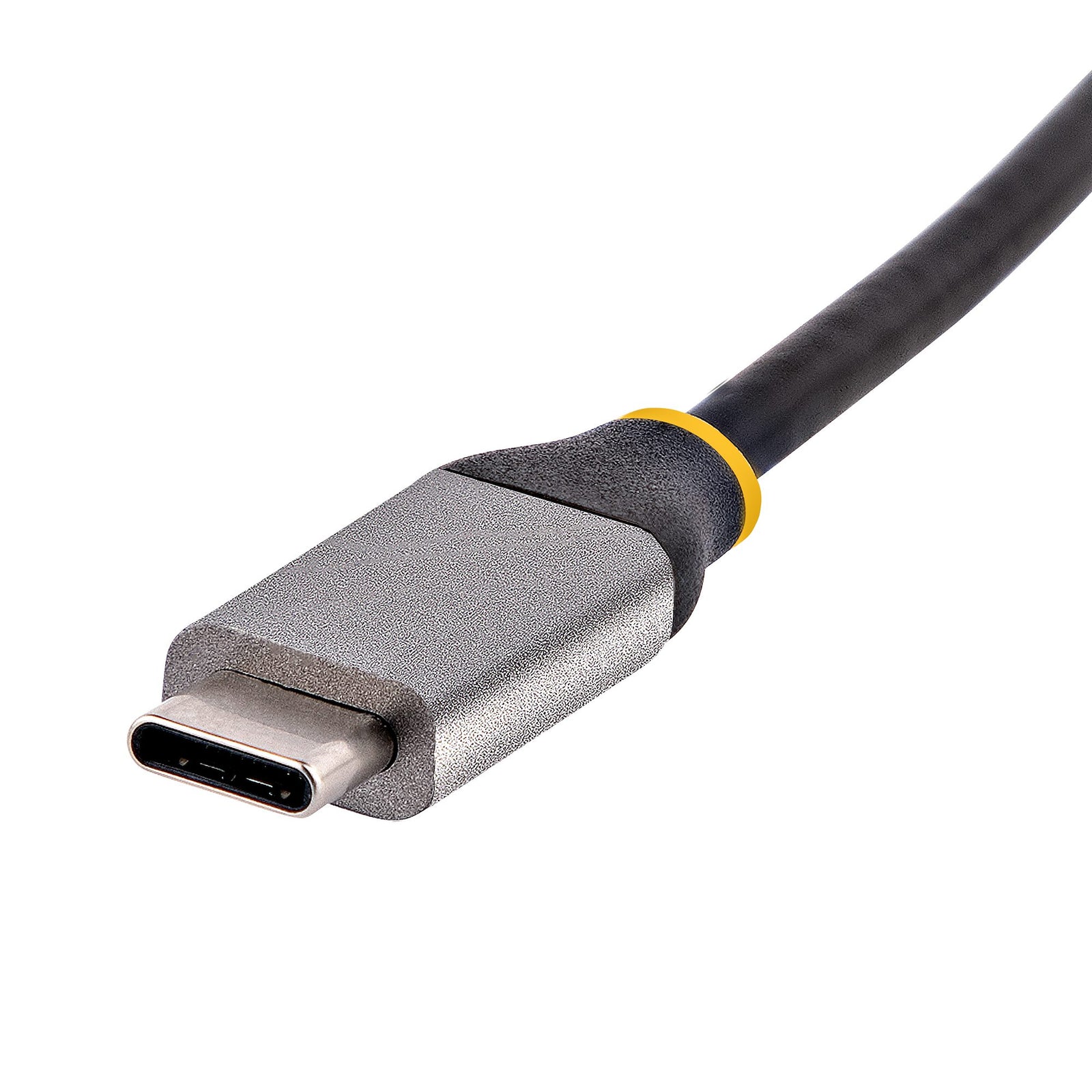

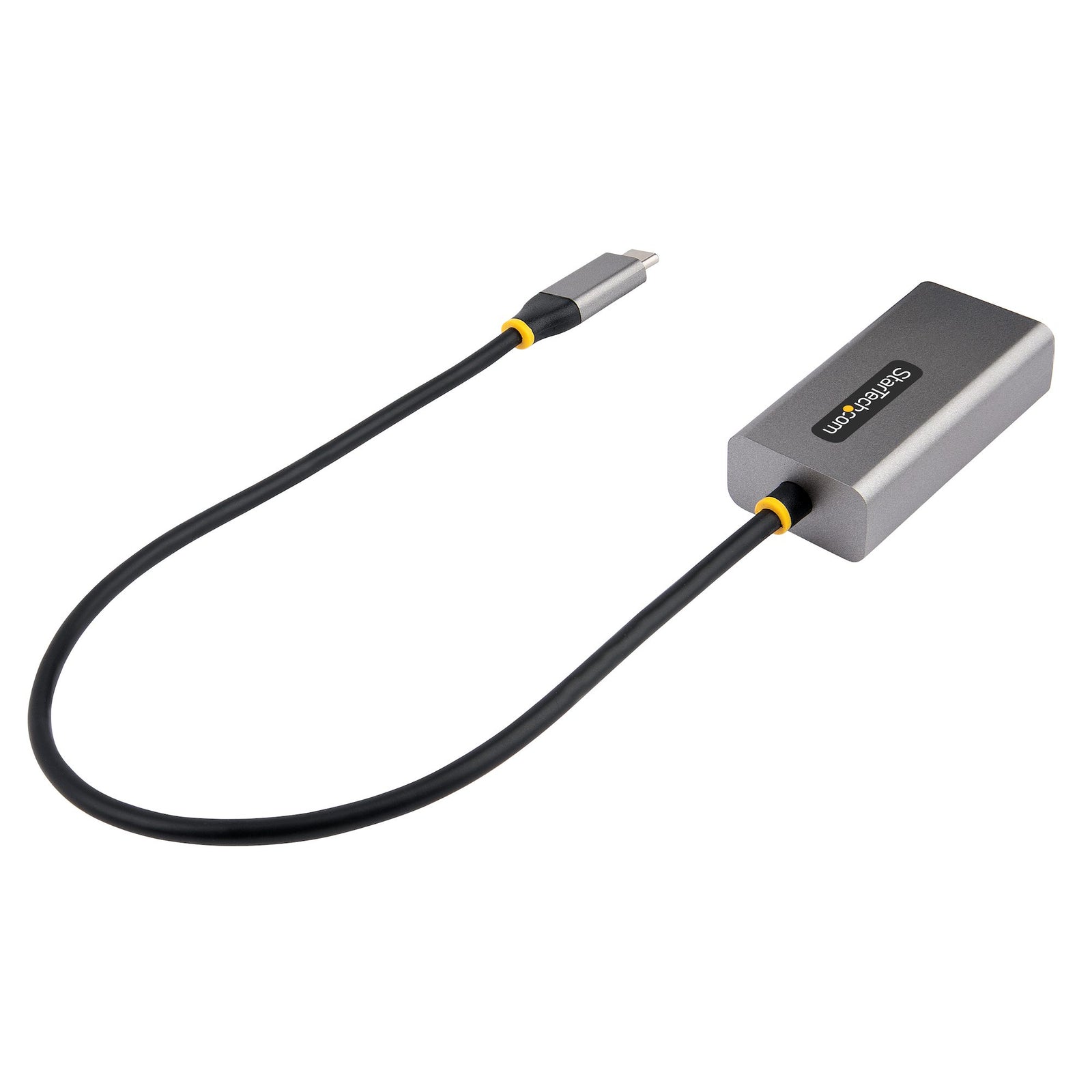

The USB-C to RJ45 dongle has an extended built-in 11.8in/30cm cable, providing additional reach and flexibility while reducing cable/connector strain - The USB-C NIC is conveniently powered via the USB Type-C port |
Technical Specs |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
Connectivity technology |
Wired |
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
Maximum data transfer rate |
5000 Mbit/s |
Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3uC |
Cabling technology |
10/100/1000BaseT(X) |
Ports & Interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
System Requirements |
|
Linux operating systems supported |
Y |
Server operating systems supported |
Windows Server 2019 |
Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, and more |
Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
Weight & Dimensions |
|
Depth |
27 mm |
Height |
16 mm |
Width |
174 mm |
Weight |
23 g |
Cable length |
0.3 m |
Operational Conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
Storage temperature (T-T) |
-10 - 70 °C |
Operating relative humidity (H-H) |
10 - 85% |
Packaging Data |
|
Package depth |
125 mm |
Package width |
230 mm |
Package height |
15 mm |
Package weight |
90 g |
Logistics Data |
|
Master (outer) case width |
495 mm |
Master (outer) case length |
325 mm |
Master (outer) case height |
210 mm |
Products per master (outer) case |
200 pc(s) |
Other Features |
|
Housing material |
ABS |
Network |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Wake-on-LAN ready |
Y |
Jumbo frames support |
Y |
Full duplex |
Y |
VLAN tagging |
Y |
Sustainability |
|
Sustainability certificates |
CE |
