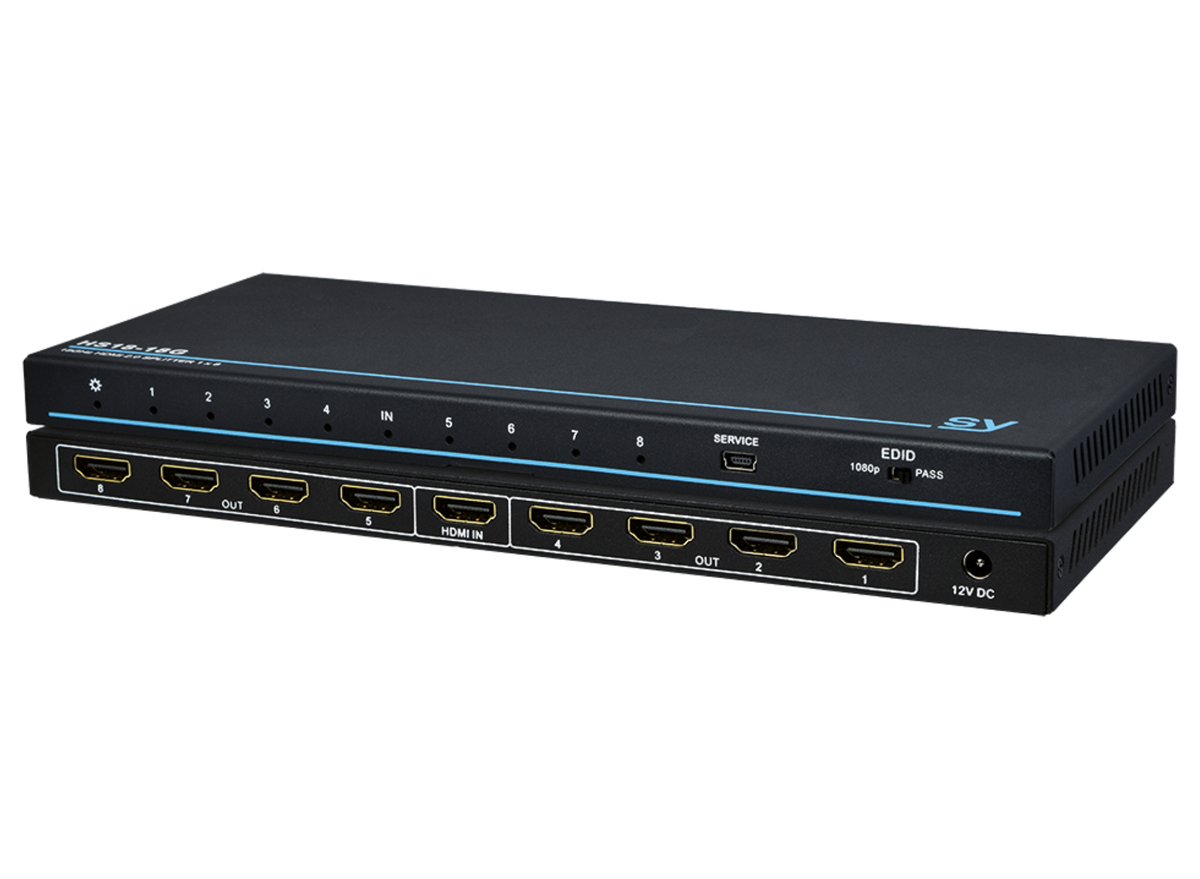

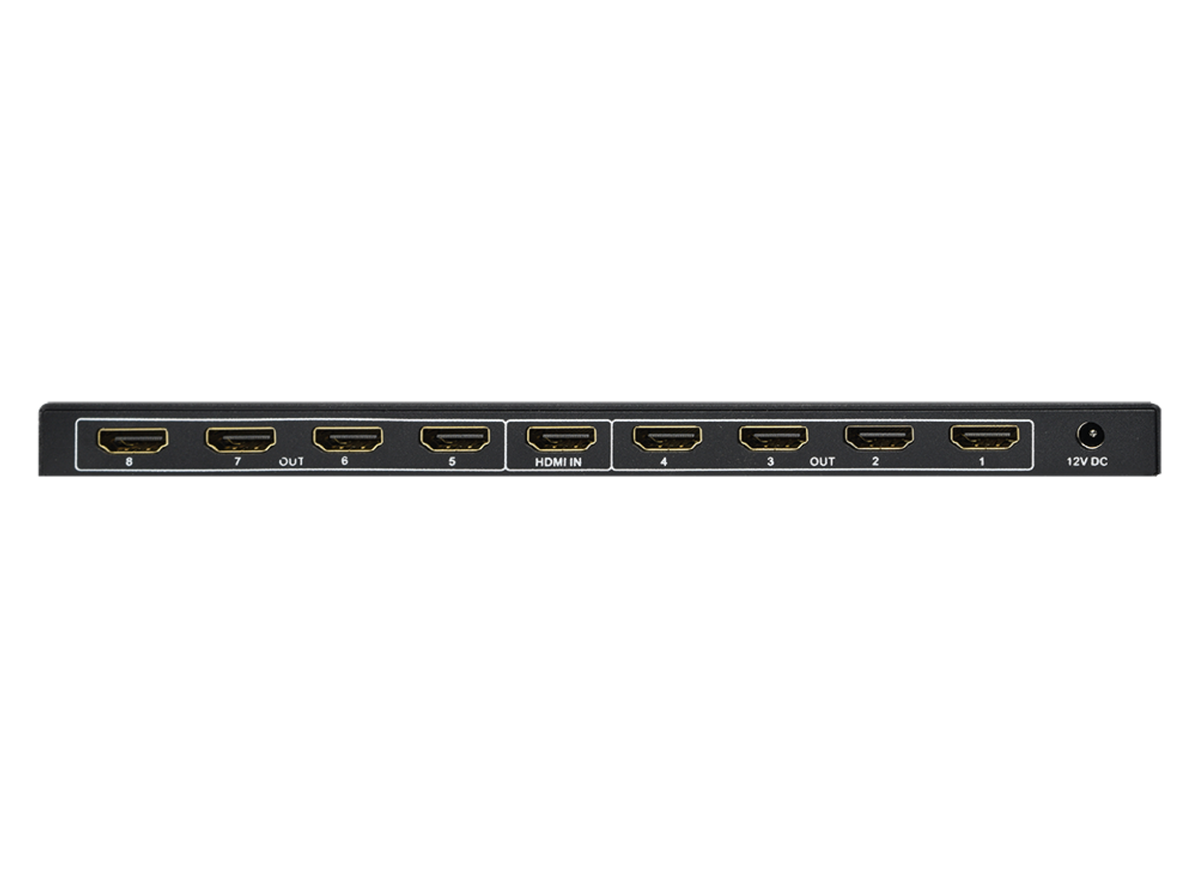

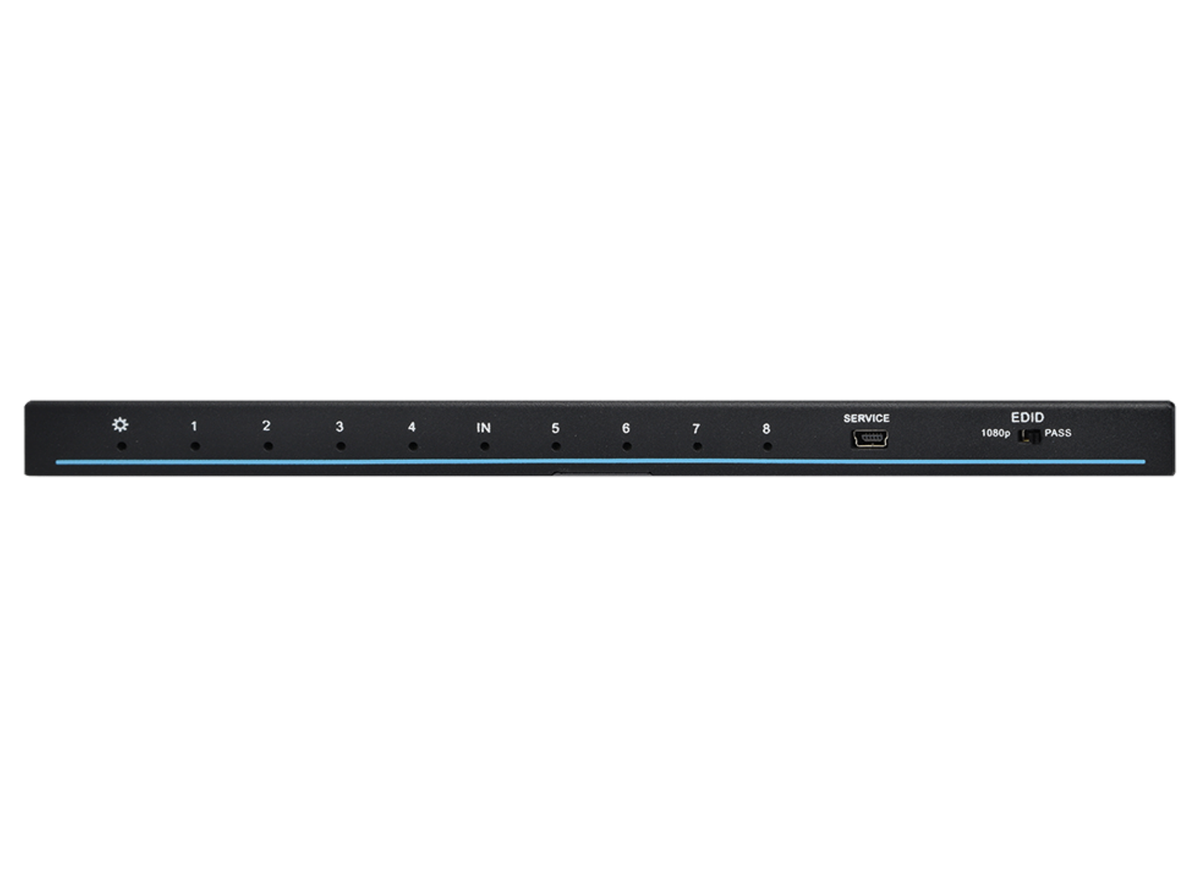

SY-HS18-18G - 1x8 Splitter - HDMI 2.0 Distribution Amplifier with smart EDID Management
HS18-18G HDMI Splitter offers a solution for distribution of HDMI signals by connecting one single source to eight further outputs.
Supporting up to HDMI 2.0 4K @ 50/60Hz 4:4:4 and HDMI 2.0 and is HDCP 2.2 compliant.
Small enough to fit alongside other equipment this is the ideal choice for all '1 in x 8 out' HDMI signal requirements.
Extra features include:
This HDMI splitter has a smart EDID management feature which operates in one of two modes: PASS or 1080p.
1. PASS mode - If the display device connected to Output 1 is capable of displaying any 4K resolution, then input EDID is set to this 4K resolution (all the outputs will be set to that 4K resolution).
If the display device connected to Output 1 is not 4K capable, then the splitter will choose the best fit EDID from all four outputs to ensure that all displays can show an image.
2. 1080p mode - The input EDID will be set to 1080p.
They are ideal in a variety of situations from digital signage, residential, conference rooms, education establishments, home cinema and home office computer setups.
Features
Split a single HDMI input to 8 outputs.
Compact multitasking solution ideal for discreet installations.
Supporting all resolutions up to HDMI 2.0 18G
including 4K@50/60Hz 4:4:4 and @12-bit YCbCr 4:4:4
HDCP 2.2 compliant.
Supports 3D at 1080p @ 60Hz
Supports audio formats including LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
| Part Number | SY-HS18-18G | HDMI Version | 2.0 |
| Video Resolution / Formats | All resolutions up to 4K2K @ 60Hz, 12-bit YCbCr 4:4:4 (18GHz) 480i – 1080i, 480p – 1080p, 1080p 3D, 4K2K 24/30/60 All PC resolutions, all PC VESA mode video format resolutions up to QSXGA @60Hz | HDCP | 2.2 |
| CEC Compliant | Yes | Bandwidth | 18Gbps |
| Video Input | 1x HDMI 2.0 | Video Outputs | 8x HDMI 2.0 |
| Audio Formats Supported | LPCM 7.1CH Dolby TrueHD DTS-HD Master Audio | EDID Control | Pass mode – Port 1 has priority 1080P mode – Input set to 1080p Select via front panel DIP switch |
| Power Supply | 12V DC, 2.5A | Temperature | 0 – 40’C |
| Humidity | 10% - 90% (non-condensing) | Weight | 630g |
| Dimensions (WHD) | 245 x 16 x 105mm | Main Unit | 1x HS18-18G |
| Wall Power Supply | 1x Wall power supply with UK and EU plug adaptors | User Manual | 1x User’s Manual |
| Description | Downloads |
|---|---|
| Manual | Download |
