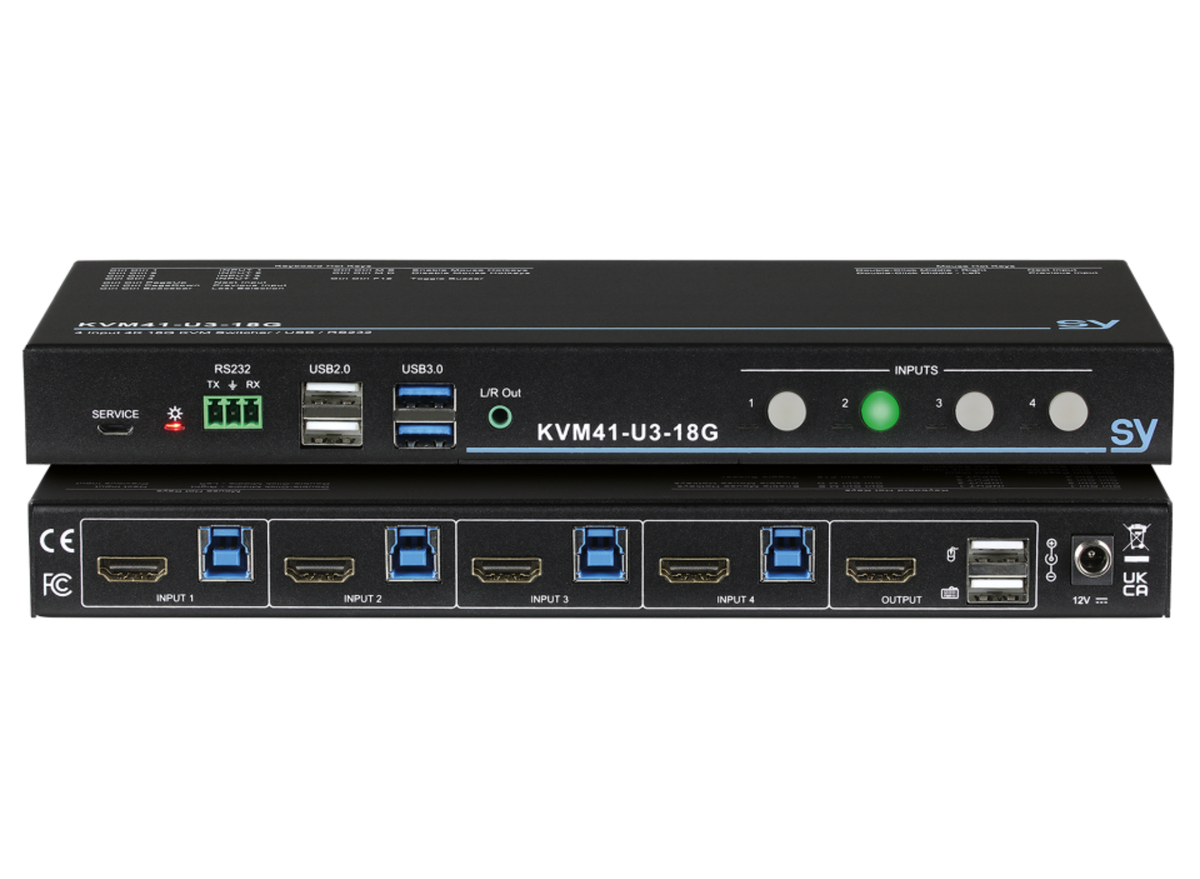

KVM41-U3-18G – 4:1 KVM Switcher with 4x perpheral USB ports and Hotkey options.
4:1 KVM Switcher arrives with a total of 6x peripheral USB ports, (2x USB 2.0, 2x USB 3.0 + 2x HID USB ports for attachment of mouse and keyboard). Capable of handling all video resolutions up to 4K60 4:4:4 (18G), control via front panel, RS232, or keyboard/mouse hotkey. EDID and HDCP management facilities help to optimise system set-up. A great value solution for use anywhere multiple sources/computers are required to be controlled by one operator, for example in small huddles/meetings, financial institutions, control centres, educational spaces and labs.
KVM – Dedicated 4:1 KVM Switcher for control of up to 4x sources, with centralised control options, accepts all resolutions up to 4K60 4:4:4 (18G) and HDR12.
INPUT SELECT – Manual or Automatic modes. Input selection can be made using the front panel buttons, RS232, keyboard hotkey, mouse or other control device. Elect to switch to either next higher or lower numbered live input via RS232.
HOTKEY – A choice of hotkey modes is available. Choose from keyboard Hotkey and/or mouse Hotkey. A Chart is printed on top of the unit for easy reference. Keyboard hotkey commands can select inputs, change views and enable/disable mouse hotkeys.
SCALING – Downscaling from 4K to 2K. Output modes available include auto-scaling, manual and off.
HDCP – Full support for HDCP v1.4 and v2.2. Set for each individual input as well as the output. The output can follow the selected input, auto-convert v2.2 to v1.4, or be put into Cascade mode.
EDID – Choose your own Custom EDID (read and store to 3x memory locations), or you can choose from a selection of 15x standard EDID types to suit most applications; from 1080p to 4K, 24Hz to 60Hz, 2ch to 7.1ch, and 4:2:0 to 4:4:4.
AUDIO DE-EMBEDDER – Option to draw audio from the selected source and output via the analogue L+R 3.5mm TRS jack on the front panel.
TEST PATTERN GENERATOR – A Test Pattern Generator is built into the device. To enable an easy ‘Test and Prove’ procedure to be carried out during the test and commission phase of your installation. Various pattern types and colours are available and at various resolutions from 480p to 4K.

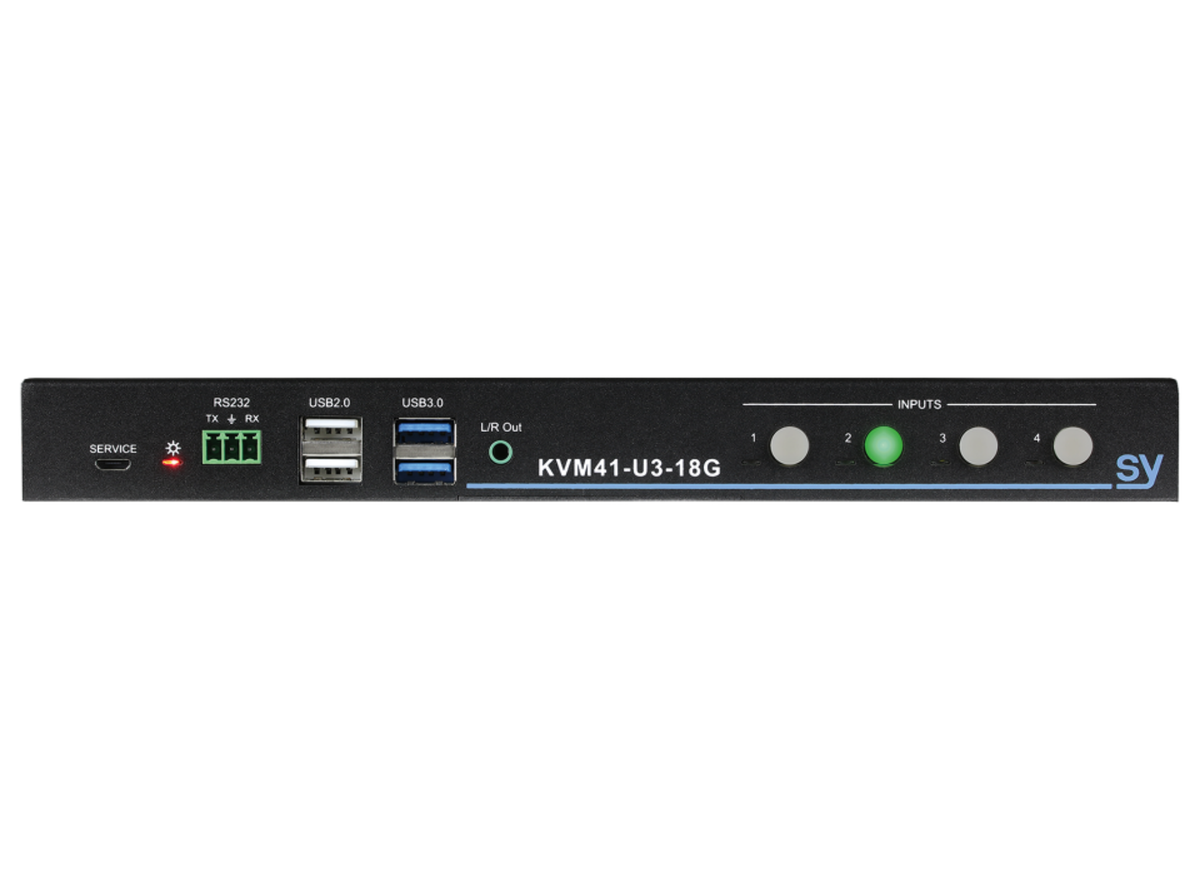

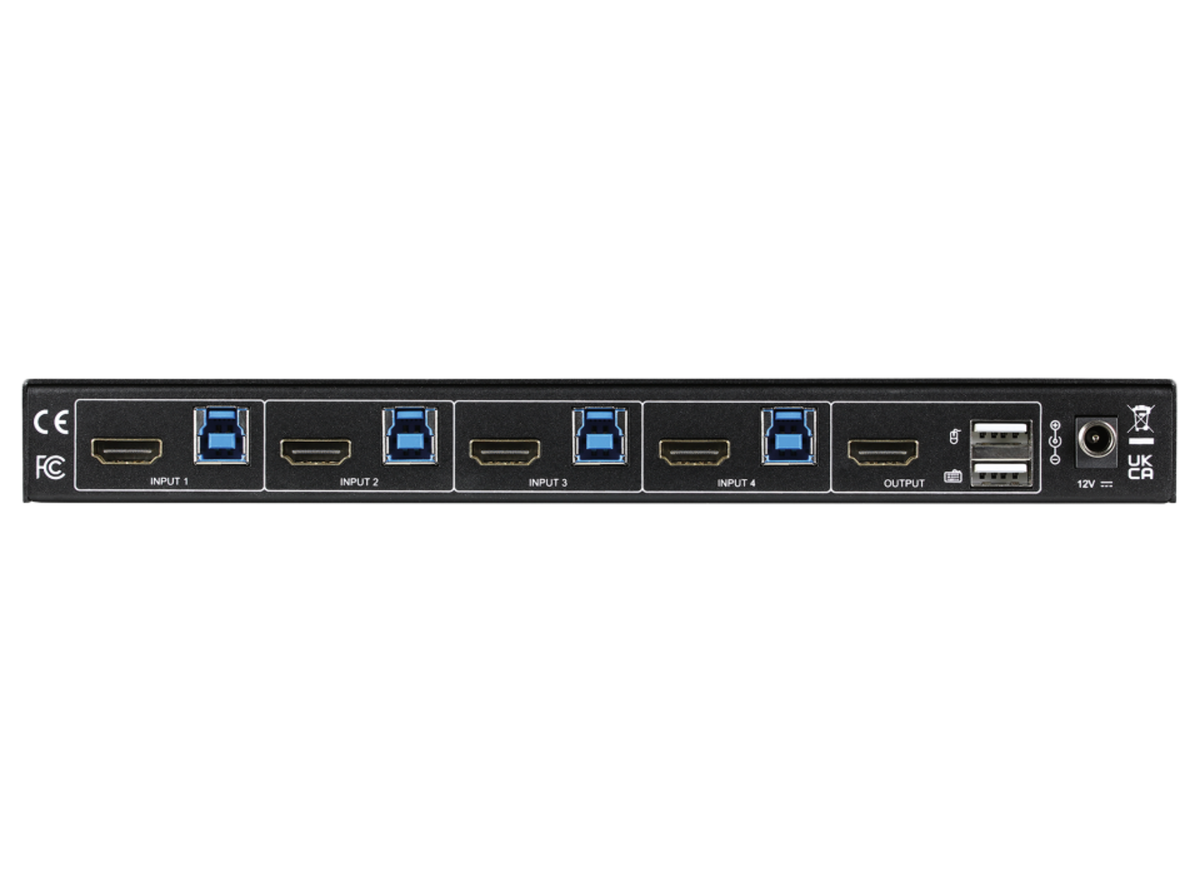

MULTIPLE USB PORTS – Dedicated keyboard and mouse USB ports on rear. 4x USB ports on the front (2x USB 2.0 & 2x USB 3.0) for connection to any type of USB device such as storage, camera etc. Each HDMI output also has a corresponding USB type B port for connecting computers. Supported operating systems include: Windows 7, Windows 10, Windows 11, Mac OS, and Ubuntu.
Features
4x1 KVM Switcher (4x HDMI Inputs coupled with 4x USB 3.0 Type-B ports)
HDMI 2.0 4K60 4:4:4 (18G)
6x USB type-A ports; 2x USB 2.0, 2x USB 3.0, 2x HID
Supports Dolby Vision, HLG, HDR10, Deep Colour up to 12-bit
Supports LPCM audio up to 7.1, Dolby Atmos, DTS-X
Supports HDCP 2.2 and HDCP 1.4
Extensive EDID and HDCP management
Test Pattern Generator
L/R Analogue Audio de-embedding via 3.5mm TRS Jack
Control via keyboard Hotkey, mouse Hotkey, Front Panel button and RS232
Supplied with side mounting brackets
| Part Number | SY-KVM41-U3-18G | Input HDMI Version | HDMI 2.0 (18Gbps) – HDR Formats supported |
| Output HDMI Version | HDMI 2.0 (18Gbps) – HDR Formats supported | Input HDCP | Accepts all versions up to HDCP 2.2 |
| Output HDCP | Fully controlled – Pass through, 1.4, 2.2, Cascade mode | Input Resolutions | All HDMI and PC resolutions up to 4K2K 60Hz 4:4:4 |
| Colour Space | Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 | Colour Depth | 8, 10, 12 bits |
| Audio Formats Supported | 2.0/2.1/5.1/7.1 channel LPCM, Dolby, AC3, DTS | De-Embedded Audio Out | Analogue Stereo (L/R) Line out (0.7Vrms) via 3.5mm TRS Jack |
| Test Pattern Colours | Black – Chequerboard – Stripes – Red – Green – Blue – White – Ramp – Red Ramp – Green Ramp – Blue Ramp – Pseudo-Random Bit Stream | Test Pattern Resolutions | 720x480p60 – 1280x720p60 – 1080p60 – 4K24 – 4K25 – 4K30 – 4K24W (4096x2160) – 4K50 – 4K60 |
| USB KVM | USB 3.0 KVM | USB HID Ports | 2x USB 2.0 HID ports |
| USB 2.0 Peripheral Ports | 2x USB 2.0 Peripheral ports | USB 3.0 Peripheral Ports | 2x USB 3.0 Peripheral ports |
| RS232 Control | Default 57600 baud, 8 bits, no parity, and 1 stop bit | RS232 Baud Rate | Other baud rates can be set via RS232 up to 115200 baud |
| HDMI Connectors | 4x HDMI Inputs 1x HDMI Output | USB-B Host Ports | 4x USB-B Host ports |
| USB-A HID Ports | 2x USB-A HID ports | USB-A 2.0 Ports | 2x USB-A 2.0 Peripheral ports |
| USB-A 3.0 Ports | 2x USB-A 3.0 Peripheral ports | Audio Output | 1x 3.5mm TRS Stereo Jack Audio out |
| RS232 Connector | 1x Phoenix Screw Terminals for RS232 control | Power Input | 1x 12V DC Power input (2.1mm barrel jack) |
| Power Consumption | 6W max. | Power Supply | 12V 3A DC |
| Operating Temperature | 0 ~ 40˚C (32 ~ 104F) | Operating Humidity | 10 ~ 90% RH (Non-condensing) |
| Dimensions (WDH) | 245 x 26 x 104mm | Net Weight | 650g |
| Main Unit | 1x KVM41-U3-18G | DC Power Supply | 1x 12V DC Power Supply |
| User Manual | 1x User Manual | Mounting Brackets | 1x Side mounting brackets |
| Description | Downloads |
|---|---|
| Manual | Download |
