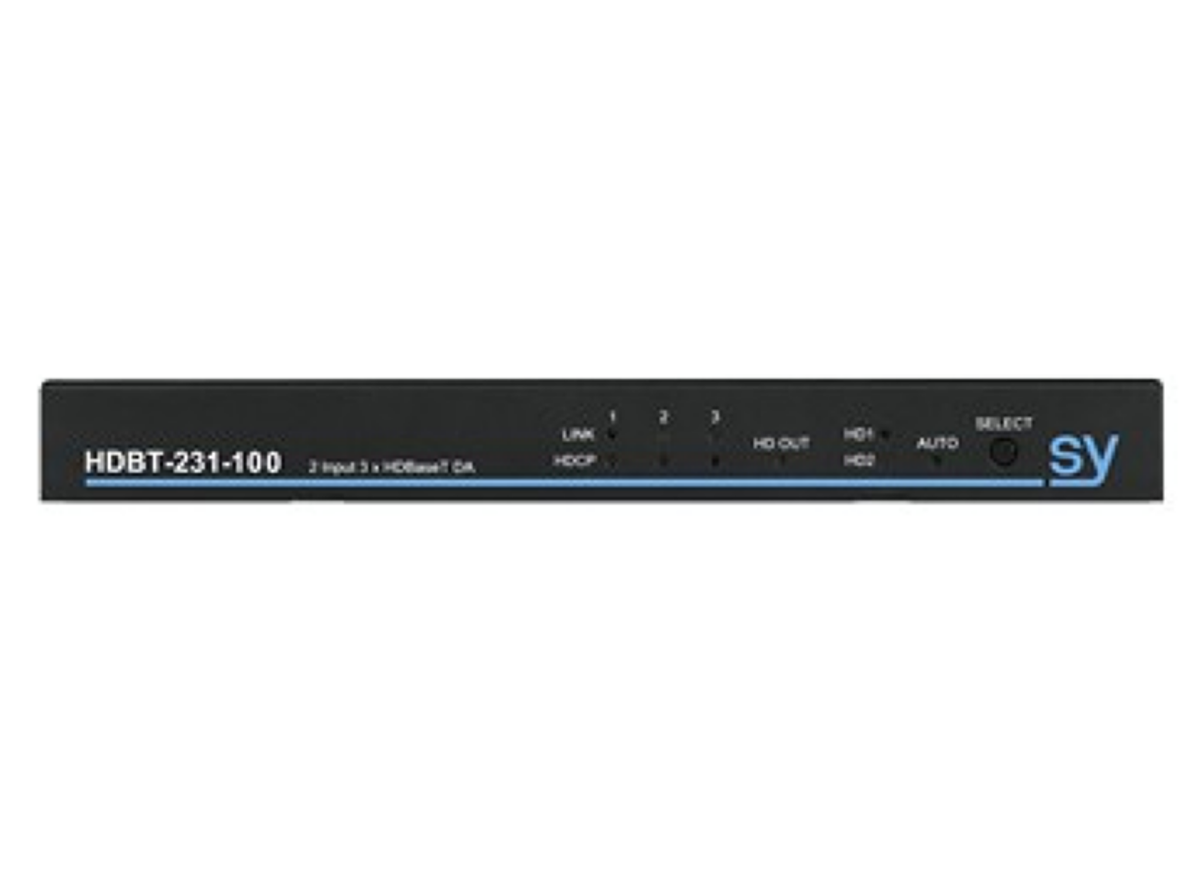

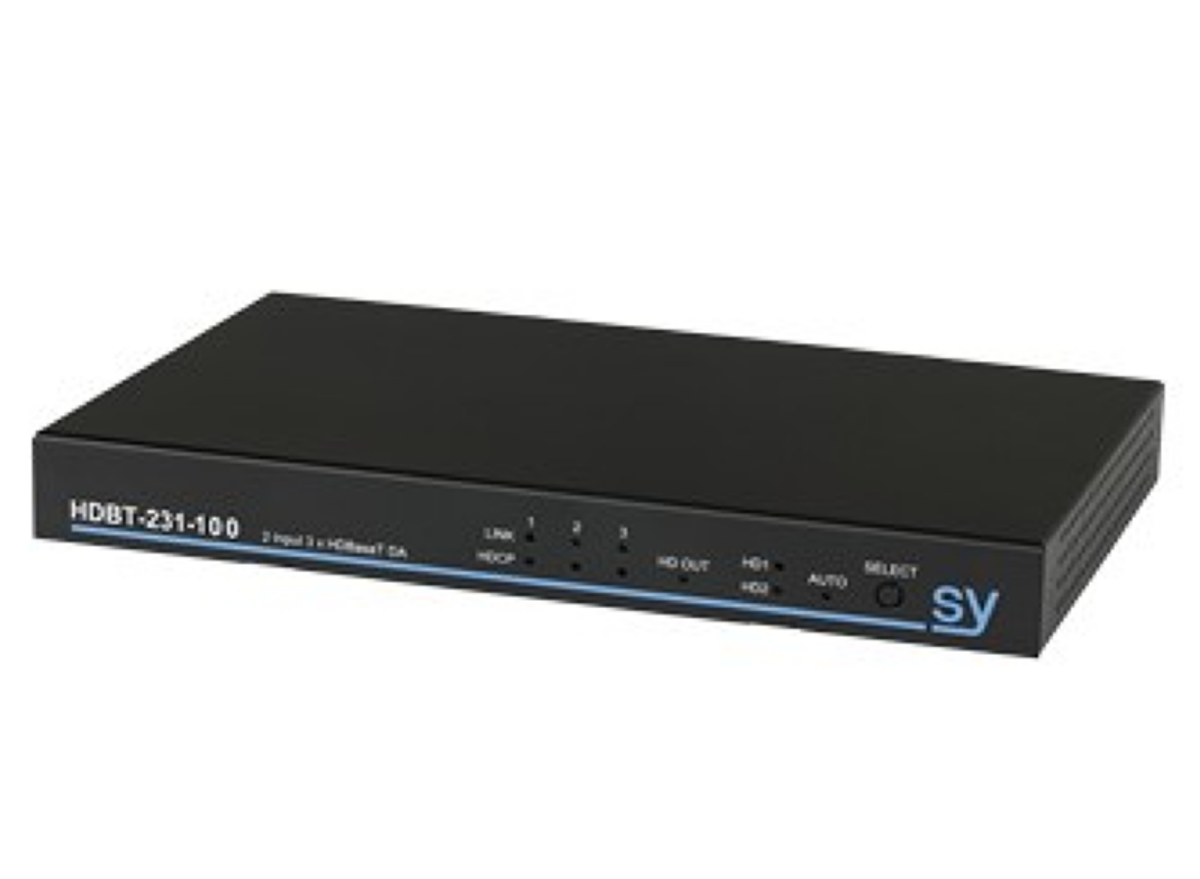

SY-HDBT-231-100 is a HDBaseT Splitter with 2x HDMI Inputs and 3x HDBaseT Outputs (4K @70m/ 1080P @100m) plus 1 x HDMI Output. The HDBT-231-100 provides a selection from one of two HDMI input sources then distributes that selection to all outputs simultaneously. Extensive signal management/ control including auto switching, HDCP and EDID and Full RS232 distribution and control.
HDBaseT Outputs - All three outputs transmit 4K@30Hz UHD video signals to 70M and 1080p to 100M over CAT6A. For effortless installation we would recommend our HDBT-100SE-R HDBaseT receivers.
iPoC - Only one PSU is required at Transmitter to power all Receivers. The iPoC (intelligent Power over Cable) system ensures the power is made available only if the device is iPoC compatible. For example, the HDBT-231-100 will not apply 48V power to a projector with HDBaseT input, ensuring safe operation.
Auto Switching - Will switch to the last input connected or can switch back to a live input when a current input is removed.
RS232 Control port - A dedicated RS232 CTL port for control of the unit itself, and in addition this port allows the advanced feature of being able to address each HDBaseT Output independently. This allows full bi-directional communication of all remote devices. Each HDBaseT Output can be independently set to handle specific Baud rates up to 115200. This offers ultimate flexible control of 1 x RS232 port to control 3 unique remote devices
RS232 Pass Through - RS232 port for broadcast of unaltered commands. Response messages are returned from HDBT output 1
IR Pass through - Bi-directional IR ports offer extra scope for added flexibility via the HDBaseT Ports. This gives Local control of the remote displays or remote control of a local device.
EDID -The extensive EDID management facility can ensure the video source is optimised to suit the installation. for quick EDID set up there are DIP switches on front panel or for more comprehensive EDID control you can use RS232-CTL port.
HDCP Management - Support and ‘Management of HDCP’ ensures compatibility. You can convert from HDCP 2.2 down to HDCP 1.4, or simply put the unit into Cascade Mode - No more HDCP issues. This Mode may also speed up switching speeds.
De-embedded Audio L+R analogue PCM 2.0 channel audio will be sent out from the currently selected input device.
This device is also available in a 70m Version HDBT-231-70.
These HDBaseT Splitters are highly configurable to suit a variety of commercial install applications including Receptions and Waiting Rooms, Retail, Transport Hubs, Hospitality, Training Rooms.
Features
4K60 4:2:0 (10.2G) & HDCP 2.2
2x Selectable HDMI inputs
3x HDBaseT and 1x HDMI loop out
iPoC
Transmits 1080p to 100m
Transmits 4K30 to 70m
Global IR
RS232 Pass Through Port
RS232 CTL Control port
RS232 CTL Discreet routing to Outputs
De-embedded L/R audio
Extensive EDID management
| Resolutions / Formats | VESA and SMPTE 480p to 2160p (4K UHD) with 3D | Maximum Video Formats | 4096x2160p @60Hz 4:2:0 8bit 3840x2160p @30Hz 4:4:4 8bit All PC resolutions to 1920x1200 |
| HDMI Audio Pass-Through | All HDMI audio formats, including Dolby D (TrueHD), DTS (HD-Master Audio) and PCM | Audio Channels | 2-8 channels (2.0 to 7.1) |
| Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | Video Inputs | 2x HDMI |
| HDMI Output | 1x HDMI | HDBaseT Outputs | 3x RJ45 - HDBaseT iPoC |
| HDBaseT 1080p Range | Up to 100m | HDBaseT 4K Range | 4K30 up to 70m |
| HDBaseT Receiver | HDMI video to an SY-HDBT-100 receiver | HDBaseT Control | RS232 & IR control, and iPoC |
| HDBaseT Bandwidth | 10.2Gbps | De-Embedded Audio Output | 1x Analogue L+R via Phoenix connectors |
| De-Embedded Audio Format | PCM 2.0 channel from selected input, onto 3-pin Phoenix connectors | Stereo Audio Level | Stereo L/R, 0.7V RMS – 20Hz-20kHz |
| HDCP | Compatible with all versions up to HDCP 2.2 | Control | Front panel buttons and RS232 |
| RS232 & IR Pass-Through | Full function bi-directional pass-through | RS232-CTL Port | Baud 57,600, Parity none, Stop bit 1 |
| Power Supply | 48V DC @ 1.0A max., 2-pin Phoenix | Power Consumption | 14.4W with one receiver; add 8W for each additional receiver |
| Dimensions (WHD) | 220 x 24 x 134mm | Case Materials | Aluminium chassis |
| Weight | 780g | Main Unit | 1x HDBT-231-100 |
| Mounting Hardware | 1x Set removable Rack Ears mounting brackets | Phoenix Connectors | 3x Phoenix connectors |
| Included PSU | 1x PSU | User Manual | 1x User Manual |
| Description | Downloads |
|---|---|
| User Manual | Download |
