SY Electronics 2x4 HDMI 2.1 8K60 Splitter with 48Gbps & HDR | SY-HDA24A-48G

High-Performance 8K HDMI Distribution with Advanced Signal Management

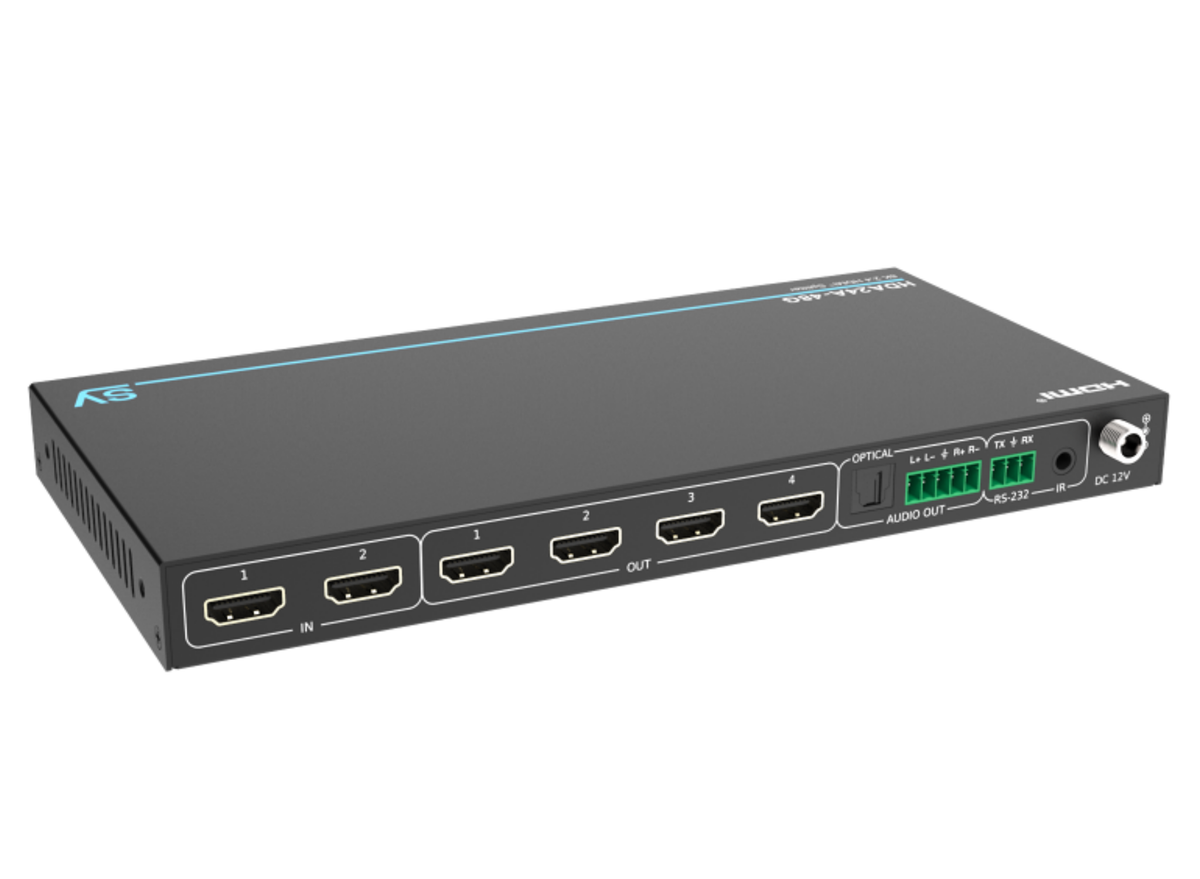

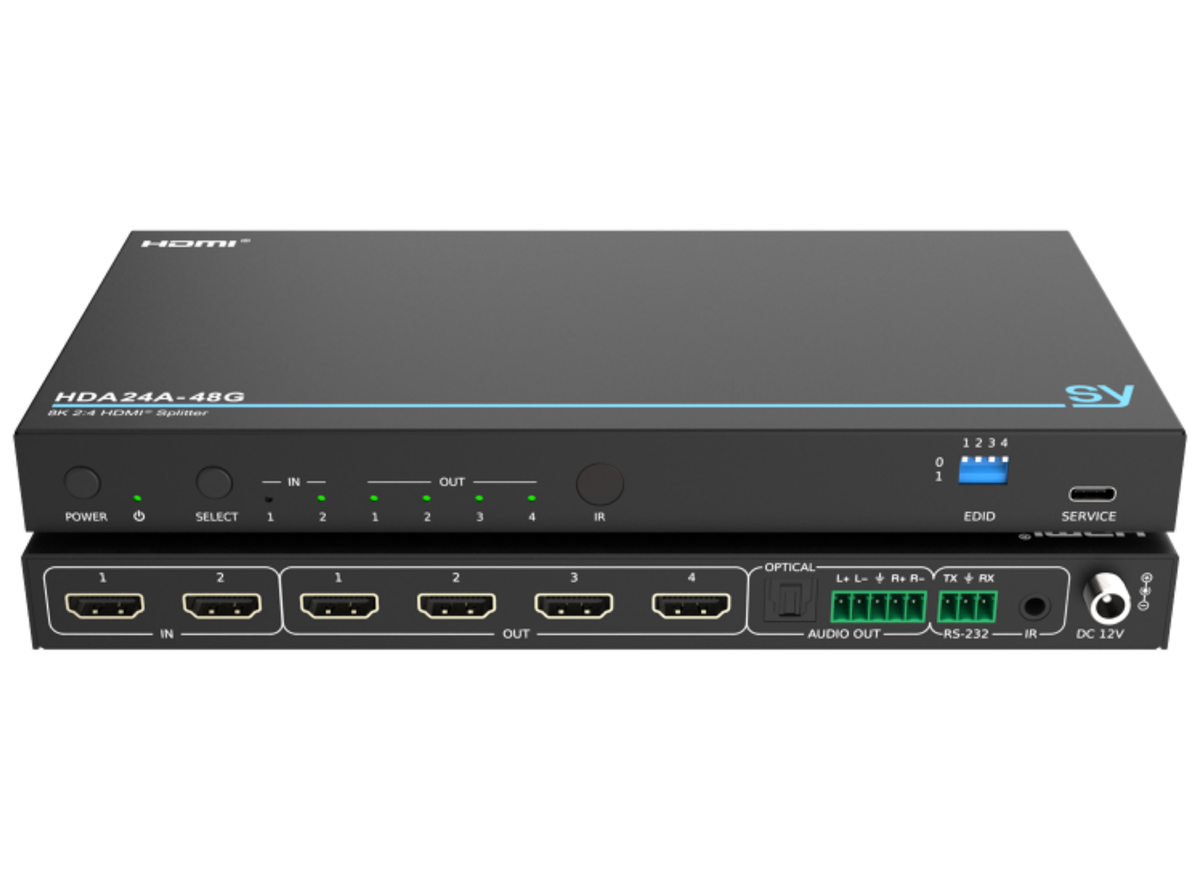

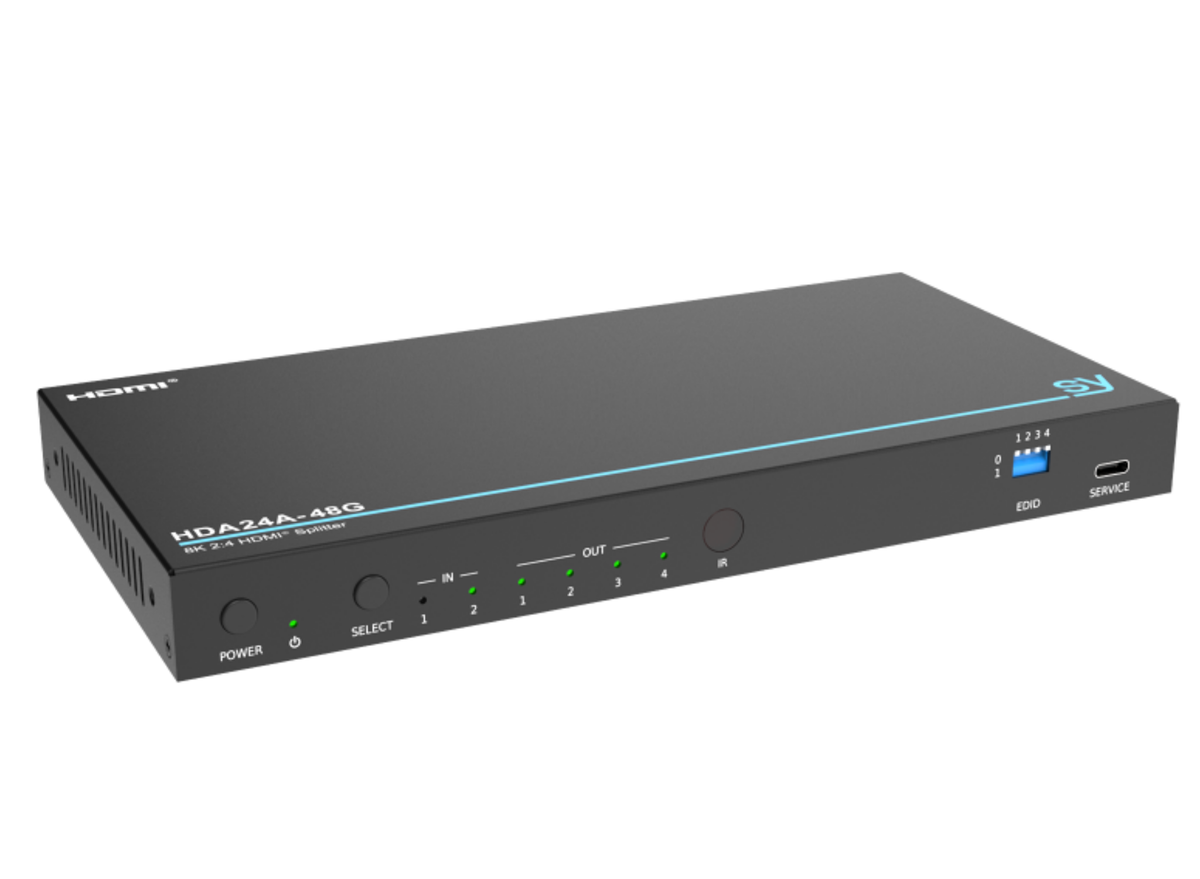

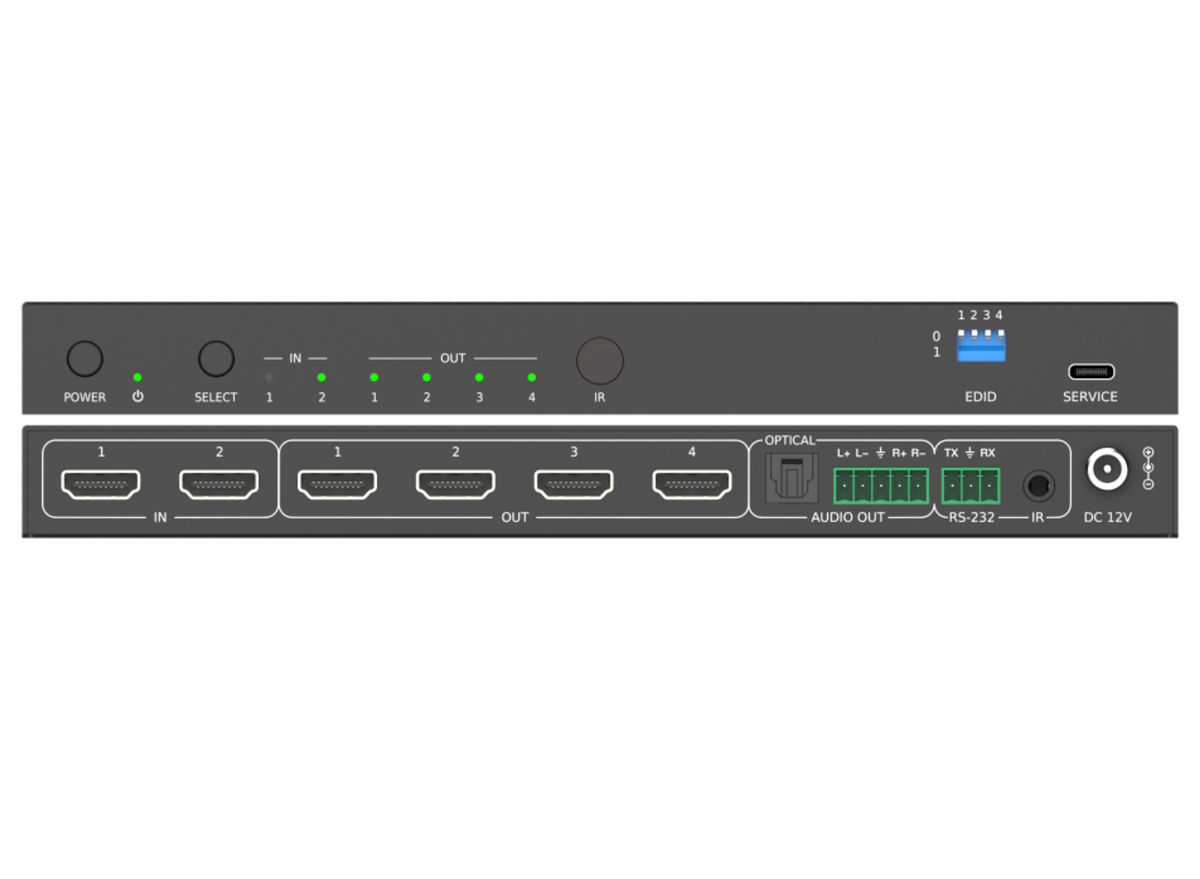

HDA24A-48G – 48G 2x4 HDMI Splitter
The HDA24A-48G is a professional 48Gbps HDMI 2.1 splitter designed for high-bandwidth AV distribution applications requiring advanced signal management.

Featuring 2 HDMI inputs with 4 HDMI outputs, these splitters support the latest HDMI 2.1 formats including 8K60, 4K120, HDR10, HDR10+, Dolby Vision, VRR, ALLM, and DSC pass-through.

Designed for professional AV integration, the units combine advanced EDID and HDCP management, per-output scaling, HDR conversion, test pattern generation, audio de-embedding, and comprehensive control functionality, making them ideal for commercial AV, digital signage, esports, home cinema, education, and high-performance HDMI distribution systems.

EDID & HDCP Management
Reliable HDMI distribution depends on proper EDID and HDCP communication between connected devices. Comprehensive EDID management allows the installer to optimise source output formats using display pass-through, predefined EDID profiles, or custom uploaded EDID settings.

Advanced HDCP management further improves compatibility, with selectable HDCP modes including HDCP 1.4, HDCP 2.2, Follow In, Follow Out, and Cascade mode. These tools help eliminate compatibility issues between mixed-generation source and display equipment.

Per-Output Video Scaling & HDR Conversion
Each HDMI output features independent video processing, allowing connected displays with different capabilities to operate simultaneously within the same system.

Outputs can automatically scale incoming 8K signals down to 4K or 1080p, ensuring compatibility with legacy displays while maintaining optimal performance for newer devices.

Per-output HDR to SDR conversion is also available, allowing HDR content to be displayed correctly on non-HDR screens without affecting other outputs in the system.

Built-In Test Pattern Generator
An integrated Test Pattern Generator provides a convenient way to verify cable infrastructure, displays, and system operation without requiring an external signal generator.

Multiple resolutions and pattern types are available, including colour bars, checkerboard, stripes, solid colours, ramp patterns, and PRBS patterns at resolutions ranging from 480p up to 8K30 and 4K120, making commissioning and troubleshooting significantly easier during installation.

Video Keep Alive (VKA)
The built-in Video Keep Alive feature maintains a stable video output whenever the source signal is lost. When activated, the internal test pattern generator automatically takes over to prevent displays or projectors from losing sync.

This can be particularly beneficial in projector installations where signal loss could otherwise trigger lengthy resynchronisation or shutdown cycles.

Audio De-Embedding
Integrated audio de-embedding allows audio to be extracted from the selected HDMI input and routed to both digital optical and balanced analogue audio outputs simultaneously.

The splitter supports a wide range of audio formats including LPCM, Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and Dolby Digital Plus.

Audio Gain Control
Analogue output gain control is also available, providing additional flexibility when integrating with external audio systems, DSPs, amplifiers, or conferencing equipment.

Flexible Control & Diagnostics
Comprehensive control and monitoring features are available via RS232, IR remote control, front panel controls, and the USB-C Service port.

Extensive diagnostic and configuration features include:

EDID management
HDCP management
Per-output scaling configuration
HDR conversion
Audio gain adjustment
Video Keep Alive
Buit in Test pattern
Front panel lock control
Auto-switching configuration
HPD triggering
HPD Management

The Hot Plug Detect (HPD) function allows the HDMI connection to be remotely reinitialised, forcing the source and display to renegotiate communication without physically disconnecting cables.

This feature is particularly useful when equipment is mounted in difficult-to-access locations such as ceiling spaces, AV racks, or behind displays.

HDMI 2.1 Performance
The splitters support the latest HDMI 2.1 technologies and full 48Gbps bandwidth, allowing distribution of uncompressed high-frame-rate video formats including 4K120 and 8K60.

Support for VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), DSC (Display Stream Compression), HDR10+, Dolby Vision, FreeSync, and G-Sync ensures compatibility with modern gaming systems, media players, and professional AV sources.

All HDMI ports are also designed to support Active Optical HDMI cables (AOC), improving flexibility for long-distance HDMI connectivity.

Features
48Gbps HDMI 2.1 bandwidth
2 HDMI inputs with 4 HDMI outputs
Supports 8K60 and 4K120 video formats
HDR10, HDR10+, HLG & Dolby Vision support
VRR, ALLM, DSC, FreeSync & G-Sync support
Per-output 8K to 4K / 1080p downscaling
Per-output HDR to SDR conversion
Advanced EDID management
Advanced HDCP management
Built-in Test Pattern Generator
Video Keep Alive (VKA)
Analog and digital audio de-embedding
Balanced analogue audio output with gain control
RS232, IR remote & front panel control
Auto-switching
HPD management
Supports Active Optical HDMI cables (AOC)
