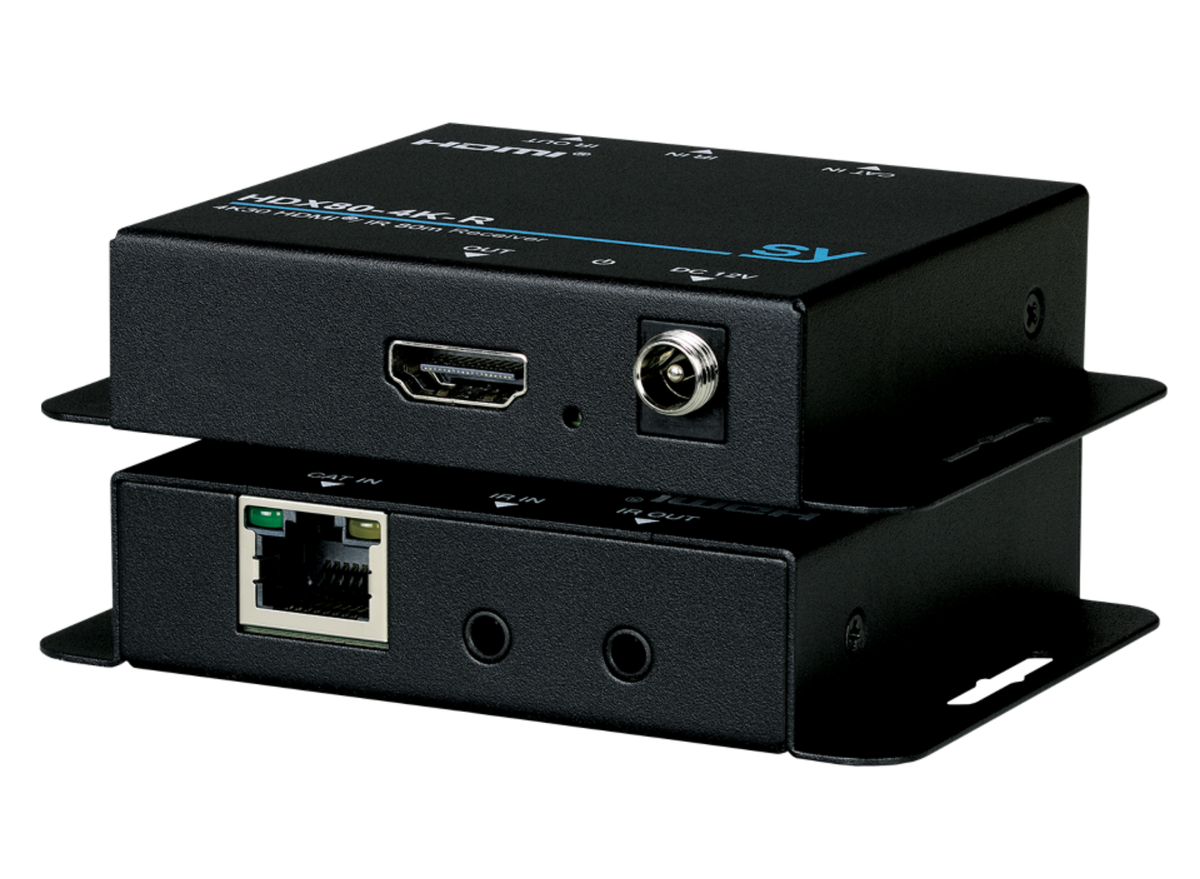

SY-HDX80-4K – Essential Extender
In line with the core objectives of the Essential range, this HDMI Extender delivers all 4K HDMI transmission formats over distances of up to 80 meters via CAT6 cabling. Featuring a streamlined design focused on high-quality HDMI extension, the HDX80 offers a cost-effective and easy-to-install solution.
HDX technology
HDX is a cutting-edge, low-power, high-performance transmission technology designed to deliver HDMI signals at higher bandwidths over significantly longer distances. Its low power consumption results in reduced core temperatures, aiding device longevity and ensuring consistent, reliable performance, making it a true "fit and forget" solution.
With support for uncompressed 4K30 4:4:4 HDMI signals at distances of up to 80 meters, HDX achieves performance levels typically reserved for much more expensive systems that rely on alternative technologies.
Pro-level features such as:
HDMI Loop Through port – Built-in splitter to feed an extra local HDMI input.
Screw locking power connection. No power interruptions.
PoC – Power from either the TX or RX end.
Inputs and Outputs
HDMI – A single HDMI input along with an HDMI Loop output on the transmitter, and a single HDMI output port on the Receiver.

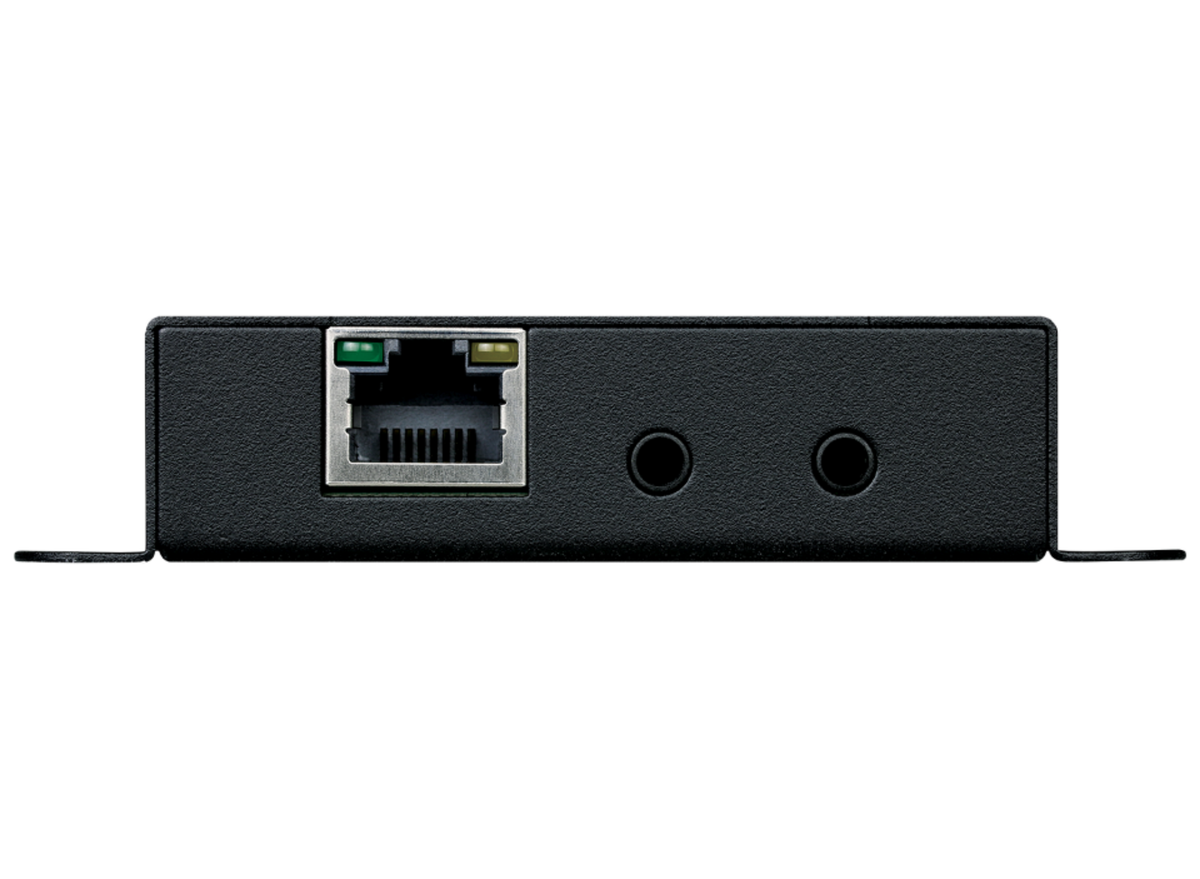

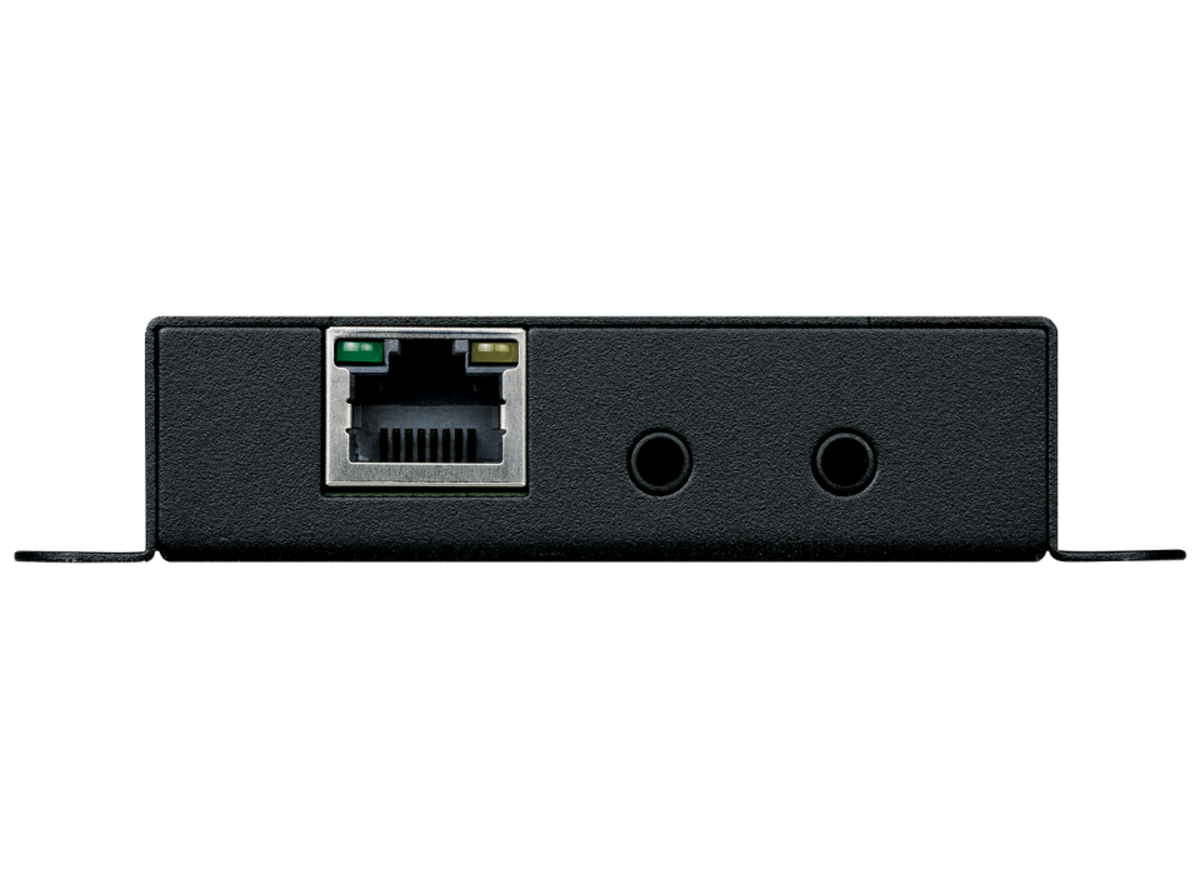

Infra-Red control ports – The IR Pass Through ports, allow control of source or display devices to and from either end over the CAT cable.
HDCP – HDCP version 1.4
The ideal choice for situations where simple but reliable HDMI extension is needed. For use in Home Cinema, Home Office, Commercial offices, Training Rooms, Lecture Theatres, Education, etc.
Features
HDMI 1.4, 4K30 4:4:4 (10.2Gbps) or 4K60 4:2:0 at up to 80m

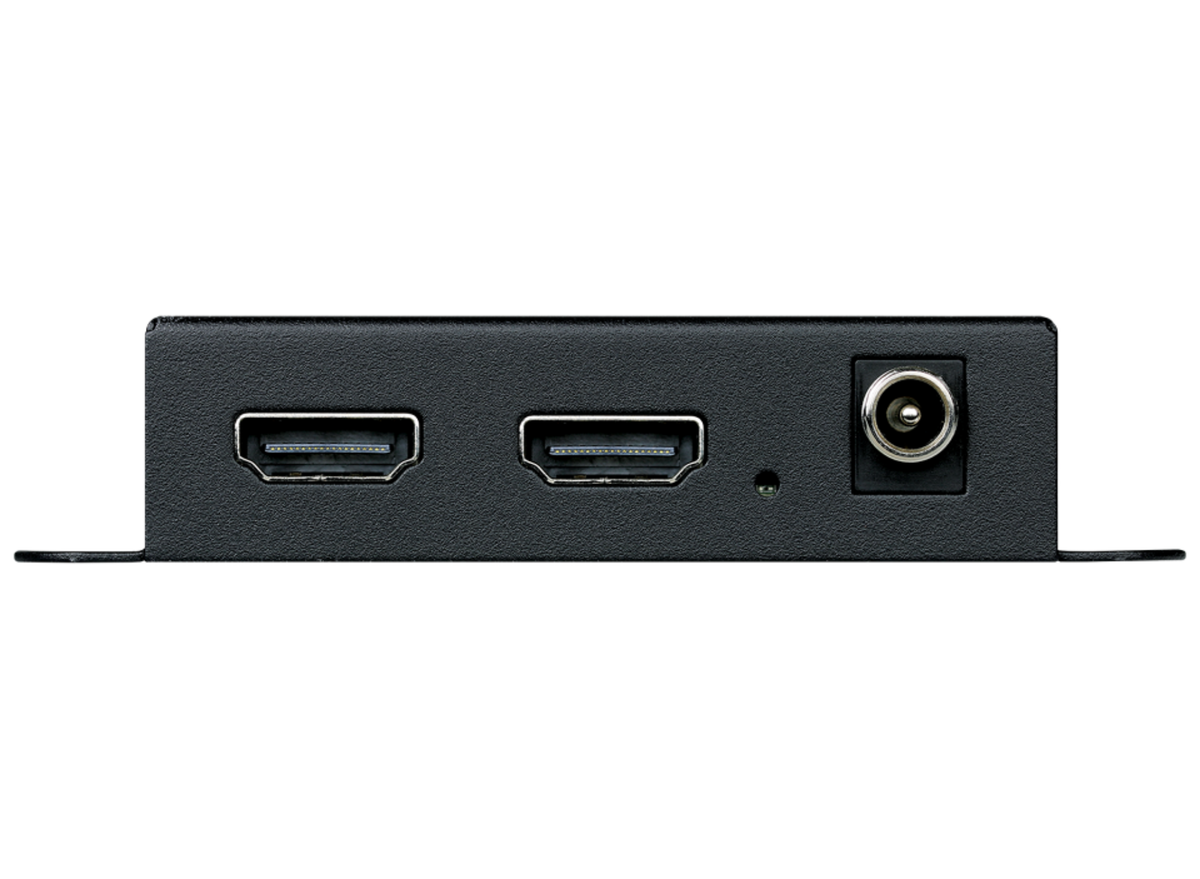

1x HDMI inputs, and 1x HDMI Loop output on TX

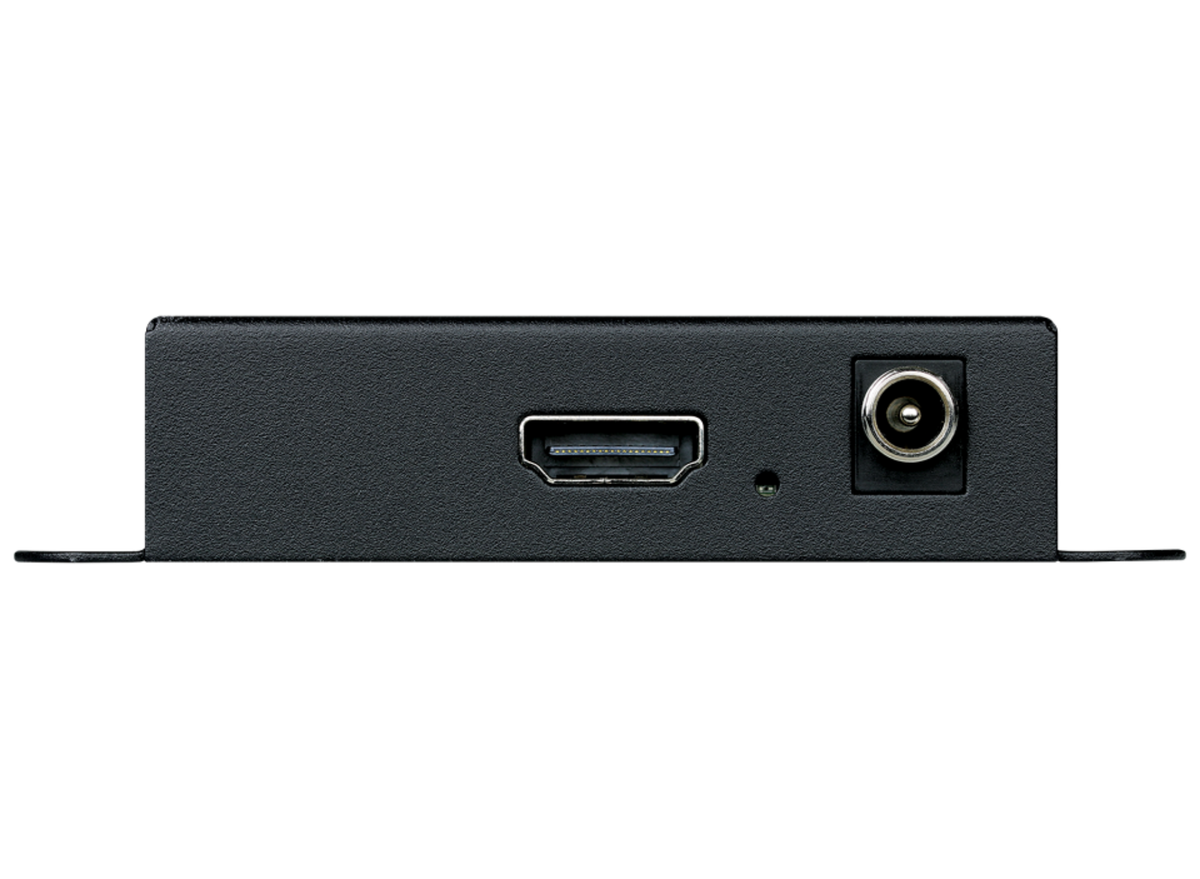

1x HDMI output on RX
IR Pass Through (including IR emitter & IR receiver buds)
Locking Power connection
PoC – Power from just one end (either TX or RX)
Built-in mounting brackets for rapid installation
| Part Number | SY-HDX80-4K | Video Resolutions / Formats | Up to 4K including 4096x2160P 30Hz 4:4:4, 3840x2160P 30Hz 4:4:4, 1920x1080P 60Hz, 1920x1200P 60Hz |
| Supports | HDCP, CEC, 3D PCM 2.0, LPCM 5.1, 7.1 Channel audio | HDMI Version | 1.4 |
| HDCP Version | 1.4 | Bandwidth | 10.2Gbps |
| TX Connections | 1x HDMI Type A Input 1x HDMI Type A Loop Output IR In IR Out 12V DC Power | RX Connections | 1x HDMI Type A Output IR In IR Out 12V DC Power |
| Power Supply | 12V 1A DC | Power Consumption | 3.2W Max |
| Net Weight | TX: 162g RX: 159g | Dimensions (WHD) | 74 x 20 x 68mm TX 74 x 20 x 68mm RX 97 x 20 x 68mm TX including mounting brackets 97 x 20 x 68mm RX including mounting brackets |
| Transmitter Unit | 1x SY-HDX80-4K-T – Transmitter unit | Receiver Unit | 1x SY-HDX80-4K-R – Receiver unit |
| IR Emitter | 1x IR emitter (1.5m cable) | IR Receiver | 1x IR wideband receiver (1.5m cable) |
| User Manual | 1x User Manual | Locking Power Supply | 1x 12V/1A international locking power supply |
| Description | Downloads |
|---|---|
| Datasheet | Download |
