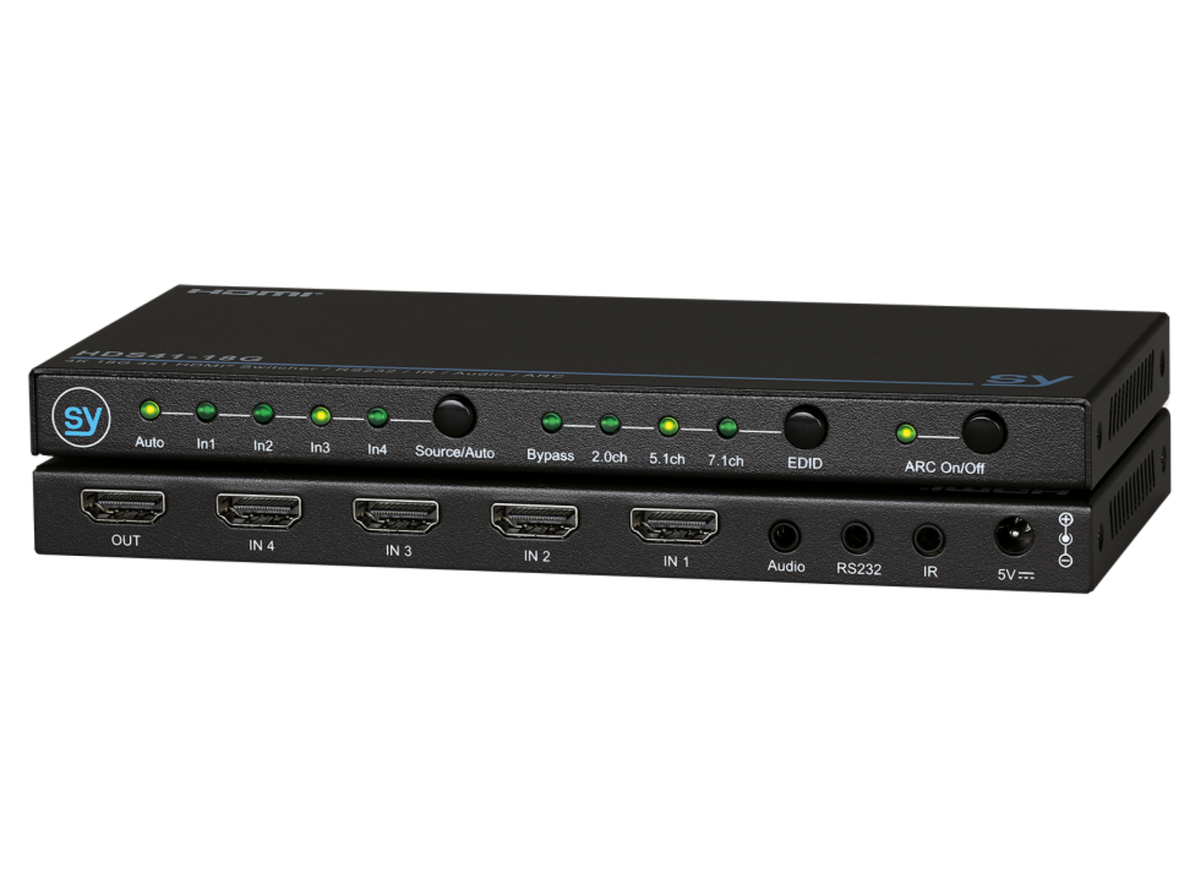

SY-HDS41-18G - 4K 18G HDMI 4x1 Switcher
4x Input HDMI Switcher with De-Embedded Audio, ARC, EDID and HDCP support.
This switcher is useful for switching up to four HDMI sources to a single display device.
HDMI 2.0, HDCP 2.2 and CEC compliant. With support for 3D, Deep Colour and HDR.

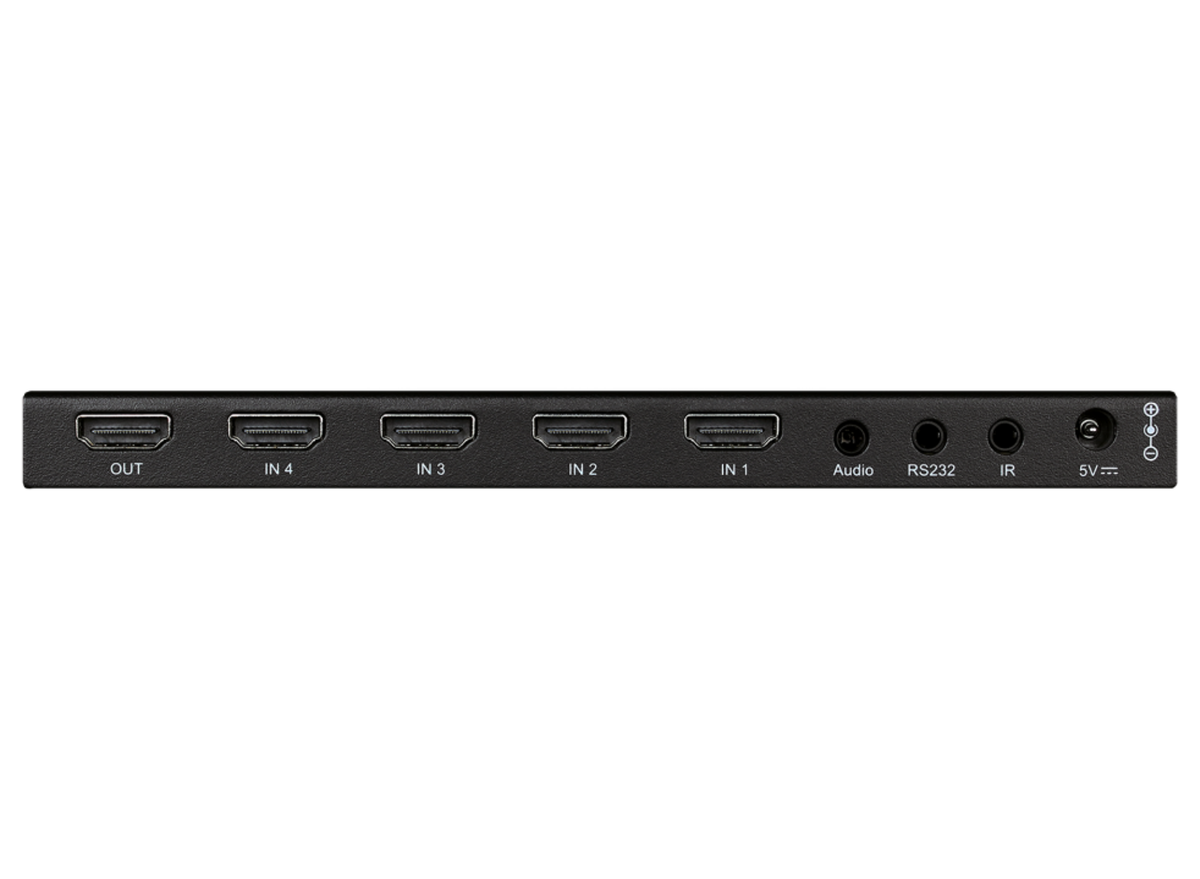

Inputs and Outputs - HDS41-18G has four HDMI 2.0 18G Inputs and a single HDMI 2.0 18G Output.

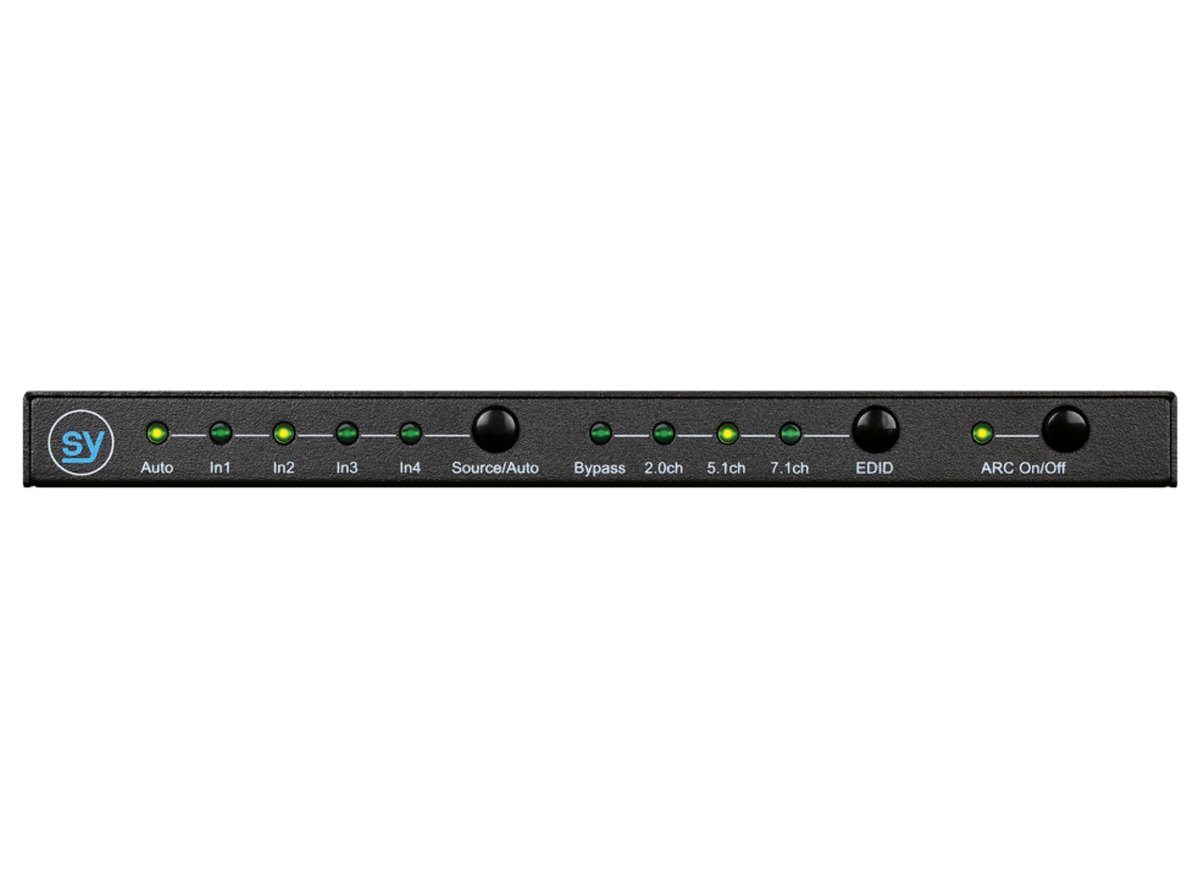

Control - The switcher can be controlled manually from the front panel, from the included IR remote controller, or via the RS232 interface.
Auto & Manual Switching - A high quality video switcher with both manual and auto selection modes. Whilst in Auto Mode, whenever a new HDMI input is detected, it is automatically selected and will switch to that source, by detecting the 5V from the recent HDMI device.
CEC – Pass through of all CEC commands from input to Display.
EDID - Choose between onboard EDID presets, or read the EDID of a connected display. Full EDID management via Serial commands, and quick EDID Audio settings via front panel button or the IR remote.
HDCP – Serial commands let you choose HDCP version 1.4, 2.2 or Cascade mode.
Audio De-embedding – A De-embedded audio signal can be returned back from the Display to the Audio output. Both Analogue Stereo and Digital Toslink audio formats output via the same 3.5mm TRS combo jack.
An ideal choice for situations where multiple HDMI inputs need to be routed to a single display with the added ability to receive back the audio from the display to an AVR, a soundbar or other Audio playback system. For use with Home Cinema, Home Office, Training Rooms, Work Office, Education etc.
Features
• HDMI 2.0, 4K60 4:4:4 (18Gbps) switcher
• 4x HDMI inputs, and 1x HDMI output
• De-embedded L/R audio – Analogue & Digital Out
• Auto/Manual selection options
• Extensive EDID management
• Control: Front panel, IR, RS232
| Part Number | SY-HDS41-18G | HDMI Version | 2.0 |
| Video Resolutions / Formats | Up to 4K 60Hz 4:4:4 | Supports | 3D, HDCP and CEC |
| HDCP | Versions 1.4, V2.2 & Cascade mode | Bandwidth | 18Gbps |
| Video Inputs | 4x HDMI Type A | Video Output | 1x HDMI Type A |
| HDMI Audio Out | L-PCM 2.0, 5.1 & 7.1, Dolby 5.1, DTS 5.1, Dolby True-HD, DTS-HD audio | Audio De-Embedding | Via 3.5mm TRS combo jack L+R Analogue 0.775Vrms line level output Digital Toslink L-PCM 2.0, Dolby 5.1 and DTS 5.1 (ARC) Audio Return Channel to audio output |
| RS232 Control | RS232 | Push Button Control | Push Button |
| Auto Switch | Auto Switch | IR Control | IR Infra Red Remote control included (uses a CR2032 3V button cell battery) |
| Power Supply | 5V DC | Power Consumption | 5W Max |
| Net Weight | 0.365g | Dimensions (WHD) | 180 x 15 x 84mm |
| Main Unit | 1x SY-HDS41-18G | User Manual | 1x User Manual |
| Power Supply Unit | 1x 5V/1A PSU | RS232 Cable | 1x RS232 cable – DB-9 to 3.5mm jack |
| IR Remote Controller | 1x IR Remote Controller | IR Eye | 1x IR Eye – needed for IR control |
| TosLink Adapter | 1x 3.5mm Jack to TosLink adapter | Mounting Ears | 2x Mounting ears |
| Description | Downloads |
|---|---|
| Datasheet | Download |
