MFS51-18G is a powerful & flexible scaling 4K presentation switcher accepting Input resolutions up to 4K60 4:4:4 (HDMI 2.0 18G) and output at any resolutions up to 4K30 4:4:4.
Fast Switching Inputs - It offers fast switching between the 3 HDMI inputs,1 DisplayPort input,1 VGA input.
Auto / Manual Switching – This unit has three Auto Switching modes that can be set using either RS232 commands or from the Web GUI interface.
The three modes are as follows: Last Connected Mode, First Connect Mode, Priority Mode.
Mirrored Outputs – The HDMI and HDBaseT outputs both show the same source.
Scaling – A built in Scaler lets you scale up or down the video signals and will output to both the HDMI and HDBaseT outputs at 4K30 4:4:4. (The HDBaseT outputs will transmit 4K30 4:4:4 to 40m and 1080p to 70m – using a Slim70 Edge RX).
Output Aspect Ratio - Set the output to a choice of three screen ratios: 4:3, 16:9 or 16:10.
EDID Management – Select between pre-defined EDIDs or read from either output.
HDCP Mode control – Select between HDCP 1.4 or bypass mode.
Embed and De-embed Audio - This 18G HDMI 2.0 5x1 Presentation Switcher unit offers a stereo de-embedded audio output, and embedding of any external audio source onto any selected input.
Microphone Input - The dedicated Microphone Input channel also has switchable 48v phantom power, or it could be used as another Line level input by the setting the 3 position Switch.
Auto Ducking - Something else that is not often seen in other High End Presentation Switchers, but is present here on this unit, is a user selectable Auto Ducking function. In other words it contains a built-in Side Chain Compressor effect. What does this do? With auto Ducking enabled, when someone speaks into the Microphone, then it will lower (or Duck) the Level of the Programme Audio from your other inputs.
Audio System Control - The MFS51-18G has a versatile and fully controllable audio routing and MIC mixing system with ‘Fade In/Out’ options for the background audio inputs. A software Audio /
Microphone Mixer is built-in. Physical buttons for Audio and Mic volume are situated on the front panel.

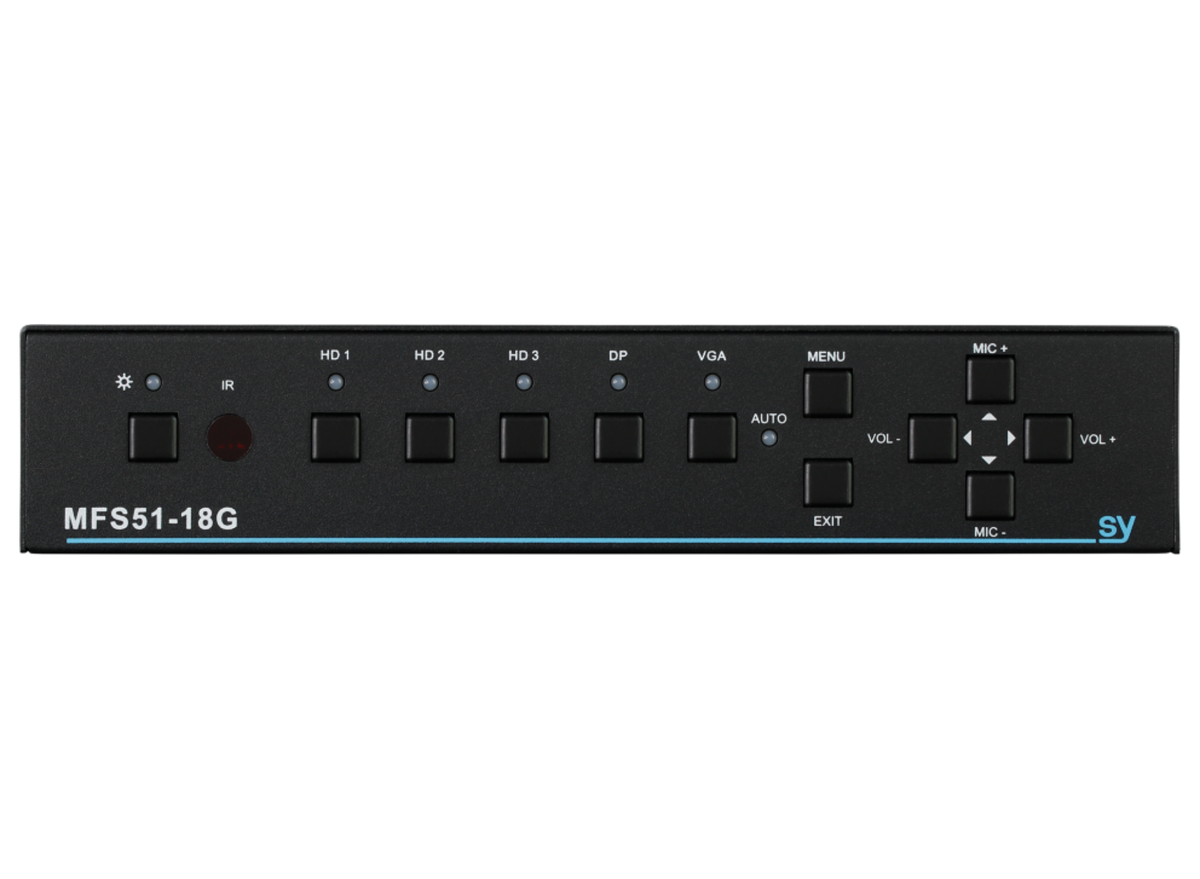

Control options - Controllable from front panel buttons, RS232, IR, Web GUI or via an external push button control.
OSD Menu – A Built-In On Screen Display Menu aids easy set-up.
Test Pattern Generator - The built-in menu also provides access to a single colour test pattern mode for White, Red, Green, Blue and Black. The test pattern can be used to confirm that a video signal can be seen on the HDMI and HDBaseT outputs.

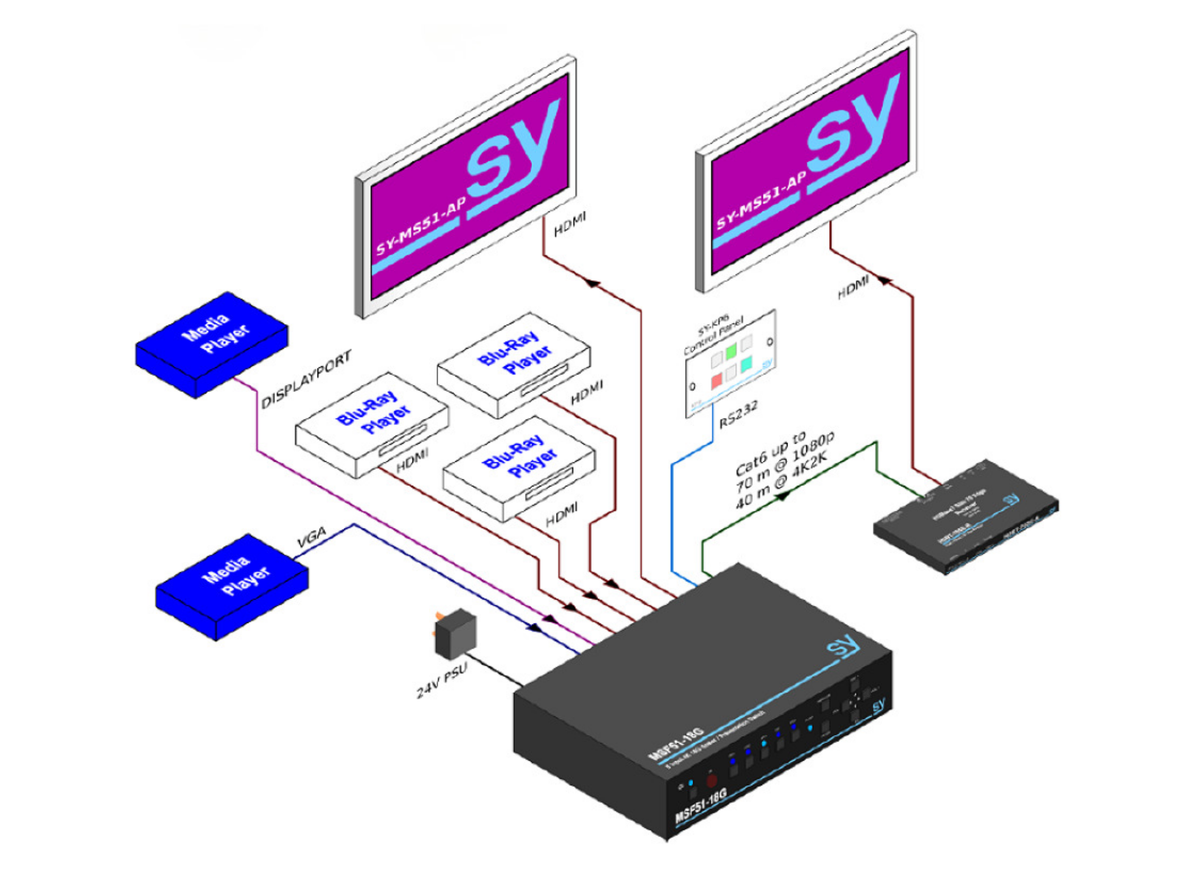

It is suitable for a wide number of applications including classrooms, lecture halls and conference rooms.

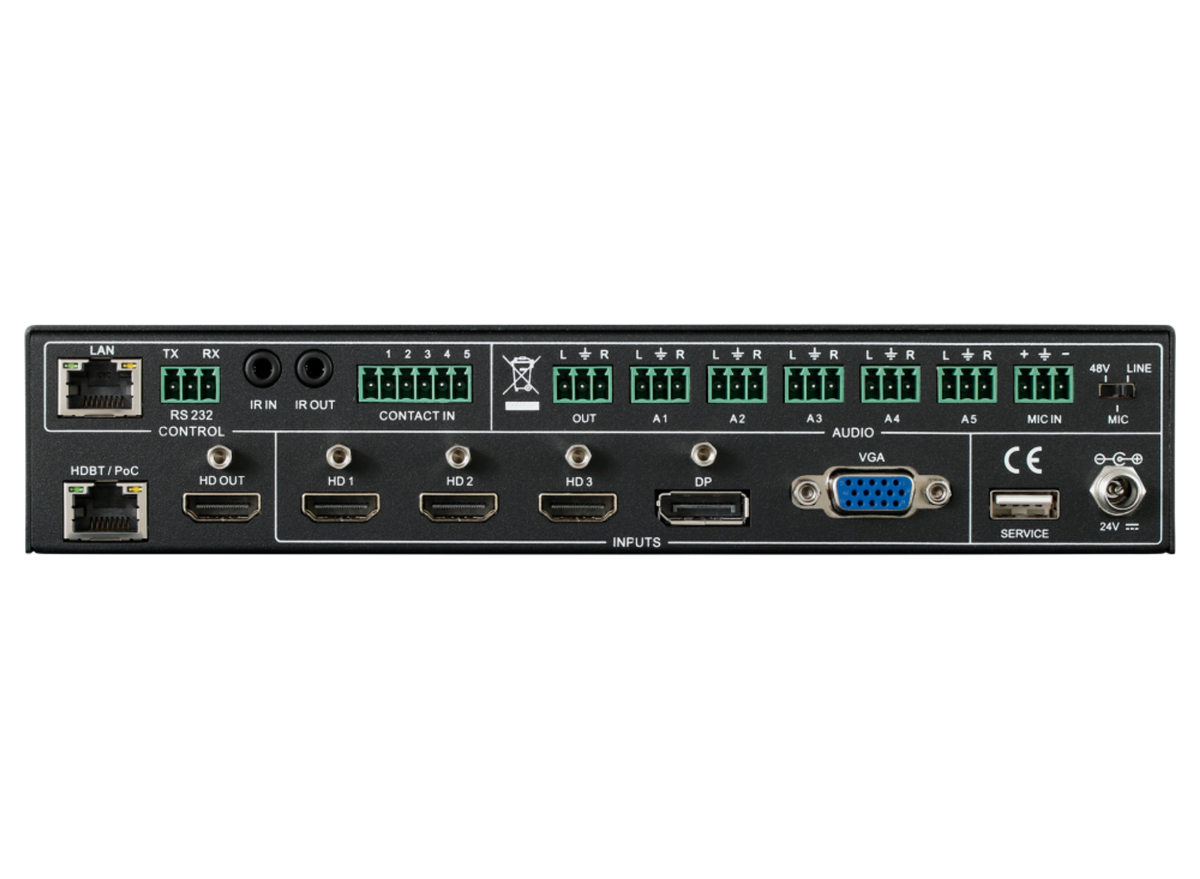

3x HDMI, 1x DisplayPort, 1x VGA inputs
Supports up to HDMI 2.0b 18G inputs
Compliant up to HDCP 2.2
Input HDMI & DisplayPort resolutions up to 4K60 4:4:4
Fast switching HDMI output
Input VGA resolution up to 1920x1200 @60Hz
VGA input supports RBBHV, YPbPr and CVBS
Full up/down scaler to 4K30
HDBaseT output transmits up to 70m @ 1080p or 40m @ 4K30 4:4:4
Mirrored HDMI/HDBaseT
Automatic and Manual switching modes
Easy EDID Management
Extensive audio management
Controllable from front panel, contact closure, RS232, IR, Web GUI or external push button panel
| Part Number | SY-MFS51-18G | VGA Input | All PC resolutions to 1920x1200 @60Hz |
| HDMI & DisplayPort Inputs | All VESA resolutions to 3840x2160p @60Hz 4:4:4. All PC resolutions to 1920x1200 @60Hz | HDMI / HDBT Output | Full scaler range up to 4K2K 25/30 (4:4:4) |
| Example Input Resolutions | 4096x2060p 24/25/30/50/60; 3840x2160p 24/25/30/50/60Hz; 2560x1440 50/60Hz; 2048x1152 50/60Hz; 1920x1080p 24/25/30/50/60Hz; 1920x1080i 50/60Hz; 1280x720p 50/60Hz; 1920x1200 60/75Hz; 1360x768 60/75Hz; 1680x1050 60/75Hz; 1600x1200 60/75Hz; 1280x1024 60/75Hz | Scaler Output Resolutions | 4K2K 25/30 (4:4:4); 1080p 50/60; 720p 50/60; 1920x1200 60; 1680x1050 60; 1400x1050 60; 1360x768 60; 1280x800 60; 1024x768 60 |
| HDCP Input | Compatible with all versions up to 2.2 | HDCP Output | 1.4, 2.2, Cascade Mode |
| HDMI Inputs | 3x HDMI 2.0b | VGA Input Connector | 1x VGA |
| DisplayPort Input | 1x DisplayPort 1.2a | Microphone Input | 1x Microphone input via Phoenix connector |
| Phantom Power | Included | Mic Ducking | Supported |
| Line Inputs | 5x Analogue Stereo L+R via Phoenix connectors | Line Input Range | 20Hz – 20kHz, 1.5Vrms max. |
| Embedded Audio Format | LPCM 2 channel | Mirrored Outputs | 2x Mirrored Outputs |
| HDMI Video Output | 1x HDMI 2.0 Fast switching HDMI output | HDBaseT Video Output | 1x HDBaseT output – Transmits up to 70m @ 1080p or 40m @ 4K/30 4:4:4 |
| HDMI Output Format | HDMI 1.4, 10.2 Gbps, 4K 30Hz 4:4:4 | HDBaseT Output Format | 10.2 Gbps Bandwidth, 4K 30Hz 4:4:4 |
| Audio Output | 1x Analogue pre out L+R | Scaler | Full up/down scaler to 4K30 |
| Test Signal Generator | White, Red, Green, Blue and Black Colours | Control Methods | Front panel Buttons, RS232, IR, Web GUI, Contact Closure |
| Built-in IR Sensor | 1x Built-in IR sensor | RS232 Connector | 3-pin pluggable terminal block for RS232 |
| HDBaseT with PoC | 1x HDBaseT output with PoC | Power Supply | 24V, 1.25A |
| Power Consumption | 9W (unit only) | Operating Temperature | -10 to +40°C (+14 to +104°F) |
| Operating Humidity | 10 to 90% RH (non-condensing) | Weight | 1.25kg |
| Dimensions (WHD) | 220 x 150 x 44mm | Case Material | Aluminium chassis |
| Main Unit | 1x MFS51-18G | Terminal Block | 1x 6 way Pluggable terminal block (Phoenix) |
| Phoenix Connectors | 8x 3-way Phoenix connectors | RS232 Cable | 1x RS232 cable |
| RGB to VGA Cable | 1x RGB to VGA cable | IR Receiver | 1x IR receiver |
| IR Emitters | 2x IR emitter | Mounting Brackets | 1x set mounting brackets |
| IR Handset | 1x IR Handset | External Power Supply | 1x 24V 1.25A external power supply |
| User Manual | 1x User’s manual |
| Description | Downloads |
|---|---|
| Datasheet | Download |
