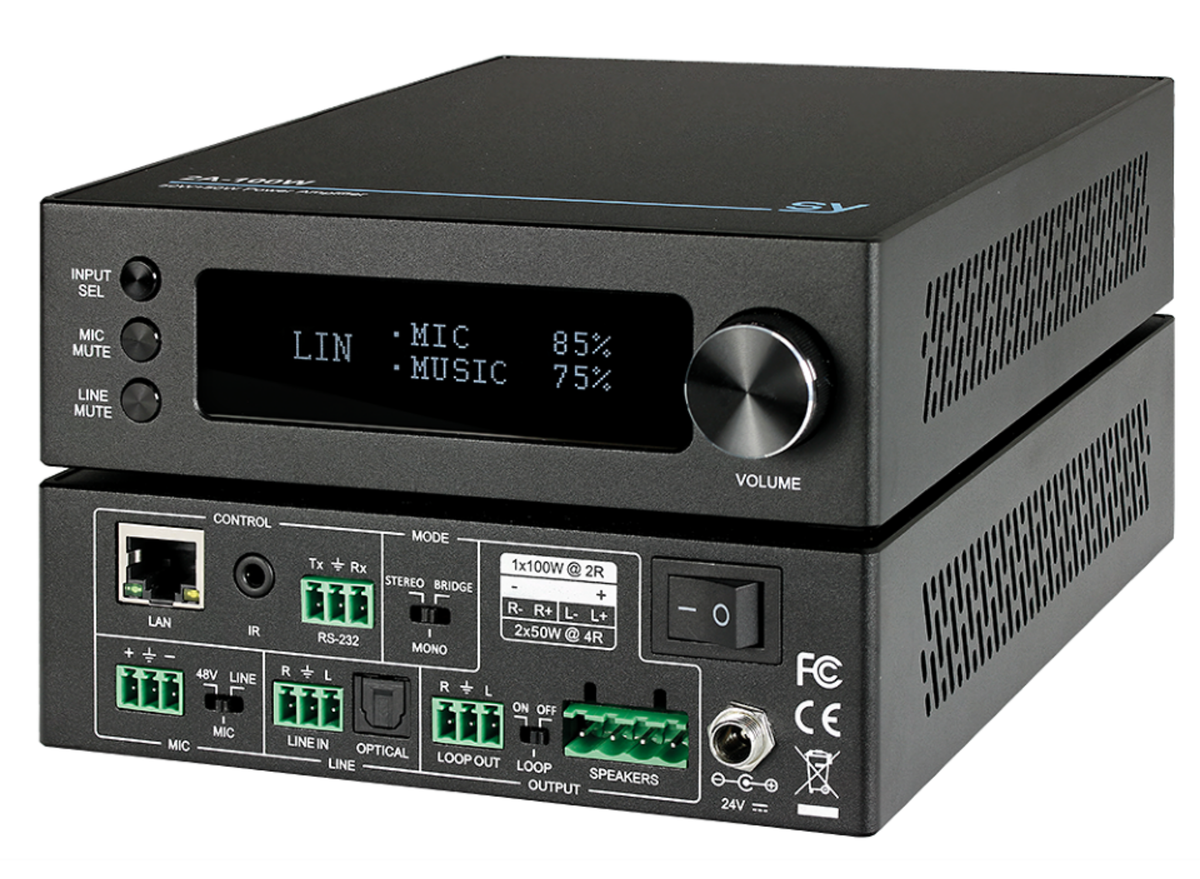

SY-2A-100W is a 50W per channel Stereo Audio Amplifier, with 2 Audio inputs + Microphone/Line input.
Class D - A powerful yet compact Class-D digital Amplifier.
OLED Front Panel Display - It's good looks will grace any AV equipment shelf, providing visual feedback via its OLED display.
Stereo Amplifier -
Analogue Input - This Stereo Amplifier accepts L+R analogue inputs via phoenix screw terminals
Digital Input - And a digital audio input via a Toslink connector
Mic/Line Level Input - And then a further input which can be switched between Line level or Microphone level with switchable 48V phantom power.
Auto Ducking - The Microphone input has an Auto Ducking feature for professional talk over effect.
Summed Mono - All inputs can be summed internally to provide a Mono output
High Power - With a rated output of 50W per channel @4ꭥ, or 100W in bridge mono mode, to feed a Mono 2ꭥ speaker load.
Balance Audio Output - Also present is a balanced Line level loop output for cascading to further amplifiers.
Control - The 2A-100W is controllable by RS232, IR or LAN, with Volume Up, Down, Balance and Mute along with Absolute Volume commands for exact and accurate system control. All control buttons are on the front panel which includes an LCD display and a large rotary volume knob.
This is an ideal product for both table top and rack shelf installation or fitting into credenzas and AV cupboards as found in many boardroom and classroom equipment installation scenarios.
This high performance power amp is extremely well built and suitable for multimedia applications, residential as well as meeting rooms.
Features
Two analogue L+R inputs plus a balanced MIC/Line input.
Line level output.
2x 50Watts output powering 4ꭥ speakers
1x 100Watts output powering 2ꭥ speaker
RS232 controllable
Absolute Volume commands
Balance and Mute commands
MIC Ducking
48V Phantom Power
24V DC power supply
| Part Number: | SY-2A-100W | General: | Audio Amplifier |
| Inputs | |||
| Line Input Sensitivity: | 800mV rms | Mic/Line Sensitivity: | Line: 800mV rms; Mic: 15mV rms |
| Line Frequency Response (-3dB): | 15Hz – 20kHz | Mic/Line Frequency Response (-3dB): | Line: 50Hz – 16kHz; Mic: 100Hz – 20kHz |
| Outputs | |||
| Amplifier Performance | |||
| Amplifier Design: | Efficient Cool Running Class-D | Amplifier Power Rating: | 2x 50W @ 4Ω in Stereo or Mono modes; 1x 100W @ 2Ω in Bridge mode |
| THD+N: | <0.03% (1kHz into 4Ω 5W); <3.0% (1kHz into 4Ω 50W); <3.0% (1kHz into 2Ω 100W) | Loop Out: | 800mV rms max. / 15Hz – 20kHz |
| Permissible Speaker Impedance Load: | 8Ω to 2Ω speaker compatible depending on selected mode | Configurations: | Mono / Stereo / Bridge modes |
| Connections | |||
| MIC/LINE Input: | 1x MIC/LINE via 3-way screw terminal connector | LINE Input: | 1x LINE via 3-way screw terminal connector |
| Optical Input: | 1x OPTICAL via TosLink S/PDIF | Loop Output: | 1x LOOP via 3-way screw terminal connector |
| Speaker Output: | 1x SPEAKER via 4-way screw terminal connector | ||
| Control | |||
| Front Panel Buttons: | Input, Mic Mute, Line Mute | Rotary Knob: | Volume |
| LAN Control: | 1x LAN via RJ45 | IR Control: | 1x IR via 3.5 mm jack |
| RS-232 Control: | 1x RS-232 via 3-way screw terminal connector | ||
| Power | |||
| Power Supply: | 24V @ 3.75A | Power Consumption: | 85W |
| Environmental | |||
| Operating Temperature: | 0 ~ 40 °C | Storage Temperature: | -20 ~ 60 °C |
| Relative Humidity: | 20 ~ 90% RH (non-condensing) | ||
| Physical | |||
| Housing: | Aluminium | Colour: | Black |
| Dimensions: | 193 x 145 x 44 mm (WxDxH) | Weight: | 746g |
| What's in the Box | |||
| Audio Amplifier: | 1x 2A-100W Audio Amplifier | Line Connector: | 1x 3 pin screw terminal line connector |
| MIC/Line Connector: | 1x 3 pin screw terminal MIC/line connector | Loop Out Connector: | 1x 3 pin screw terminal loop out connector |
| Serial Connector: | 1x 3 pin screw terminal serial connector | Speaker Connector: | 1x 4 pin screw terminal speaker connector |
| Power Supply: | 1x 24V Power Supply | User Manual: | 1x User manual |
| Description | Downloads |
|---|---|
| User Manual | Download |
