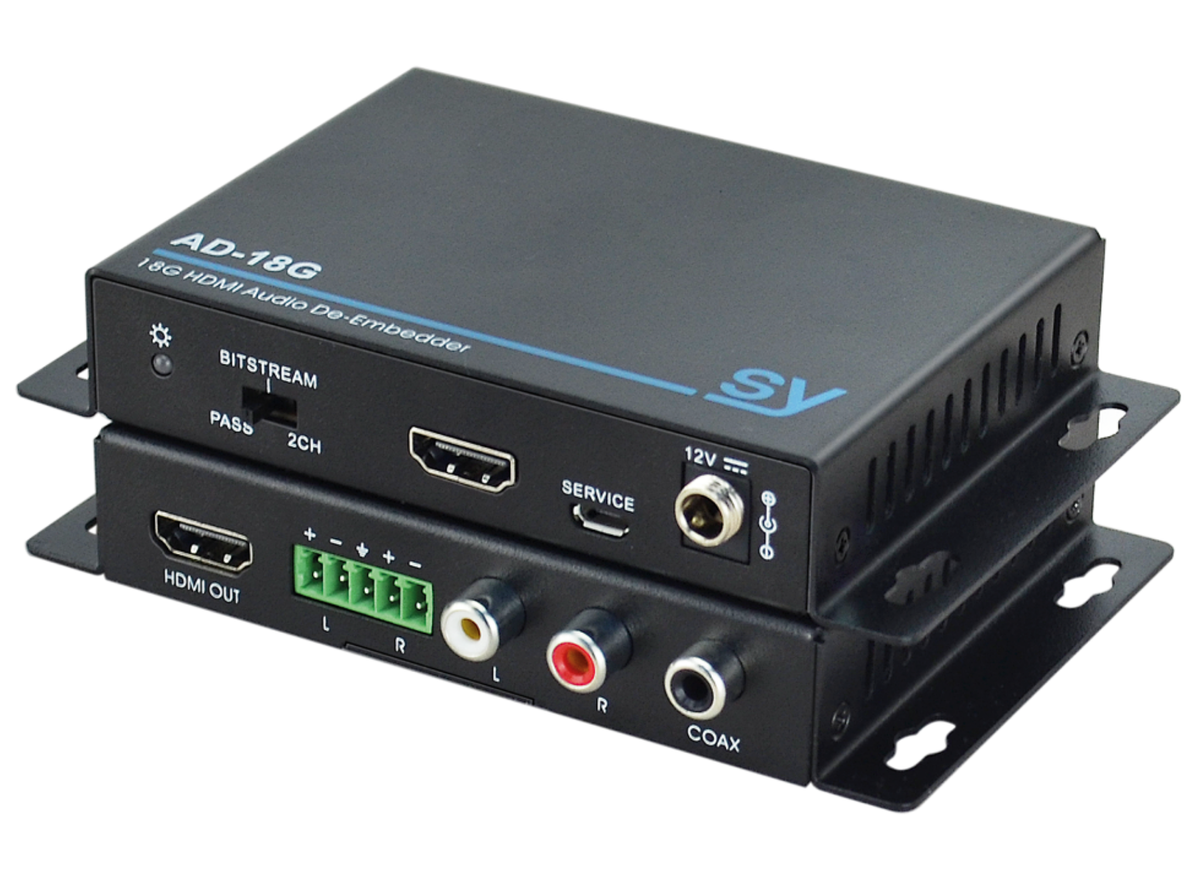

AD-18G HDMI Audio de-embedder, compatible with HDMI 2.0, 4K60 4:4:4 (18Gbps), HDR, EDID and CEC pass-through.
Audio Extraction - With AD-18G you could divert the Audio signal out to the AVR for Surround Sound processing, while transmitting the Video signal further up the chain and onto the Home Cinema Projector.
Audio Splitter - In 2Ch mode, it de-embeds the audio simultaneously to all 3 audio outputs (Analogue Balanced stereo, unbalanced L+R, & Digital Coaxial S/PDIF). In Bitstream mode, the audio is de-embedded only to the Coax S/PDIF.
HDCP - Although it accepts HDCP 1.4/2.2 on the input, it always outputs HDCP 1.4, to ensure that even legacy equipment can receive a valid signal.
Audio De-embedding – It will output an audio signal even when no HDMI output is connected. Great for routing audio only.

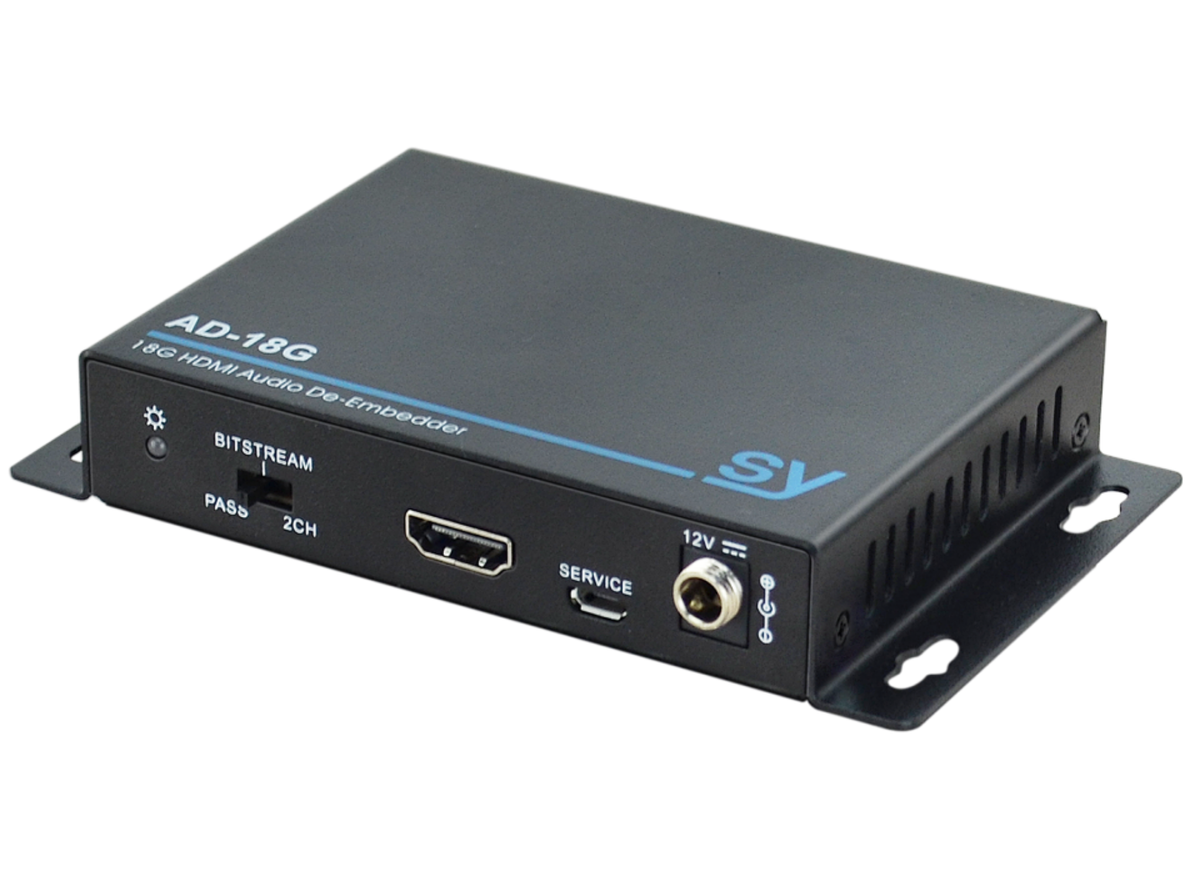

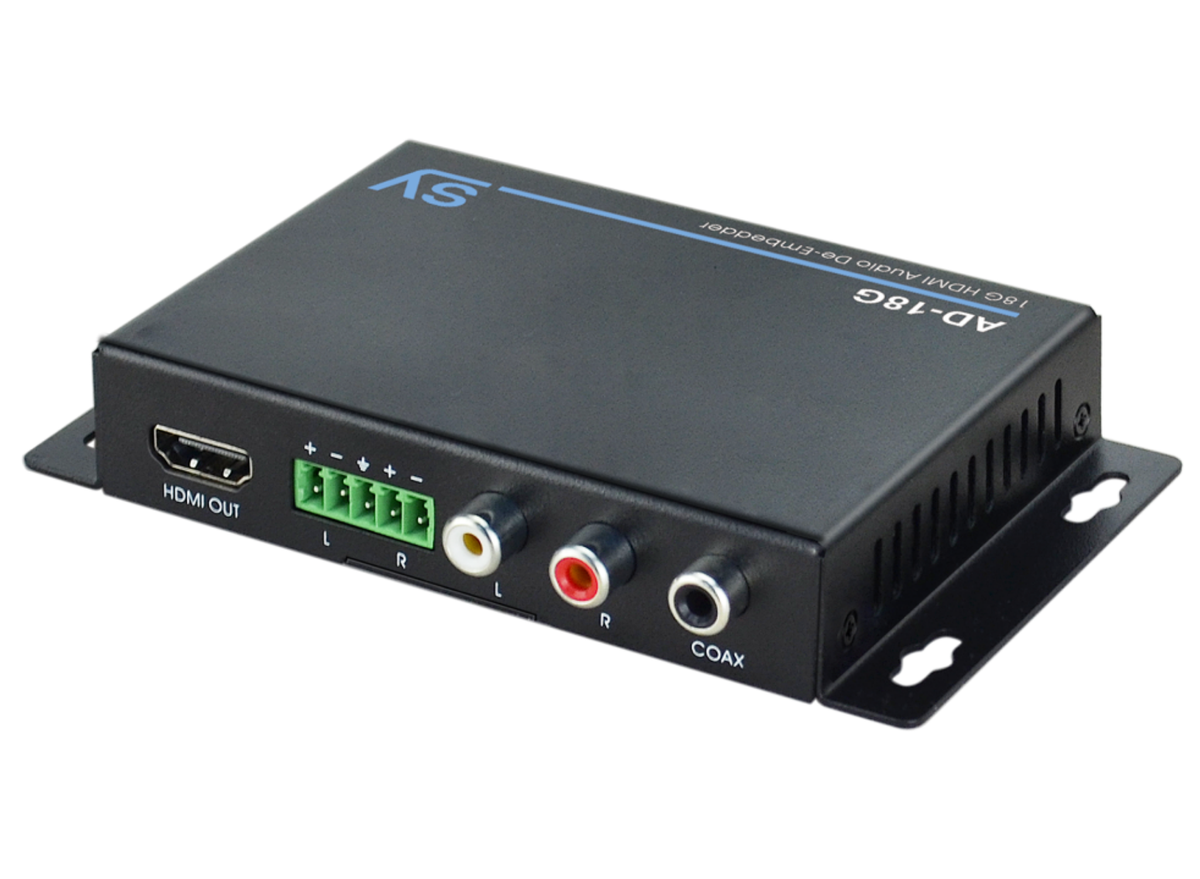

Easy install - To ease installation, all inputs are on one side, with all outputs on the opposite side. Mounting brackets are part of the design, to enable fitting to rack shelves, TV brackets, AV credenzas and furniture. The unit is suitable for mounting behind other equipment, thanks to its compact design and form factor.
The ability to pass 4K signals is imperative in today's world of Hi-Def cinema, therefore, the AD-18G is good choice for connecting up a UHD Blu-ray source via an AVR to a Laser Projector.
Features
HDMI 2.0, 4K60 4:4:4 (18G)
Supports HDCP 2.2
Supports HDR
Supports CEC
HDMI HBR (high Bit Rate) supported in PASS mode
LPCM 2.1, Dolby 2/5.1 and DTS 2/5.1
Balanced stereo analogue and Coax S/PDIF audio outputs
Audio De-embed, even when no display connected
Supported Audio input modes: Pass-through, Bitstream, PCM
| HDMI Video Formats / Resolutions | |||
| Video Standards: | VESA and SMPTE 480p to 2160p with 3D | Maximum HDMI Resolution: | 3840x2160p @60Hz 4:4:4 (18 Gbit/s) |
| Supported Resolutions: | 480p@60Hz, 576p@50Hz, 720p@60Hz, 1080p@24Hz, 1080p@50Hz, 1080p@60Hz | Supported 4K Resolutions: | 4K@24Hz, 4K@30Hz, 4K@60Hz 4:4:4 |
| PC Resolutions: | All PC resolutions to 1920x1200@60Hz | ||
| HDMI | |||
| HDMI Version: | HDMI 2.0 – All HDMI versions to 2.0v | HDCP Input: | HDCP Version 1.4 and 2.2 |
| HDMI Input Support: | HDCP 1.4/2.2 supported on HDMI IN – EDID and CEC pass-through | HDMI Output HDCP: | HDCP 1.4 only on HDMI OUT |
| HDMI HBR: | HDMI HBR (High Bit Rate) supported in PASS mode only | ||
| Audio | |||
| Balanced Audio: | Balanced L+R Audio via 5 pin Phoenix screw terminals | Unbalanced Audio: | Unbalanced L+R Audio via RCA Jacks |
| Digital Audio: | Coax S/PDIF | Coax Digital Formats: | PCM 2ch, Dolby Digital 2 or 5.1ch, DTS 2 or 5.1ch |
| Coax Digital S/PDIF Modes: | Pass-Through, Bitstream and PCM | Audio De-Embedding: | Audio de-embedding works even when no display connected |
| Connectors | |||
| HDMI Input: | 1x HDMI | DC Input: | 1x 2.1mm DC connector |
| HDMI Output: | 1x HDMI | Balanced Audio Output: | 1x Balanced L+R Audio 5 pin Phoenix screw terminals |
| RCA Audio Output: | 1x Pair L+R Audio RCA Jacks | Coax Digital Output: | 1x Coax Digital S/PDIF |
| Power | |||
| Power Supply: | 12V DC @ 1A max. | Power Consumption: | 3W max. |
| Physical | |||
| Operating Temperature: | -10 to +55°C (+14 to +131°F) | Operating Humidity: | 10 to 90% RH (non-condensing) |
| Weight: | 245g | Dimensions (WxHxD): | 129 x 21.5 x 77mm |
| Case Material: | Steel chassis | ||
| What's in the Box | |||
| Main Unit: | 1x AD-18G | Wall Brackets: | 1x Affixed wall brackets |
| Power Supply: | 1x 12V PSU | User Manual: | 1x User Manual |
| Description | Downloads |
|---|---|
| User Manual | Download |
