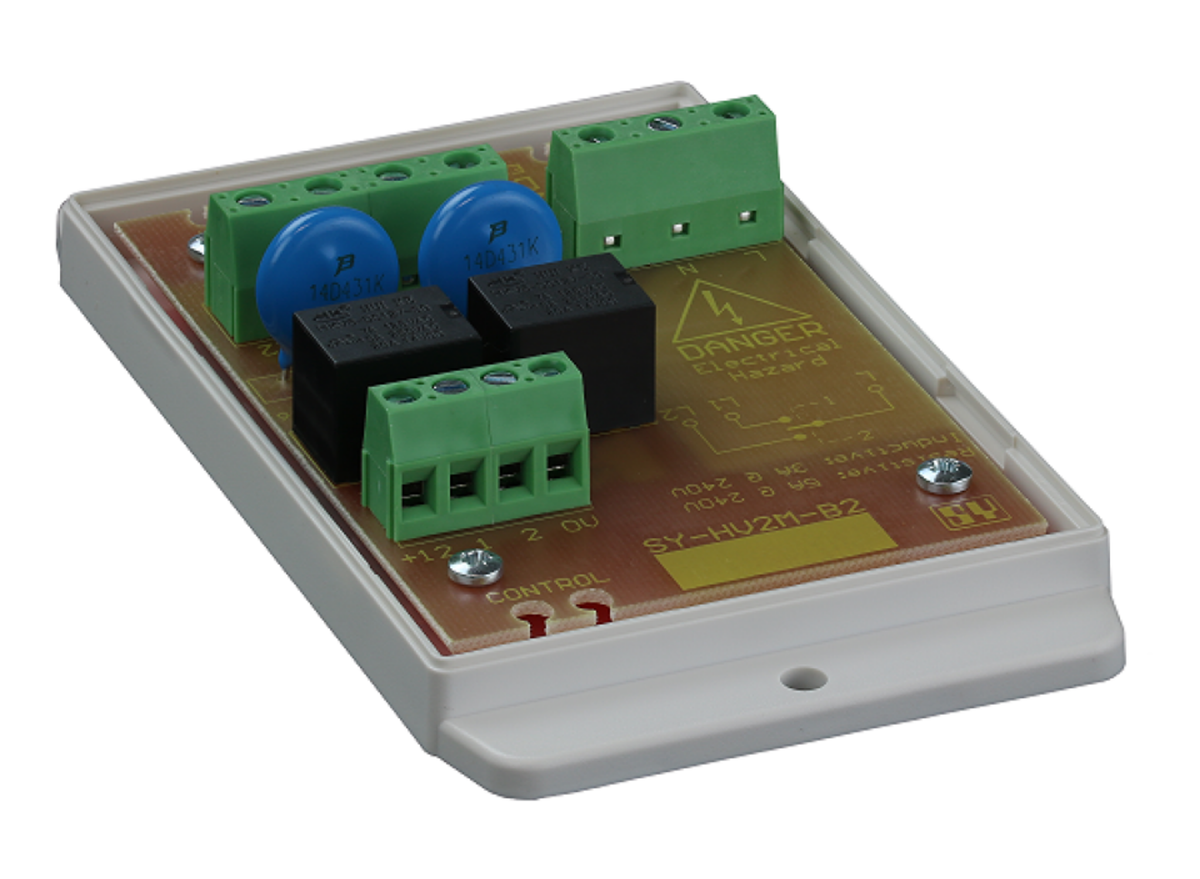

HV2M-B2 The Dual High Voltage Motor Relay is specifically designed for controlling 240V bi-directional AC motors and is suitable for use with electric drop-down projector screens, TV lift mounts, blinds etc.
The built-in failsafe feature prevents both of the relay outputs from being active simultaneously. It interfaces directly with any SY keypad series, and may also be used with any control system that can provide either two controllable logic outputs or two voltage-free normally open contact closure outputs. Comes in an ABS Screw Mountable Box.
2-Way Motor Control – Safe operation for controlling 2-way motors, where it is imperative that either the ‘Up’ or ‘Down’ contact only is energised.
Wide Compatibility with many Control Systems – Relays are controlled directly from the digital outputs of any SY keypad series.
Use with wide range of Controllers – Can be controlled from remote push button contact closure switches or with other brand controllers equipped with active Low Outputs.

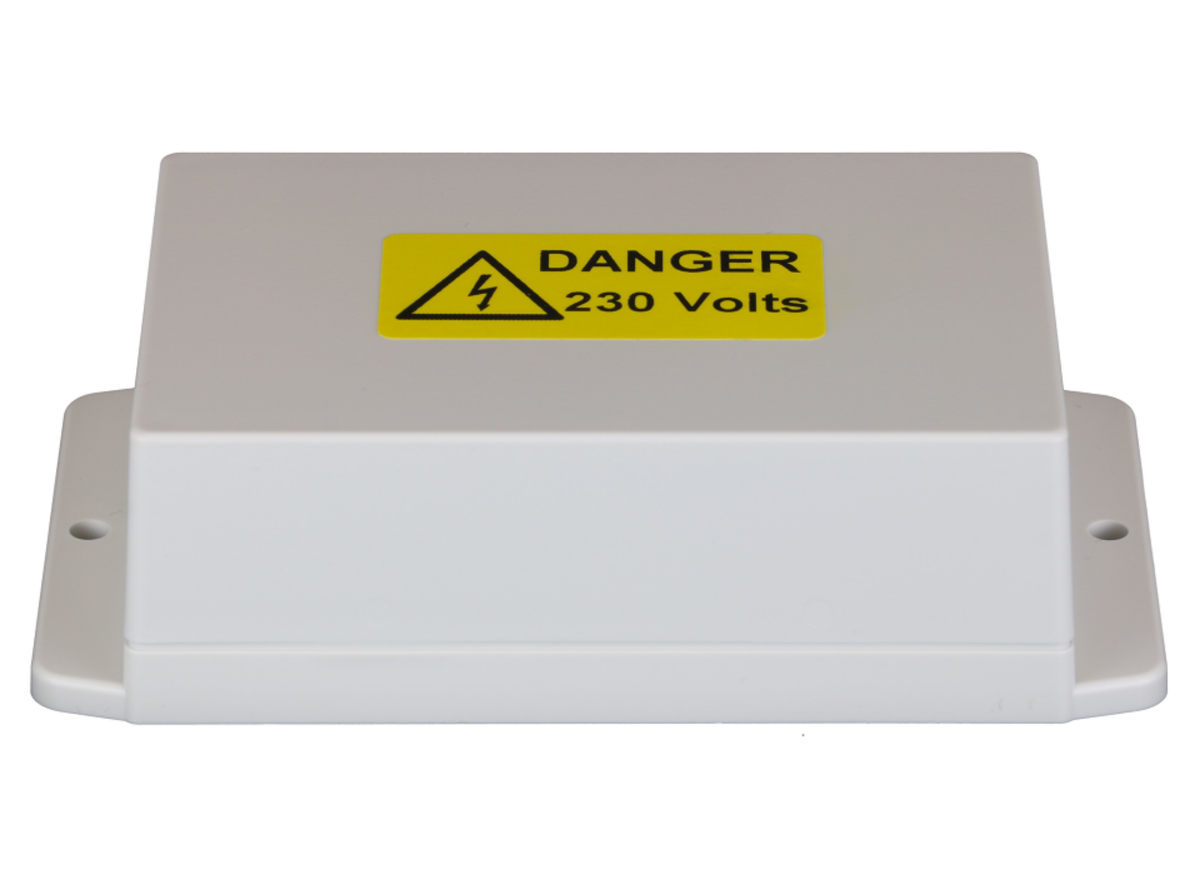

Surface Mount – Comes fitted into an ABS enclosure. (Also available in a DIN Rail mount version as the SY-HV2M-DIN)
Features
Fail-safe feature ensuring only one output will be active when both relays are on
Easy to mount plastic enclosure
Interfaces directly with the SY keypads
Interfaces with control systems having active low logic outputs
Interfaces with control systems having voltage-free contact closure outputs
Both inputs are protected to prevent back-EMF
Both outputs are protected for inductive loads
| Part Number | SY-HV2M-B2 | Relay Configuration | Dual Relay - Only one relay can be energised at any given time |
| Relay Input Voltage | 12V DC | Relay Operating Current | 50mA per relay |
| Mains Input Voltage | 250V AC Max | Resistive Load Rating | 5A @ 240V AC |
| Inductive Load Rating | 3A @ 240V AC | Operating Temperature | 0 ~ 40°C (32 ~ 104°F) |
| Operating Humidity | 10 ~ 90% RH (non-condensing) | Dimensions (L x W x H) | 127 x 72 x 36 |
| Weight | 115g | Enclosure Material | ABS Plastic Enclosure |
| Main Unit | 1x SY-HV2M-B2 | Cable Ties | 3x cable ties |
| Description | Downloads |
|---|---|
| User Manual | Download |
