Is a 6 Input, 2 Output Distribution Amplifier with Dual Output Zones, each provide a local HDMI out and 3 HDBaseT outputs. Inputs: 4 x HDMI, 1 x DisplayPort and 1 x VGA. Outputs: 2x HDMI, 6x HDBaseT over 2x separate zones.
Offering full control via front panel, RS232, Ethernet, and IR with separate RS232 port for the HDBaseT outputs and IR control to or from the remote location via the HDBaseT outputs.
This Distribution Amplifier provides a local HDMI output and 3x HDBaseT mirrored outputs per zone for long distance signal transmission.
Zone 1 has a range of up to 70m @ 1080p and 40m @4K30.
Zone 2 has a range of up to 100m @ 1080p and 70m @4K30.
The input source for these zones can be independently selected from either the front panel buttons using RS232 commands, IR or via the Ethernet port.
Choose from VGA, DisplayPort or HDMI sources with this Multi-Format Hub.
The HDBT-662 has an interface for Input selection, using simple external Push Button switches, via contact closure terminals.
Audio can be de-embedded from the selected input, allowing two separate sends of audio to amplified speakers.
The audio de-embedder output uses Phoenix screw terminal connectors. This unit has Independent outputs and each output is designed to extend the transmission of up to 3x displays at 4K up to 70m.
IPoC (Intelligent Power over Cable) is available only when either an SY-HDBT-SLIM-70R or SY-HDBT-SLIM-100R is detected on the HDBT output.
Full control is offered via RS232, Ethernet, and IR control options with separate RS232 ports for the HDBaseT outputs and bidirectional IR control.

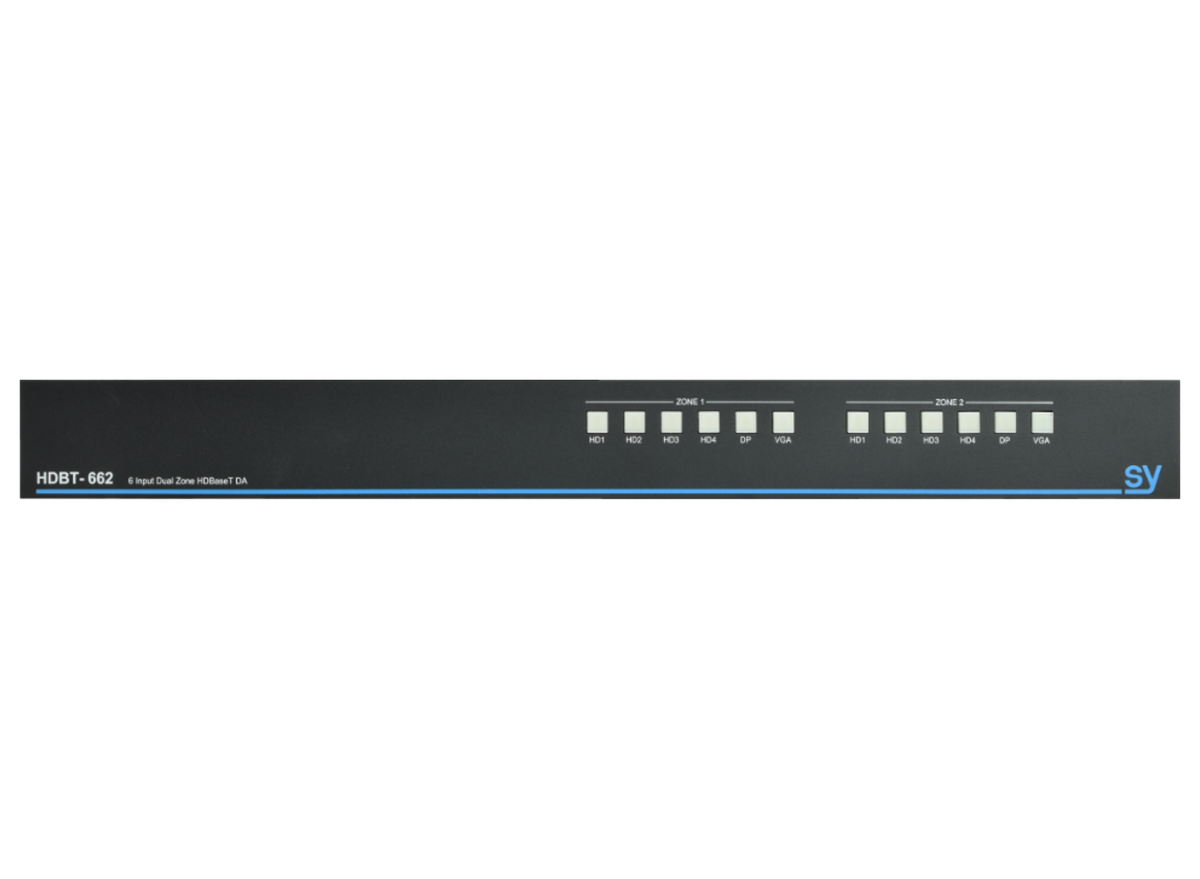

The Front Panel features Illuminated buttons for each input and output combinationAdvanced EDID management ensures accuracy and solves incompatibility issues. EDID control is possible via web GUI.
HDCP support is covered with HDMI input 1 supporting HDCP 2.2.
Ideal for any digital signage/commercial/residential applications.

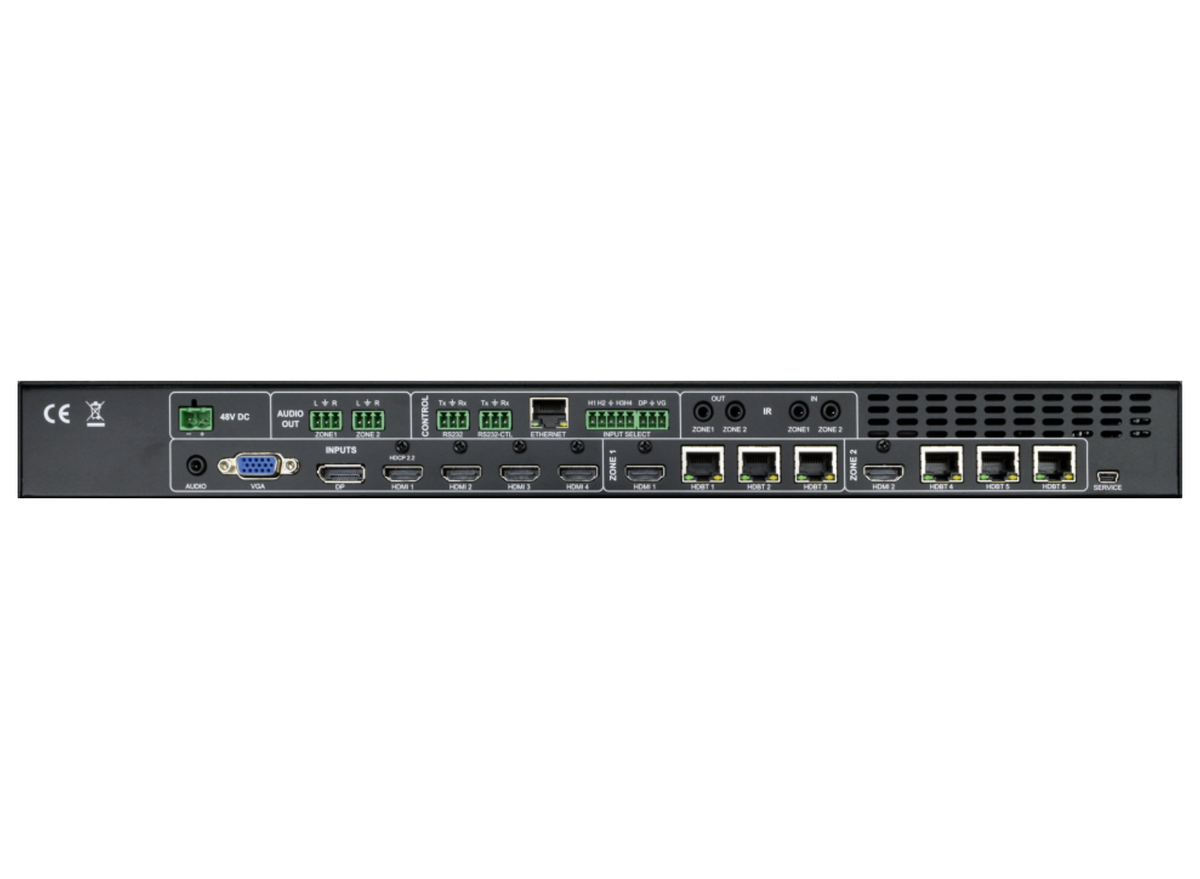

Features
1x Display Port input
1x VGA + Audio input
4x HDMI inputs
6x HDBT outputs (3x HDBT outs per zone)
2x HDMI outputs (1x HDMI out per zone)
2x De-embedded audio outputs (1x per zone)
2x output zones total
Illumunated front panel buttons
IPoC
Contact closure terminals
LAN control
IR Control
RS232
| VGA Input | 1x VGA Input | VGA Audio Input | 1x 3.5mm analogue L+R (Dedicated to VGA) |
| DisplayPort Input | 1x Display Port Input | HDMI Inputs | 4x HDMI Inputs |
| HDMI Outputs | 2x HDMI (1x per Output zone) | HDBaseT Outputs | 6x HDBaseT Outputs (3x per Output zone) |
| Zone 1 Range | 70m @ 1080p, 40m @ 4K30 | Zone 2 Range | 100m @ 1080p, 70m @ 4K30 |
| Analogue Audio Outputs | 2x Analogue L+R via Phoenix connectors (1x per Output zone) | HDBaseT Transmission Range | Up to 70/100m @ 1080p and 40/70m @ 4K30 |
| HDBaseT Power | 48V DC Power | iPoC | Intelligent Power over Cable to receiver |
| HDBaseT HDMI Version | HDMI 1.4 | HDBaseT HDCP | HDCP 1.4 |
| Maximum Resolution | 4K UHD | Data Rate | 10.2 Gbps |
| HDMI Version | 1.4 | HDCP Support | 2.2 (HDMI 1 only), 1.4 (HDMI 2, 3, 4) |
| RS232 Bypass | 1x RS232 Bypass Bi-directional | RS232 Control | 1x RS232 Control Port |
| LAN Control | 1x TCP/IP LAN | IR Inputs | 2x IR In (1x per Output zone) |
| IR Outputs | 2x IR Out (1x per Output zone) | Contact Closure | 1x Contact Closure for input selection |
| Front Panel Control | Illuminated front panel buttons | Power Supply | 48V DC, 2A |
| Power Consumption | 50W Max | Net Weight | 3.0kg |
| Size (WHD) | 438 x 44 x 225mm (without rack mounted ears and other connectors) | Rack Mount | 19in 1U rack mountable |
| Main Unit | 1x HDBT 662 | Phoenix Connectors | 5x Phoenix connectors |
| IR Accessories | 1x IR receiver, 1x IR handset | Included Accessories | 1x UK power cord, 1x User Manual |
| Description | Downloads |
|---|---|
| User Manual | Download |
