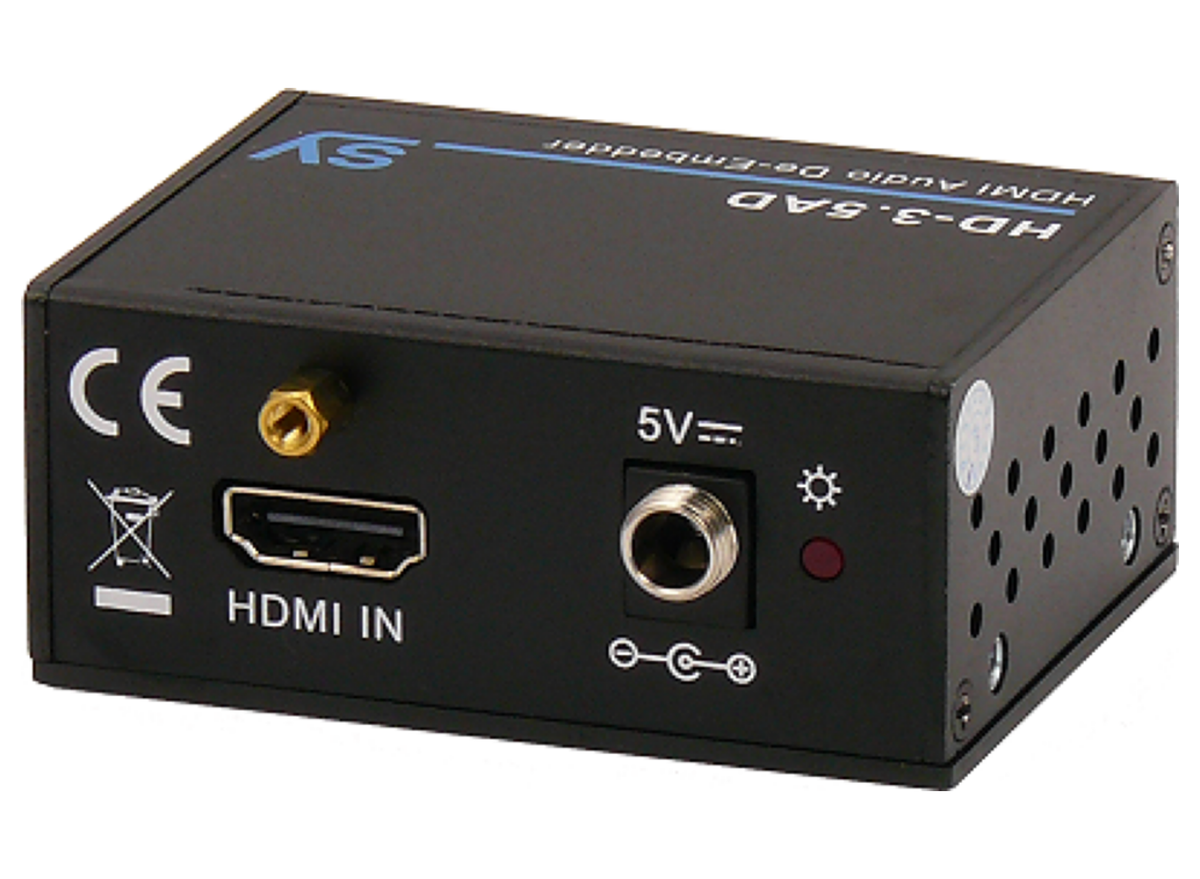

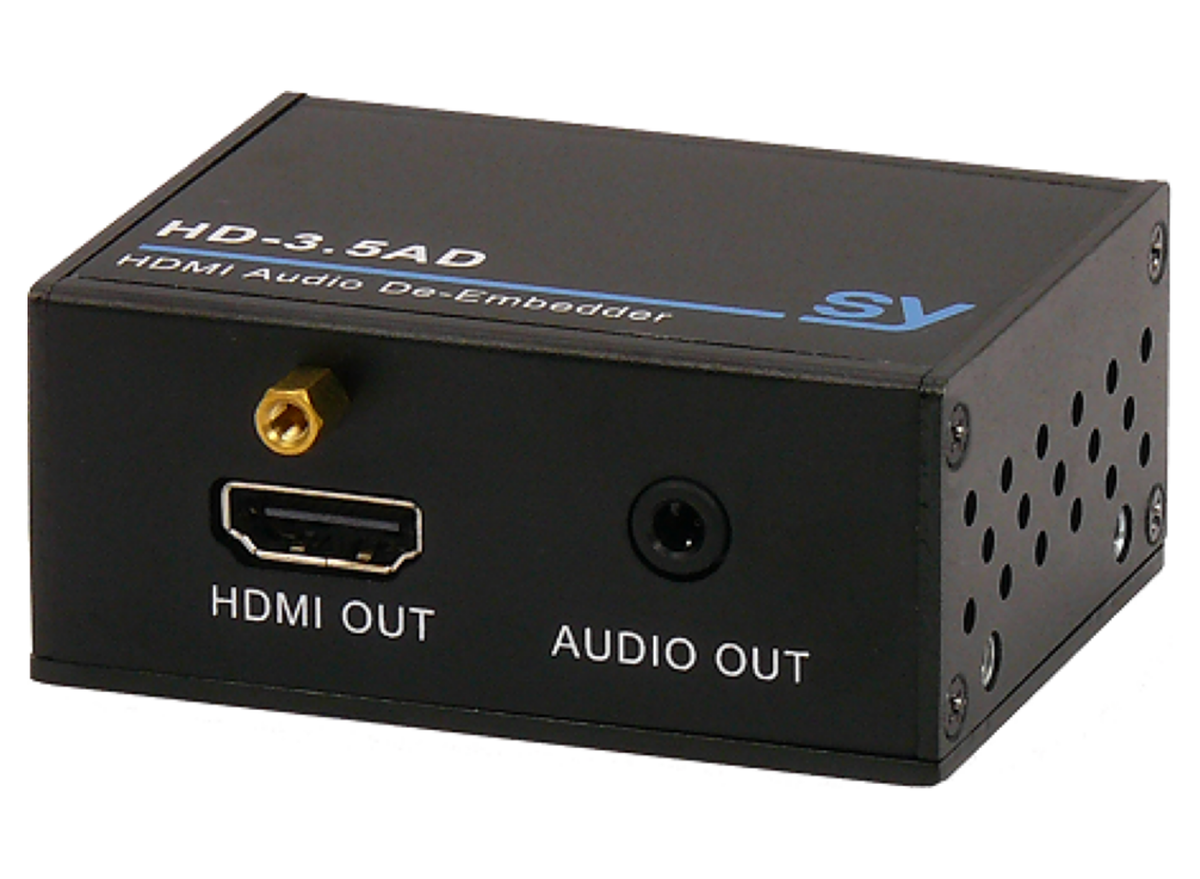

HD-3.5AD HDMI De-embedder extracts the HDMI audio data and outputs stereo audio, suitable for connecting directly to a power amplifier.
Line Level Audio Extraction - This can be useful when the audio system requires more amplification than a display device can provide, or if the display device has no audio capabilities at all, such as when using a projector.
HDMI Repeater – Can be used in discreet locations as an HDMI Repeater to re-clock the HDMI signal
Full HD – Up to 1080p and 1920x1200 PC resolutions
HDCP – Compliant with HDCP
CEC – Compliant with CEC Pass through
Small Footprint - The HD-3.5AD HDMI provides de-embed stereo audio in a very small size.
DVI output - A special feature of this device is the ability to de-embed the incoming HDMI signals whilst providing a DVI output to a DVI only display, such as some projectors.
Display Not Required - Furthermore, it can de-embed the audio without a display unit even being connected.
Suitable for connecting directly to any power amplifier with an Analogue Line Level Input.
Features
HDMI Input and Output
De-embedded Stereo Audio Output
Can de-embed whilst connected to DVI display
Can de-embed without connecting to a display
Supports HDMI 1.4
Resolution up to 1920x1200/1080p
Supports HDCP and CEC
Mounting brackets included
| Part Number | SY-HD-3.5AD | Resolutions & Formats | 480i, 480p, 720i, 720p, 1080i, 1080p, 1920 x 1200 |
| Input | 1x HDMI | Output | 1x HDMI |
| Audio Output | 1x 3.5mm Stereo Analogue Audio Jack | SNR | 80dB max |
| Compatibility | HDMI 1.3, HDCP, CEC | Power | 1x 5V DC PSU |
| Power Consumption | 1.5W max | Operating Temperature | 0 - 40 °C non condensing |
| Dimensions (W x H x D) | 69 x 29 x 52 mm | Weight | 110 g |
| Included Device | 1x SY-HD-3.5AD | What's in the Box | 1x 5V DC PSU, 1x User Manual |
| Description | Downloads |
|---|---|
| Installation Guide | Download |
