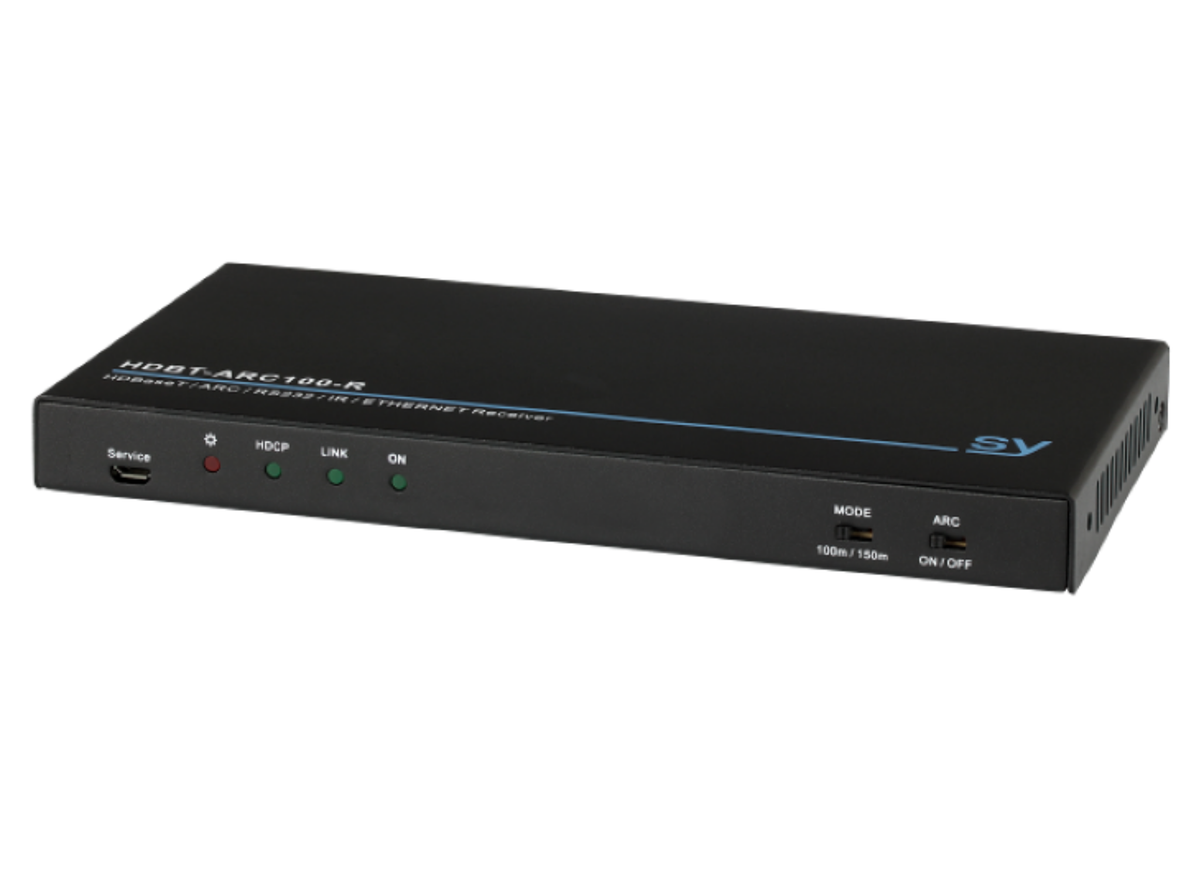

The SY-HDBT-ARC-100-SLIM-SET is a combination of the SY-HDBT- ARC-100-SLIM-T and SY-HDBT- ARC-100-SLIM-R HDBT transmitter / receiver pair. Allowing Video, Audio and control to be sent down one single CAT 6 (preferred) up to a maximum of 100m.
This SET can broadcast 4K UHD HDMI up to 100m or 1080p up to 150m.
With its Bi-directional RS232 port this long-range extender will pass through all control signals, which can be used for control of the remote display from the source end, and/or for controlling the source from the display end.

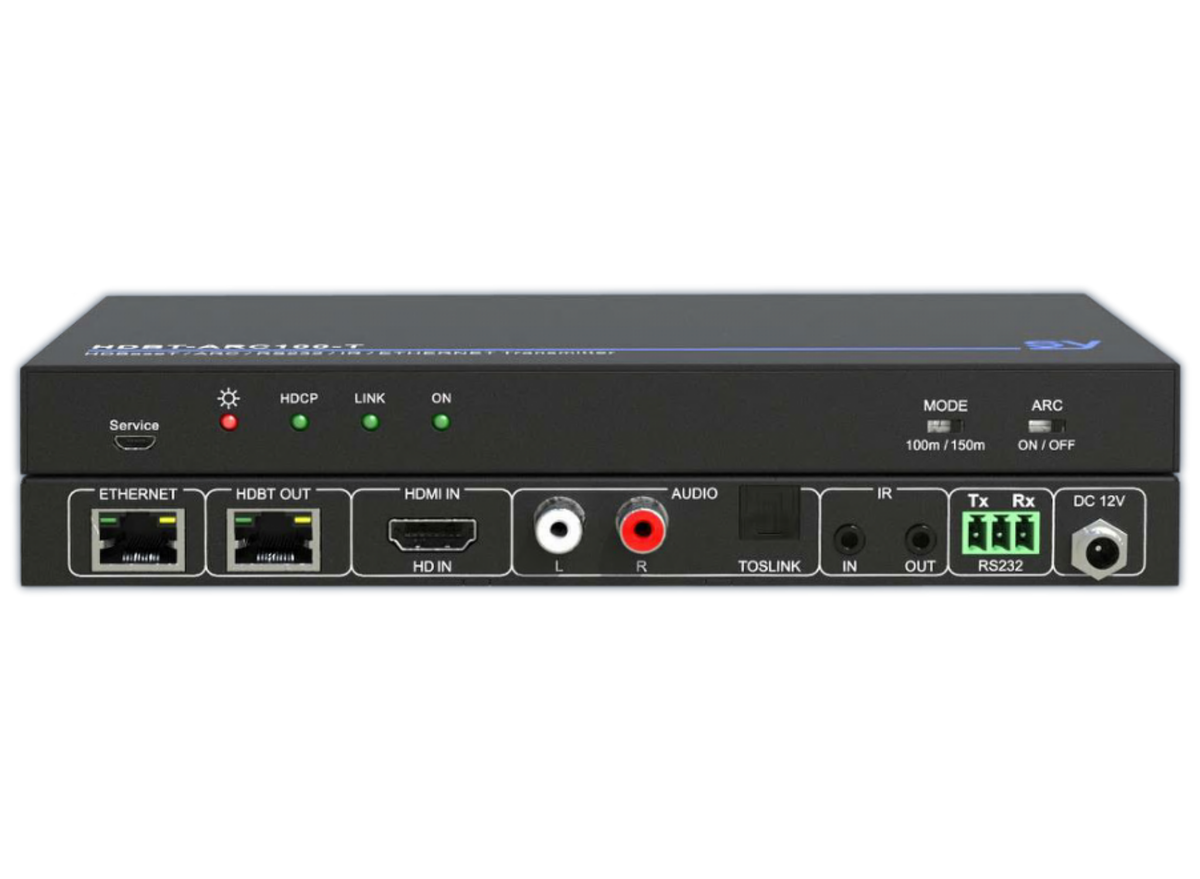

The transmitter provides outputs for both Toslink (S/PDIF) and stereo analogue for audio and the receiver has an audio Toslink fibre input port.
This extender set can also use the HDMI audio return channel (ARC) from the display, and send it all the way through back to the HDBT-ARC100-T transmitter where the audio can be connected to an amplifier using either the analogue stereo (L+R) or optical Toslink output ports on the transmitter unit.

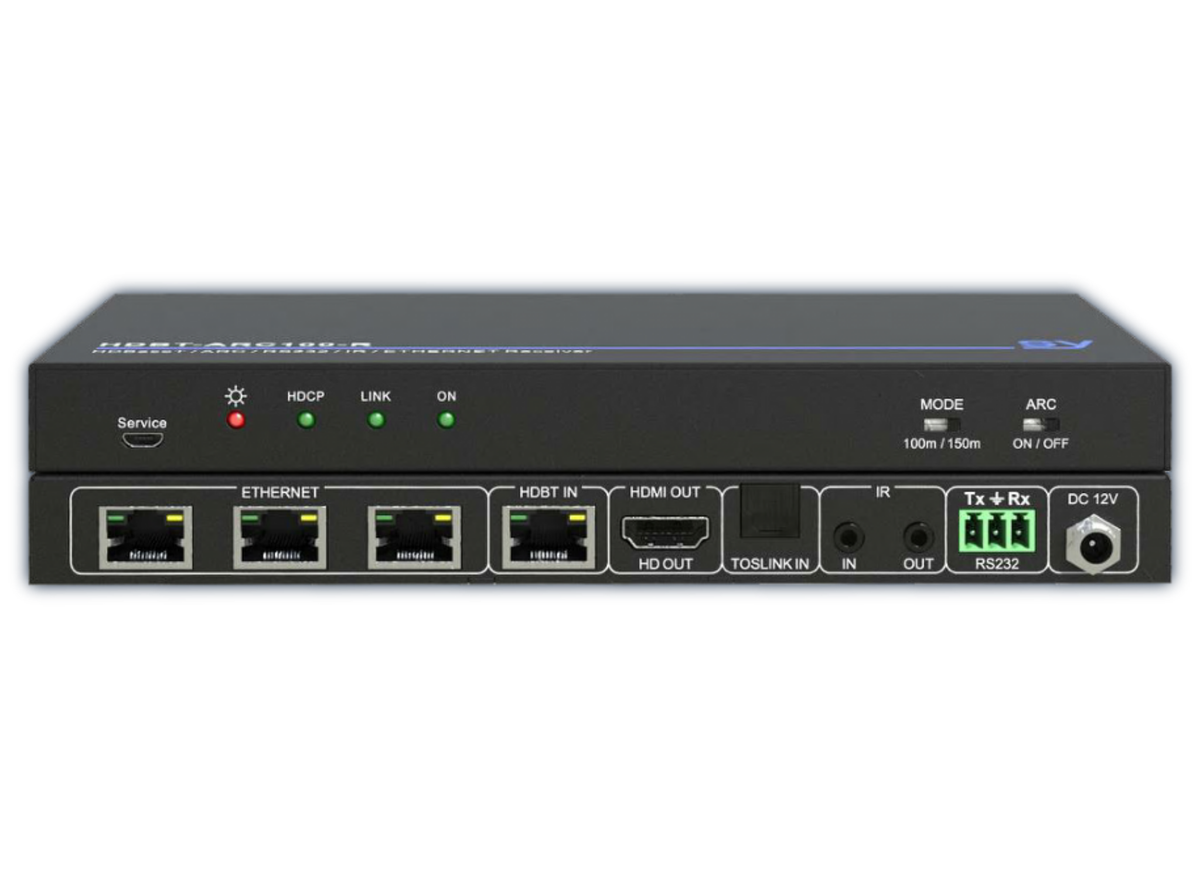

Also included is an Ethernet data port on the transmitter unit for extending a LAN data network to the Receiver which has 3x Ethernet ports.
HDCP compatible for versions 1.4 to 2.2
The HDBT-ARC-100-SLIM extender has PoC (Power over Cable) system, which means a single PSU from either the Transmitter or the Receiver can power the set, saving cost and installation time.
HDBaseT Extenders are the ideal solution for connecting HDMI equipment over longer distances than an HDMI would allow, with the added benefits of being able to carry control and data signals.
These extenders will suit a wide range of applications in the AV industry, digital signage and at home.
Features
HDMI 2.0 4K2K up to 100m or 1080p up to 150m
Max resolution: 4K2K @ 60Hz 4:2:0 - Supports 1080p 3D
Supports CEC and ARC
Support for HDMI 1.4 and HDCP 1.4 & 2.2
HDBaseT port provides PoC, so only one PSU is required to power both units
Bi-directional IR and RS232 control
Ethernet switch – 1 port on ARC100-T
Ethernet switch – 3 ports on ACR100-R
Status LEDs for Power, HDMI/HDCP mode, Link status and unit operating status
Only one 12V DC power supply required (at the Transmitter or Receiver)
| Maximum HDMI Resolution | Up to 4Kx2K@60Hz 4:4:4 (18Gbps) | Supported Resolutions | 480i, 480p, 720i, 720p, 1080i, 1080p, 1920 x 1200, 4K x 2K |
| HDMI Standard | HDMI 2.0 | HDCP Compliance | HDCP 1.4 and 2.2 |
| HDBaseT Cable | Cat5e / Cat6 / Cat6a | 4K Transmission Range | 100m for 4Kx2K 18Gbps |
| 1080p Transmission Range | 150m for 1080p | Transmitter HDMI | 1x Female HDMI socket |
| Transmitter HDBaseT | 1x RJ45 | Transmitter Analogue Audio | 1x L+R RCA analogue audio input |
| Transmitter Digital Audio | 1x Toslink digital optical output | Transmitter Ethernet | 1x Ethernet |
| Transmitter IR Input | 1x IR input | Transmitter IR Output | 1x IR output |
| Transmitter RS232 | 1x RS232 | Receiver HDMI | 1x Female HDMI socket |
| Receiver HDBaseT | 1x RJ45 | Receiver Digital Audio | 1x Toslink digital optical input |
| Receiver Ethernet | 3x Ethernet | Receiver IR Input | 1x IR input |
| Receiver IR Output | 1x IR output | Receiver RS232 | 1x RS232 |
| Operating Temperature | 0°C to 45°C | Operating Humidity | 10% to 90% |
| Power Supply | 12V DC @ 2A | Power Consumption | 10W (Max) |
| Dimensions (W x H x D) | 115 x 12 x 84 mm | Weight | 240g |
| Transmitter Included | 1x SY-HDBT-ARC-100-SLIM-T transmitter | Receiver Included | 1x SY-HDBT-ARC-100-SLIM-R receiver |
| Included PSU | 1x PSU | User Manual | 1x User’s Manual |
| Description | Downloads |
|---|---|
| User Manual | Download |
