SY Electronics 4x1 4K60 KVM Switcher & Multiviewer | SY-APOLLO-41U

Advanced Multi-Source KVM Control with Roaming Mouse and Custom Display Layouts

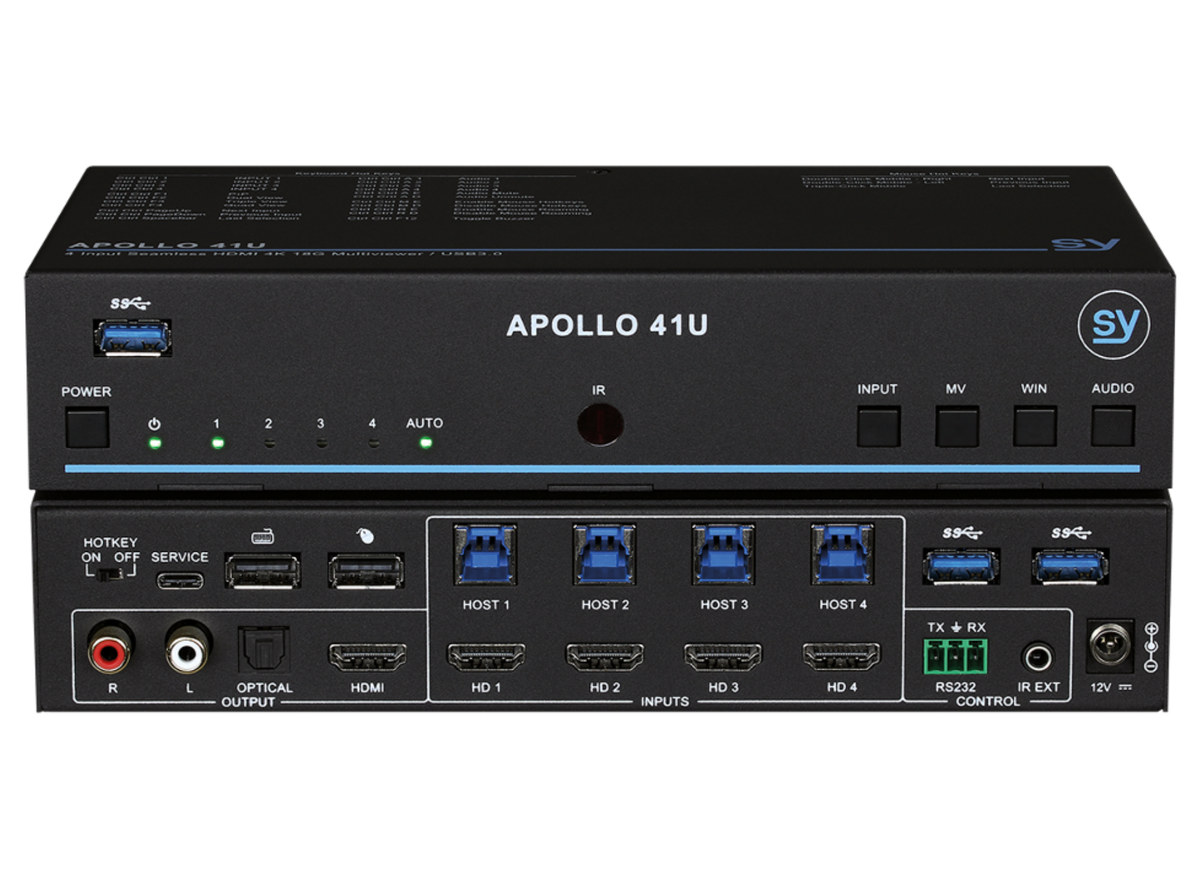

Seamless 4 to 1 KVM Multi-viewer with a total of 5x HDMI inputs, 1x HDMI output, performs wide range scaling up to 4K 60Hz 4:4:4. The keyboard Hotkey and Roaming mouse facility allows for any of the connected HDMI sources to be controlled via any of the 2x HID ports. Capable of displaying in Single, Dual, Triple, Quad Multi-view or various configurable PIP modes. An audio de-embed option is available as optical Toslink or L+R analogue output from any of the HDMI inputs, in addition to this, breakaway audio allows selection of audio from any connected HDMI source.  The Apollo 41U is a complete KVM Switcher/ Multi-viewer which is approriate for a host of residential and corporate environments. Its applications span commercial, control rooms, medical, military facilities and more, providing a robust and reliable Seamless KVM Switching interface with customisable Multi-viewing capabilities.

Seamless 4:1 Switcher – Seamlessly switch between 4x HDMI 2.0 inputs, to 1x HDMI 2.0 output, capable of resolutions up to 4K60 4:4:4 60Hz 18G.

Roaming Mouse  – Roaming mouse offers a convenient and versatile means of control. When in Multu-view, any connected HDMI source can be controlled via attached mouse and keyboard.

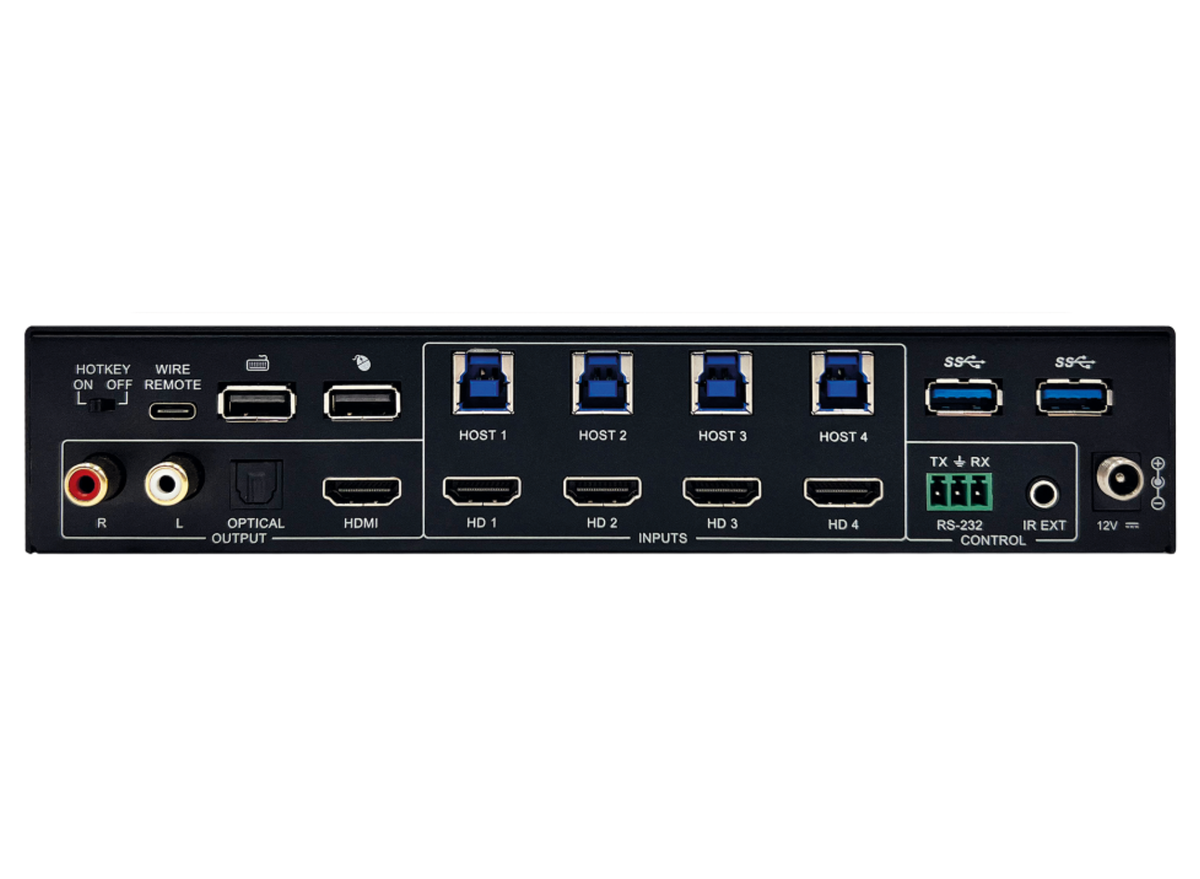

5x total USB ports – 3x USB 3.0 ports for HD/Camera connection. 2x dedicated HID USB ports permit connection of keyboard/mouse.

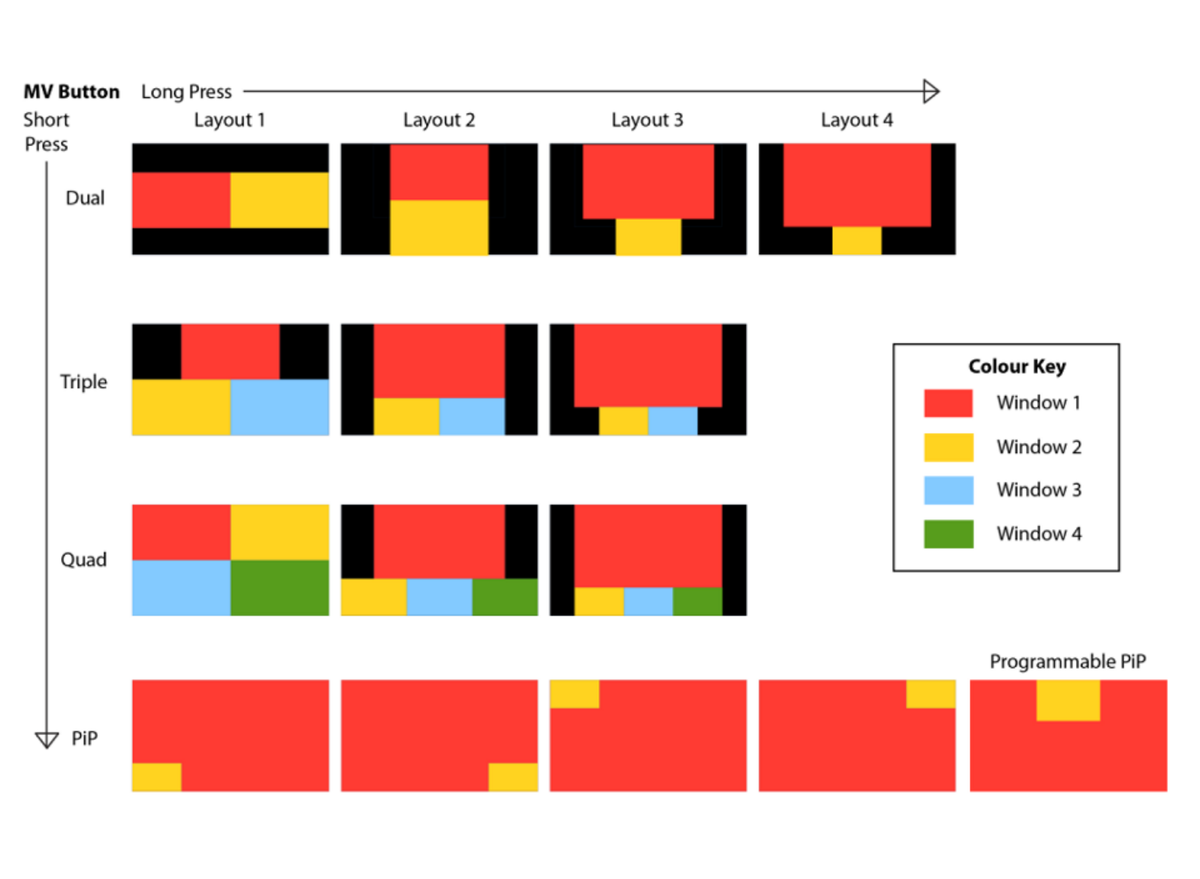

Multi-View mode – Any of the 4 available inputs can be selected to display in Single, Dual, Triple or Quad view, with various options of window size.

PiP – Any two inputs can be used to create a customised picture in picture, which includes window size and position.

Wide Range Scaling – Full Up/Down 4K 18G Scaling with complete control over both resolution and refresh rate, ensuring an optimal image based on the display's capabilities.

Full Audio Control – Mute function and control of output volume. Audio can be de-embedded via Toslink or Analogue L/R RCA jacks. Any of the available inputs' audio can be independently selected at any time.

10x Presets – Up to 10x pre-set scenes can be saved and recalled.

Full Hotkey Control – Use both Keyboard and mouse as a means of controlling any connected source, or to select between Multi-view modes.

VKA – The Video Keep Alive function can maintain a video output when there is no signal. When there is no active input signal, the display can be configured to show a blue or black image, ensuring that the screens remain active until a new signal is detected.

IT Content Setting – The IT Content (ITC) setting tells the display to use its own video quality processing algorithms, instead of the Intel graphics driver when movies are played in full-screen mode to ensure the best video quality.

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4, or simply employ cascade mode.

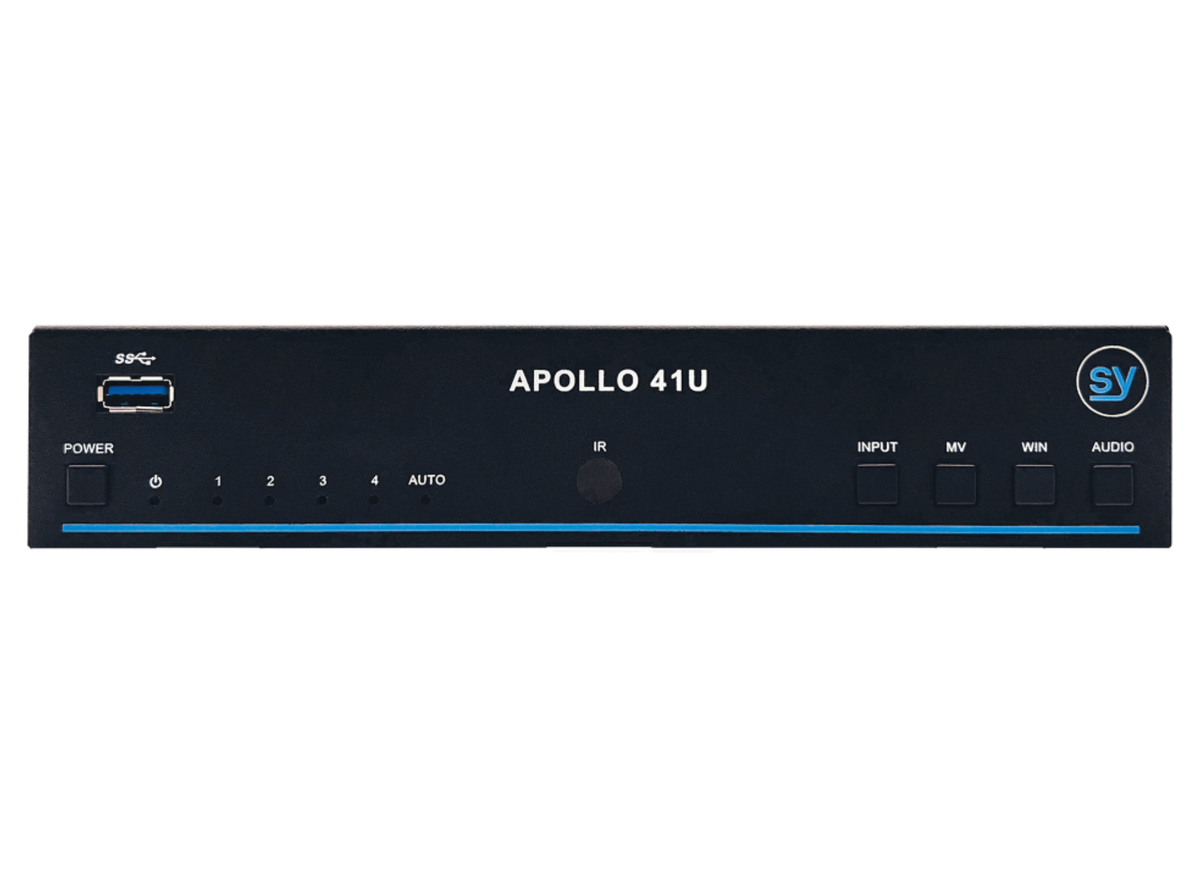

Auto or Manual Switching – In Single mode, the auto-switch feature will automatically select the newly connected source. When currently selected source is lost the next available active input will be automatically selected. Manual switching can be carried out from the front panel, IR or RS232.

HDR – Supports HDR, HDR10, HDR10+, HLG and Dolby Vision.

Features
4x1 Seamless KVM Switcher + multi-viewer
Wide range Scaler to 4K60 4:4:4
Roaming mouse
Single, Dual, Triple, Quad display modes
Customisable PiP (Picture in Picture) mode
Breakaway audio (can be sourced from any input) + De-embed Audio
3x USB-A 3.0 peripheral ports
2x USB-A HID (keyboard & mouse) ports
Keyboard + mouse Hotkey operation
Up to 10x pre-set scenes can saved and recalled
Test Pattern Generator (TPG)
Video Keep Alive (VKA)
Extensive EDID control
HDCP management
