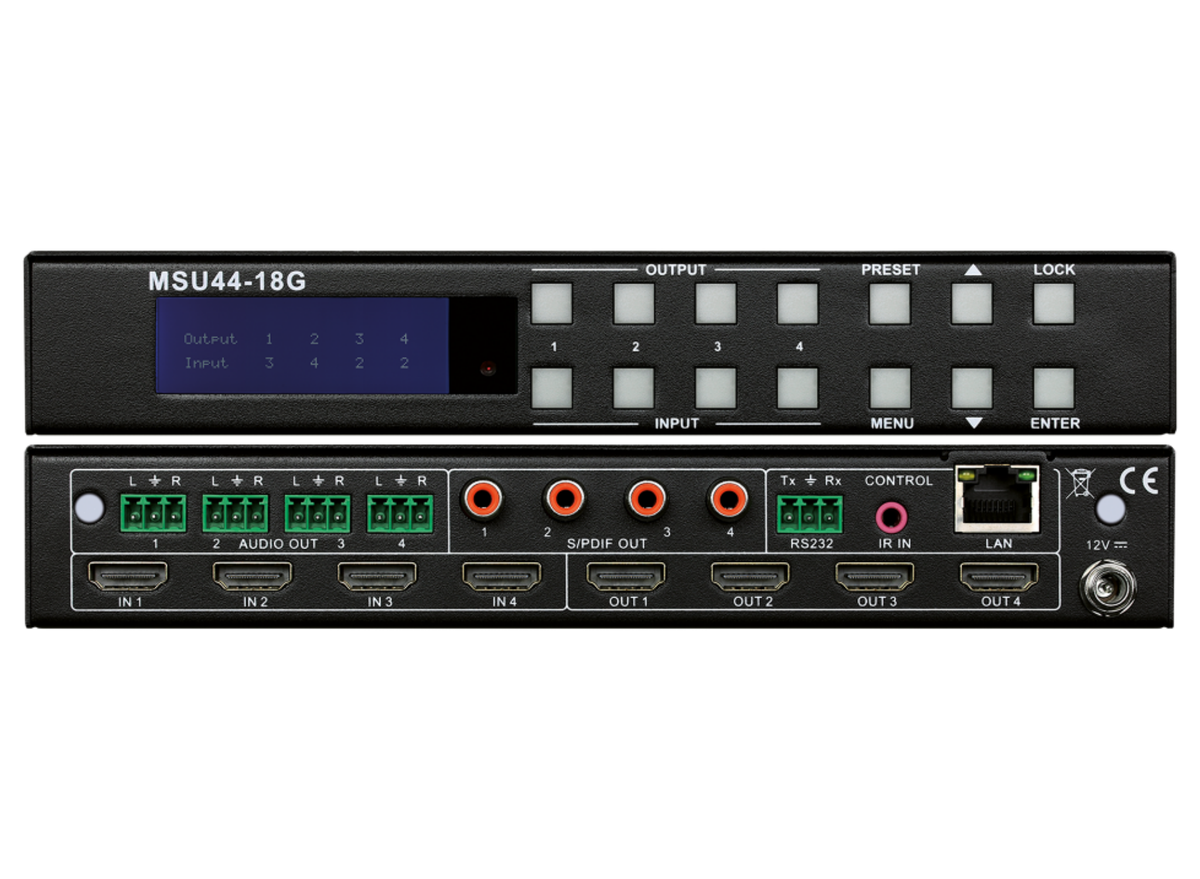

MSU44-18G – 4x4 Matrix & Scaler
Slimline HDMI Matrix Switcher with 4x inputs, 4x outputs at resolutions of up to 4K60 4:4:4 (18 Gbps). Each output can perform a variety of functions independently, including down Scaling from 4K to 1080p and audio de-embedding, which is possible from any of the 4x HDMI inputs. De-embeded audio is presented both as S/PDIF (RCA Coax), or analogue stereo L/R (3.5mm TRS jacks).

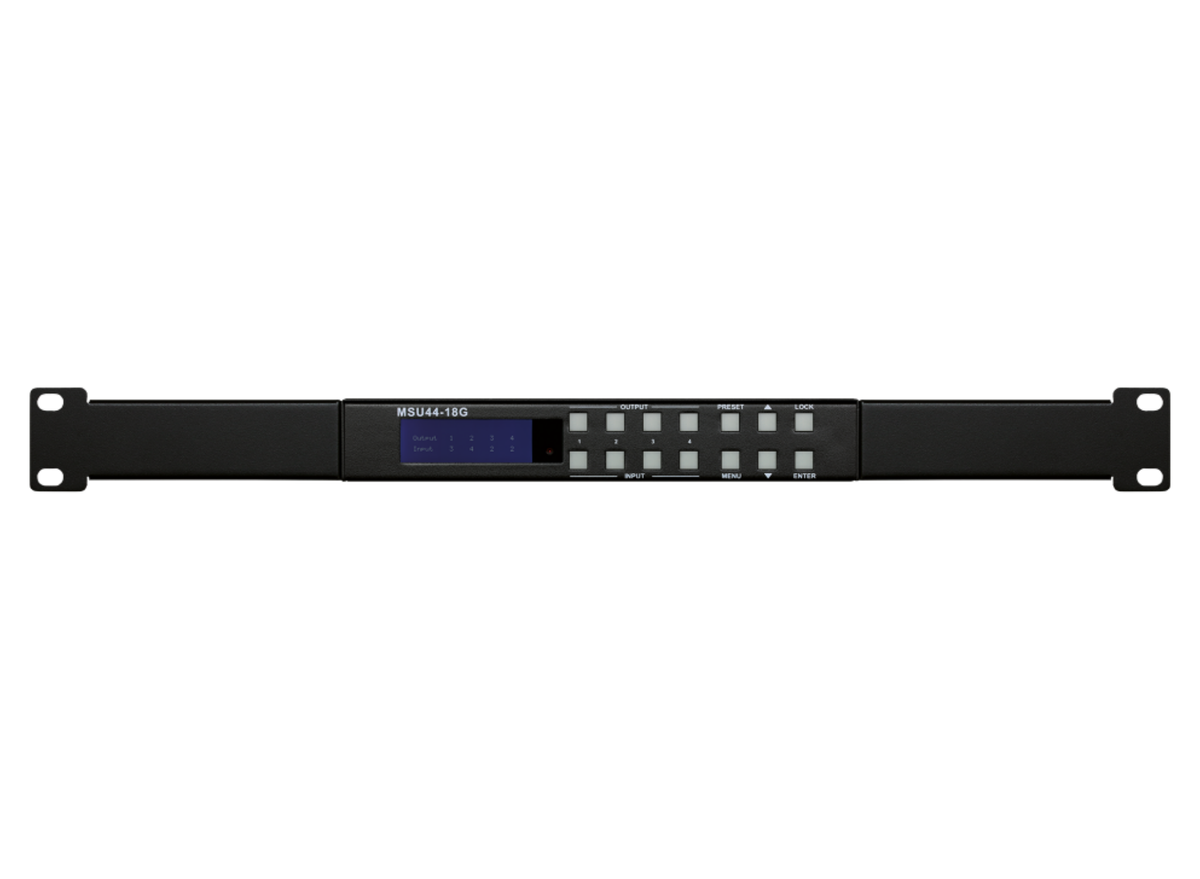

This Matrix has four methods of control: Front Panel, RS232, LAN or IR, front panel locking prevents accidental operation. The optional 19" 1U rack mount brackets are available for this compact half rack unit.
The MSU44-18G is suitable for a wide range of environments from corporate, retail, studios and control rooms to training centres and education spaces.
4x4 Matrix – Switch between 4x HDMI 2.0 inputs, to 4 x HDMI 2.0 outputs. Capable of 4K60 4:4:4 18G.
Down Scaling – Each output can be scaled independently. Down Scaling from 4K to 1080p.
EDID – Management of EDID ensures stable installation performance. The EDID for each HDMI input can be chosen from a wide choice of stored EDID or an EDID from one of the connected displays.
Test Pattern Generator – Various Test pattern colours available to aid set-up, commissioning and signal cue facility. Selection made via RS232 commands.
HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into cascade mode.

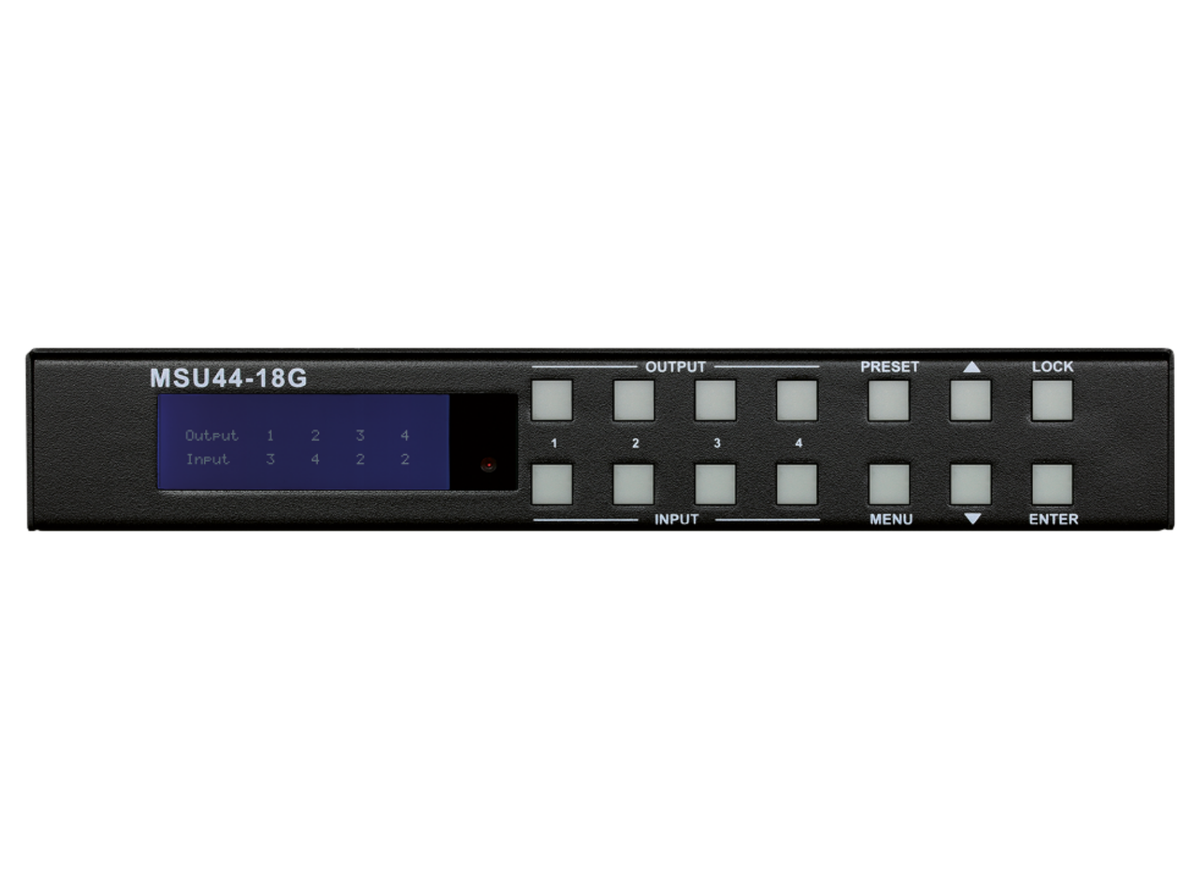

Front panel display – LCD display shows the current matrix routing and aids with visual confirmation of other settings.

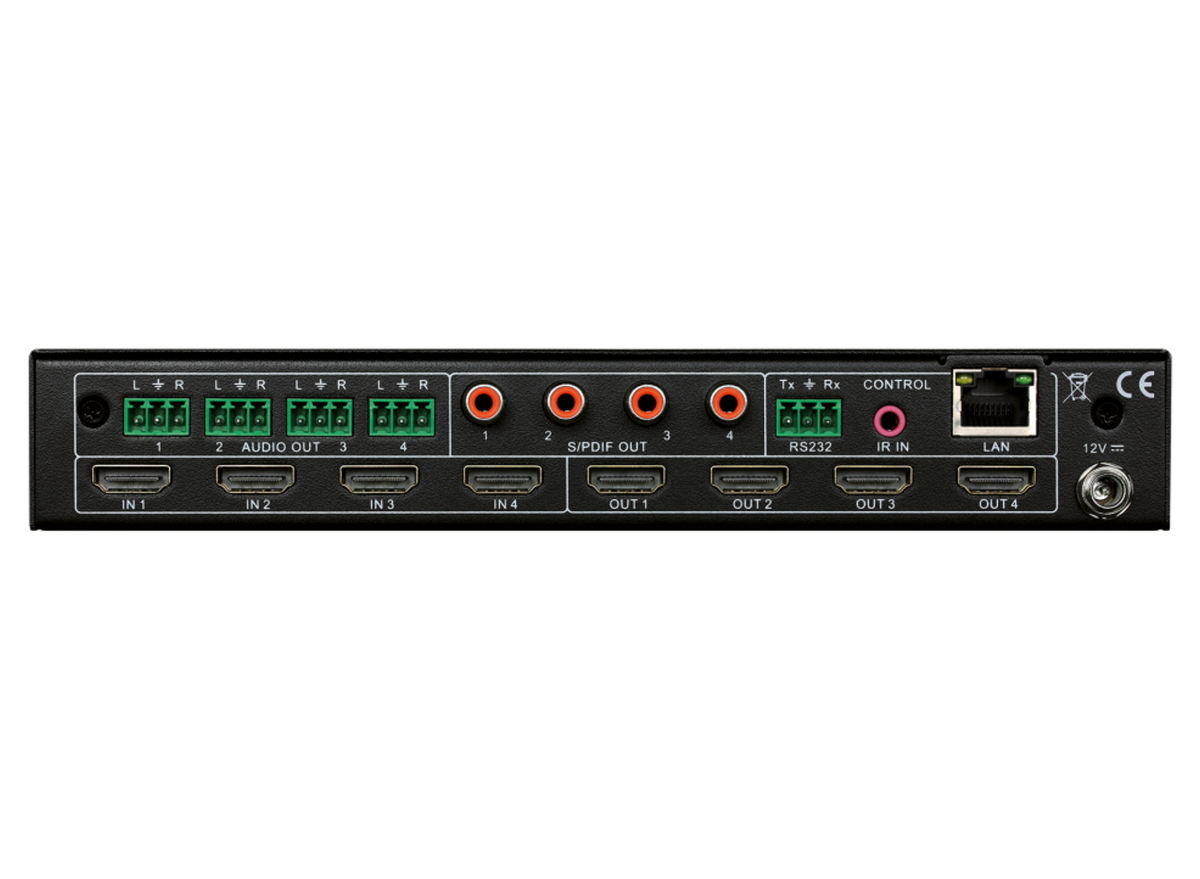

Audio Control – There is also audio mute function available too. Audio can be de-embedded from any input and presented as Digital S/PDIF (coax RCA) outputs, as well as analogue L/R Stereo audio oututputs (phoenix screw terminal connectors).
Control – All functions can be operated either from the Front Panel, IR, RS232 or LAN. A built in WEB GUI is accessible via LAN allowing full control of Video, Audio, EDID and network parameters. A remote Infra-Red handset is also included for easy matrixed Output selections.
FEATURES
4x4 HDMI 2.0 (18Gbps) Matrix
Resolutions up to 4K60 4:4:4
Auto Down Scaling 4K > 1080p per output
Advanced Test Pattern Generator
HDCP management
Extensive EDID Management
4x Analogue Stereo L/R de-embed audio outputs
4 x Digital S/PDIF de-embed audio outputs
Supports HDR10, HLG, Dolby Vision
Control: Front panel, IR, RS232, LAN & Web GUI
Front panel lock
19" 1U rack mount brackets (optional)
| Part Number | SY-MSU-44-18G | HDMI Standard | HDMI 1.4 and HDMI 2.0 |
| HDMI Inputs | 4x HDMI | Analogue Audio Inputs | 4x L/R Analogue audio 3.5mm TRS Jacks |
| HDMI Outputs | 4x HDMI | Analogue Audio Outputs | 4x L/R Analogue audio 3.5mm TRS Jacks |
| Digital Audio Outputs | 4x SPDIF Digital audio Coax Phono Jacks | HDCP Compliance | 1.4 and 2.2 |
| HDMI Resolutions | All HDMI resolutions up to 4K60 4:4:4 (18Gbps) Example: 4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4, 4K24 4:4:4, 1080p60 | HDR Support | HDR10, HLG and Dolby Vision Supported for 4K60 4:2:0, 4K30 4:4:4, 4K24 4:4:4 resolutions |
| Audio Formats | LPCM (2.0 ch, 5.1 ch, 7.1 ch), Dolby True HD, DTS-HD Master All audio sample rates up to 192kHz | De-Embed Audio Outputs | RCA Coax - Digital S/PDIF 3 pin Phoenix - Stereo Analogue (L/R) |
| Control | Front panel RS232 LAN Web GUI | IR Control | IR eye on front and rear 3.5mm input jack |
| Default IP Address | 192.168.1.168 | DHCP | Off (Static IP) |
| Default RS232 Baud Rate | 115200, 8 bits, no parity, one stop bit | Alternative Baud Rates | 57600, 19200 or 9600 |
| Operating Temperature | 0 ~ 40°C (32 ~ 104°F) | Operating Humidity | 10 ~ 90% RH – non-condensing |
| Physical Dimensions | (WxHxD) 216.2 x 44 x 128.5 mm | Rack Mounting | 19” 1U Rack mountable |
| Weight | 470g | Main Unit | 1x MSU44-18G |
| Phoenix Connectors | 5x 3 pin phoenix terminal connectors | IR Remote Controller | 1x IR remote controller |
| Power Supply | 1x 12V DC power supply | User Manual | 1x user manual |
| Rack Brackets | 1x pair rack brackets (optional) | Package Contents | MSU44-18G, terminal connectors, IR remote, power supply, user manual and optional rack brackets |
| Description | Downloads |
|---|---|
| Datasheet | Download |
