MUHD-88 is an 8x8 HDMI 4K60 4:2:0 Scaler Matrix. This unit can connect any Input to any Output simultaneously. Transmit your favourite HD sources (Blu-Ray, Satellite Receiver, Gaming Console, etc) the MUHD-88 can easily connect to both 4K and legacy HD projectors/displays without any compromise, supporting HDMI1.4b up to 4K video resolution and HDCP 1.4 and HDCP2.2. The output signals are amplified and equalised for the best HDMI signal without loss of quality.
HD – Supports High-Definition resolutions 4K60 4:2:0, 4K30, 1080p, 1080i, 720p and standard video format.
HDMI – Compliant to HDMI version 1.4b with a max bandwidth of 10.2Gbps.
HDCP – This unit will accept HDCP versions 1.4 and 2.2.
VIDEO AND AUDIO MUTING – Outputs can be controlled to enable/disable the Video Stream and Mute Audio, both independently and globally.
EDID – Management of EDID ensures stable installation performance, with the ability to read the EDID from the connected displays and then to store it to each input independently. Can be managed from the front panel buttons or via RS232 commands. With 12 built-in pre-defined EDID settings, and 3 user programmable EDID memories. The Cascade mode function can be enabled and will disable the reading of all EDID from any Display device, and will therefore always transmit a video signal.

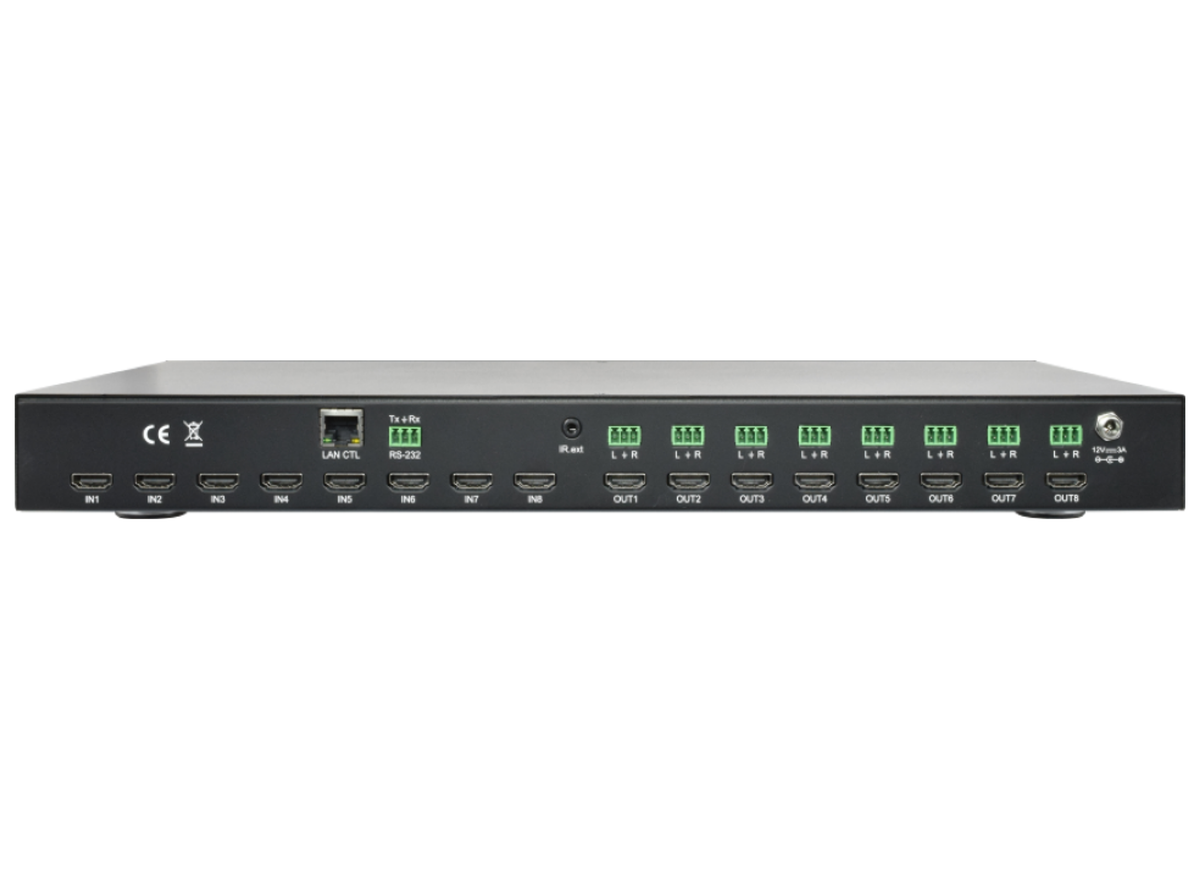

Audio De-embedding - Audio Outputs are provided with L+R analogue de-embedded audio per output on all outputs via 3 pin screw terminals.
Control - All switching functions are carried out via a choice of Front Panel Buttons, IR, RS232 or LAN. A remote Infra-Red handset is included to select Inputs and Outputs. An IR input extension socket is present on the rear panel for use within closed AV credenzas.

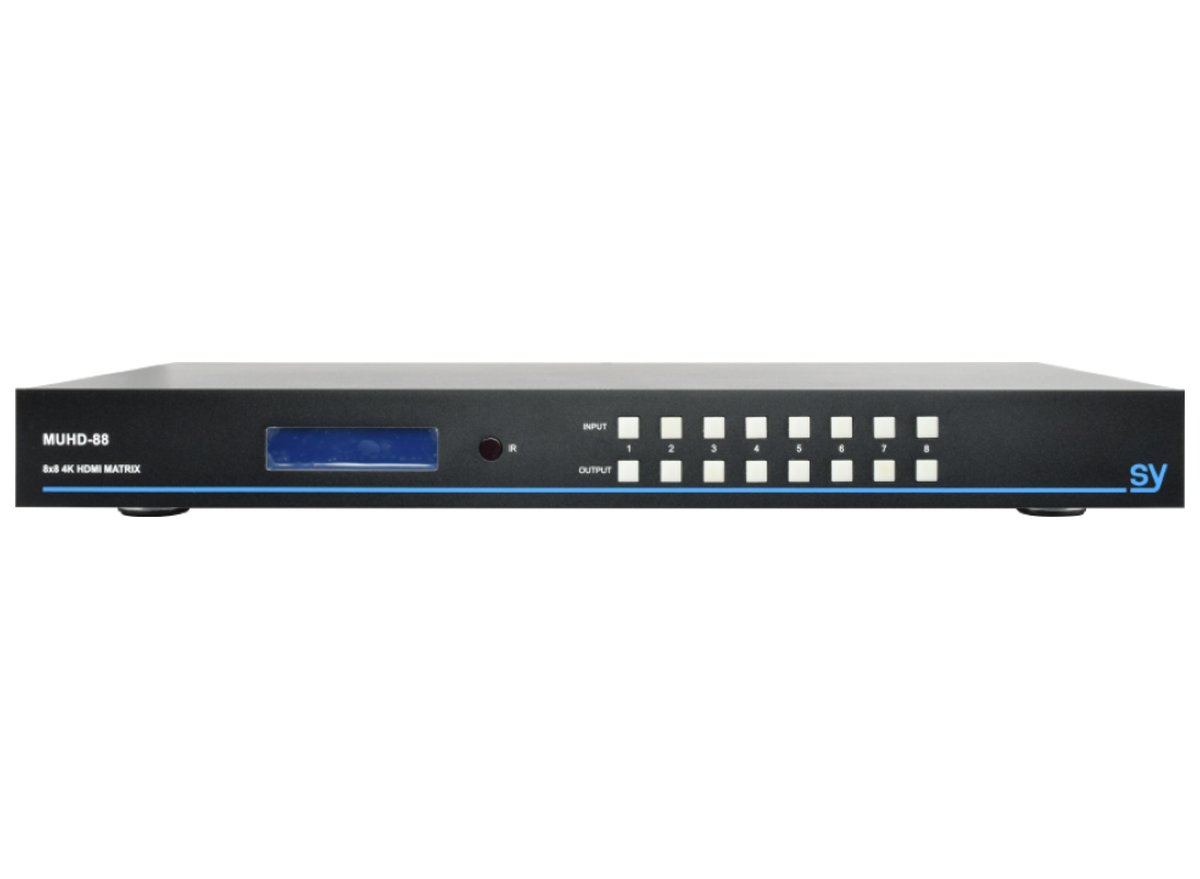

Front panel display - An LCD display shows the current matrix routing and aids with visual confirmation of other settings.
This unit is 1U and can be fitted into any rack with ease.
The MUHD-88 offers a solution for digital entertainment centres, HDTV retail, show sites, data centre control, information distribution, conference room presentation, school and corporate training environments
FEATURES
8x8 HDMI (10.2Gbps) Matrix
HDMI 1.4b, 4K60 4:2:0
HDCP 1.4, 2.2 compliant
8x L/R de-embed audio outputs
Extensive EDID Management
Control: Front panel, IR, RS232, LAN
| Part Number | SY-MUHD-88 | Video Inputs | 8x HDMI |
| Video Formats | All PC and Video formats supported, including: 4K60, 4K30, 1080P, 1080i, 720P, 576P, 576i, 480P, 480i | HDMI Outputs | 8x HDMI 1.4b |
| Transmission Distance | Maximum 15m | Analogue Audio Outputs | 8x Stereo analogue audio outputs |
| HDMI Audio Formats | L-PCM, DTS-HD, Dolby TrueHD | Control Ports | IR, Ethernet, RS232 |
| RS232 Baud Rate | 57600 | RS232 Data Bits | 8 |
| RS232 Parity | None | RS232 Stop Bits | 1 |
| RS232 Handshaking | None | Power Supply | 12V DC |
| Power Consumption | 15W (Max.) | Operating Temperature | 0 to +40°C (32 to +104°F) |
| Operating Humidity | 10 to 90 %RH (non-condensing) | Dimensions (Metric) | W440 x D256 x H42 mm |
| Dimensions (Imperial) | W17.3” x D10” x H1.65” | Rack Height | 19” Rack height: 1U |
| Weight | 2.4kg (Main Unit) | Main Unit | 1x Main unit |
| IR Remote Control | 1x IR remote control | IR Receiver | 1x IR receiver (eye) with self-adhesive pad |
| Rack Mounting Brackets | 1x Pair 19” rack mounting brackets | Mounting Screws | 6x M3 x 8 screws for the mounting brackets |
| Terminal Connectors | 9x Three-Way pluggable screw terminal connectors | Power Cable | 1x UK or EU to IEC 60320 Type C7 (figure-of-eight) cable |
| 12V DC PSU | 1x 12V DC PSU | User Manual | 1x User manual |
| Description | Downloads |
|---|---|
| Manual | Download |
