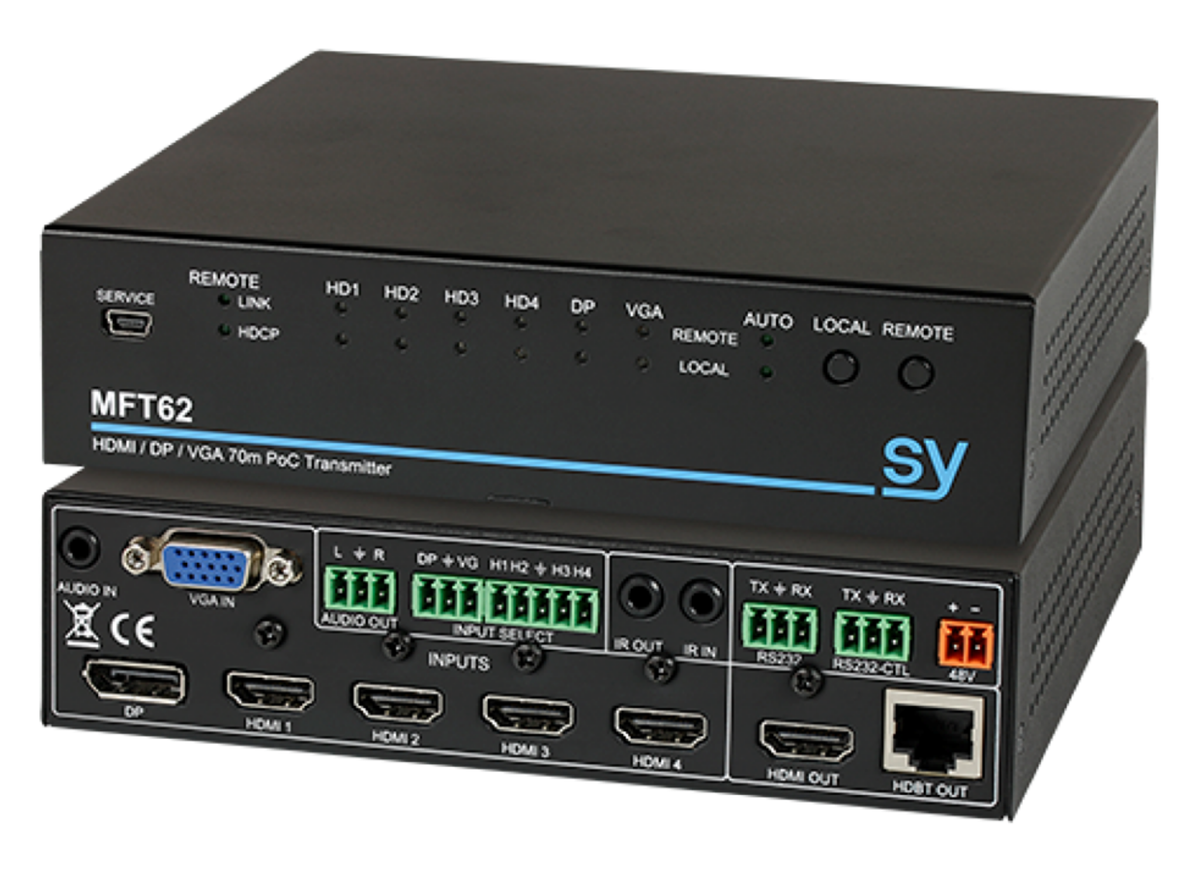

MFT62 is a compact 4K UHD, 6 Input, 2 Output Multi-Format Switcher, with independently matrixed HDMI and HDBaseT outputs. This unit is also available as the ‘MFT62-SET’ which is also supplied with our ‘Slim70 Pro’ HDBaseT receiver. This device is well suited for use in auditoriums, public venues, and conference/meeting rooms.

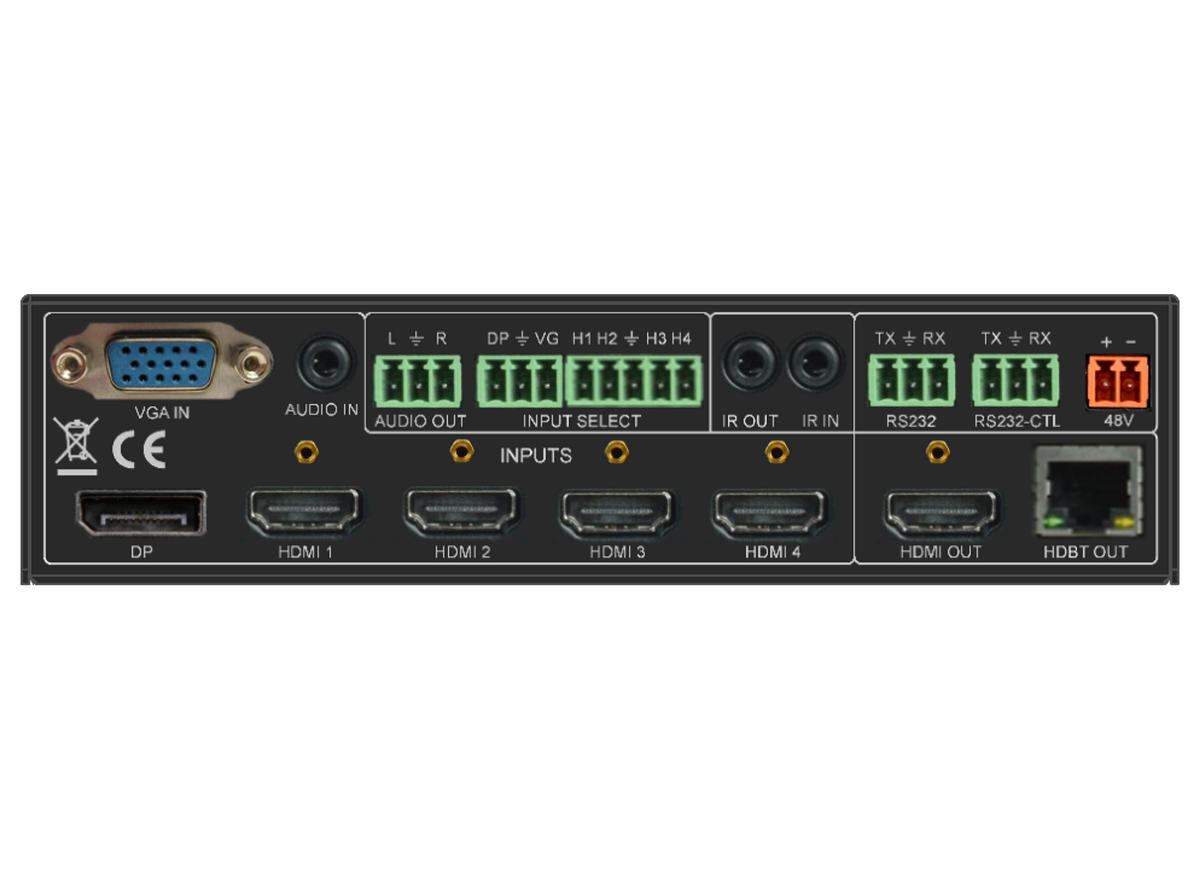

Inputs and Outputs - The 6 inputs consist of 4x HDMI, 1x VGA + Audio, 1x Display Port input. Outputs consist of 1x HDMI and 1x HDBaseT output. When used with an HDBaseT receiver such as the ‘Slim70 Pro’ it can transmit 1080p signals to 70m, and 4K signals to 40m using a single Cat 6 cable.
Audio output – Audio can be de-embedded via an analogue output using the 3x pin phoenix terminal connectors. By default the audio is matched to the HDBaseT output, but can be changed to match the HDMI output by sending an RS232 command to the unit.
Matrix Switching - Any source can be routed to either or both of the outputs as required
Control – A choice of front panel buttons, IR, RS232 or external contact closures enable control over the unit. Control over the HDBaseT link is bi-directional, with the ability to control the display from the source location and the source from the display location. Infra-Red input and output ports are fitted to the rear of the chassis.
Auto Switching – Manual or Automatic source selection is controlled by front panel buttons or RS232 commands.
Contact Button Terminals – Rear mounted contact closure terminals are provided for connection of remote contact button panels.

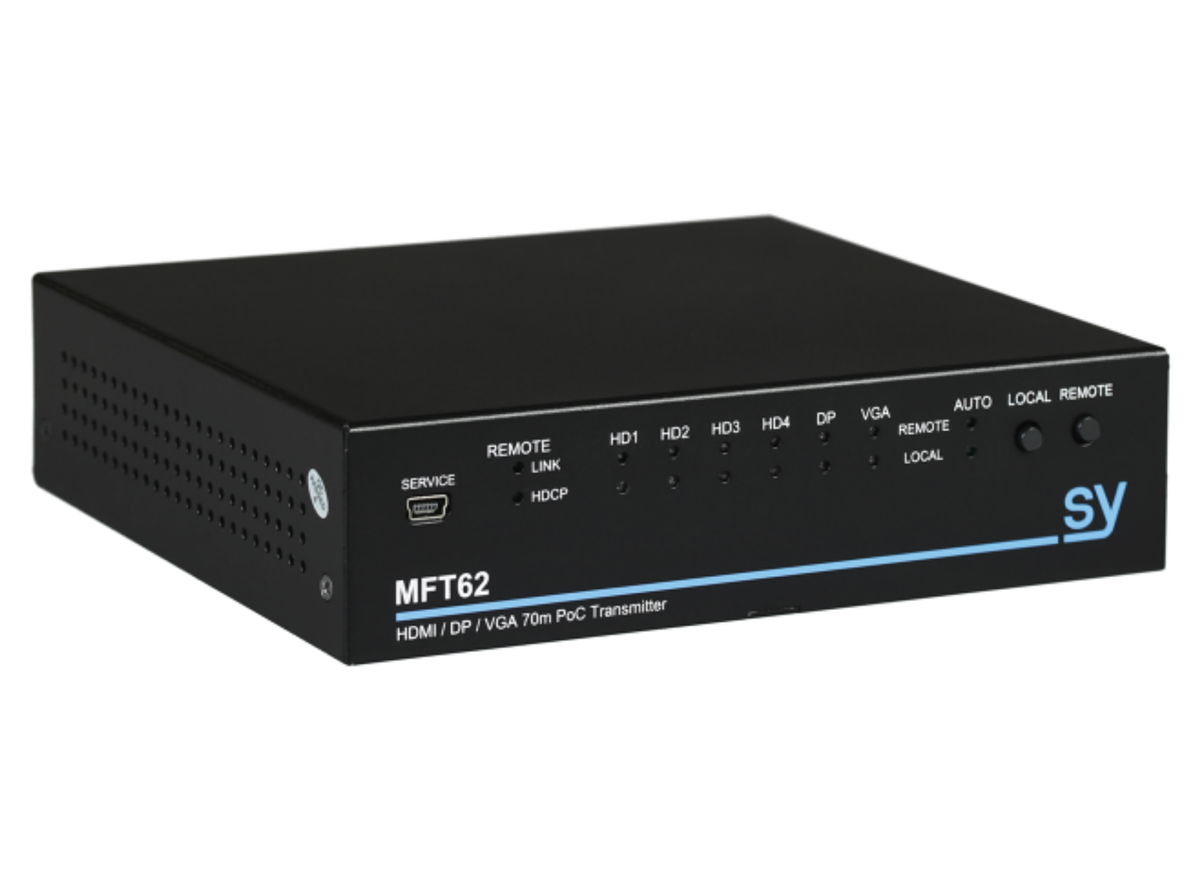

Source Status – The status of selected inputs can be read from the front panel mounted LED indicators
EDID – Extensive control is afforded by selecting one of the 24x built-in EDIDs, or you can choose to read an EDID from a connected display and stored onto one of the 3x user programmable EDID memory positions.
Features
Inputs - 4x HDMI, 1x DisplayPort, 1x VGA inputs
Outputs - Independent HDMI and HDBaseT Matrix outputs
HDBaseT PoC powers remote Slim 70 Receiver
HDBaseT output to 70m @1080p or 40m @4K30
Auto input switching and monitor on/off options
Control: Front Panel, Bi-directional IR, RS232, contact closure
Independent RS232-CTL for device control
L/R de-embedded audio
Extensive EDID Management
| HDMI Video Input/Output | VESA and SMPTE 480p to 2160p (4K UHD) with 3D 4096x2160p @60Hz 4:2:0 8bit 3840x2160p @30Hz 4:4:4 8bit All PC resolutions to 1920x1200 | VGA Video Input | 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1400x1050, 1600x1200, 1920x1080, 1920x1200 |
| HDMI Audio Formats | Pass-through of all HDMI audio formats including Dolby D (TrueHD), DTS (HD-Master Audio), PCM 2.0 to 7.1 channels | Audio Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Video Inputs |
4x HDMI 2.0 1x DisplayPort 1x VGA |
Audio Input | 1x 3.5mm analogue stereo for VGA input |
| Video Outputs |
1x HDMI 2.0 1x HDBaseT (IPoC) |
De-embedded Audio |
Analogue L+R PCM 2.0 channel audio from HDBT output extracted onto 3-pin Phoenix connector Stereo L/R 0.7V RMS - 20Hz-20kHz |
| Bandwidth | 10.2Gbps | HDCP | Compatible with all versions up to HDCP 2.2 |
| EDID Manager | EDID data and manual EDID management | Control | IR, RS232, Front Panel Buttons, Remote Contact Closure Terminals |
| Power Supply | 48V DC max. | Power Consumption | 14.4W (including a powered HDBT RX) |
| Weight | 0.860kg | Size (WHD) | 164 x 40 x 145mm |
| MFT62 Box Contents |
1x MFT62 1x Wall power supply with UK and EU plug adaptors 1x User's Manual |
MFT62-SET Availability | Also available as the MFT62-SET |
| MFT62-SET Box Contents |
1x MFT62 1x SY-HDBT-70-SE-R 1x Wall power supply with UK and EU plug adaptors 1x User's Manual |
Product Variants | MFT62 and MFT62-SET |
| Description | Downloads |
|---|---|
| Datasheet | Download |
