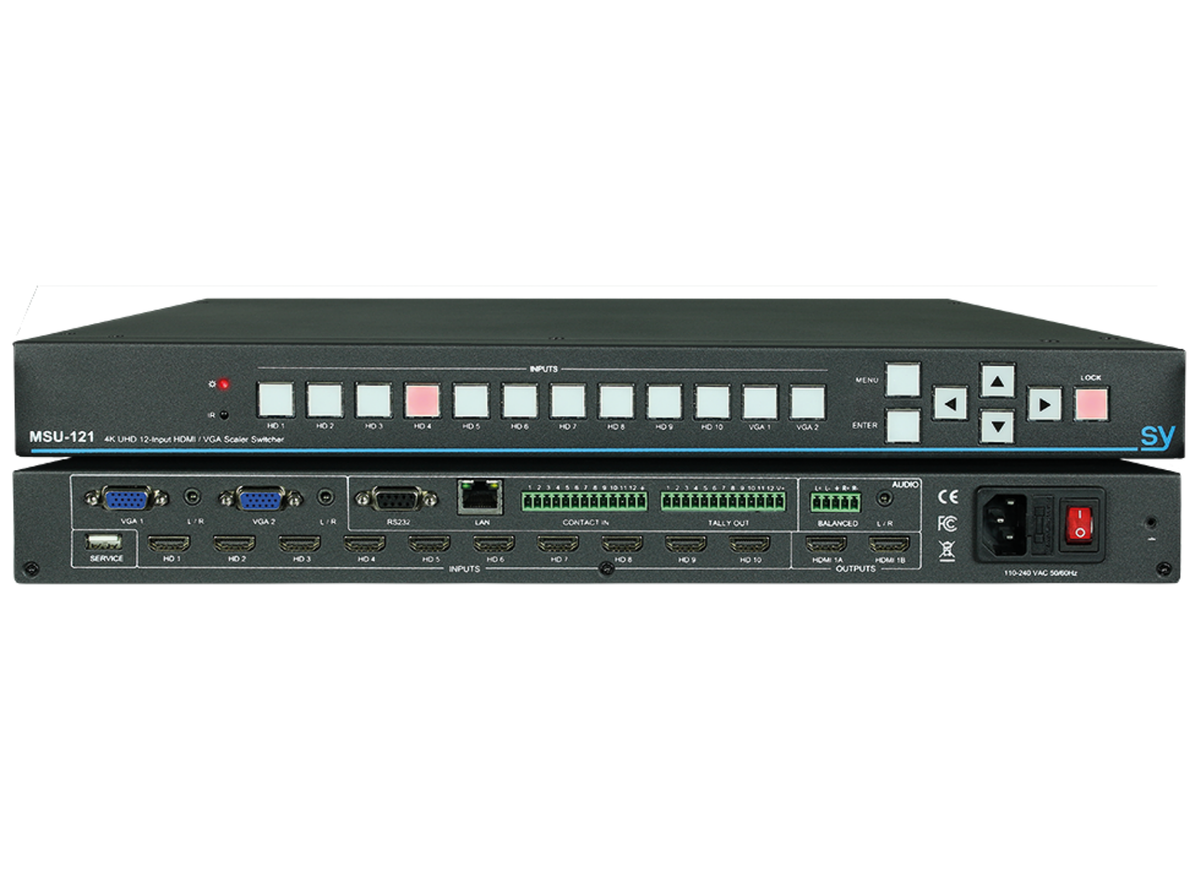

The SY-MSU-121 is a 12 input multi-format Presentation Scaler Switcher with two scalable HDMI outputs
Inputs 10 HDMI inputs and 2 VGA + audio inputs for support of legacy devices.
Switcher Any input can be selected to output to both of the HDMI mirrored outputs.
Accepts 4k inputs Compliant to HDMI 1.4, HDMI input resolutions up to 4K30 4:4:4 or 4K60 4:2:0 and VGA inputs at up to 1900x1200 and VGA input resolutions up to 1900x1200 60Hz
Up/Down Scaler Each input can be scaled to output at a max resolution of up to 1080P ensuring the connected device receives an optimal resolution regardless of the input.
Audio De-embedding The Audio can be de-embedded onto balanced or 3.5mm TRS output jacks. This can then be sent to an amplifier to provide audio to the room's speakers.
Picture Management The MSU-121 also has controls for adjusting the picture (colour, brightness, contrast), Noise reduction,
The VGA inputs have several additional adjustments from size, position and phase.
HDCP Management Compliant with version 1.4. Cascade mode offers the option to defeat HDCP.
EDID Management With three EDID modes to choose from for maximum flexibility and operability with all kinds of display device.
AUTO mode - Copy the EDID of the display device to the HDMI/VGA inputs.
MANUAL mode - Select the user defined EDID, this may need to programming first using the RS232 control software.
PREDEFINED mode - The inputs will use the default EDID settings

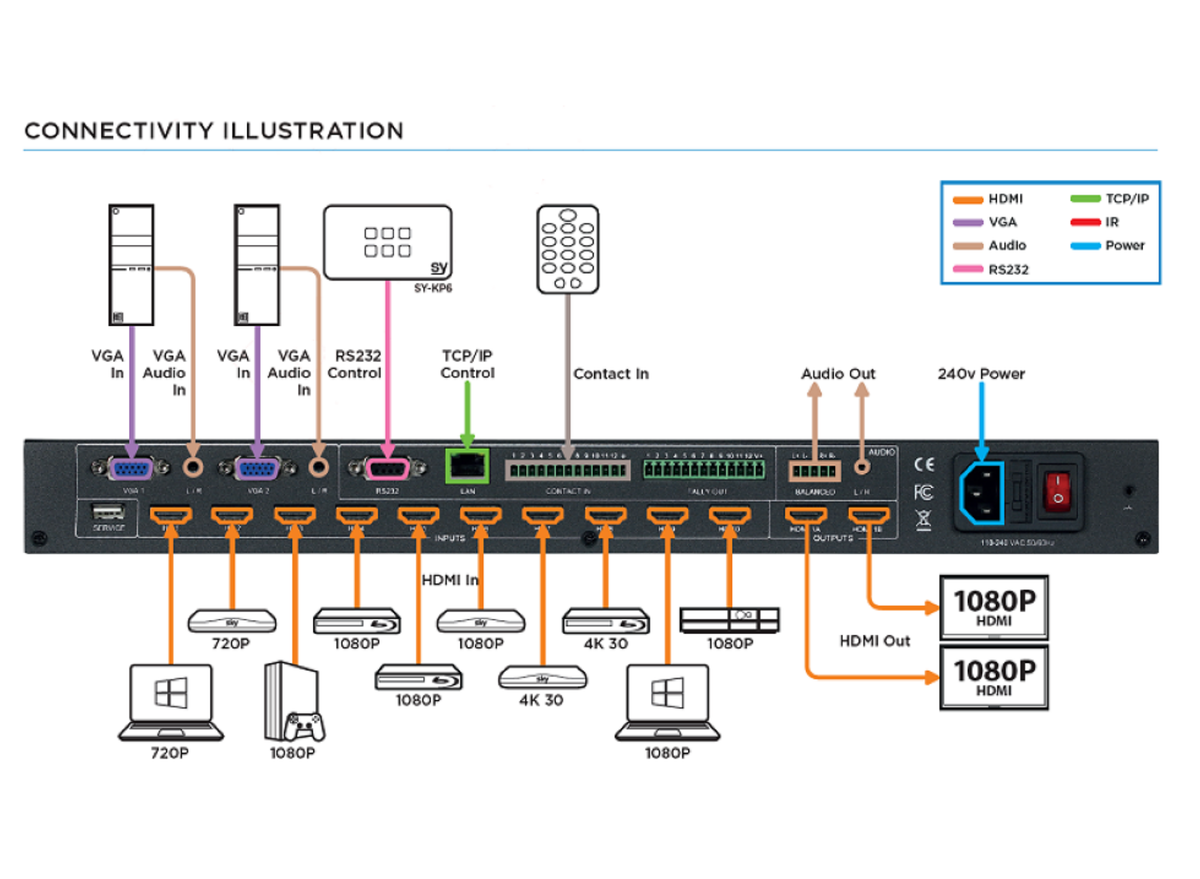

Control All of this can be controlled from either the front panel, RS232, LAN, IR, contact closure or by using the PC App.

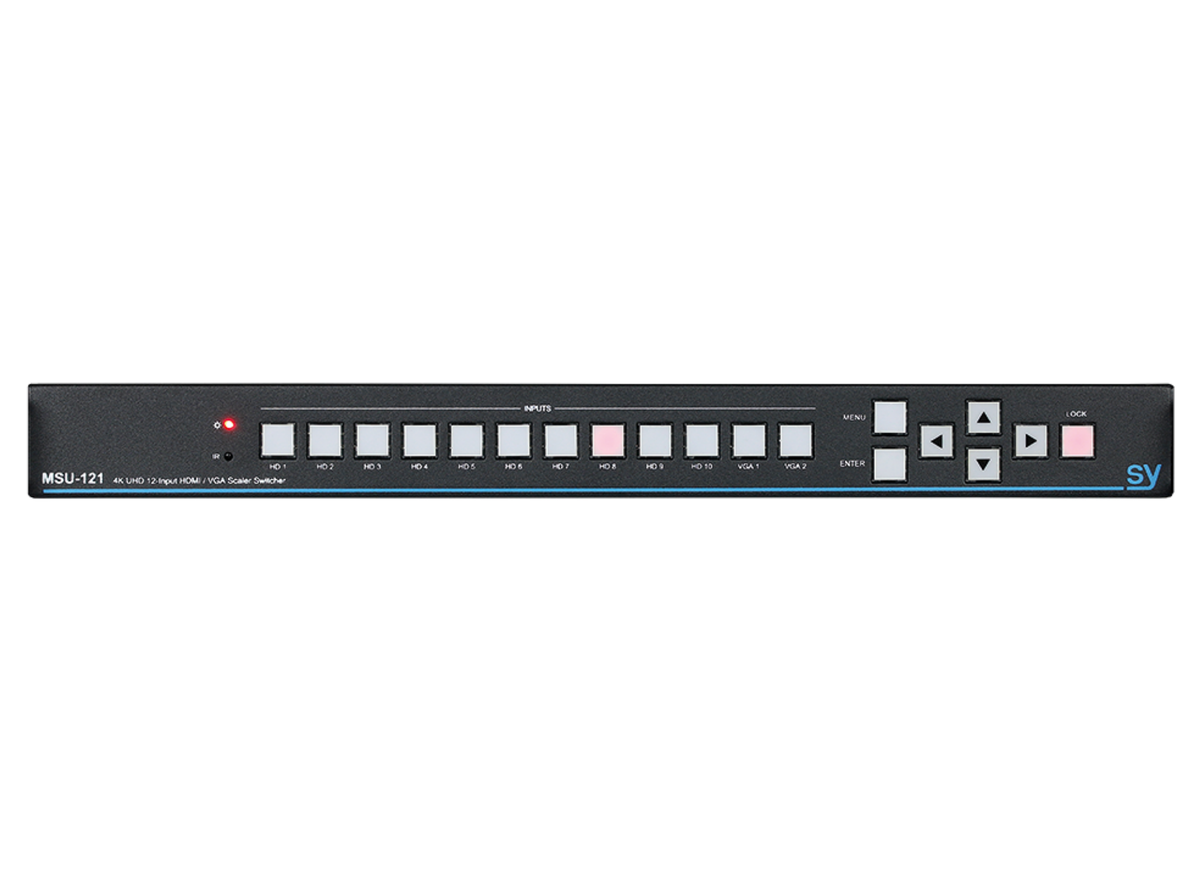

Front panel buttons control the ‘On Screen Display’ Menu which is shown on any connected display device.
This unit is a cost effective 4K Presentation Switcher and can accommodate a variety of installations.
A smart choice for education and corporate environments.
Features
Inputs: 10 HDMI up to 4K UHD, 2 VGA + Audio up to 1920x1200
Outputs: Two mirrored HDMI outputs, Scalable up to 1080P
De-embedded audio
HDMI/HDCP 1.4 Compliant
EDID Management
OSD menu for easy and flexible configuration
Control via TC/IP RS232, IR, Contact closure, PC App
| Part Number | SY-MSU-121 | Bandwidth | 10.2Gbps |
| HDMI Input Resolutions |
All HDMI resolutions to 3840x2160p 30Hz 4:4:4 or 3840x2160p 60Hz 4:2:0 4096x2160p 24/25/30/60Hz (HDMI Only) 3840x2160p 24/25/30/60Hz (HDMI Only) 1080p 24/25/30/50/60Hz 1080i 50/60Hz 1920x1200 60/65/75Hz 1680x1050 60/75Hz 1600x1200 60/65/70/75Hz 1600x1024 60/75Hz 1600x900 60/75Hz 1440x900 60/75Hz 1400x1050 60/75Hz 1366x768 60Hz 1360x768 60Hz 1280x1024 60/72/75/85Hz 1280x960 60/75/85Hz 1280x800 60/75Hz 1280x768p 50/60/75Hz 1280x720p 25/30/50/60/75Hz 1024x768p 60/70/75/85Hz 800x600p 60/72/75/85Hz 720x576p 60Hz 640x480p 60/65/85Hz |
Output Scaler Resolutions |
1920x1080p 60Hz 1680x1050 60Hz 1600x1200 60Hz 1400x1050 60Hz 1400x900 60Hz 1360x768 60Hz 1280x1024 60Hz 1280x720p 60Hz 1024x768p 60Hz |
| HDCP | 1.4 with HDCP Management | HDMI | 1.4 |

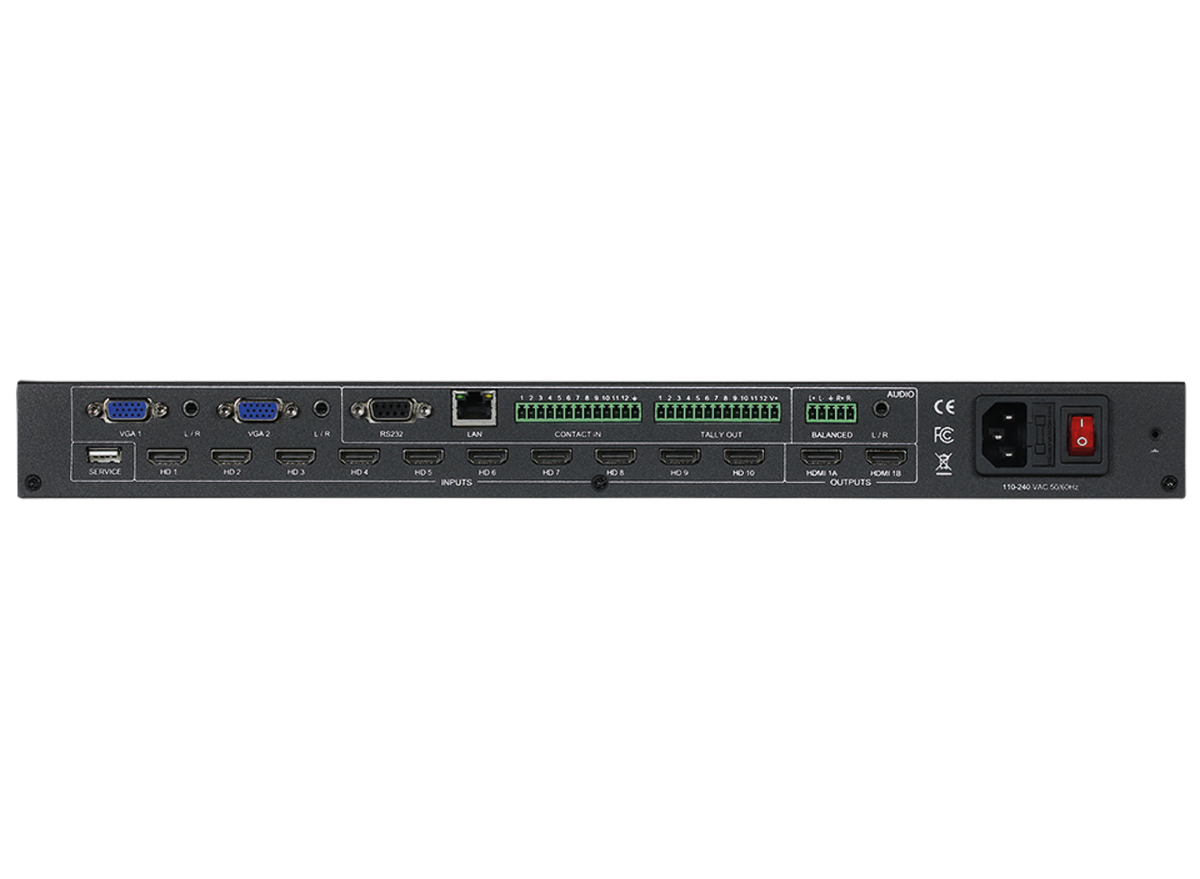

| Video Inputs | 10x HDMI, 2x VGA | Audio Inputs | L+R 3.5mm TRS Jack (for VGA inputs only), 20Hz – 20kHz, 1.5Vrms max. |
| Video Outputs | 2x Mirrored HDMI 1.4 | Audio Outputs | Unbalanced L+R 3.5mm TRS Jack, Balanced L+R 5-way pluggable terminal connector, 20Hz – 20kHz, 1.5Vrms max. |
| Control Ports | IR, LAN, RS232, Contact Closure inputs | RS232 Settings | Baud rate 57600, 8 bits, no parity, 1 stop bit |
| Power Supply | 110~240V AC | Power Consumption | 25W max. (17W Nominal) |
| Weight | 3Kg (net) | Dimensions (WHD) |
430 x 44 x 220 mm Without rack mounted ears and other connectors 19in 1U rack mounting |
| Case Material | Steel chassis | Main Unit | 1x SY-MSU-121 unit |
| Rack Mounting Brackets | 2x Rack mounting brackets (already fitted) | 5-Way Terminal Connector | 1x 5 way pluggable terminal connector |
| 13-Way Terminal Connectors | 2x 13 way pluggable terminal connector | User Manual | 1x SY-MSU-121 User Manual |
| PSU | 1x PSU (IEC C13) | Rack Format | 19in 1U rack mounting |
| Description | Downloads |
|---|---|
| Datasheet | Download |
