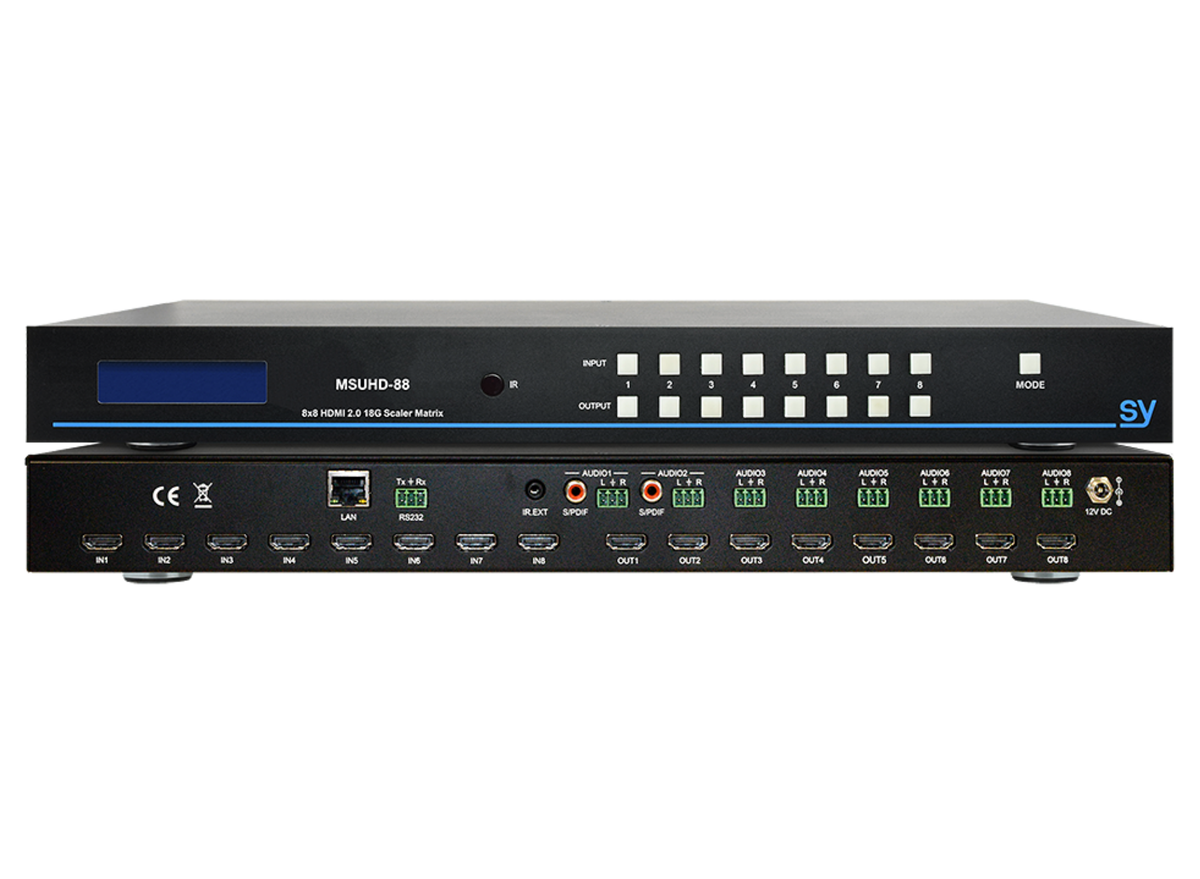

MSUHD-88-18G is an 8x8 HDMI 2.0 4K60 4:4:4 Scaler Matrix. This unit can connect any Input to any Output simultaneously. Transmit your favourite HD sources (Blu-Ray player, Satellite Receiver, Gaming Console, etc) and with a bandwidth speed of 18Gbps, the MSUHD-88 can easily connect to both 4K and legacy HD projectors/displays without any compromise. With Up / Down Scaling, and HDR.
The output signals are amplified and equalised for the best HDMI signal without loss of quality.
SCALING – All outputs can have their own scaling options set independently. Choices include Bypass mode, Up Scaling from 1080p to 4K (along with video enhancement modes), Down Scaling from 4K to 1080p, and HDBT Auto Mode.
HDMI – Compliant to HDMI version 2.0 with a max bandwidth of 18Gbps.
HDCP – Can pass HDCP, or can be set to V1.4, V2.2, or Cascade mode.
EDID – Management of EDID ensures stable installation performance, with the ability to read the EDID from the display and then to store it to each input independently. Can be managed from the front panel buttons or via RS232 commands. With 30x built-in pre-defined EDID settings, and 3x user programmable EDID memories.

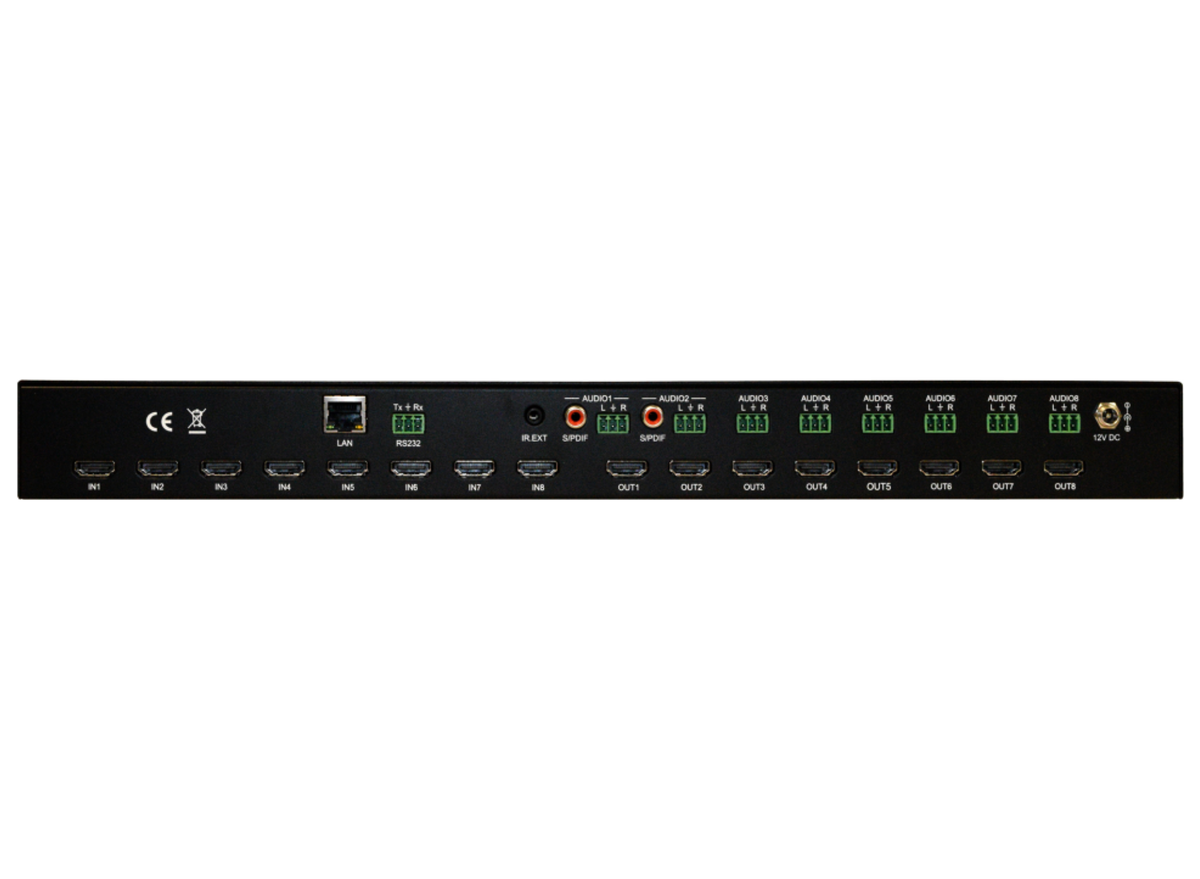

Audio De-embedding is also built in with de-embedded audio per output. Analogue audio De-embedding is on all 8x outputs via 3 pin screw terminals, with Coax Digital Audio on outputs 1 and 2 via RCA connectors.
Control of all switching functions is carried out via a choice of Front Panel Buttons, IR, RS232 or LAN. A remote Infra Red handset is included to select Inputs and Outputs.

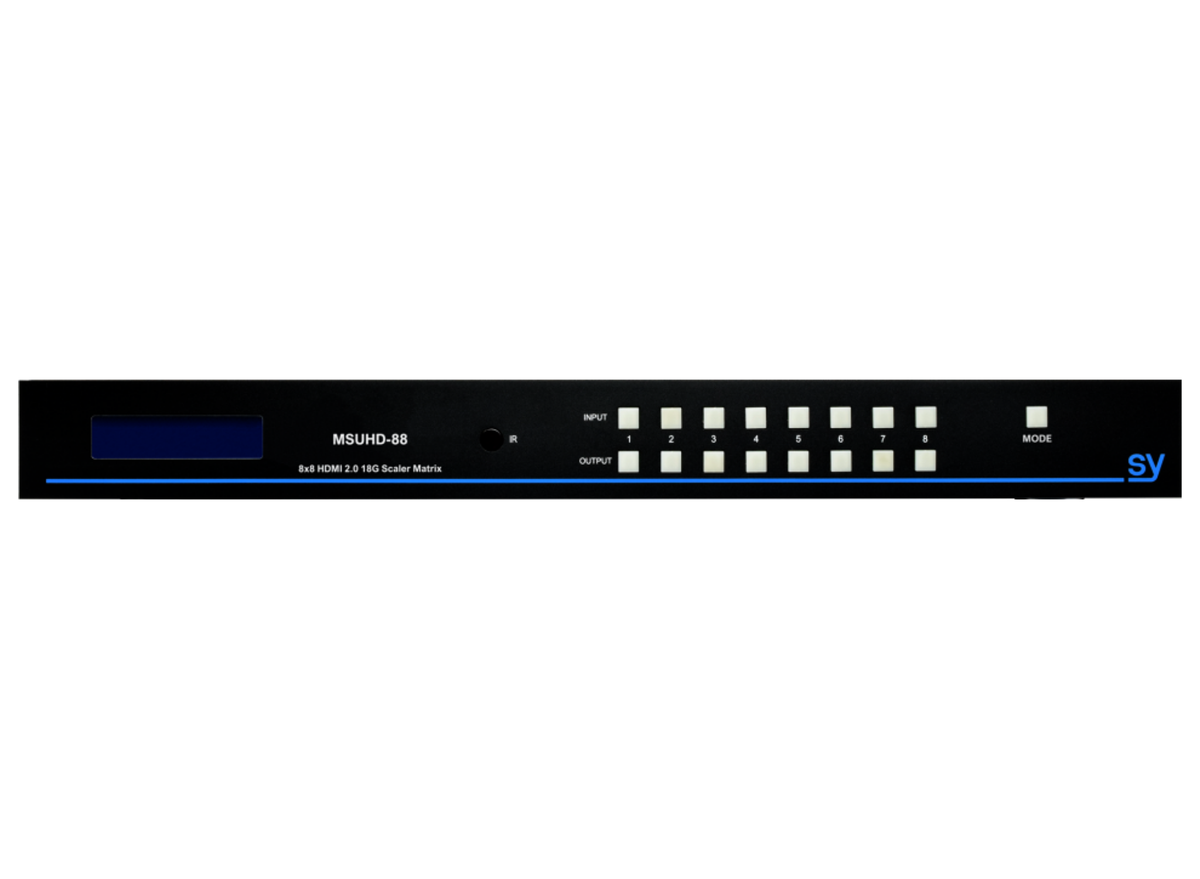

Front panel display - An LCD display shows the current matrix routing and aids with visual confirmation of other settings.
This unit is 1U and can be fitted into any rack with ease.
The MSUHD-88 offers a solution for digital entertainment centres, HDTV retail, show sites, data centre control, information distribution, conference room presentation, school and corporate training environments
FEATURES
8x8 HDMI 2.0 (18Gbps) Matrix
HDMI 2.0, 4K60 4:4:4 and HDCP 2.2 compliant
4K, 1080p Up/Down scaler per output
8x Analogue L/R and 2x Digital S/PDIF de-embed audio outputs
HDR
Extensive EDID Management
Control: Front panel, IR, RS232, LAN
| Part Number | SY-MSUHD-88 | Bandwidth | 18Gbps |
| Video Resolutions / Formats | All PC and Video formats supported including: 480i / 576p / 720i / 720p / 1080i / 1080p / 3840x2160 (8bit 60Hz 4:4:4) with HDR | Input HDCP | Accepts all versions up to HDCP 2.2 |
| Output HDCP | Pass through or Cascade mode | Video Inputs | 8x HDMI 2.0 |
| Video Outputs | 8x HDMI 2.0 | Analogue Audio Outputs | 8x L/R de-embed audio outputs via Phoenix terminals (outputs 1-8) |
| Digital Audio Outputs | 2x S/PDIF digital de-embed audio outputs (outputs 1-2) | Control | Front panel buttons IR RS232 LAN |
| Power Supply | 12V | Main Unit | 1x MSUHD-88 |
| Rack Ear Brackets | 2x Rack Ear Brackets with 6 chassis screws | IR Handset | 1x IR Handset |
| IR Receiver | 1x IR Receiver | User Manual | 1x User Manual |
| UK Power Plug | 1x 0.5m UK power plug | Package Contents | MSUHD-88, rack ear brackets with screws, IR handset, IR receiver, user manual and 0.5m UK power plug |
| Description | Downloads |
|---|---|
| User Manual | Download |
