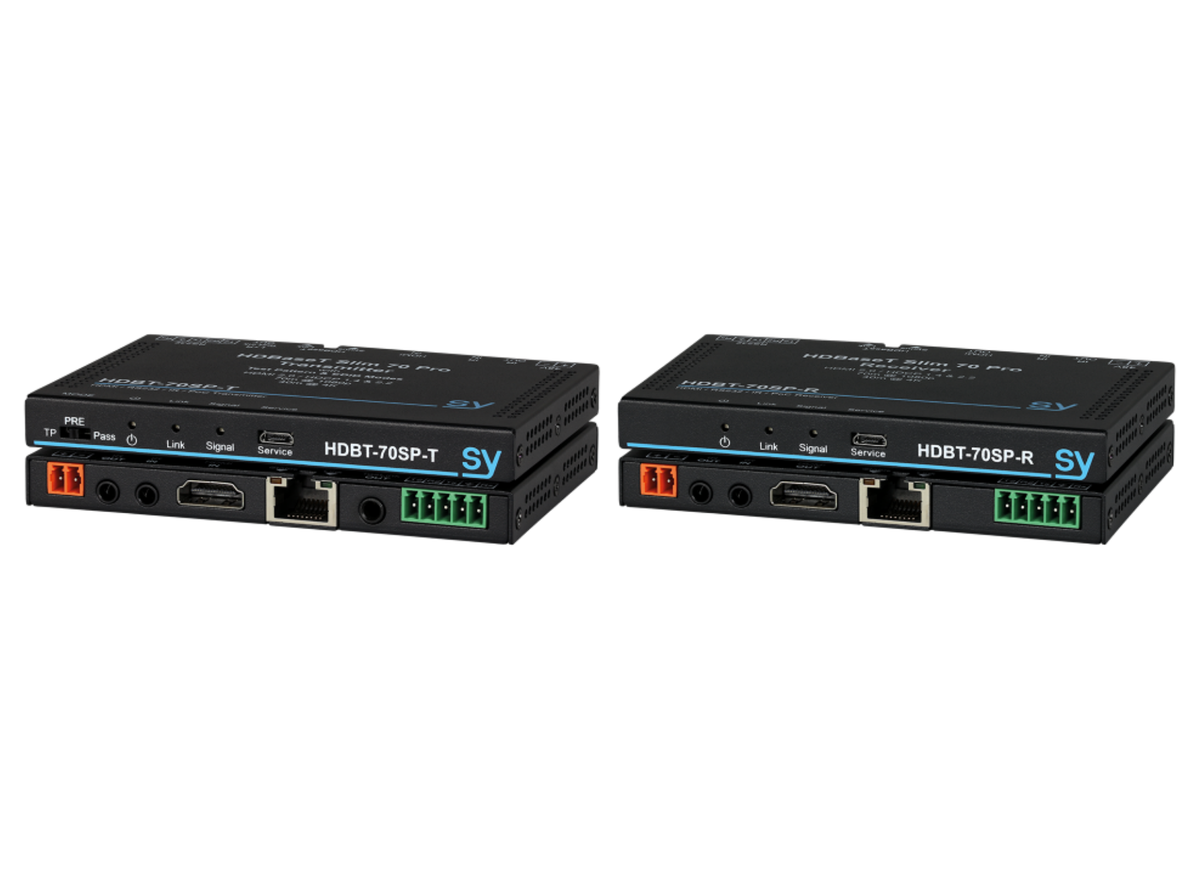

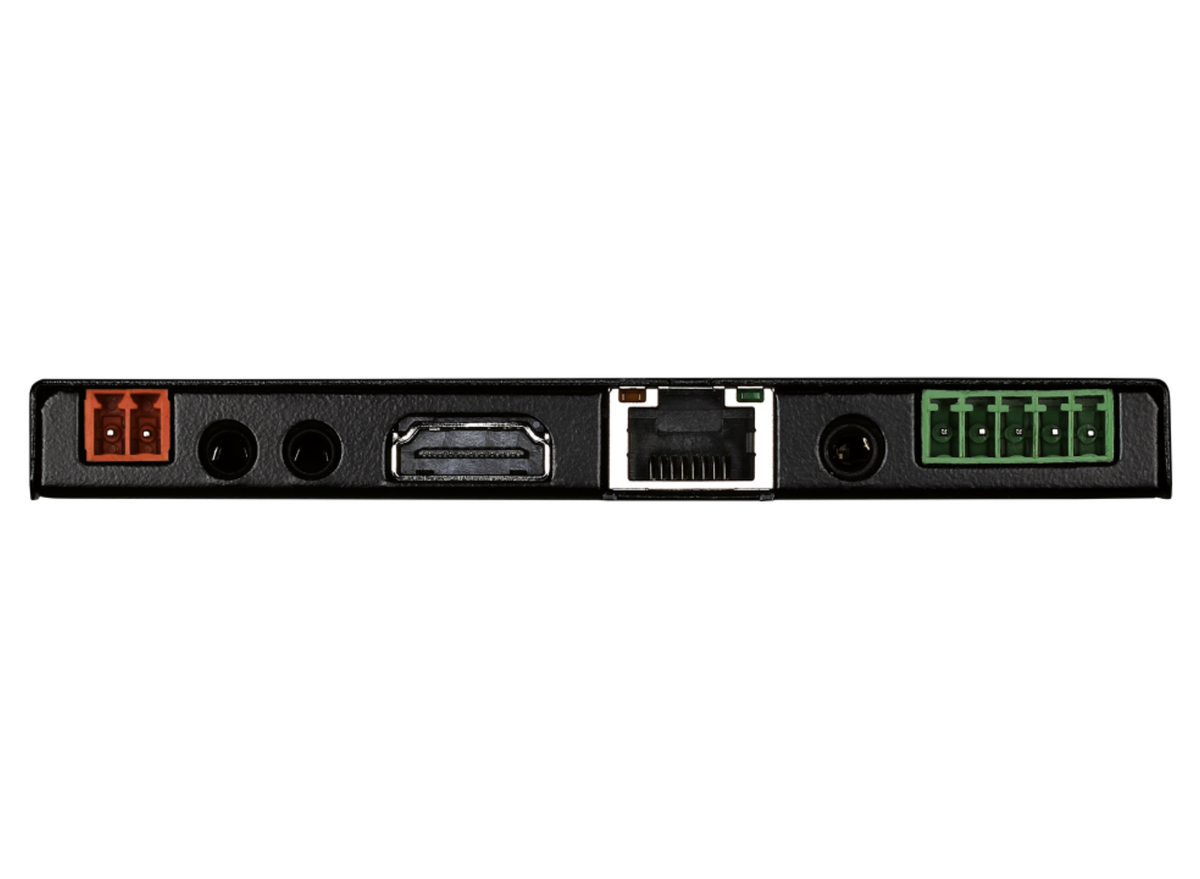

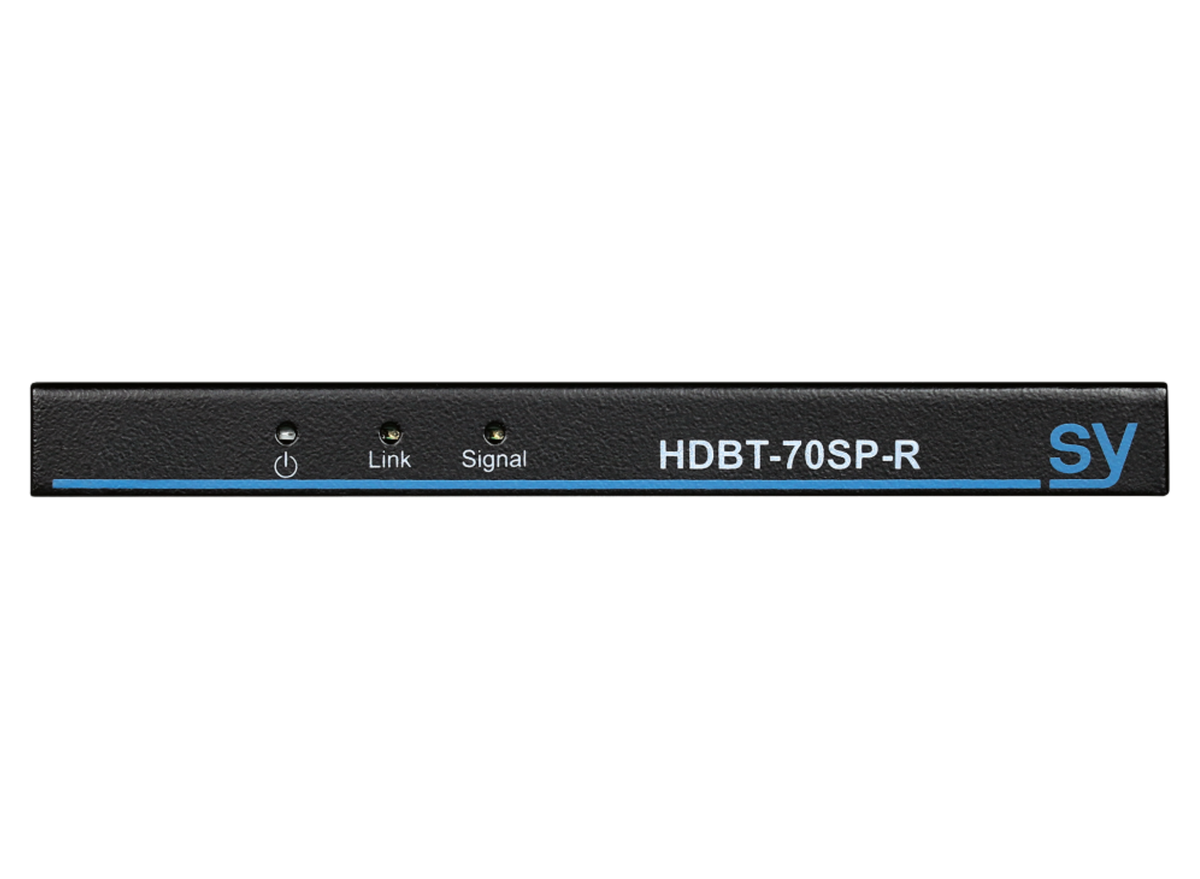

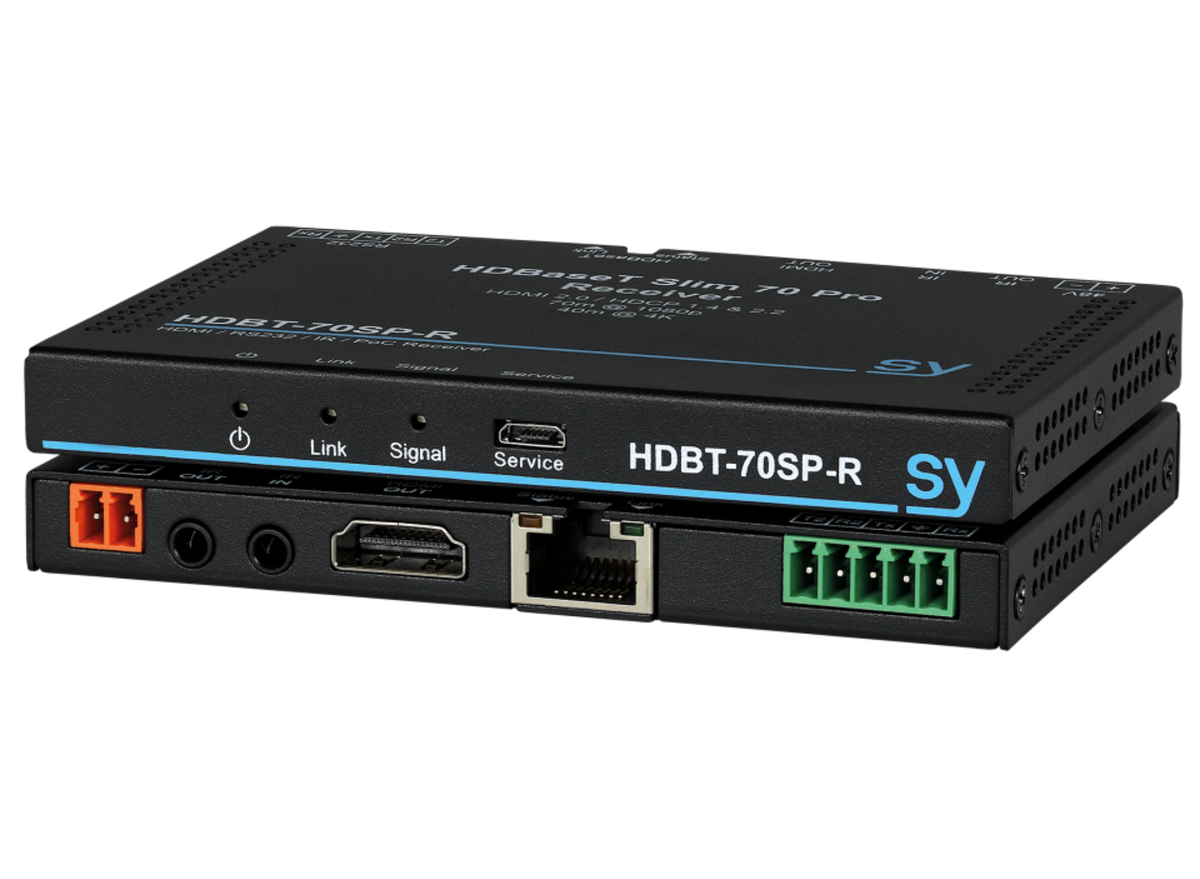

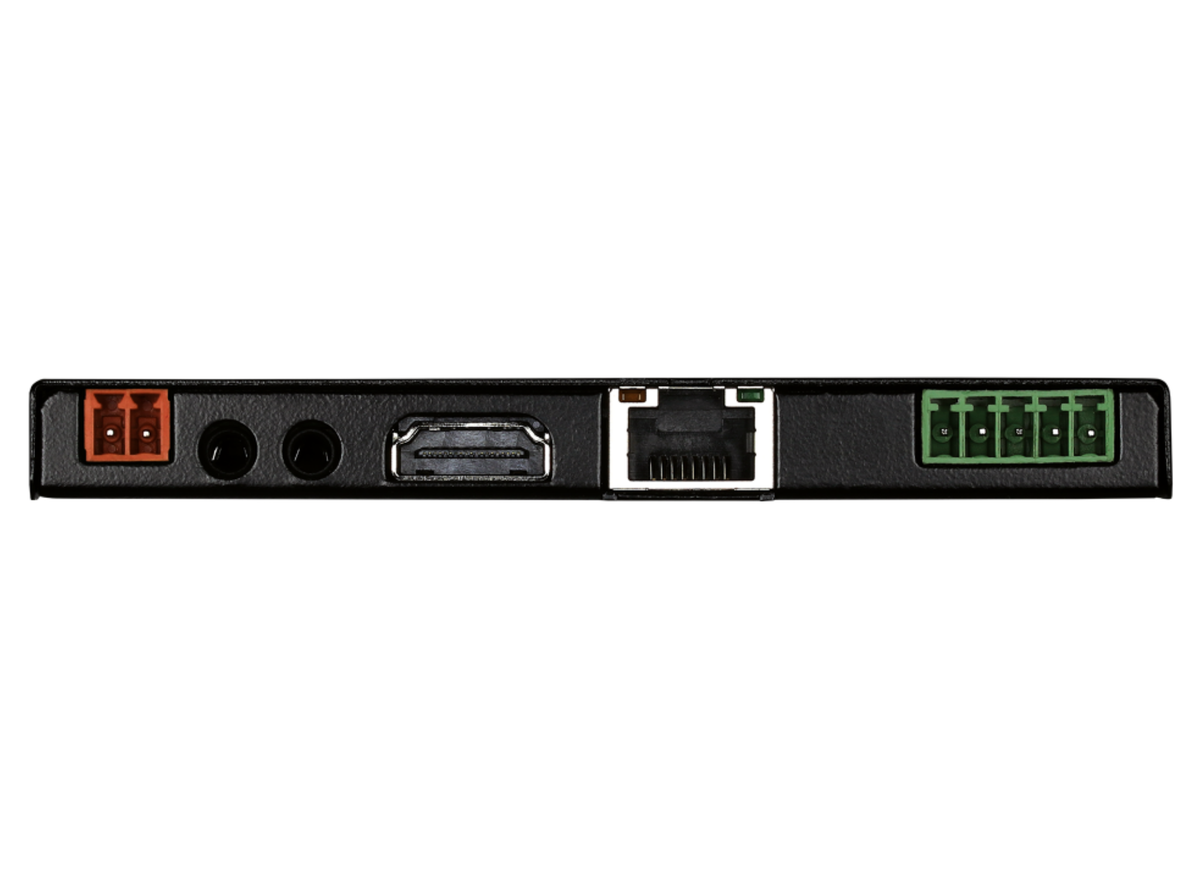

SY Electronics Slim70 Pro 4K HDBaseT Extender Set 70m | SY-HDBT-70SP-SET

Advanced Long-Range 4K Signal Extension with Scaling, Control and Diagnostics

In the Slim 70, we’ve taken the most reliable and slimmest 4K HDBaseT extender set on the market and pumped it full of performance enhancing features. The Slim 70 Pro extender is truly formidable and one of the most versatile and innovative HDBaseT Extenders available. It has all the basic features such as Bi-directional IR, Dual independent RS232 ports, and extending HDMI signals via Cat 6 up to 70m @1080p or 40m @4K. However, not only it can accept all HDMI 2.0 video formats to 4K60 4:4:4, but it also has a host of amazing features, including;

Scaling - The built in Down-Scaler can be used in two modes: Either as Colour Space Scaling for 4K60 4:4:4 to 4K60 4:2:0, or Resolution Down-Scaling from any 4K (inc 4K60 4:4:4) to 1080p (frame rates are always preserved). As an example, any 4K source can be displayed on a 1080p display, or a 4K 18G video signal can be scaled appropriately to fit within 10.2G bandwidth limit of HDBaseT.

HDCP Control - Support and ‘Management of HDCP’ ensures compatibility, allowing you to control the HDCP from the HDBaseT extender. You can convert from HDCP 2.2 down to HDCP 1.4, or simply put the unit into Cascade Mode - No more HDCP issues.

EDID Management - As well as pass-through, there are 15 pre-set EDID settings together with a programmable EDID option. The extensive EDID management facility can ensure the video source is optimised to suit the installation.

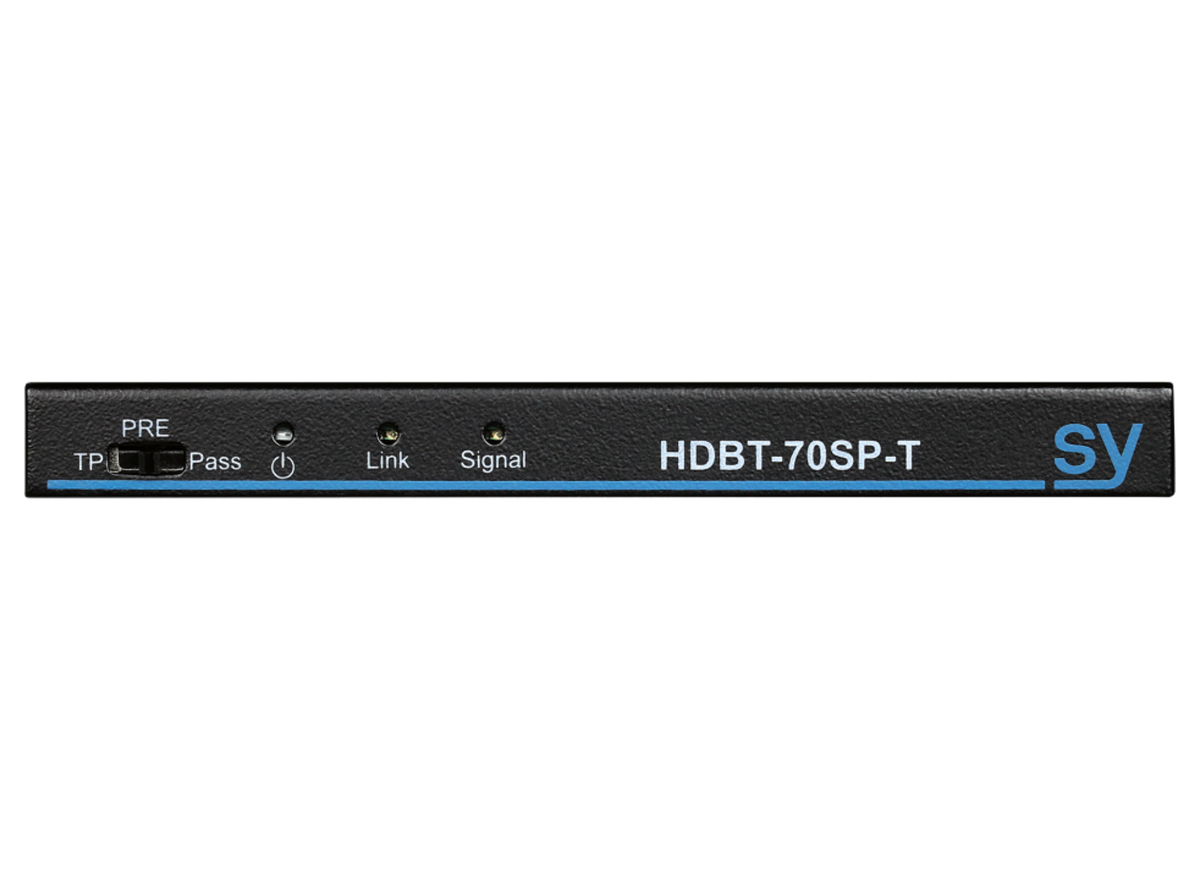

Test Pattern Generator - We have equipped this Professional device with an on-board ‘Test Pattern Generator’ complete with a choice of 12 Test Patterns including Checkerboard or Solid Colour Patterns, at 4K@30/25/24, 1080p, 720p. Perfect for commissioning or checking all the component parts from the transmitter to the display unit.

Video Keep Alive - The ‘Video Keep Alive’ option, maintains video output whenever the input video is lost. This function can be very useful in particular with projectors, as otherwise they could shut down and run a long cool down sequence.

Audio De-embedder - The Transmitter unit has Audio De-embedding available via a Combo 3.5 audio jack. The unit provides de-embedded audio as either stereo analogue or digital Toslink signals up to 7.1, including Dolby Digital and DTS formats.

Control - The Slim70-Pro is equipped with pass-through bi-directional IR ports and 2x RS232 ports. The 2nd RS232 port can also be used as RTS/CTS, should it be required. The Transmitter/Receiver units can also be controlled through the primary RS232 connection, from either end, utilising the built-in feature rich diagnostics and installation tools.

CEC Control - The display unit status, Power on/off, and Volume can be controlled via the HDMI CEC line, using universal CEC commands. This can simplify the installations, and particularly useful when a display does not have an RS232 interface. The commands can be triggered from RS232 or Via the PC control software.

HPD Toggle - The ‘Hot Plug Detect Control’ toggles the HPD signal, hence forcing the source to re-communicate with the display. This behaves as though the HDMI cable has been disconnected and reconnected, alleviating the need to physically do so. Ideal for when controlling equipment that is not easily accessible.

Full Diagnostics - Various other useful diagnostic parameters can be monitored and controlled, for instance:- as well as ‘HPD toggle’ control there is also the ability to take measurements of the ‘Cat6 cable length’, Transmitter/Receiver Supply & iPoC Voltages, HDBaseT Signal & Link Status, HDBaseT Signal Error, along with information about the ‘Input HDMI Signal’ such as: Resolution, Refresh Rate, Colour Depth, HDR Setting, Audio Settings, Audio Rate, Audio Channels, HBR and HDCP. The diagnostic tools are invaluable for any installation.

Heat Management - All HDBaseT devices generate a significant amount of heat. It is important to dissipate this heat in order to keep the main chipsets within limits. The Slim70-Pro revolutionary ultra slim design (11.5mm Thin) ensures that the heat generated by the chipsets is dispersed away and efficiently dissipated through the metal case. Although the case may feel warmer to touch, we ensure the core chip temperature is significantly reduced, contributing to long term system reliability.

Temperature - All HDBaseT units need to be ventilated to ensure temperature rise is within limits. However, this can be violated due to poor installation or inadvertent circumstances, such as fan-tray failure in a rack. Under such abnormal conditions if the temperature rise becomes critical, the Slim70-Pro can send a warning messages and can even shut-down so that it does not sustain potential degradation/failure. The warning signals help to alert and highlight installation problem. The ‘warning’, ‘Shutdown’, and ‘Re-power’ temperature values can be adjusted to suit the particular installation. The Transmitter and Receiver real time temperatures can be monitored for diagnostics or as an element of the control system.

iPoC - Only one PSU is required to power both Transmitter and Receiver units form either end. The iPoC (intelligent Power over Cable) system ensures the power is made available only to other iPoC compatible devices. For example, the Slim70-Pro transmitter will not apply 48V power to a projector with HDBaseT input, ensuring safe operation.

SY-PCTools - This is a PC software package that allows the user to interface/control most of SY products, all within one Tool. The Slim70-Pro control panel tool provides a very simple and easy interface for managing /monitoring the Slim70-Pro set. This is highly recommended for installation as well as possible maintenance requirements.

The Slim70-Pro is still the slimmest HDBT extender in the world, the perfect evolution of technology building upon the famous Slim 70 series. It is ideal for use in all applications including Digital Signage, Education, Office Displays, Meeting Rooms, and Home Cinema along with the more critical environments like MOD, ensuring your signal is solid, stable and responsive to its environment.

Features
Ultra Slim Form Factor (11.5mm)
1080p to 70m, 4K30 to 40m
Down Scaling (Colour space) – 4K60 4:4:4 to 4K60 4:2:0
Down Scaling (Resolution) – Any 4K signal to 1080p
Bi-directional IR
Audio De-embedder – Analogue and Optical Toslink
EDID, HDCP, and CEC Control
Test Pattern Generator – Various patterns, Resolutions, Hz
Video Keep Alive – Perfect for projectors
Temperature Reporting and Safety Shut Down
Cat6 Cable Length Measurement
HPD Toggle
Diagnostics – Great for installation and trouble shooting
