The SY-2A-20W is a 20W per channel Stereo Audio Amplifier, with 2 Audio inputs + Microphone/Line input.

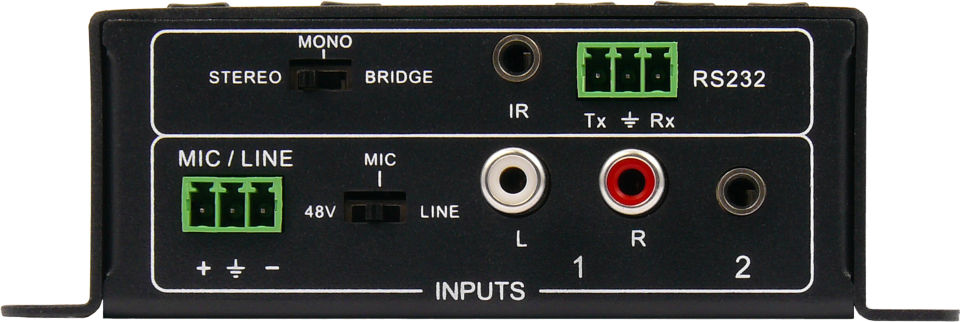

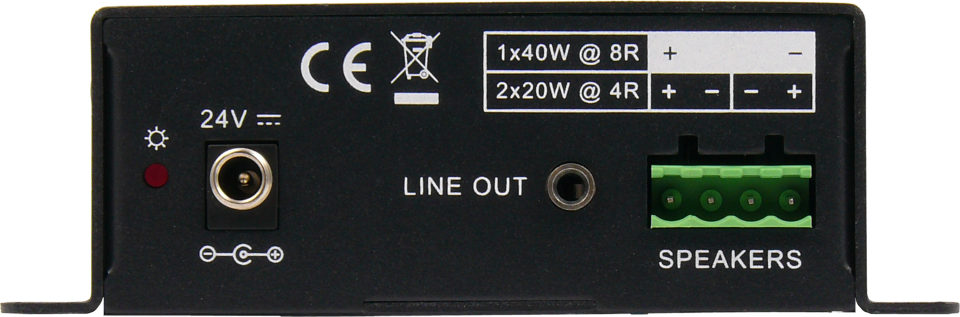

This Stereo Amplifier accepts L+R analogue inputs via a 3.5mm TRS Jack or L+R RCA inputs and a Microphone input with Auto Ducking feature for professional talk over effect. The Mic input can be set to MIC level with or selectable 48V phantom power or to LINE level. All inputs can be summed internally to provide a Mono output, and has a rated output of 20W per channel or 40W in bridge mode, to feed a Mono 8ꭥ speaker load. The 2A-20W is controllable by RS232, with Volume Up, Down, Balance and Mute along with Absolute Volume commands for exact and accurate system control. All control buttons are on the top panel
This is an ideal product for either rack installation or fitting into credenzas and AV cupboards as found in many boardroom and classroom equipment installation scenarios.
Features
Two analogue L+R inputs plus a balanced MIC/Line input.
Line level output.
2x 20Watts output 4ꭥ stereo
1x 40Watts output 8ꭥ Bridge mode
RS232 controllable
Absolute Volume commands
Balance and Mute commands
MIC Ducking
48V Phantom Power
24V DC power supply
| Audio Inputs | 1x Mic/Line 1x Phono Connectors L+R 1x 3.5mm L+R | Audio Outputs | 1x 3.5mm Line Out 1x Set Speaker Terminals |
| THD+N | 1kHz is 1% | Amplifier Design | Efficient Cool Running Class D |
| Stereo Power Rating | 2x 20 watts output into 4Ω in Stereo mode | Bridge Power Rating | 1x 40 watts output into 8Ω in Bridge mode |
| Speaker Impedance | 4Ω to 8Ω speaker compatible | Configurations | Mono / Stereo / Bridge modes |
| Control | Top panel buttons 1x IR port 1x RS232 port | Power Supply | 24V DC 2.71A |
| What's in the Box | 1x 2A-20W Audio Amplifier 1x 3 pin screw terminal line connectors 1x 3 pin screw terminal serial connector 1x 4 pin screw terminal speaker connectors 1x 24V Power Supply 1x Quick Start Guide 1x User Manual | Amplifier Type | Class D Stereo / Mono / Bridge Audio Amplifier |
