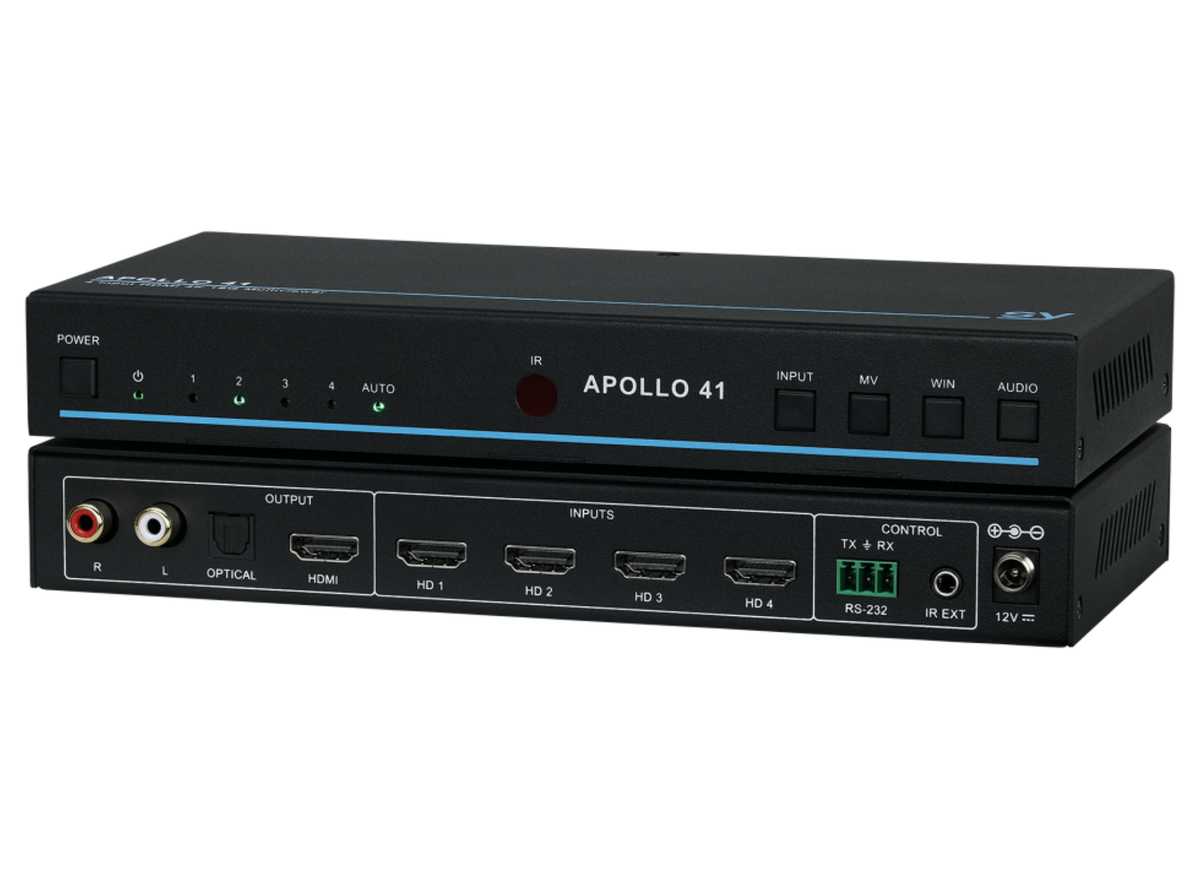

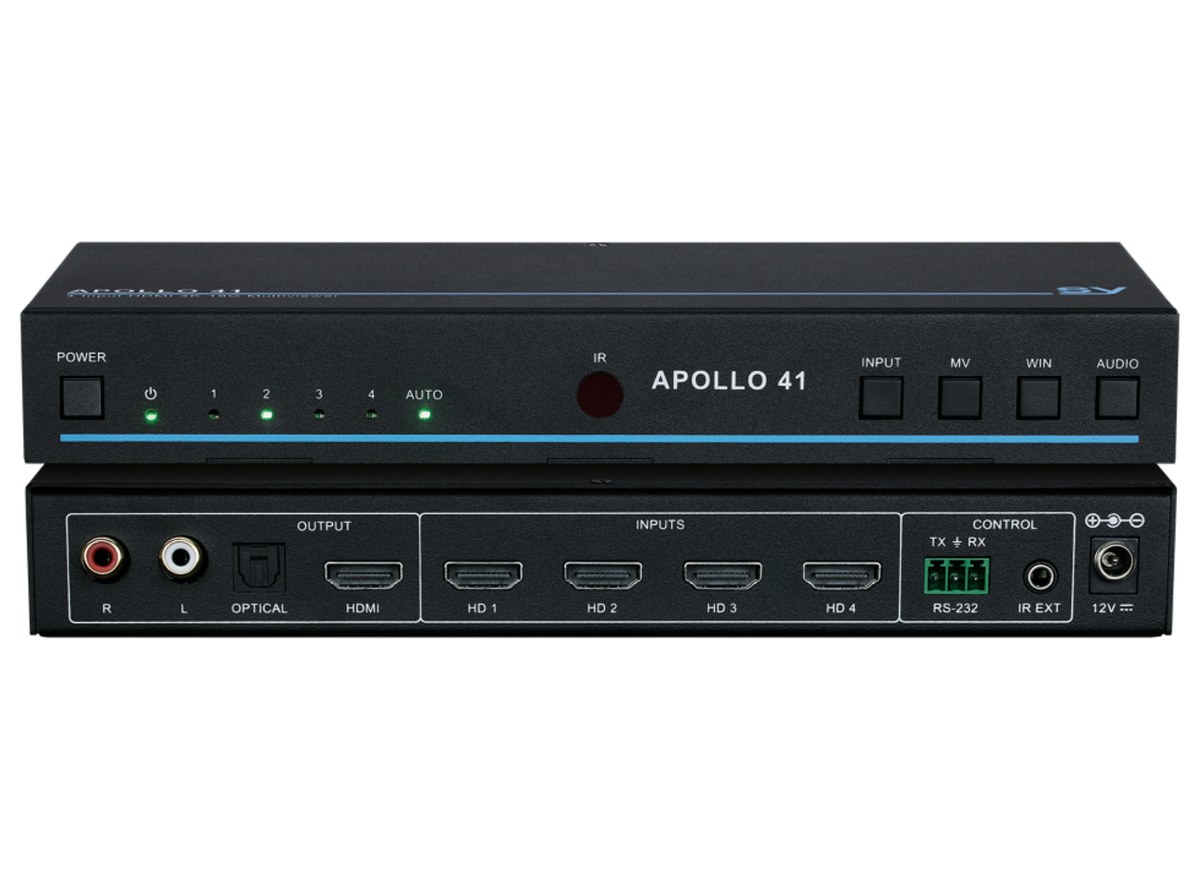

Apollo 41 – 4x1 Seamless Switcher & Multi-viewer

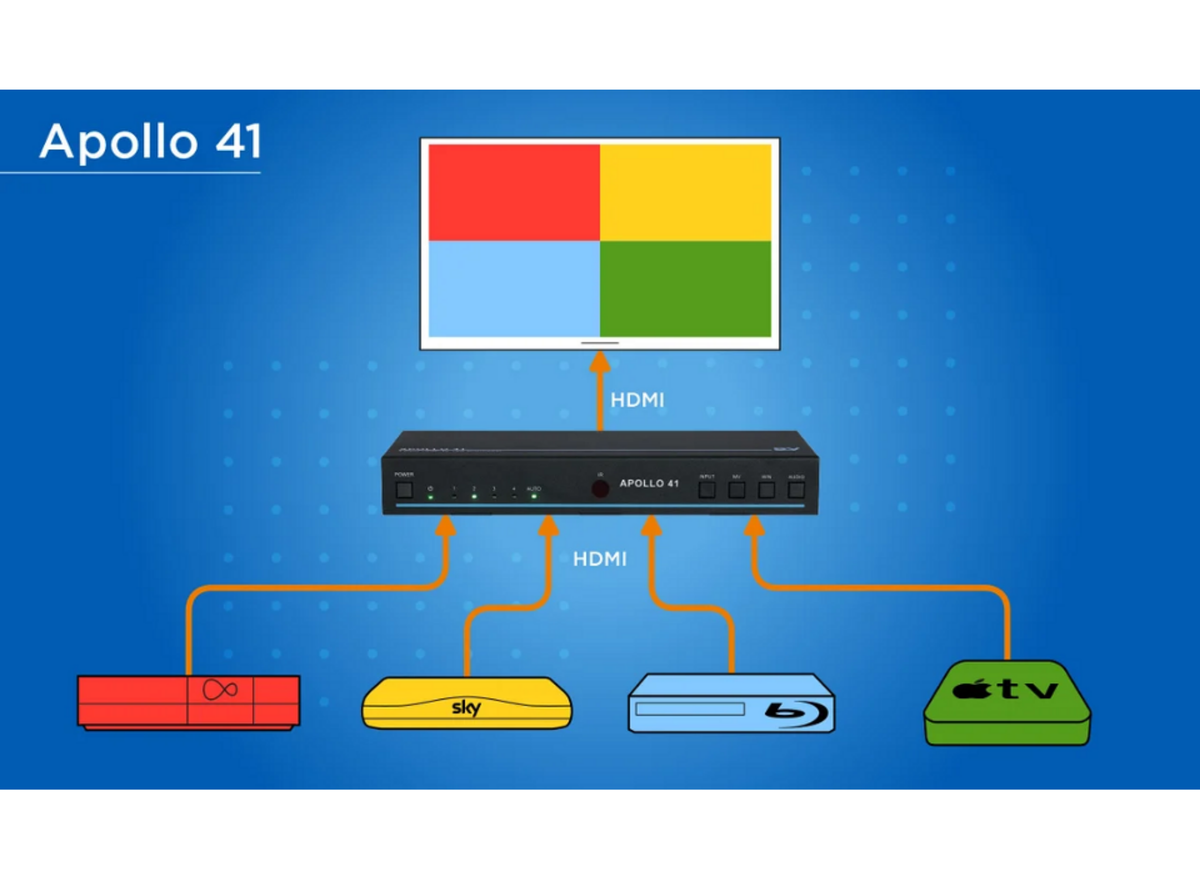

Seamless Multi-viewer with the ability to accept up to 4x HDMI 18G inputs, 1x HDMI output and perform wide range Scaling up to 4K 60Hz 4:4:4. Capable of displaying in Single, Dual, Triple, Quad Multi-View or various PIP modes via the HDMI output. An audio de-embed option is available as optical Toslink or L+R analogue output from any of the HDMI inputs. Apollo 41 is an ideal presentation solution for management of multiple video sources onto one display for offices, huddle spaces and educational and residential settings.
Seamless 4x1 Switcher – Seamlessly switch between 4x HDMI 2.0 inputs, to 1x HDMI 2.0 output, capable of 4K60 4:4:4 60Hz 18G.

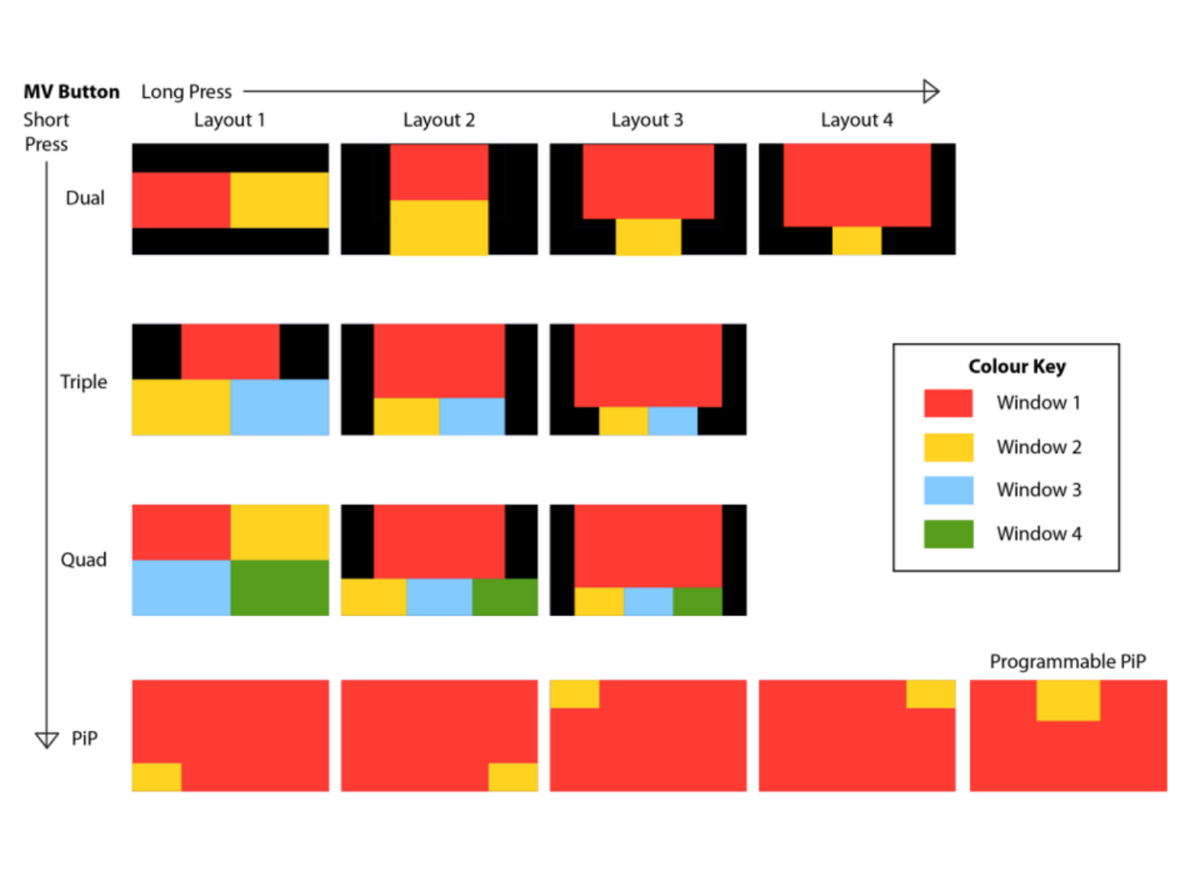

Multiview mode – Any of the 4 available inputs can be selected to display in Single, Dual, Triple or Quad view, with various options of window size.
PiP – Any two inputs can be used to create a customised picture in picture, which includes window size and position.
Wide Range Scaling – Full Up/Down 4K 18G Scaling with complete control over both resolution and refresh rate, ensuring an optimal image based on the display's capabilities.
Audio Control – Mute function and control of output volume. Audio can be de-embedded via Toslink or Analogue L/R RCA jacks. Any of the available inputs' audio can be independently selected at any time.
VKA – The Video Keep Alive function can maintain a video output when there is no signal. When there is no active input signal, the display can be configured to show a blue or black image, ensuring that the screens remain active until a new signal is detected.
IT Content Setting – The IT Content (ITC) setting tells the display to use its own video quality processing algorithms, instead of the Intel graphics driver when movies are played in full-screen mode to ensure the best video quality.
HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into Cascade Mode.

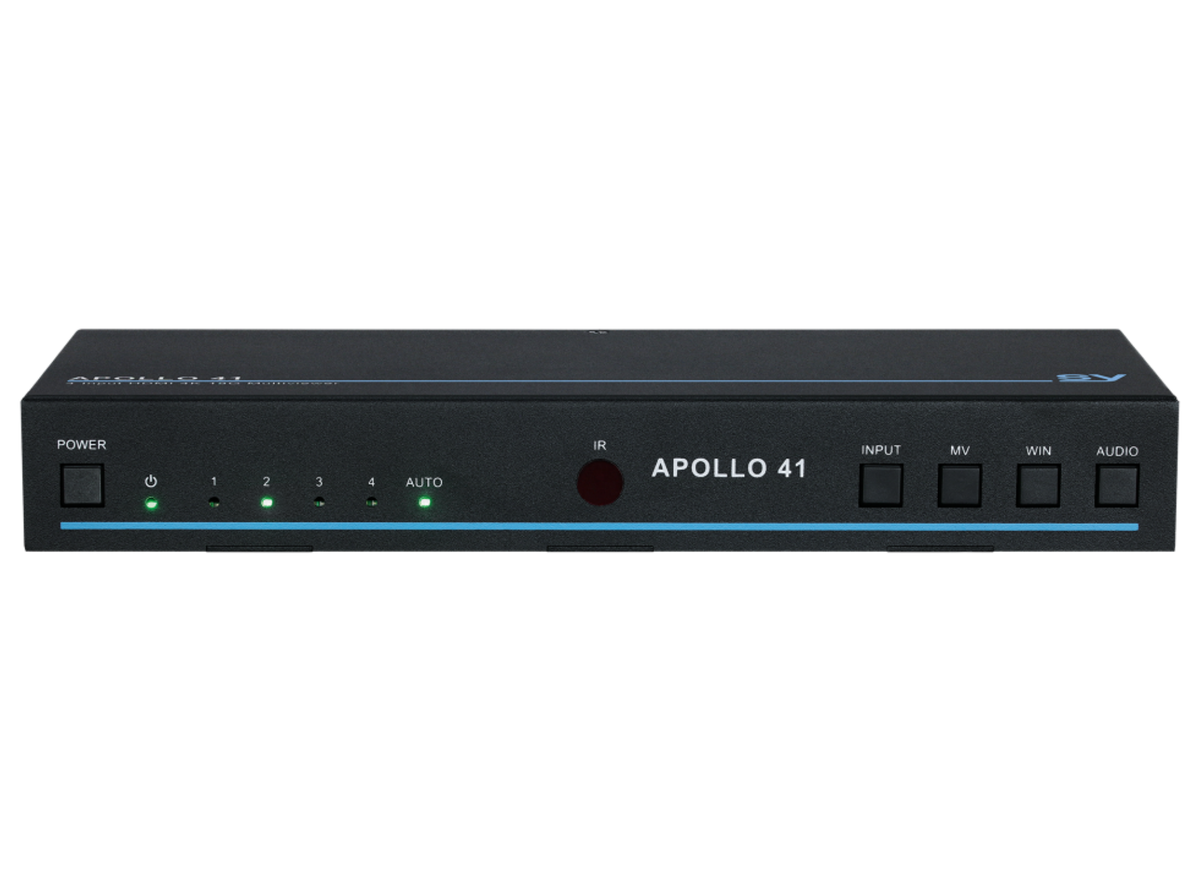

Auto or Manual Switching – In Single mode, the auto-switch feature will automatically select the newly connected source. When currently selected source is lost, the next available active input will be automatically selected. Manual switching can be carried out from the front panel, IR or RS232.
Features
4x1 4K 18G Switcher & Multi-viewer
Seamless Switching
Wide range Scaler to 4K60 4:4:4
Single, Dual, Triple, Quad display modes
PiP (Picture in Picture)
Extensive EDID control
HDCP management
VKA (Video Keep Alive)
ITC (IT Content)
De-embed audio
| Part Number: | SY-Apollo 41 | Input HDMI Version: | HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported |
| Output HDMI Version: | HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported | Input HDCP: | HDCP 1.4, 2.2 |
| Output HDCP: | Fully controlled – Pass through, 1.4, 2.2, Cascade mode | Input Resolutions: | All HDMI and PC resolutions up to 4K 60Hz 4:4:4 |
| Colour Spacing: | Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 | Colour Depth: | 8, 10, 12 bits |
| Up & Down-Scaling: | Various resolutions and refresh rates up to 4K@60Hz 4:4:4 | Audio Formats Supported: | 2.0, 2.1, 5.1, 7.1 channel LPCM, Dolby, AC3, DTS |

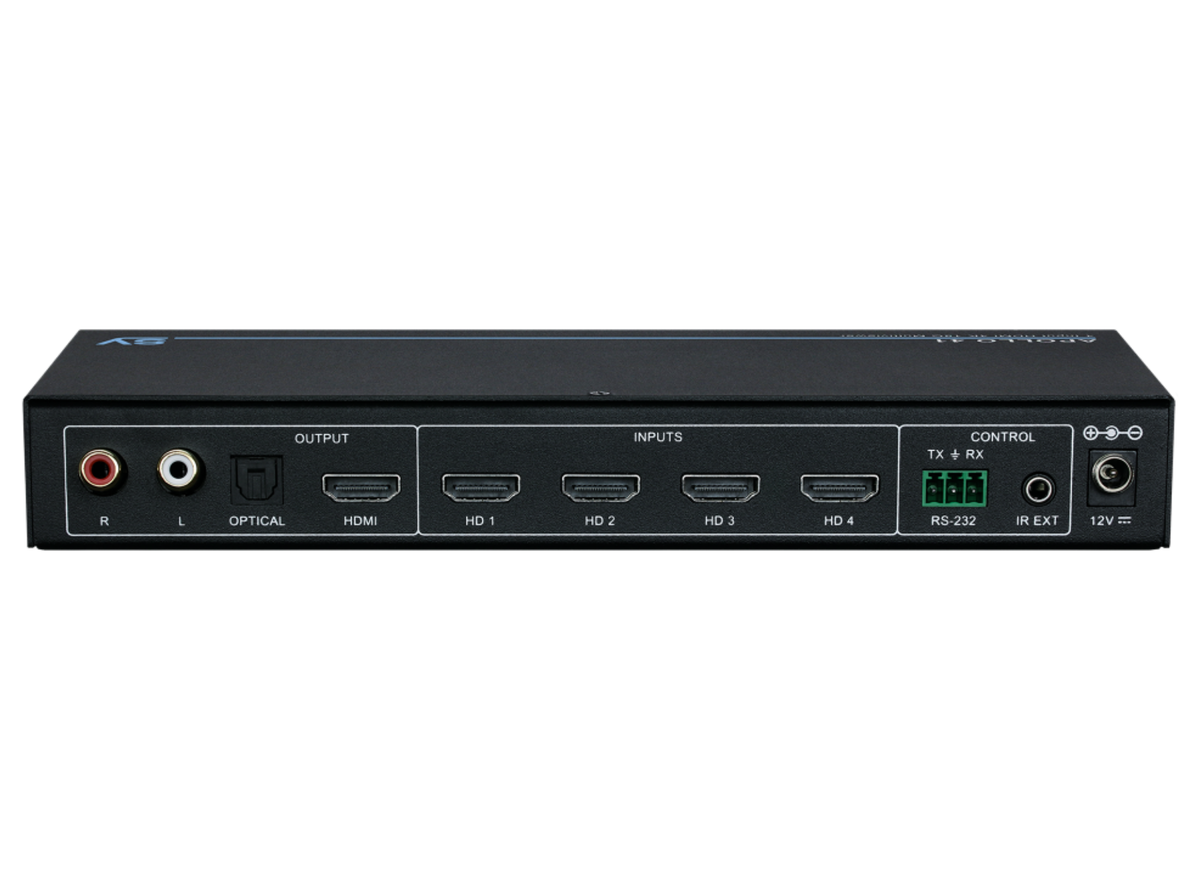

| De-embedded Audio Out: | Optical Toslink and line level analogue audio RCA L/R | RS232 Control: | 1x RS232 (3-way pluggable terminal block) (57600 bps, 8 bits, no parity, 1 stop bit) |
| IR Extension: | 1x IR Ext (3.5 stereo jack) | Front Panel Control: | Front Panel buttons |
| Front Panel IR: | Front Panel IR | HDMI Inputs: | 4x HDMI Inputs |
| HDMI Output: | 1x HDMI Output | Optical Audio Output: | 1x Optical Toslink Digital audio out |
| Analogue Audio Outputs: | 1x RCA L and R Analogue audio outs | IR Input: | 1x 3.5mm TRS IR Input |
| RS232 Connector: | 1x Phoenix Screw Terminals for RS232 | Front Panel IR Eye: | 1x IR Eye on front panel |
| Power Input: | 1x 12V DC Power input (2.1mm barrel jack) | Power Consumption: | 10W max |
| Power Supply: | 12V 2.5A DC – (2.1mm barrel jack) | Operating Temperature: | 0 ~ +40°C (32 ~ 104F) |
| Operating Humidity: | 10 ~ 90% RH (Non-condensing) | Dimensions (WDH): | 220 x 100 x 30mm |
| Weight (Net): | 620g | Main Unit: | 1x SY-Apollo 41 |
| User Manual: | 1x User manual | DC PSU: | 1x 12V 2.5A DC PSU (Locking) |
| IR Eye: | 1x IR Eye | IR Remote Control: | 1x IR remote control |
| Terminal Connector: | 1x pluggable 3-way screw terminal connector | Mounting Ears: | 2x Mounting Ears |
| M3 Screws: | 4x M3 screws | Rubber Feet: | 4x Rubber feet |
| Description | Downloads |
|---|---|
| Datasheet | Download |
