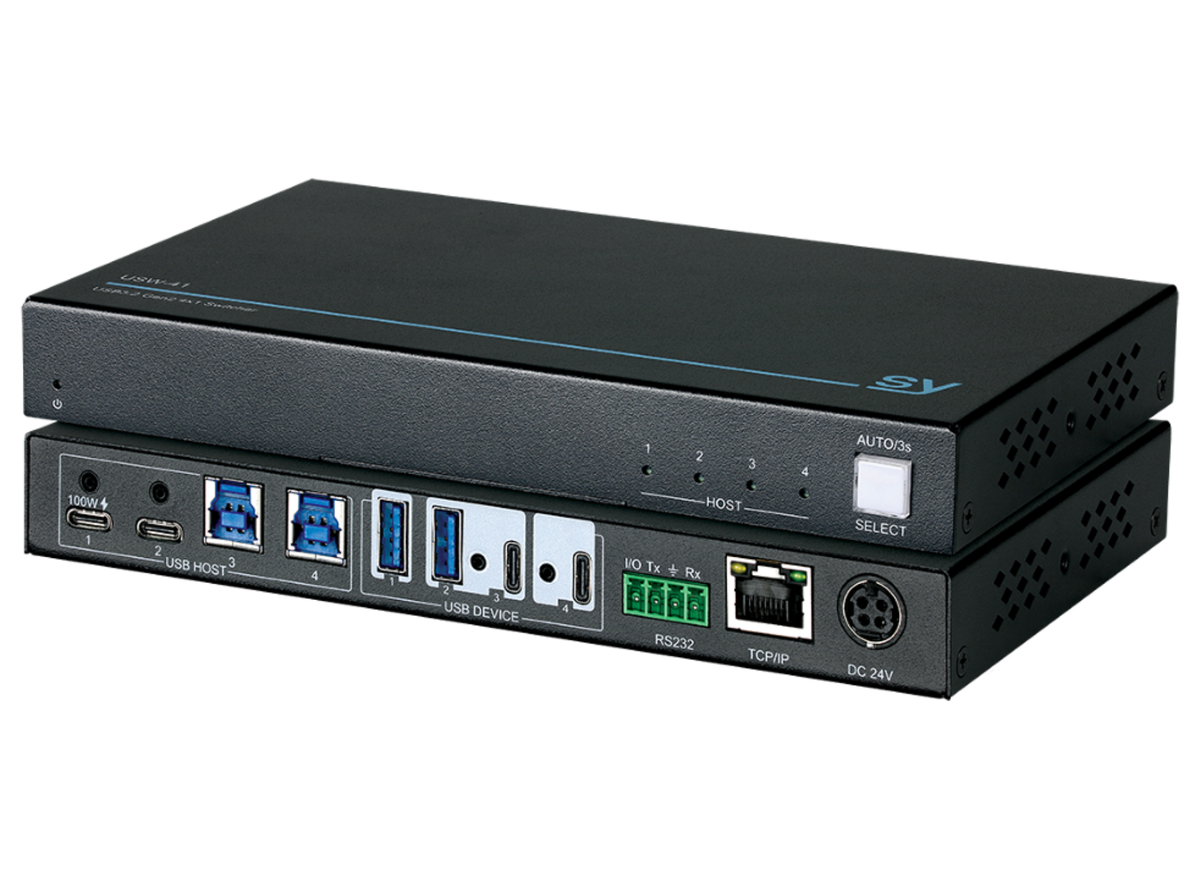

USW-41 – USB 3.2 Gen2 4x1 Switcher
The USW-41 is a high-speed USB switcher designed to share USB peripherals between up to four host devices. Engineered for demanding AV, conferencing, broadcast, and collaborative workspace environments, the switcher delivers USB 3.2 Gen2 performance with up to 10Gbps bandwidth while maintaining compatibility with 5Gbps USB devices.
Designed for modern USB integration, the USW-41 supports both USB-C and USB-B host connections, alongside USB-A and USB-C peripheral connectivity, making it ideal for mixed-device environments where flexibility and reliability are essential.
High-Speed USB Performance
Supporting USB 3.2 Gen2 with up to 10Gbps bandwidth, the USW-41 enables reliable high-speed switching for demanding USB devices including PTZ cameras, conferencing systems, audio interfaces, storage devices, touchscreens, and other professional USB peripherals.
The switcher also supports 5Gbps compatibility mode for seamless integration with USB 3.2 Gen1 and legacy USB devices.
100W USB-C Host Charging
Host 1 features USB-C connectivity with integrated 100W Power Delivery, allowing connected laptops or host devices to be charged directly through the switcher.
This simplifies meeting room and collaboration installations by reducing cable clutter while providing both USB connectivity and charging over a single USB-C connection.
Auto-Switching
The built-in Auto-Switching functionality allows the system to automatically switch USB device routing based on host connection status.
This simplifies operation in dynamic environments where laptops or host systems are frequently connected and disconnected, reducing manual switching requirements and improving user experience.
Flexible Control & Integration
The USW-41 can be controlled via Front Panel, RS232, TCP/IP, Web GUI, or GPIO, allowing seamless integration into professional AV and control system environments.
The built-in Web GUI provides convenient browser-based configuration and control, while Admin and User login modes help maintain system security by restricting access to advanced configuration settings where required.
Additional control and integration features include:
RS232 control
TCP/IP control
Auto-switching
Built-in Web GUI
GPIO input switching
Front panel control
Admin & User login modes
DHCP network support
Hostname-based Web GUI access
Plug-and-Play Operation
The USW-41 is designed for simple deployment with true plug-and-play functionality and no drivers required.
This allows fast installation and reliable operation across a wide range of operating systems and USB devices without requiring additional software configuration.
Optimised USB Power Delivery
The switcher provides up to 4.5A shared power delivery across connected USB devices, supporting reliable operation for power-demanding peripherals commonly used in professional AV environments.
This makes the USW-41 particularly suitable for conferencing cameras, USB audio devices, and other high-current USB peripherals.
Compact Professional Design
The USW-41 features a robust low-profile metal enclosure designed for professional installation environments.
Its compact form factor allows convenient mounting within AV racks, under tables, inside lecterns, or behind displays, while the metal chassis assists with heat dissipation for reliable long-term operation.
Features
4x1 USB switcher
USB 3.2 Gen2 support
100W USB-C Power Delivery (Host 1)
10Gbps bandwidth
5Gbps compatibility mode
5A shared USB device power
GPIO input control
Built-in Web GUI
Admin & User login modes
Plug-and-play operation

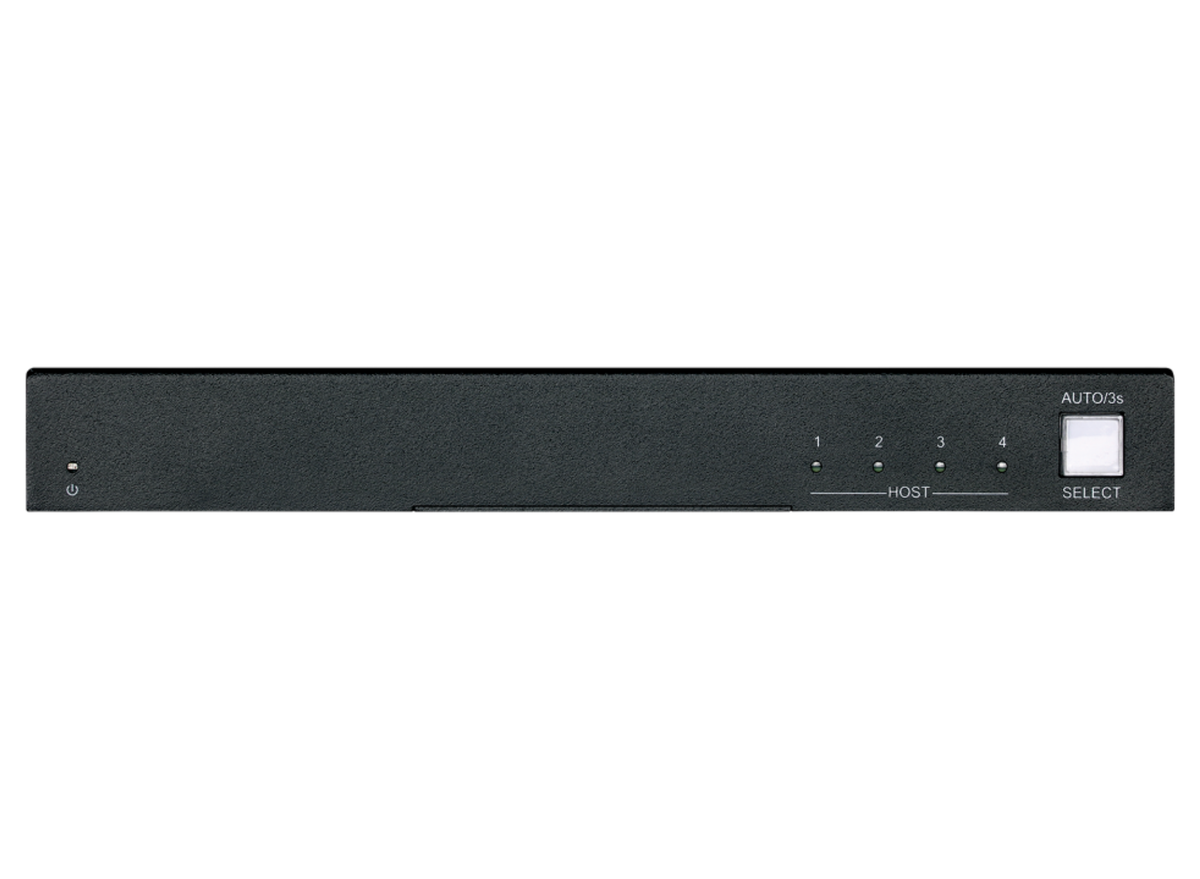

Front panel control
Auto-switching
RS232 control
TCP/IP control
| Host Ports | USB 3.2 Gen2 (10Gbps) | Device Ports | USB 3.2 Gen2 (10Gbps) |
| USB Host Connections | 2x USB-C Host Ports 2x USB-B Host Ports | Host 1 USB-C | Supports 100W Power Delivery Supports firmware upgrades |
| USB Device Connections | 2x USB-A Device Ports 2x USB-C Device Ports | Bandwidth | 10Gbps |
| Compatibility | Supports 5Gbps compatibility mode | USB Device Power | 5V at 4.5A shared between connected devices |
| USB-C Host Charging | 100W Power Delivery (Host 1) | RS232 Control | 57600 baud 8 data bits, 1 stop bit, no parity |
| TCP/IP Control | RJ45 Ethernet | GPIO Input Control | External input switching support |

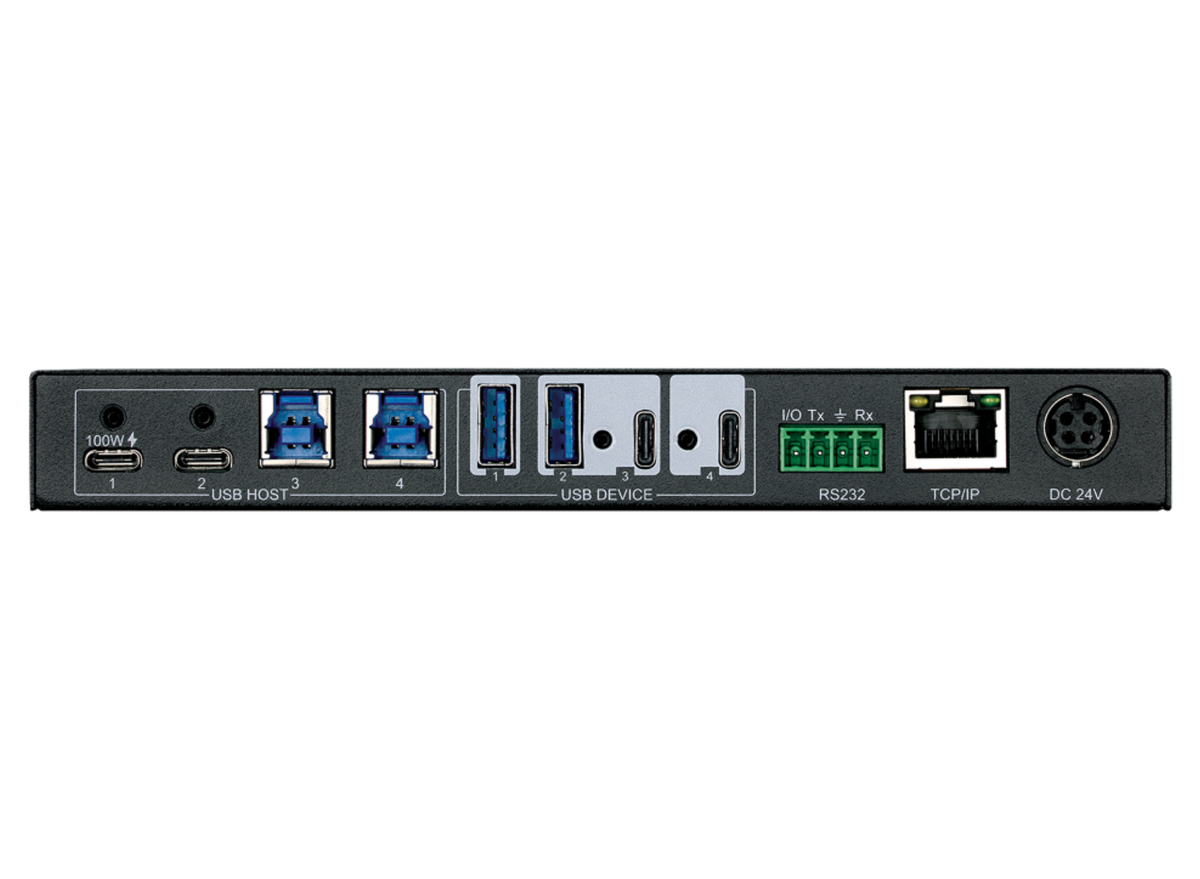

| Web GUI | Browser-based configuration and control | Connectors | 2x USB-C Host Ports 2x USB-B Host Ports 2x USB-A Device Ports 2x USB-C Device Ports 1x RJ45 TCP/IP Port 1x 4-Pin RS232 / GPIO Port 1x DC Power Input |
| Power Consumption | 139.5W Maximum | Power Supply | DC 24V 6.5A |
| Operating Temperature Range | -10°C to +50°C | Storage Temperature Range | -25°C to +70°C |
| Operating Humidity Range | 10% to 90% RH (Non-condensing) | Dimensions (WxHxD) | 185 x 23 x 110mm |
| Weight (Net) | 500g | What's in the Box | 1x USW-41 1x 24V DC 6.5A Power Supply 1x 4-Pin Terminal Block 2x Mounting Ears 4x Plastic Cushions 1x Installation Guide |
| Description | Downloads |
|---|---|
| Datasheet | Download |
