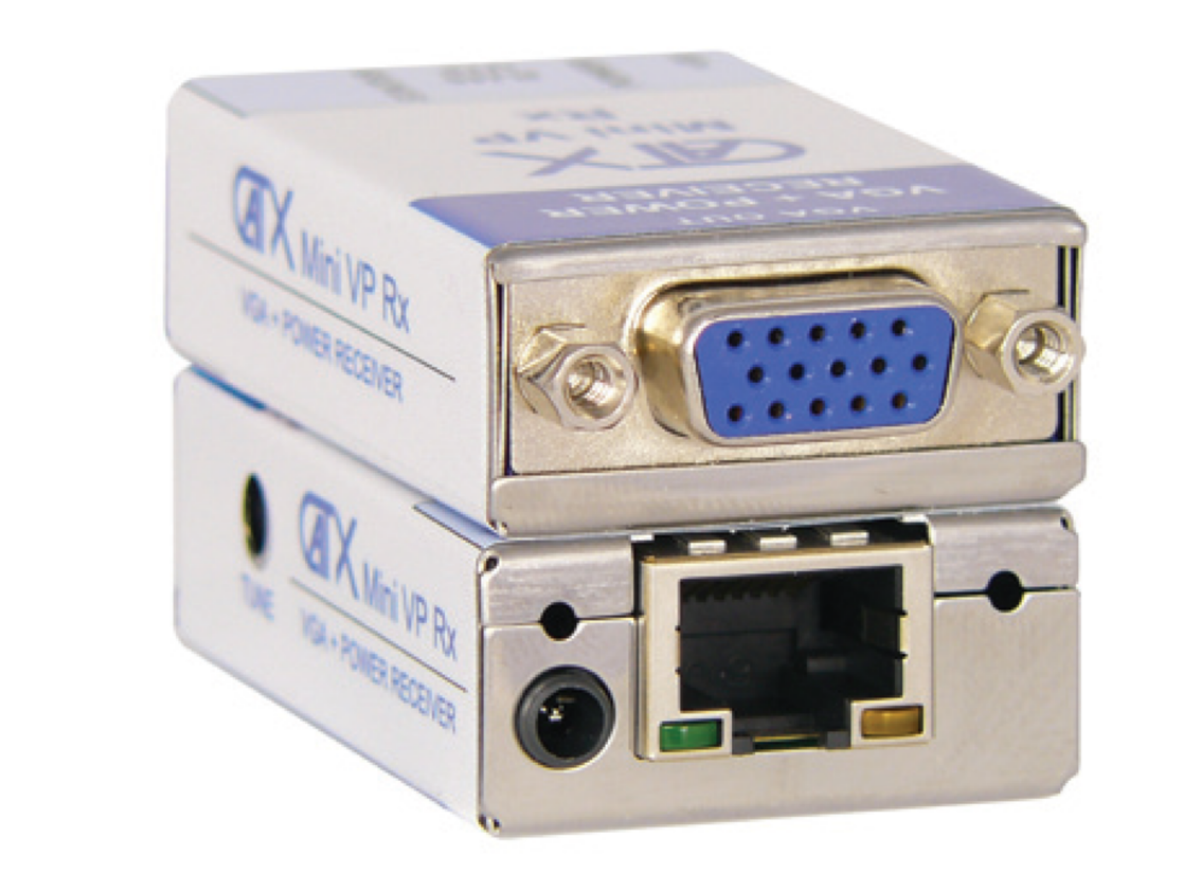

The CX-0M-VP-R is a CatX Mini VP Receiver offering VGA and power over cable solutions up to 150m.
CatX Mini VP units provide a unique solution for receiving a sharp high-quality VGA video and power from the CatX Mini VP Tx transmitter from up to 150m using low-cost Cat5 cabling.
The CatX Mini VP Rx unit, being only slightly larger than a VGA cable connector, can fit directly to the VGA monitor. The CatX Mini VP Rx unit takes its power directly by CatX Mini VP Tx, eliminating the need for any external PSU, further reducing cost. Continuous adjustability ensures perfect picture at any distance up to 150m.
All CatX VP units are compatible with all CatX Mini and CatX AVP transmitters/receivers. Considered as the smallest VGA Cat5 extender system in the market, the small size of the CatX Mini VP units ensures discrete connection to the VGA source and output display; perfect for installations with limited space.
Input : 1x RJ45 UTP connector
Output : 1x HD15 VGA female
Video levels : RGB: 0.7V into 75R, HV: TTL compatible
Video format : VGA – UXGA compatible 1080p HD compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported. Separate or composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
Max resolution over Cat5e : 1024x768 (PC) or 1280x720p (HDTV) - 150m; 1600x1200 (PC) or 1920x1080p (HDTV) - 40m
Dimensions 34mm [W] x 54mm [D] x 16mm [H]
Net Weight 50g
Gross Weight 120g
| Description | Downloads |
|---|---|
| Installation Guide | Download |
