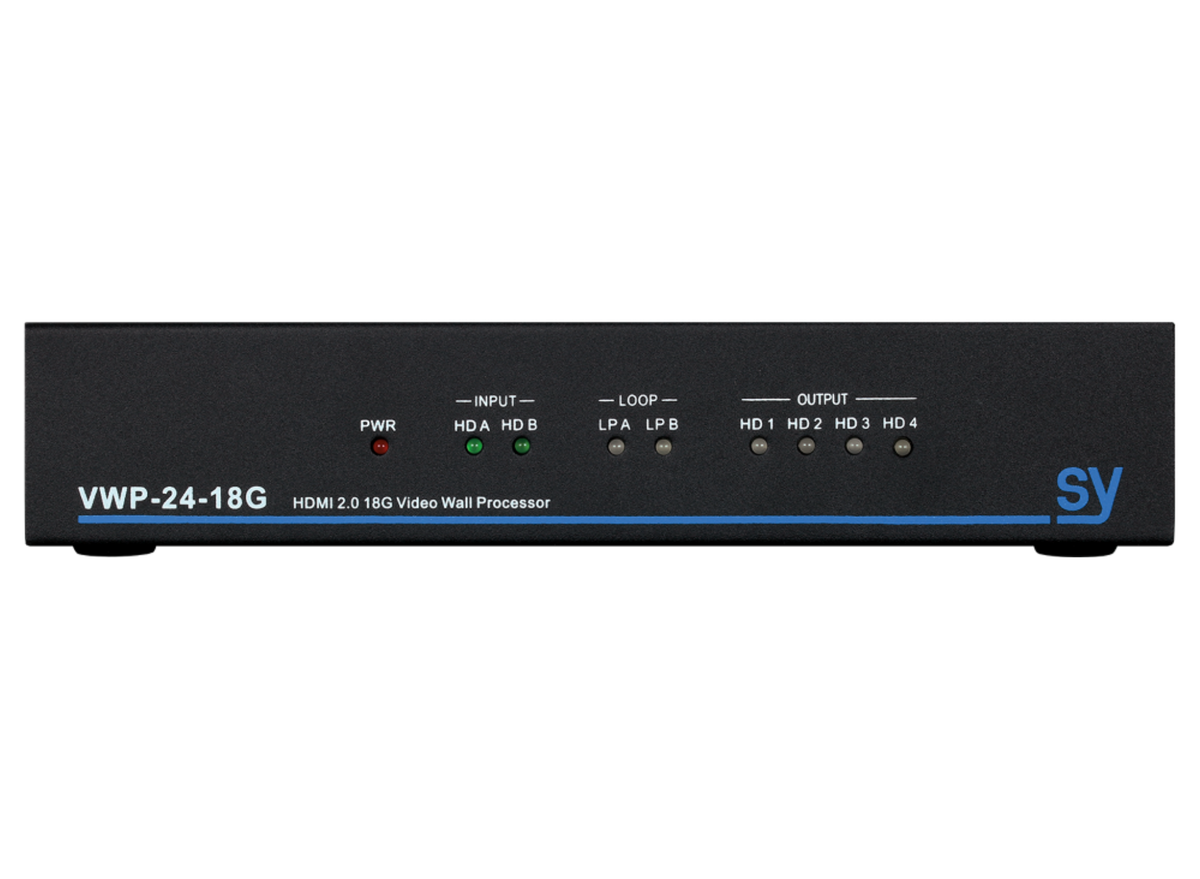

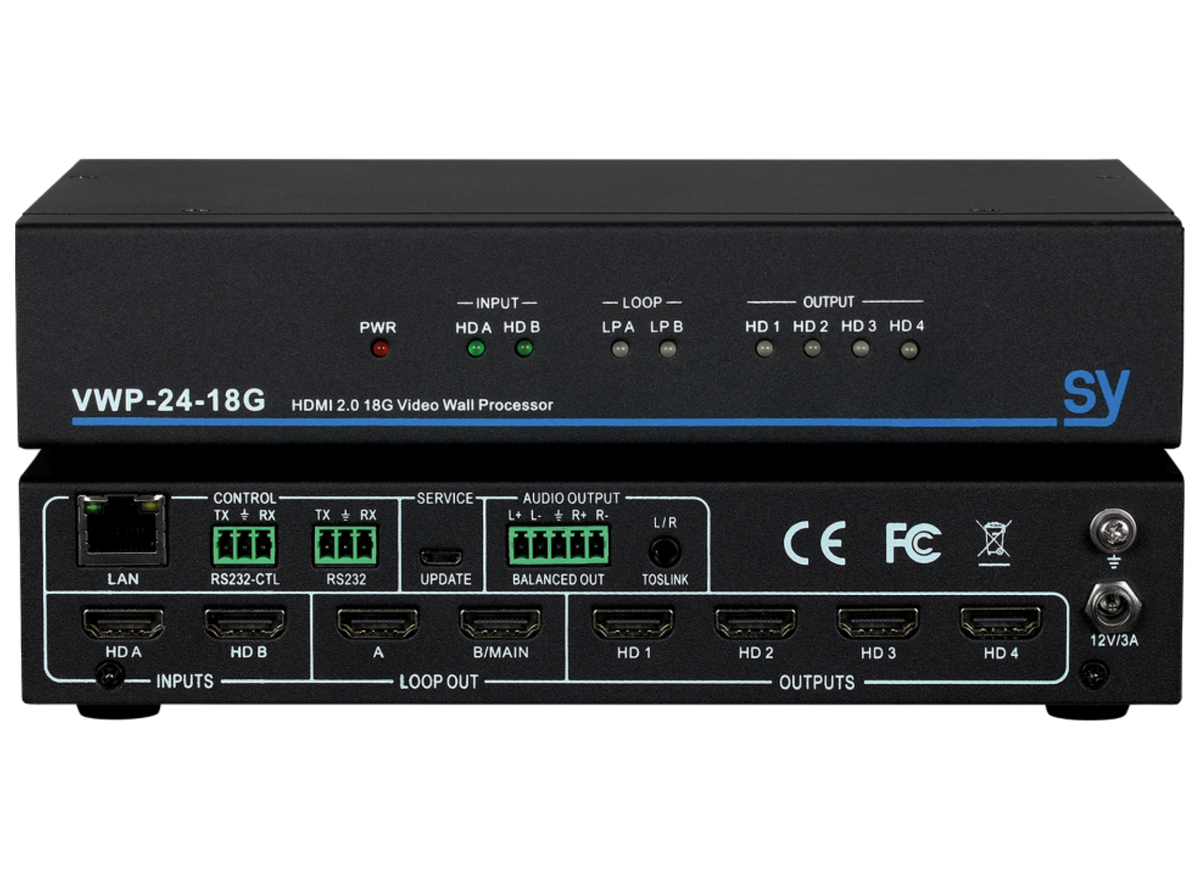

VWP-24-18G Dual input Video Wall Processor, with 4x HDMI outputs plus 2 local loop outputs.
Capable of creating up to a 2 x 2 Video Wall as a stand alone unit or cascade with other VWPs to create up to 8 x 8. The two HDMI Inputs can accept all resolutions up to 4K60 4:4:4. Each output has up/down wide range Scaling capabilities up to 4K60 4:4:4 (18G), optimising content on any display. Packed with features to aid system integration, suitable for a variety of applications within live events, commercial, education and the hospitality sector.
Video-Wall – Simple configuration to create up to a 2 x 2 Video Wall with a single unit, allowing a variety of configurations across 4 screens.
Expandable – Cascade multiple VWPs together to create large Video Wall configurations up to an 8 x 8 grid.
Screen Stitching – Allows adding or removing of selected displays from Video Wall or single display mode.
Bezel Compensation – Optimises and aligns content across multiple displays, reducing visual disruptions caused by physical bezels for a smooth and uninterrupted viewing experience.
Image Rotate – Rotate 180° to accommodate for image orientation when flipping displays.
Scenes – The ability to recall up to 10 memory pre-sets via the ‘Load Scene’/‘Save Scene’ commands, allowing you to switch between saved scene configurations.
18G Scaler – Up/down scaling up to 4K60 4:4:4 (18G). The built in Scaler enables all outputs to be scaled to most suitably match the target displays’ optimum resolution. Wide choice of 16 different Scaling options.
Audio Formats – Supported major formats including: 2.0 channel, 5.1 channel LPCM, Dolby, AC3, DTS.
De-embedded audio – Analogue balanced L+R and L/R unbalanced, Optical Mini-Toslink S/PDIF.
Test Pattern Generator – A built in test patten can be used for system commissioning, from image testing to cable link tests.
EDID Management – 16 built in pre-configured EDID memory positions to suite a variety of needs.
Control – The device can be controlled via RS232 or LAN. When cascading, each device can be assigned a unique ID for direct control.
PC APP – A dedicated PC Tool program is available for quick and easy configuration, this includes fine tune PQ per output/CEC control.
Features
Inputs: 2x HDMI 2.0, Outputs: 4x HDMI 2.0
Loop Outputs: 2x HDMI 2.0
Supports all resolutions up 4K60 4:4:4
4K wide range Up/Down Scaling
Dynamic single or multiple Video Wall capabilities
Cascade or daisy-chain
CEC control
Memory pre-sets
Bezel Compensation
Screen Stitching
Audio de-embedding
Extensive EDID Management
Test Pattern generator
HDCP 2.2
RS232, TCP/IP, PC App control

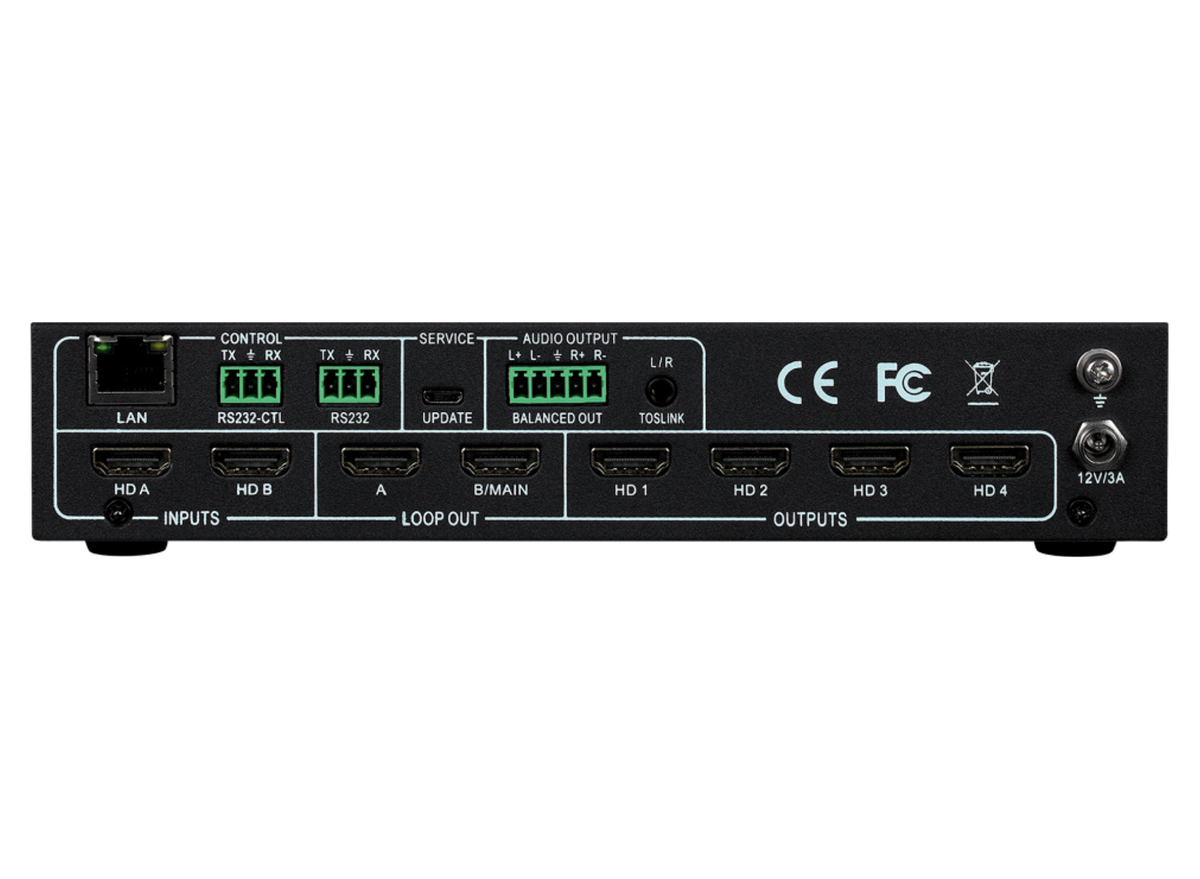

| Inputs – Video | 2x HDMI 2.0 | Outputs – Video | 4x HDMI 2.0 Video Wall outputs plus 2x Input Loop Outputs (Total of 6 outputs) |
| Audio |
Balanced Analogue audio via 5 pin screw terminals Unbalanced L+R analogue audio (via shared 3.5mm TRS Jack socket) Toslink Digital (via shared 3.5mm TRS Jack socket) |
Audio Format Supported | 2.0 channel, 5.1 channel LPCM, Dolby, AC3, DTS |
| Control |
2x RS232 ports via 3 pin screw terminals LAN RJ45 socket for TCP/IP |
RS232-CTL | (Tx, Rx) 57600 baud, 8 data bits, 1 stop bit, no parity |
| RS232 | (Pass-Through – Tx, Rx) Any baud rate to maximum of 115200. | Power | 12V DC 3A |
| Power Consumption | 40W Max | Operating Temperature Range | 0 to +40°C (+32 to +104 °F) |
| Operating Humidity Range | 10 to 90 % RH (non-condensing) | Dimensions (LxWxH) | 218 x 146 x 43 mm |
| Weight (Net) | 2kg (aprx) | What's in the Box |
1x VWP24-18G 1x 12V/3A adapter 1x 5 pin female captive screw connector 2x 3 pin female captive screw connector 1x User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Download |
