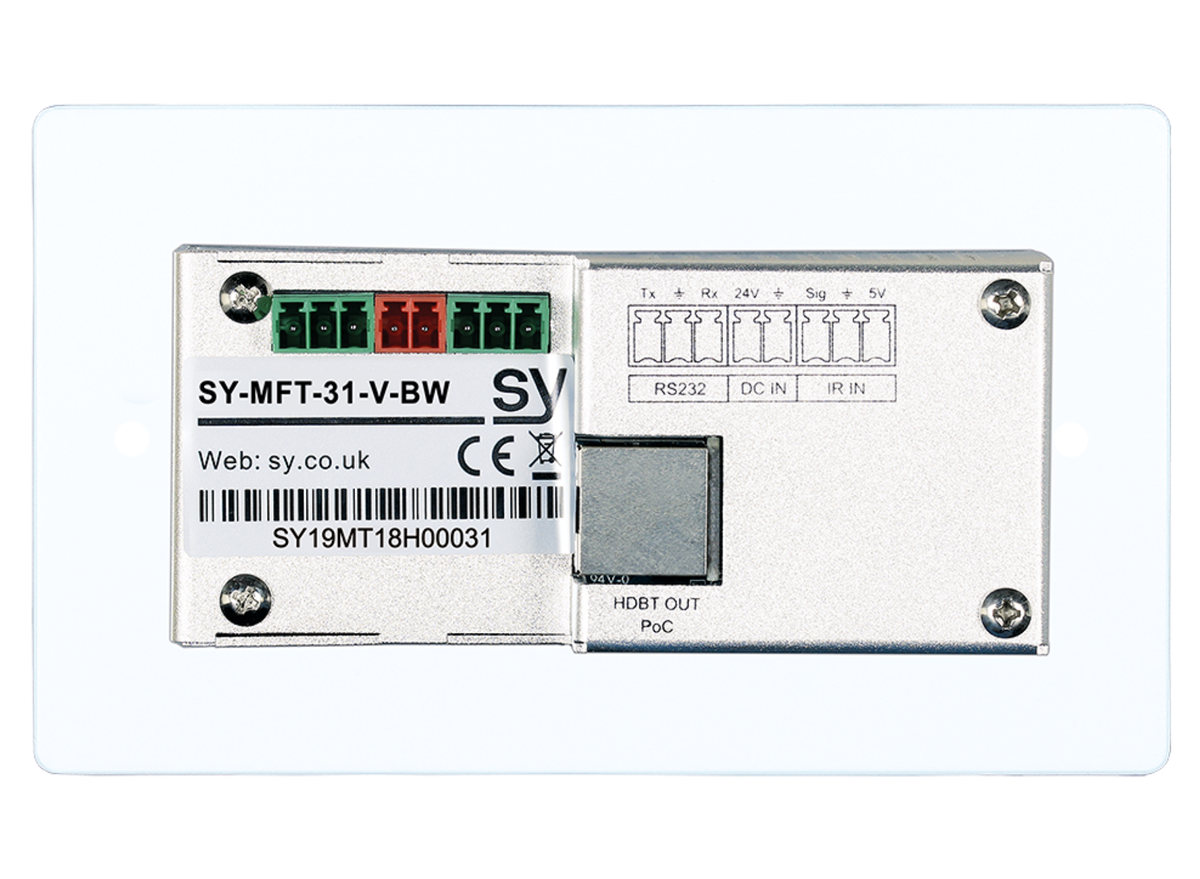

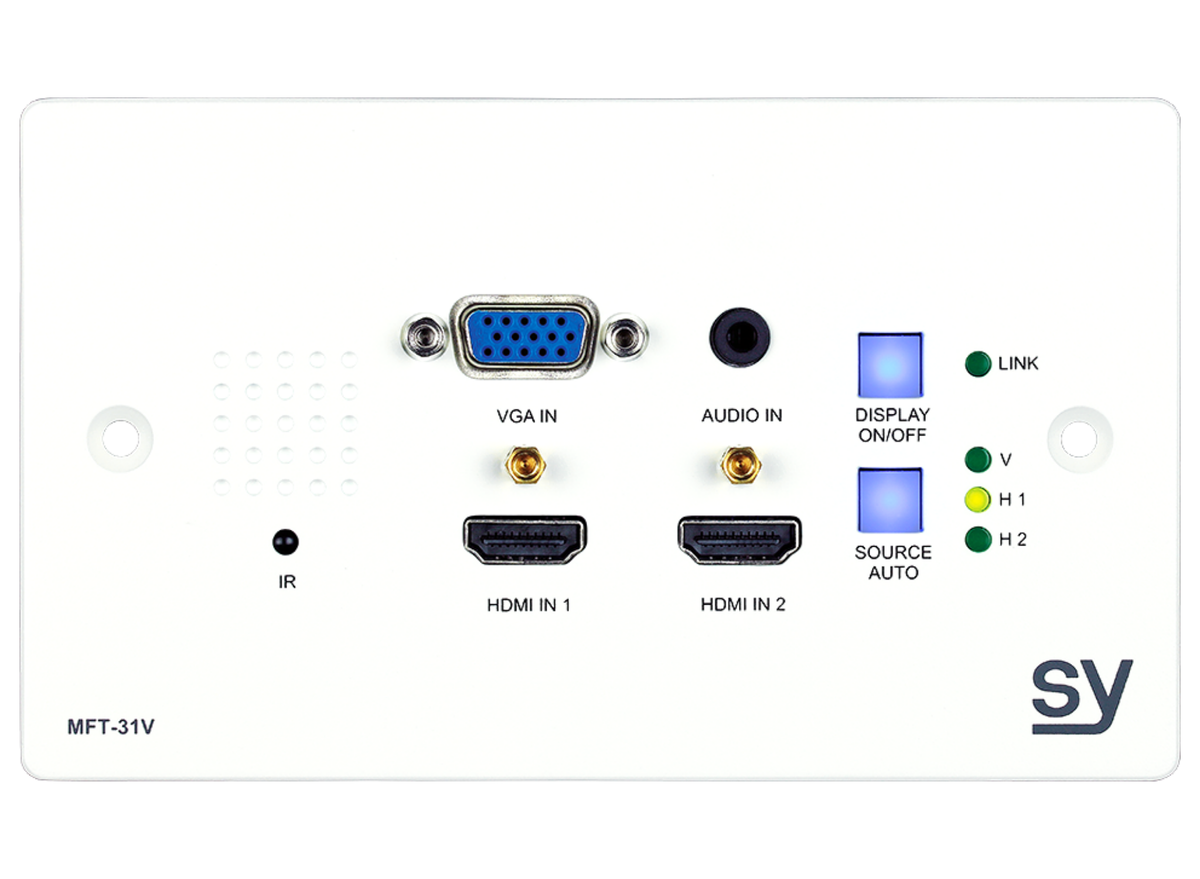

MFT-31V-W is a feature packed Muti-format wall-mounted HDBaseT Transmitter with a VGA and 2x HDMI inputs. The HDMI or VGA video signals can be selected (Auto/Manual) and extended to 70m @ 1080P or 40m @ 4K30 using a single cat6 cable. The HDBaseT output can be scaled (up or down) over a range of resolutions up to 4K30, with full control of HDCP up to 2.2, along with using an extensive choice of built in EDID or the connected display EDID.
The remote display can be turned ON/OFF (Auto/Manual) upon video detection or push-button, using RS232 or CEC. The SY-PCTools utility program simplifies customisation of parameters such as display ON/OFF commands, OFF command delay, EDID and HDCP management etc.
The pass-through RS232 port is also used for setup as well as control/monitoring of the unit. Both a remote and a built-in IR sensor are provided for extra flexibility.
PoC (Power over Cable) facility ensures installation flexibility, as only a single PSU is required to power both the transmitter and receiver units. The Slim70-R is an optimal HDBaseT Receiver choice. The MFT-31C is also available in Brushed aluminium finish. Designed to fit into a Standard UK double gang back box. (A USB C input version is available - MFT-31C-W, (USB-C & 2x HDMI inputs).
Many customers use this solution as a standard fit into podiums and multiple meeting rooms within a large venue complex, further offering an easy to use and consistent way of connecting users' devices to in-room displays with minimal effort. Fit and Forget. MFT31 units are the perfect choice for use in classrooms, meeting rooms or board rooms where a laptop, mobile or similar devices require accessible connection.
Features
HDMI inputs (2)
VGA + L/R Audio
Up/Down Scaler up to 4K30
HDBaseT output
40m @ 4K30 or 70m @ 1080p
HDCP control
RS232 control and pass-through
Built in IR Eye (Pass-through)
Auto/Manual input selection
Auto/Manual Display On/Off control
Bi-directional PoC
| Part Number | SY-MFT-31V-W | Video Inputs | 2x HDMI 1x VGA + L/R Audio |
| Audio Inputs | L/R 3.5mm Stereo Jack - 20Hz – 20kHz, 1.5Vrms max | Video Formats | VESA and SMPTE up to 2160p with 3D |
| HDMI Resolutions | All HDMI resolutions up to 3840x2160 @ 30Hz 4:4:4 / 60Hz 4:2:0 | PC Resolutions | All PC resolutions up to 1920x1200 @ 60Hz |
| Output Scaling | 1024x768 @60Hz 1280x720 @50Hz 1280x720 @60Hz 1360x768 @60Hz 1600x1200 @60Hz 1920x1080p @50Hz 1920x1080p @50Hz 1920x1080p @60Hz 3840x2160 @30Hz | HDMI Version | 1.4 |
| Bandwidth | 10.2Gbps | HDCP | 1.4, 2.2, Cascade mode |
| Maximum HDBaseT Range | 40m - 4K30 4:4:4 70m - 1080p60 | Control | RS232 IR Front Panel buttons Auto-Switching CEC |
| RS232 Baud Rates | 2400, 4800, 9600 (Default), 19200, 38400, 57600, 115200 bps | RS232 Format | 8 data-bits, No parity, 1 stop bit, No handshaking |
| Power Supply | 24V DC @ 1.25A via 2 pin phoenix screw terminal connector | Power Consumption | 5W max. (excluding HDBaseT Receiver) |
| Operating Temperature | -10 to +40°C (+14 to +104°F) | Operating Humidity | 10 to 90% RH (non-condensing) |
| Net Weight | 0.245kg | Dimensions (WHD) | 146 x 86 x 43mm |
| Case Material | Aluminium | Finish | White |
| Main Unit | 1x MFT-31V-W | Phoenix Connectors | 2x 3 pin phoenix screw terminal connectors |
| Power Adapter | 1x 24V DC 1.25A PSU with UK and EU plug adapters | User Manual | 1x User’s Manual |
| Description | Downloads |
|---|---|
| Datasheet | Download |
