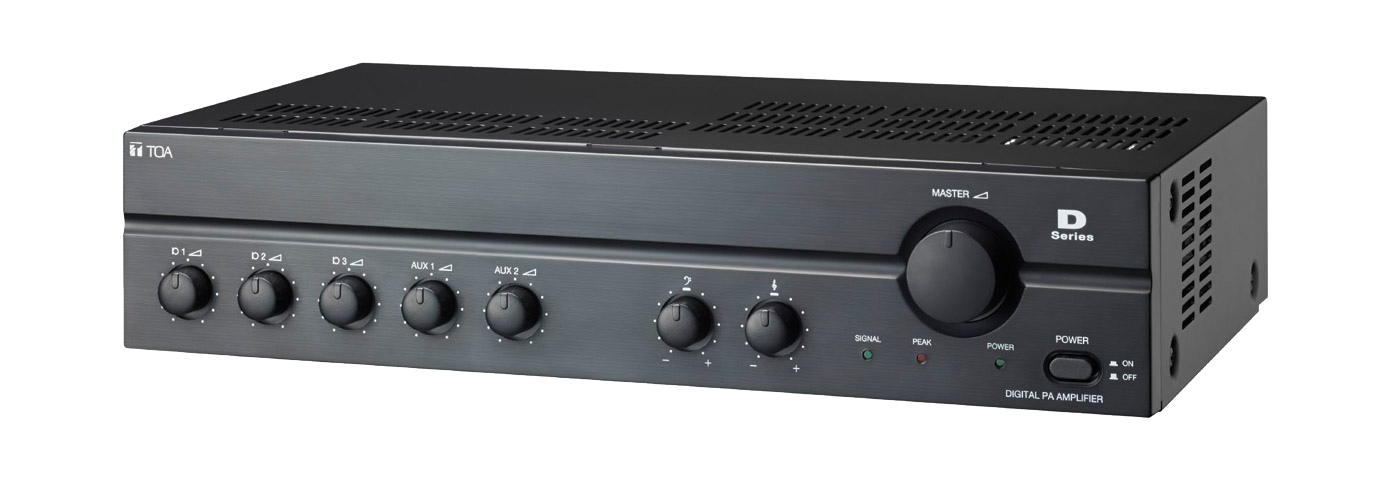

TOA A-2120DD Mixer Power Amplifier
SKU: A-2120DD
£208.59 (Excl. VAT)
- Description
- Specifications
- Downloads
-
TOA A-2120DD Mixer Power Amplifier | 120W, 3 Mic Inputs, Phantom Power, 100V Output
Digital Mixer Amplifiers
The A-2120DD-EB is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.• 3 microphone inputs, 2 AUX input and 1 recording output.
• DD-varieties with 2 phone jacks and 1 5-pin DIN input.
• D-varieties with 3 phone jacks.
• Speaker output of constant voltage distribution system (100 V).
• Independent tone control of boost and cut type for both high and low frequency.
• MIC 1 with phantom power and mute function.
• Current limiter to prevent damage due to current overload.
• Excess heat limit to protect the transistor and power transformer.
• Available in 30 W, 60 W, 120 W and 240 W rated output. -
Feature Description Power Source 220 – 240 V AC, 50 / 60 Hz Rated Output 120 W Frequency Response 50 Hz – 20 kHz (±3 dB) Distortion < 1 % (at 1 kHz, 1/3 rated output power) S/N Ratio 60 dB or more Number of Channels 1 Connectable Microphones 3 Inputs MIC 1: -60 dBV, 600 Ω, balanced, 5-pin DIN equivalent, phantom power selectable (+21V)
MIC 2-3: -60 dBV, 600 Ω, balanced, phone jack
AUX 1-2: -20 dBV, 10 kΩ, unbalanced, RCA pin jackControl Input Mute via DIN jack Outputs Speaker: Balanced (floating)
Rec Out: 0 dBV, 600 Ω, unbalanced, RCA Pin JackDimensions (W x H x D) 420 x 100.6 x 280.3 mm Dimensions (ø x D) Ø x 280.3 mm Finish ABS resin, Steel plate, Black -
Description Downloads TOA A-2120DD Mixer Power Amplifier DataSheet Download
