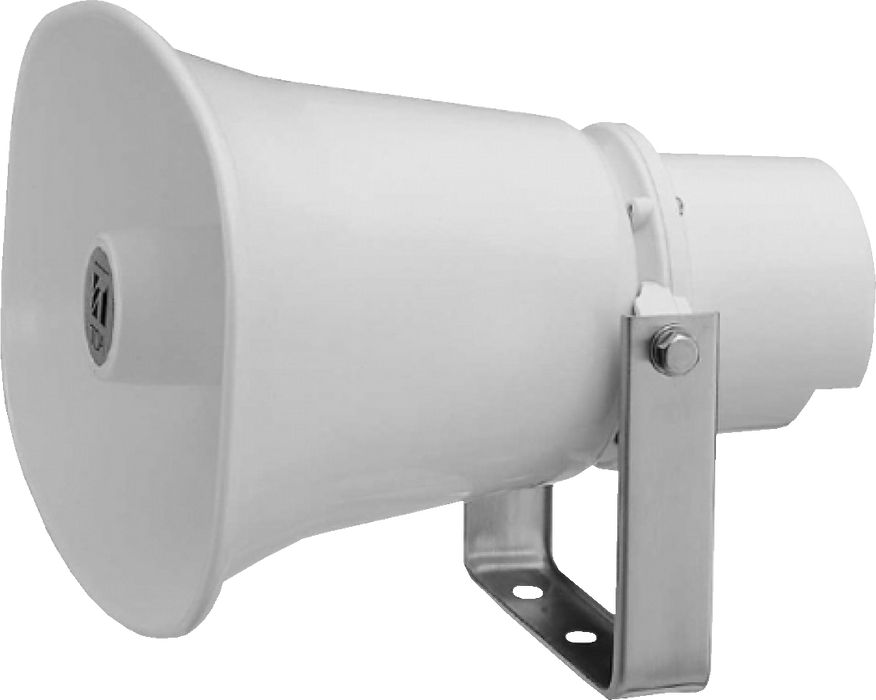

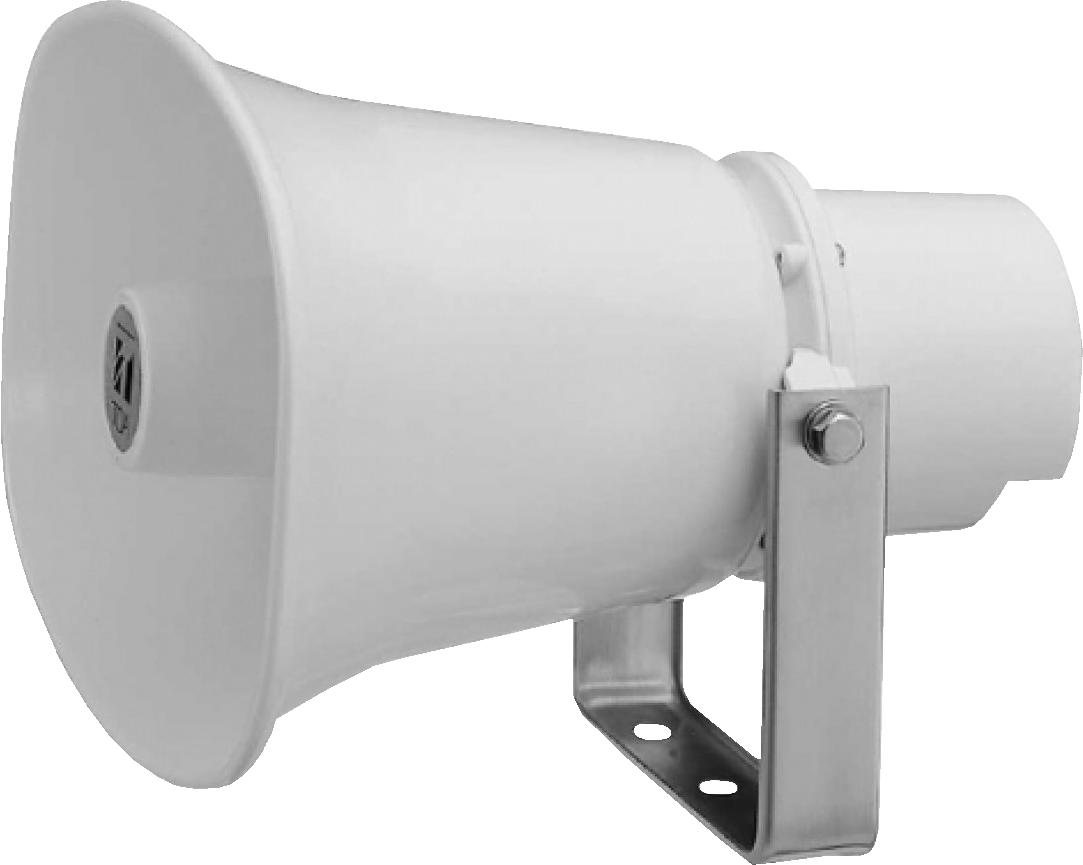

The SC-610M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
Key features
Delivers Clear Audio: High sound pressure level (110 dB) ensures intelligible voice announcements.
Weather-Resistant Design: IP65-rated and corrosion-resistant materials support outdoor use in typical conditions.
Durable Build: Shock-resistant aluminum horn and stainless steel hardware provide long-term reliability.
Compact and Lightweight: Easy to install in various locations, weighing only 1.2 kg.
Flexible System Integration: Equipped with an impedance selector for easy matching in distributed audio systems.
| Rated Input | 10 W | Rated Impedance (100V line) | 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) |
| Rated Impedance (70V line) | 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) | Sound Pressure Level | 110 dB (1 W, 1 m at 500 Hz–2.5 kHz peak level) |
| Frequency Response | 315 Hz – 12.5 kHz | Polarity | Hot: Black, Com: White |
| Dust/Water Protection | IP65 | Operating Temperature | -20°C to +55°C (-4°F to 131°F), no dew condensation |
| Finish (Horn Flare) | Aluminum, off-white, powder coating | Finish (Reflector & Rear Cover) | ABS resin, off-white |
| Bracket, Screws & Bolts | Stainless steel | Speaker Cable | PVC insulated cabtyre cable (6 mm diameter, 600 mm length) |
| Dimensions (W x H x D) | 172 × 161 × 188 mm | Weight | 1.2 kg |
| Optional Accessories | Swivel bracket: YS-151S (can replace supplied bracket) |
| Description | Downloads |
|---|---|
| TOA SC-610M Paging Horn Speaker DataSheet | Download |
