Horn Speakers

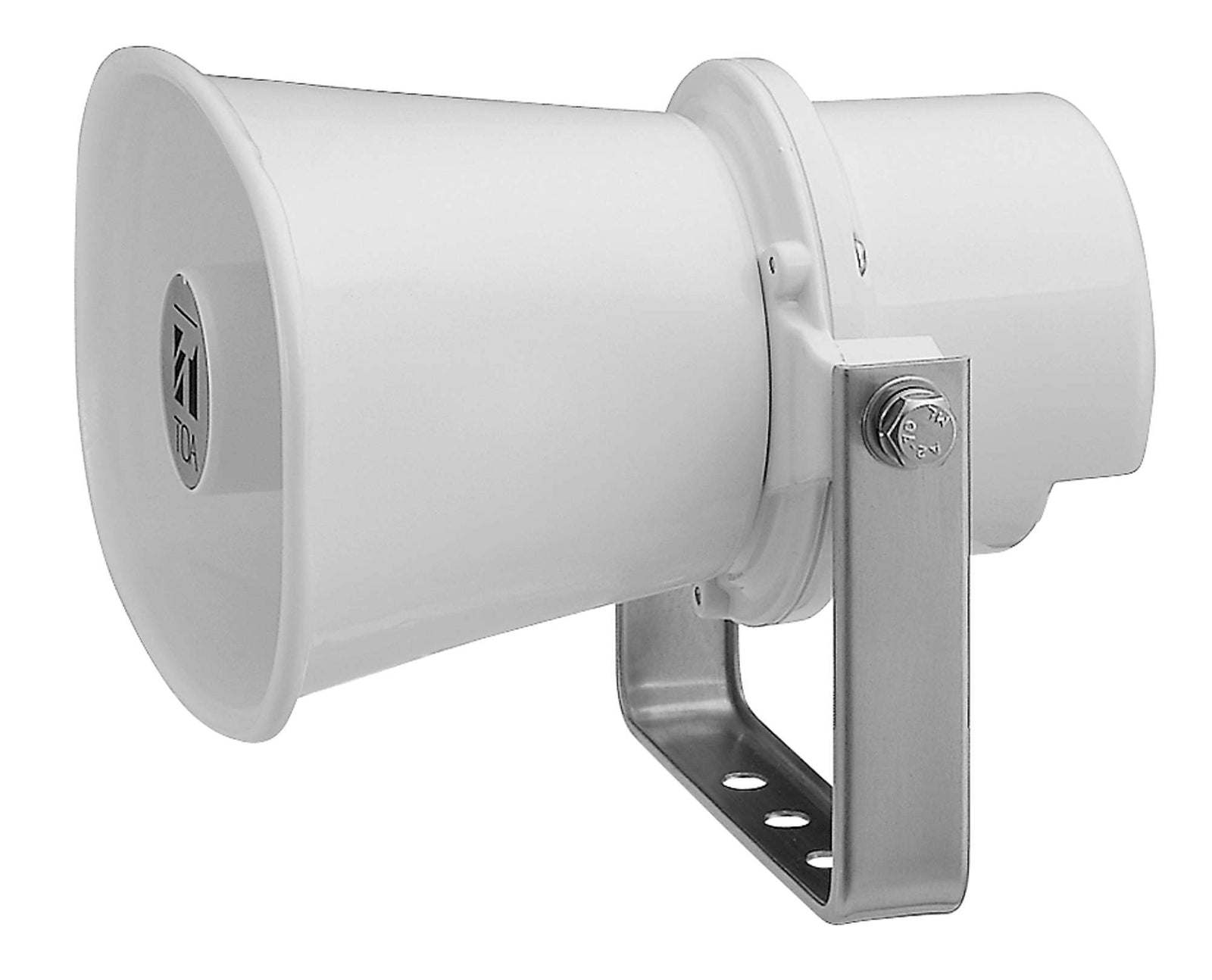

The SC-630M EB-Q is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. The SC-630M EB-Q is certified to the European Standard EN 54-24.
All weather durabilty
Very rugged and durable construction ensures long term reliable operation
High speech clarity
High SPL
Easy impedance selection
Certified according to EN 54-24
| Specification | SC-630M EB-Q | SC-615BS | SC-630M |
|---|---|---|---|
| Frequency Response | 250 Hz – 10 kHz | 315 Hz – 12.5 kHz | 250 Hz – 10 kHz |
| Sensitivity (1W/1m) | 113 dB | 109 dB | 113 dB |
| Max. SPL (1m) | 111 dB | 110 dB | — |
| Rated Input (100V) | 30 W | 15 W | 30 W |
| Tappings | 100 V: 30/15/10/5 W 70 V: 30/15/10/5/2.5 W |
100 V: 15/10/5/3 W 70 V: 15/10/5/2.5/1.5 W |
100 V: 30/15/7.5/5/2.5 W 70 V: 30/15/10/5 W |
| Finish | Aluminium, off-white (RAL9010) | Aluminium, off-white (RAL9010) | Aluminium, off-white (RAL9010) |
| Dimensions (W × H × D) | 285 × 227 × 277 mm | 172 × 195 × 229 mm | 285 × 227 × 277 mm |
| Weight | 2 kg | 1.5 kg | 2 kg |
| Operating Temperature | -20 °C to +55 °C | -20 °C to +55 °C (no condensation) |
-20 °C to +55 °C |
| Description | Downloads |
|---|---|
| TOA SC-630M EB-Q | Compact Horn Speaker with High Speech Clarity DataSheet | Download |
