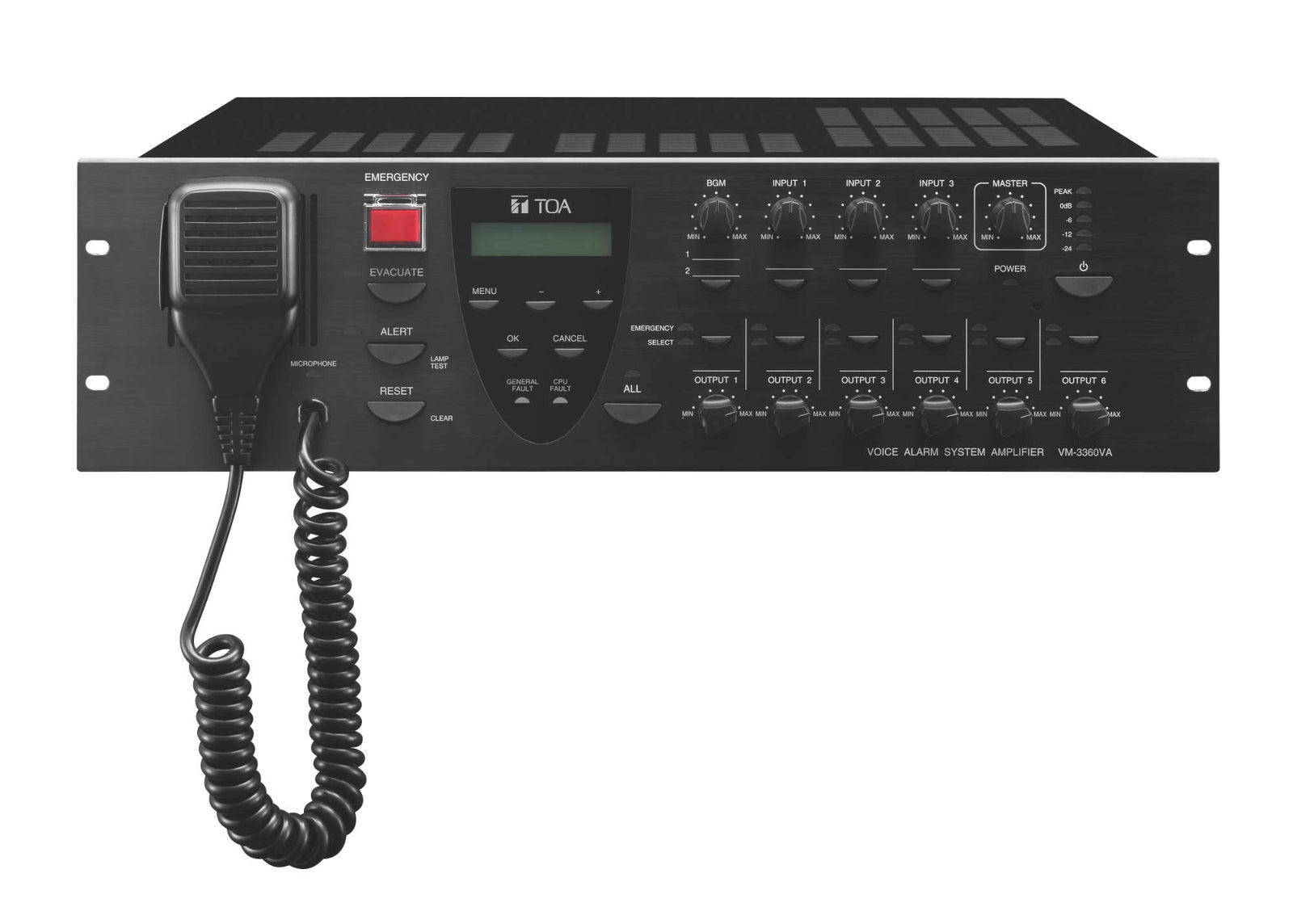

TOA VM-3360VA System Management Amplifier | Master, 1 Unit Per System

SKU: VM-3360VA
Part Number: VM-3360VA
Condition: Brand New
Purchase Orders Accepted
Save £1,146.31 Save £1,146.31

£1,763.54 (Excl. VAT)

Current price - £2,116.25 (Inc. VAT)
£1,763.54 - £1,763.54
Current price- - £2,116.25
Availability:
Only 1 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • TOA VM-3360VA System Management Amplifier | Master, 1 Unit Per System

    Digital microprocessor controlled voice alarm compact amplifier for voice alarm, announcements and background music. Integrated audio inputs, 8-level priority control, voice alarm control, power amplifier, circular dial and complete monitoring according to VDE 0833-4 and VDE 0828-1.

    6 switchable and adjustable volume speaker outputs with a total of 360 Watt of rated output. Three microphone / audio carrier inputs with switchable sensitivity as well as two stereo audio carrier inputs with volume control and tone control on front panel, one input switchable sensitivity and volume control back to prevent an intentional or unintentional adjustment, two speaking bus lines for up to four external stations.


    Front mounted acoustically and electrically monitored fire brigade microphone (fist microphone) with control panel for controlling the alarm: emergency one and out, range selection, selection of evacuation and warning text. Fault indication with plain text display of the occurred error, acoustic signal and reset button.

    Password-protected setting the equalizer settings, language, password many more. and display relevant system information via menu on alphanumeric two-line display.

    LAN connection for system programming and read out of the log with detailed event and error messages to diagnose locally or to remote diagnosis.

    8 universally usable inputs and 8 universally usable control outputs; 6 separate inputs for alarm control of the BMZ with switchable monitoring, one with 24-volt control (polarity); three separate control outputs with relay contacts for feedback to the BMZ: collective fault signal (changeover contact), emergency (changeover contact) and activated CPU off (make contact). Each line output a switching relay for example external volume control in 3- and 4-wire technology.

    An appropriate additional amplifier can be used as a rescue and announcement enhancer, in the second case, announcements are made without the interruption of background music in durchsagelose areas can be made. The monitoring of the additional amplifier is taken over by the compact amplifier. Extension of the system up to 60 areas with suitable extension amplifiers possible.

    The user-friendly multilingual programming software on Windows(R)is included.

  • Feature VM-3360VA
    Power Source 230 V AC, 50 / 60 Hz
    Power / Current Consumption 850 W (at rated output), 380 W (EN 62368-1)
    Frequency Response 50 Hz - 20 kHz
    Rated Output 360 W total into 6 zones
    Control Input Control input 1 - 8: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: under 2 mA, removable terminal block (14 x 2 pins)
    Control Output Control output 1 - 8: Isolated open collector output, withstand voltage: 30 V DC, operating current: under 10 mA, removable terminal block (14 x 2 pins)
    Operating Temperature -5 °C to +45 °C
    Finish Aluminium, Steel plate, black
    Dimensions 482 x 132.6 x 431.2 mm (W x H x D)
    Weight 19 kg
    Distortion < 0.7 % (at 1 kHz, rated power)
    S/N Ratio 85 dB(A) (or more)
    Inputs Input 1 - 3: -50 dBV (MIC) / -10 dB (LINE) (changeable), 600 Ω, electronically balanced, combined XLR connector (female) / phone jack <br> Input 4: -50 dBV (MIC) / -10 dBV (LINE) (changeable), 600 Ω, electronically balanced, on removable terminal block (14 x 2 pins) <br> BGM 1 - 2: -10 dBV, 10 kΩ unbalanced, RCA pin jack (2 x 2) <br> External amplifier Input: 100 V Line, removable terminal block (14 pins)
    Outputs Speaker output 1 – 6: Total within rated output, removable terminal block (14 pins) <br> Direct output from internal or external amplifier, removable terminal block (16 pins) <br> Recording output BGM / Paging 0 dBV, 10 kΩ, unbalanced, RCA pin jack
    Indicator Power, 5-segment bargraph level meter, selected zone, emergency zone active, evacuation active, alert active, front panel microphone active, general fault, CPU fault, menu driven LCD for date, IP address, password etc.
