TOA VX-015DA 31 V DC Operating Range System Amplifier
SKU: VX-015DA
£316.85 (Excl. VAT)
- Description
- Specifications
- Downloads
-

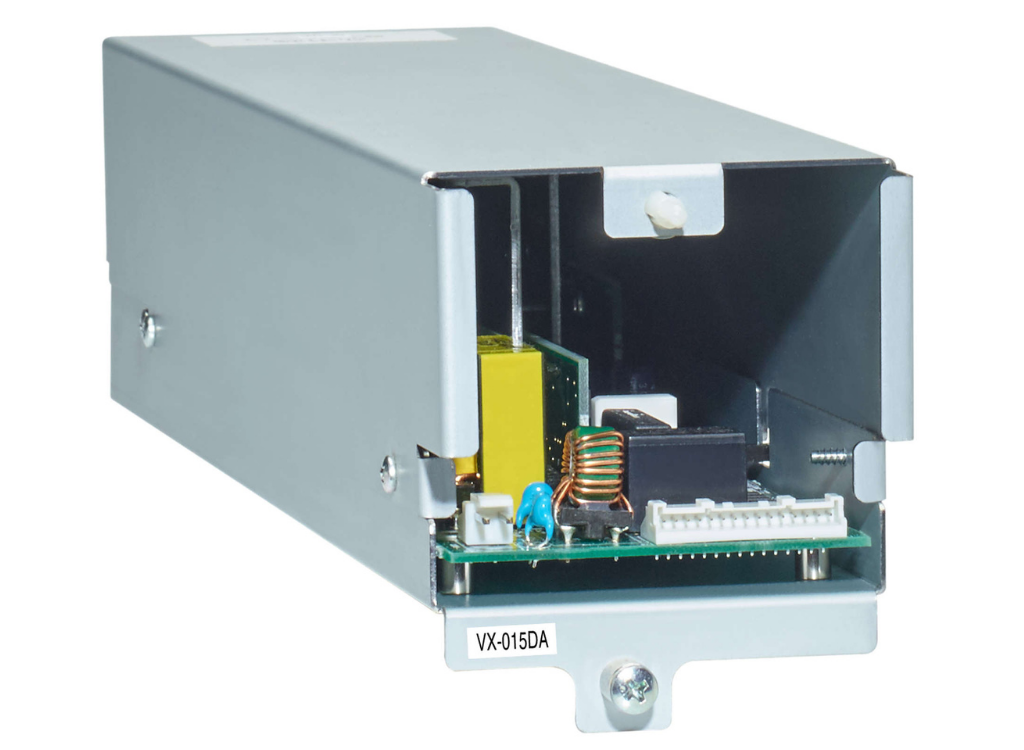

TOA VX-015DA 31 V DC Operating Range System Amplifier
The VX-015DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-015DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F and power supply unit VX-3000DS.
Low loss modular class-D amplifiers
Modules to be mounted in the frame units
Rated power at 100 V: 150 W
Can easily be removed or replaced
Dust filter, easy to clean
50/70/100 V Output without transformer resulting in light-weight units
Fuse easily accessible from rear
Discover our products in 3-D view – and project them via AR into any room and get 3-D all-round view in real time
How can I turn, enlarge, move the object?
Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.Zoom: To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.
Move the entire object: Hold right-click and drag or on a touchscreen please drag with 2 fingers.
Project into my own space: Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.
Application examples for this product:
Public buildings
Airports
Hotels
Industrial facilities
Educational facilities
Hospitals / Health care
Retail stores -
Specification VX-015DA Power source 31 V DC operating range: 20 – 33 V DC Power / current consumption 1.3 W (standby mode), 14 W (idle), 40 W (EN 62368-1: 1/8 rated output), 190 W (rated output) Frequency response 40 Hz - 20 kHz Rated output 150 W 100 V Finish Steel plate Dimensions 79 x 91 x 358.2 mm (W x H x D) Weight 1.4 kg Distortion < 1 % (at 100 V line, A-weighted) S/N ratio 100 dB(A) (or more at 100 V, A-weighted) Inputs DA control link (15-pin connector) Outputs 100 V/70 V/50 V selectable Number of channels 1 -
