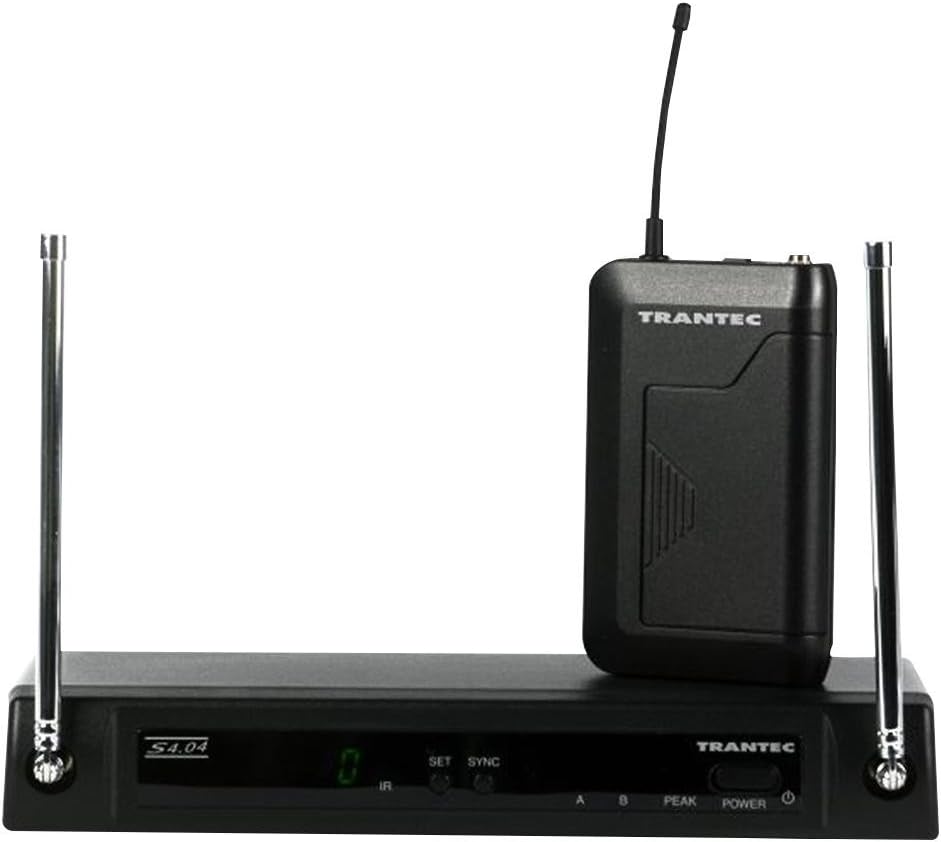

The S4.04 Series Beltpack system comes with a beltpack transmitter and a UHF wireless tuner. Available on channel 70 with 4 switchable licence free frequencies and fully synthesized PLL quartz tuning technology.
| Diversity Reception | Antenna Diversity | Sensitivity | 10uV at 45dBA, S/N |
| Squelch Tone | SQ, Carrier SQ, Noise SQ | Audio Frequency Response | 50Hz – 15kHz |
| Audio Output Level (Max.) | Balanced (XLR): -20dBu Unbalanced (1/4″): 10dBu |
Power Supply | 12 VDC, 500mA |
| Receiver Dimensions | 215(W) x 39(H) x 102(D) mm | Receiver Weight | 480 g |
| RF Carrier Power | 10 mW | Transmitter Frequency Response | 50Hz – 15kHz |
| Audio Input Level | -6dBV (max), mic gain 0dB | Battery Life | Approx. 10 hours |
| Transmitter Power Supply | 1 x AA Battery (1.5V) | Finish | Resin, coated |
| Transmitter Dimensions | 62(W) x 100(H) x 25(D) mm | Transmitter Weight | 85 g (with battery) |
