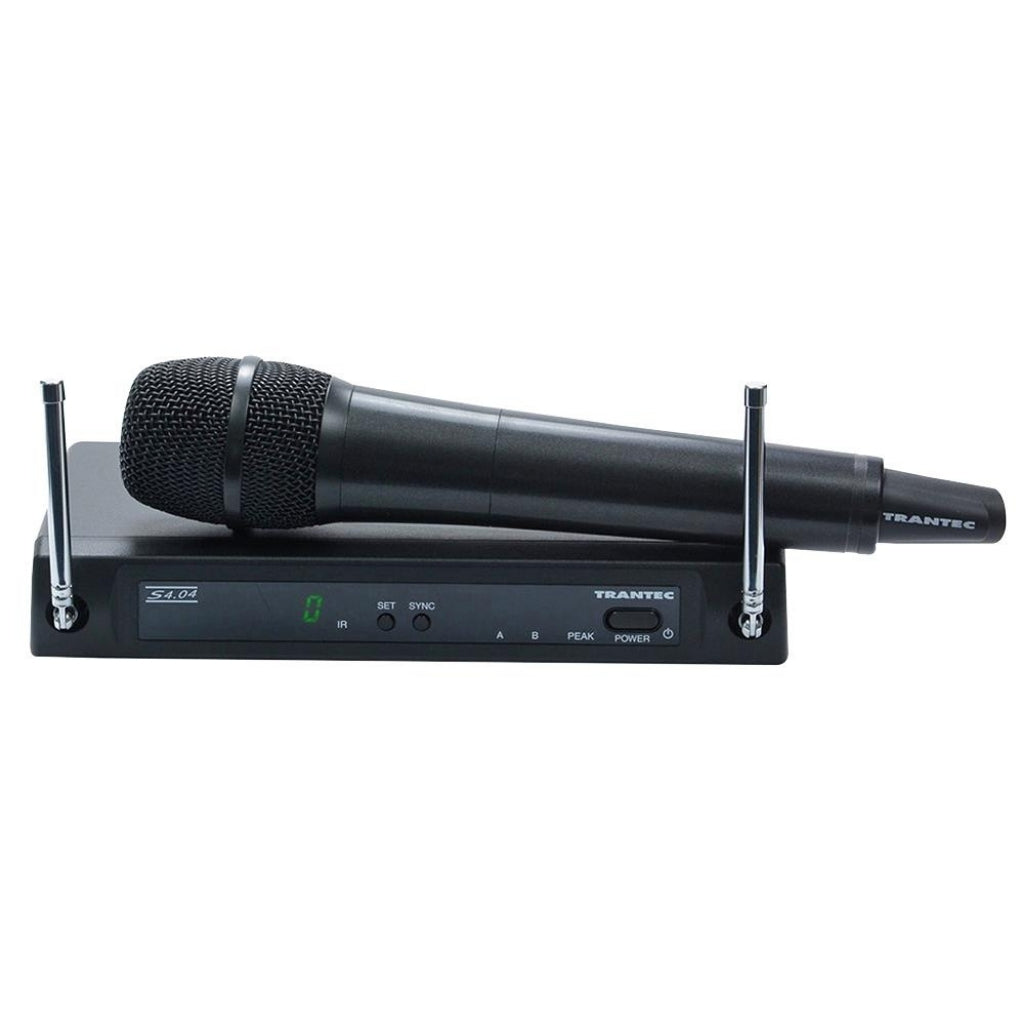

The Trantec S4.04-HD-EB-GD5 is a Handheld microphone system contains a wireless handheld microphone and a UHF wireless receiver. This system is available on channel 70 with 4 switchable licence free frequencies and fully synthesized PLL quartz tuning technology.
The S4.04-HDX-EB WD5 is a handheld microphone available on channel 70 with 4 switchable licence free frequencies and fully synthesizer PLL quartz tuning technology. This mic is perfect for lecture hall or public announcement situations.
| Feature | Description |
|---|---|
| Receiver | |
| Diversity Reception | Antenna Diversity |
| Sensitivity | 10 µV at 45dBA, S/N |
| Squelch | Tone SQ, Carrier SQ, Noise SQ |
| Audio Frequency Response | 50 Hz – 15 kHz |
| Audio Output Level (Max.) | Balanced (XLR): -20 dBu / Unbalanced (1/4″ jack): 10 dBu |
| Power Supply | 12 VDC 500 mA |
| Dimensions | 215 (W) x 39 (H) x 102 (D) mm |
| Weight | 480 g |
| Microphone | |
| RF Carrier Power | 10 mW |
| Audio Frequency Response | 80 Hz – 15 kHz |
| Audio Input Level | 140 dB SPL (max) |
| Battery Life | Approx. 10 hours |
| Power Supply | 1 × AA battery, 1.5 V |
| Finish | Resin, Coating |
| Dimensions | 250 x 55 mm |
| Weight | 245 g (with battery) |
