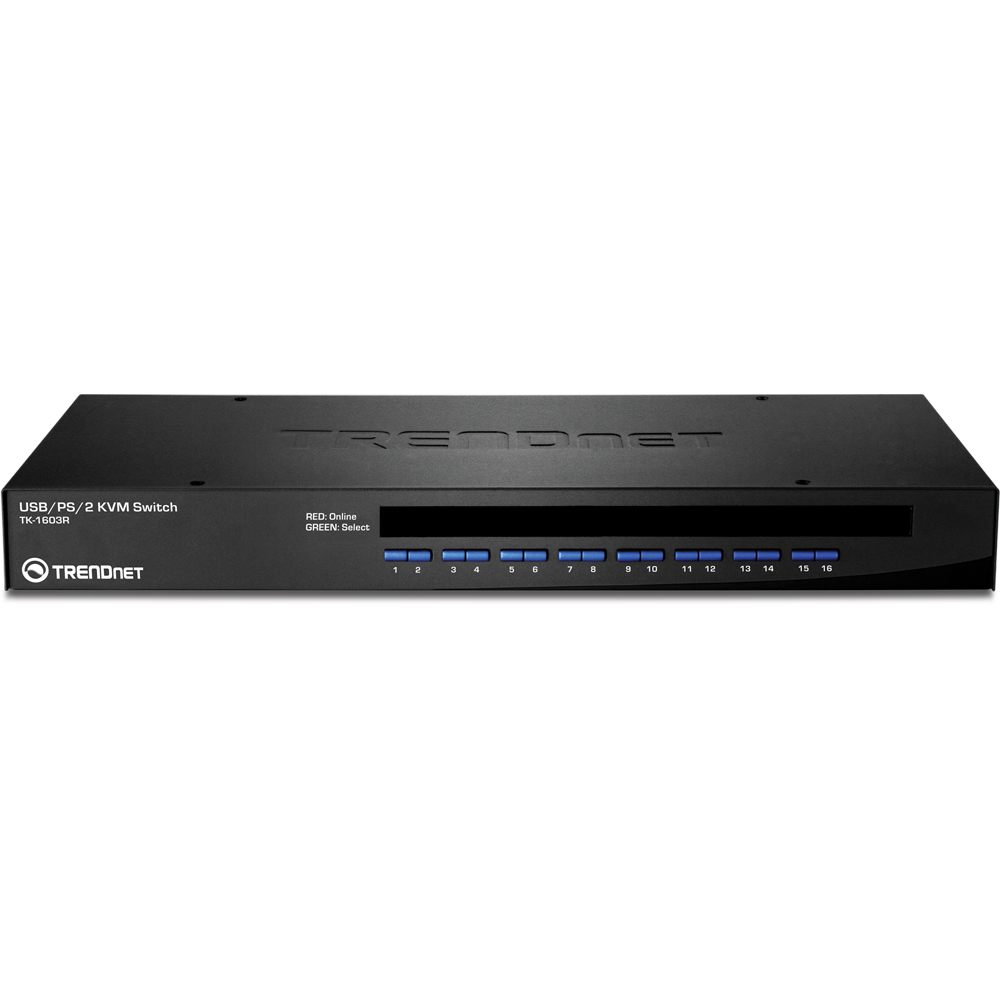

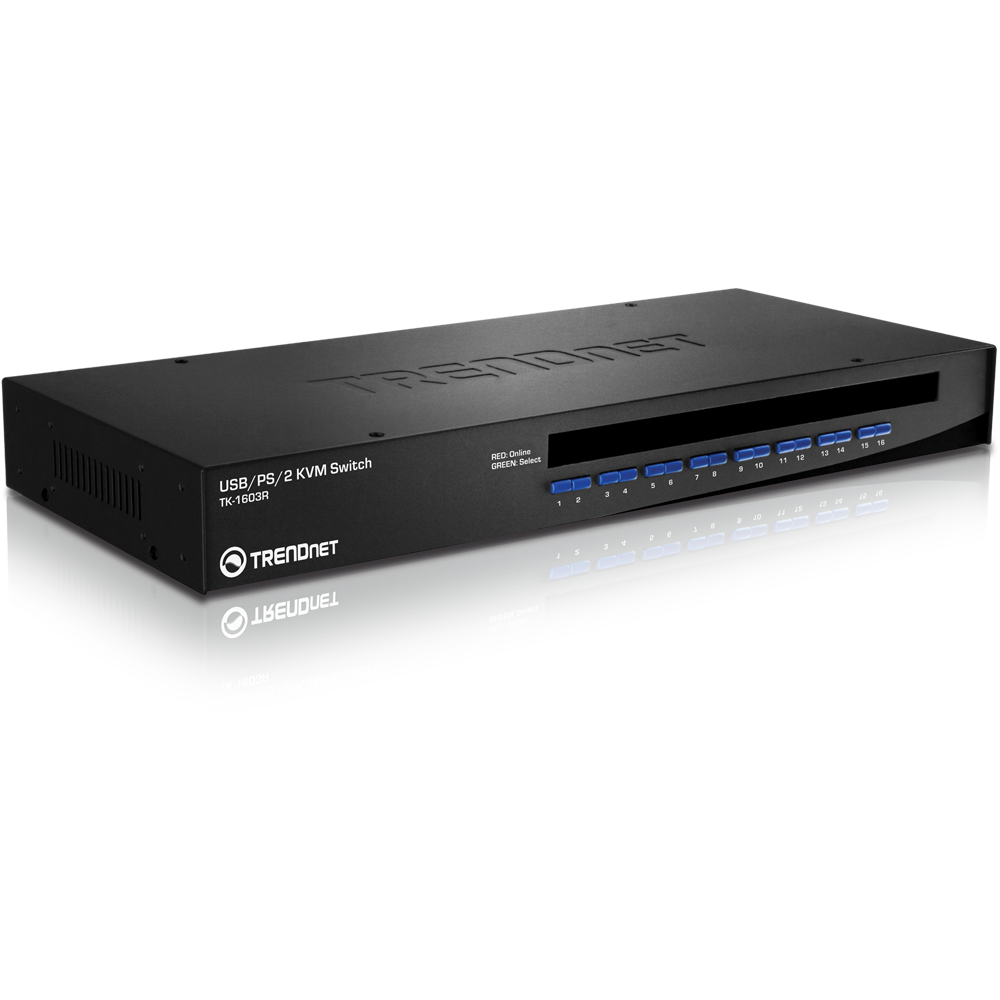

Trendnet 16-Port Rack Mount USB KVM Switch | TK-1603R
SKU: TK-1603R
£290.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Trendnet 16-Port Rack Mount USB KVM Switch | TK-1603R
The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.
Controls up to 16 computers or servers
Supports both USB and PS/2 Interface for console port
Supports Windows, Linux, Mac and more
High video quality- up to 2048 x 1536 VGA resolution
Firmware upgradeable via PC port
Auto-Scan and LED display for monitored PCs
Keyboard status restored when switching between PCs
LEDs display for easy status monitoring
Beeping sound for port switching confirmation
Hotkey or push button switching
Plug & Play and hot-pluggable
Standard 19” (1U) rack mount design
2-year limited warranty -

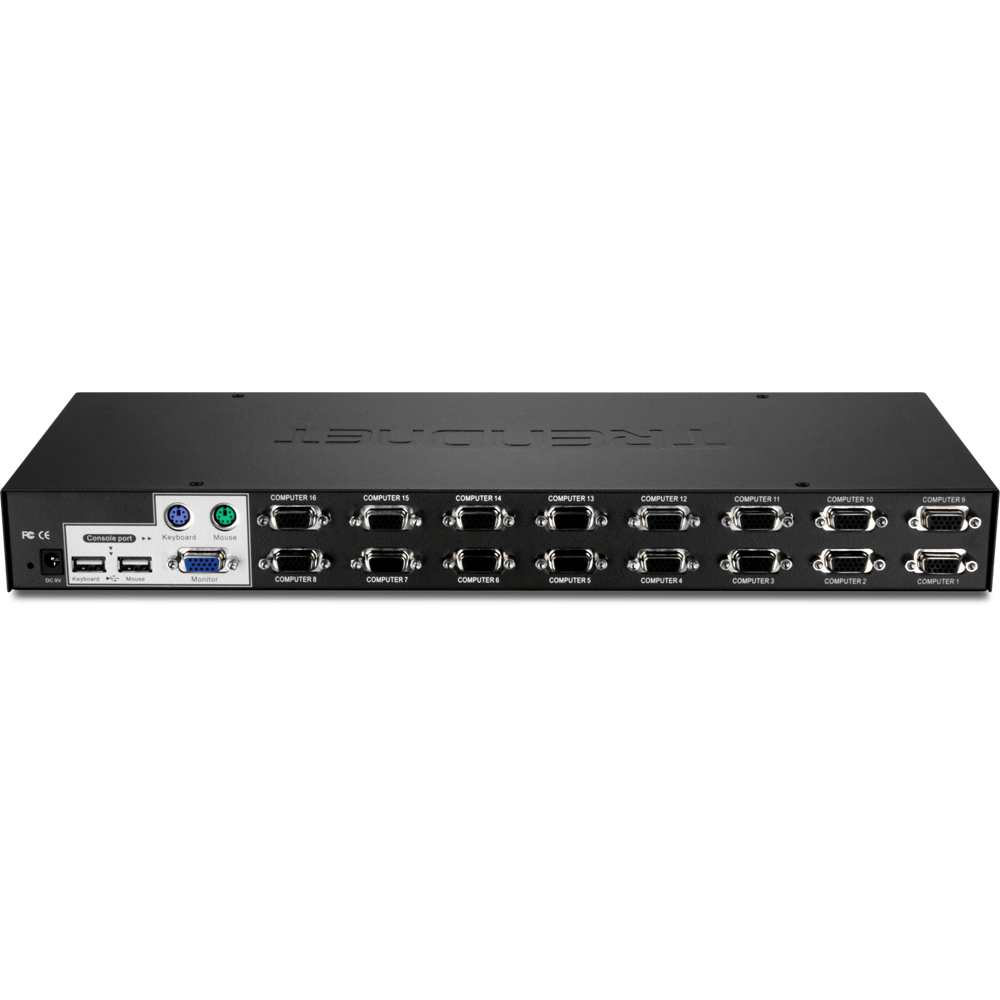

Feature Details Connections 16 computers or servers Standard USB 1.1 Compliant PC Port 16 x VGA HDB 15-pin (female) Console Port 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Mouse 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Keyboard 1 x VGA HDB 15-pin (female) Cable Interface (Optional, not included) To KVM: 1 x VGA HDB 15-pin (male) To PC: 1 x VGA HDB 15-pin (male), 1 x USB (Type A) Supported OS Windows, Linux, and Mac PC Selection Hot-Key or Push Buttons Auto-Scan Interval 10-100 seconds (Programmable through Hot-Key) LEDs On-line (Red), Select (Green) Keyboard Status Saved & Restored Power Adapter Input: 100 ~ 240 V AC 50~60 Hz Output: 9 V DC 1 A external power adapter Dimensions 407 x 165 x 45mm (16.0 x 6.5 x 1.8in.) Weight 2.04kg (4.5lb) Temperature Operating: 0°C 40°C (32°F104°F)Storage: -20°C 60°C (-4°F140°F)Humidity Max. 80% (non-condensing) Certification CE, FCC Package Contents TK-1603R, Quick Installation Guide, Power Adapter (9 V DC, 1 A), Rack Mount Kit -
